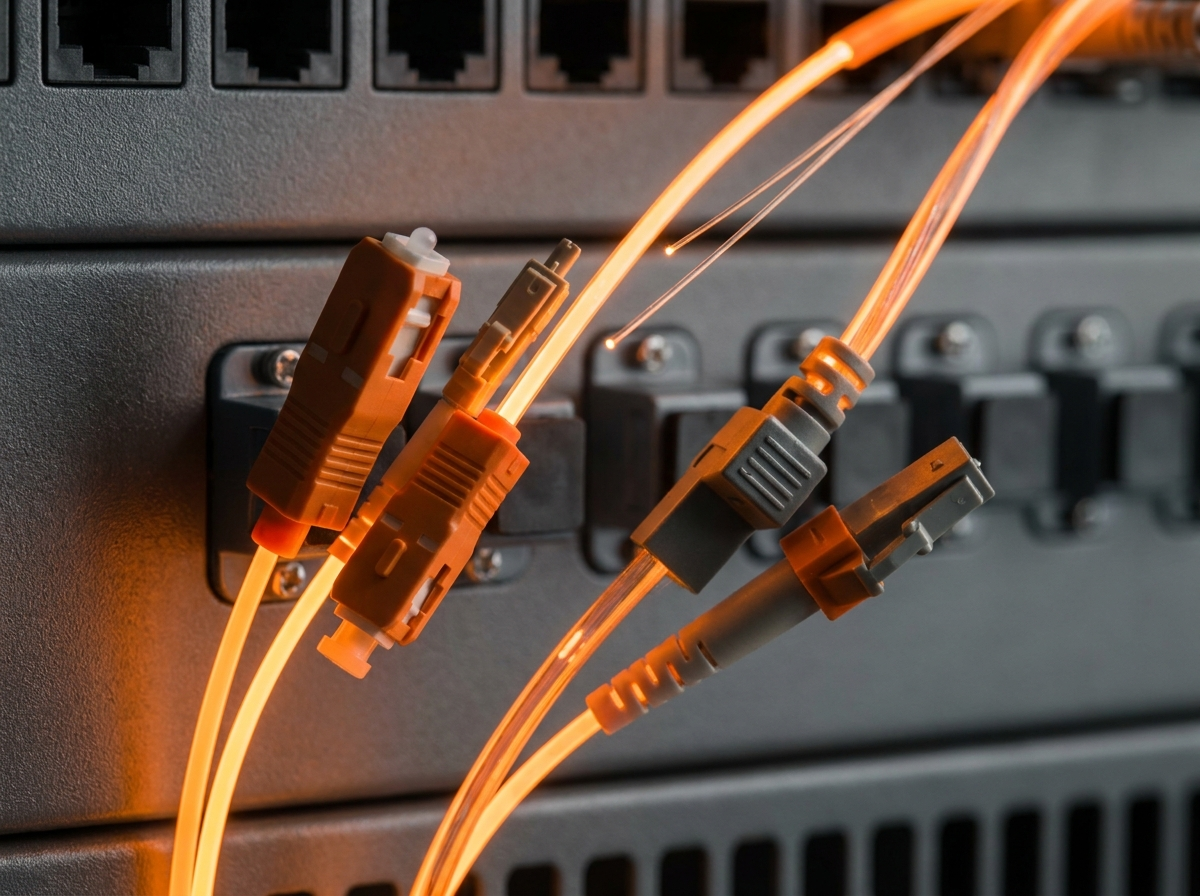

Single-mode or multi-mode fiber: SC, LC, APC, and UPC connectors
In fiber optics, it's not enough for the connector to just "fit". A patch cord can be single-mode or multi-mode, use SC or LC, have APC or UPC polish, and work in simplex or duplex. Mixing these characteristics can lead to high loss, no link, or damage to contact surfaces.
Before buying, note down what appears on both pieces of equipment: port type, installed optics, wavelength, and supported fiber. Then choose a cable that matches at each end. Color helps with orientation, but the technical reference takes precedence.
Single-mode and multi-mode: different uses
Single-mode fiber has a smaller core and is used for long distances, carrier links, and many OS2 installations. Multi-mode has a larger core and is commonly used in internal building networks and data centers over shorter distances, with OM3, OM4, or other categories.
| Characteristic | Single-mode OS2 | Multi-mode OM3/OM4 |
|---|---|---|
| Typical core | 9 µm | 50 µm |
| Typical use | Carrier, campus, long distance | Rack, data center, building |
| Optics | Designed for single-mode | Designed for multi-mode |
| Common jacket | Yellow | Aqua or violet depending on class |
Do not connect single-mode optics to multi-mode fiber expecting color to be the only difference. Transceivers, fiber, and optical budget must match. In short distances, there are special cases, but they must follow the equipment's specifications.
SC and LC describe the connector format
SC is a relatively large-bodied connector with push-pull insertion. It is common in outlets, distribution frames, and carrier connections. LC is more compact and common in SFP modules and high-density panels. A cable can be SC-SC, LC-LC, or SC-LC depending on the ports at each end.
Look at the port, not just the old cable. If a switch uses an SFP module with two LC receptacles and the panel terminates in SC, you will need an LC-SC patch cord suitable for the fiber type and polish.
APC and UPC should not be directly connected
UPC has an improved perpendicular polished surface and is usually identified in blue. APC incorporates an angular polish and is typically identified in green. The geometry reduces reflections in sensitive applications, but it means that APC and UPC should not be directly connected to each other.
A green SC/APC connector must be mated with SC/APC. If the equipment has blue SC/UPC, the corresponding end must be UPC. A hybrid APC-UPC cable may exist to connect two different interfaces, but each end must go to the correct port and be clearly identified.
For a single-mode connection with SC/APC ports on both sides, a 2xSC/APC single-mode fiber cable in various lengths is appropriate when the equipment, number of fibers, and distance match. Do not use it in a blue UPC port just because both are SC.
Simplex, duplex, and number of fibers
Simplex uses one fiber. Duplex uses two, typically one for transmitting and one for receiving. Many Ethernet links with standard optics require duplex LC; certain BiDi optics transmit and receive over a single fiber using different wavelengths.
Check the transceiver. If it has two LC slots, you usually need duplex. If it has one, it might be BiDi and requires a complementary module at the other end. This is not solved by randomly splitting a double patch cord.
In a multi-mode rack interconnection, an LC/UPC to LC/UPC OM3 duplex patch cord can connect compatible multi-mode optics over a short distance. A pigtail, on the other hand, is prepared for splicing at one end; the LC/UPC multi-mode OM4 pigtail does not simply replace a patch cord terminated at both ends.
Pigtail, patch cord, and pre-terminated cable
A patch cord has connectors at both ends and is used to patch equipment or panels. A pigtail has a connector at one end and bare fiber at the other for splicing. A pre-terminated cable can group several fibers and come ready for deployment, but it requires planning for routing through conduits and connector protection.
Buying a pigtail when two ports need to be connected forces a splice that may not have been planned. Buying a patch cord for a splice box can leave an excess of connectors and adaptation. Define the termination method before choosing.
Cleaning and handling
Microscopic dirt is a common cause of failures. Keep caps on until ready to connect. Do not touch ferrules or clean them with clothing. Use specific tools and consumables, inspect when the link is critical, and clean before reconnecting.
Respect the bend radius and do not pull on the connector. Avoid crushing the cable with doors, ties, or loaded trays. A link can work and accumulate enough loss to fail with temperature changes or future connections.
Selection Checklist
- Identify single-mode OS2 or multi-mode OM3/OM4 on both sides.
- Review transceivers and wavelength.
- Note down connector A and connector B: SC, LC, or other.
- Check polish: green APC or blue UPC.
- Decide simplex or duplex based on the optics.
- Measure length with routing and orderly margin.
- Choose patch cord, pigtail, or pre-terminated.
- Confirm optical budget and distance.
- Prepare for cleaning, protection, and labeling.
- Test power or loss when the project requires it.
You can start with the collection of network cables and adapters and ask for help with the exact equipment references. A clear photo of the port, the SFP module, and the existing cable label usually prevents confusion.
Common mistakes
Relying solely on color. There are exceptions and mislabeled cables; verify specification.
Connecting APC with UPC. The geometry does not match and can increase loss or damage end-faces.
Mixing multi-mode optics and single-mode fiber. The link must be designed as a whole.
Confusing pigtail with patch cord. The former requires splicing; the latter connects ports.
Ignoring cleanliness. A speck of dust can cause more problems than several extra meters of fiber.
Buying the exact straight-line length. Add routing for trays and an orderly reserve without tight coils.
Case study: switch with SFP and SC panel
A switch has a multi-mode SFP with dual LC; the panel in the other rack offers dual SC/UPC and the installed link is OM3. The consistent choice is a multi-mode OM3 LC/UPC-SC/UPC duplex patch cord of sufficient length. A green SC/APC or a single-mode OS2 cable is not appropriate.
If the installed link were OS2 and the optics single-mode, the fiber and optics would change, even if the LC and SC formats could be maintained. This separation between "fiber type" and "connector type" is the key to not buying based on appearance.
Frequently Asked Questions
Can I connect green SC/APC with blue SC/UPC?
It is not recommended. Their polishes have different geometries. Use the polish that corresponds to each interface.
Does OM4 work with OM3 equipment?
They are often compatible within multi-mode limits, but link performance depends on optics, distance, and the most restrictive component. Verify the specification.
What is the difference between LC and SC?
It is the physical format of the connector. LC is more compact; SC is larger and common in distribution frames and with carriers.
How do I know if I need simplex or duplex?
Look at the transceiver and its data sheet. Two receptacles usually indicate duplex; a BiDi uses one fiber with complementary modules.
Why isn't a seemingly correct fiber linking?
Check cleanliness, crossed TX/RX, optic type, wavelength, single-mode/multi-mode, polish, and power levels.
