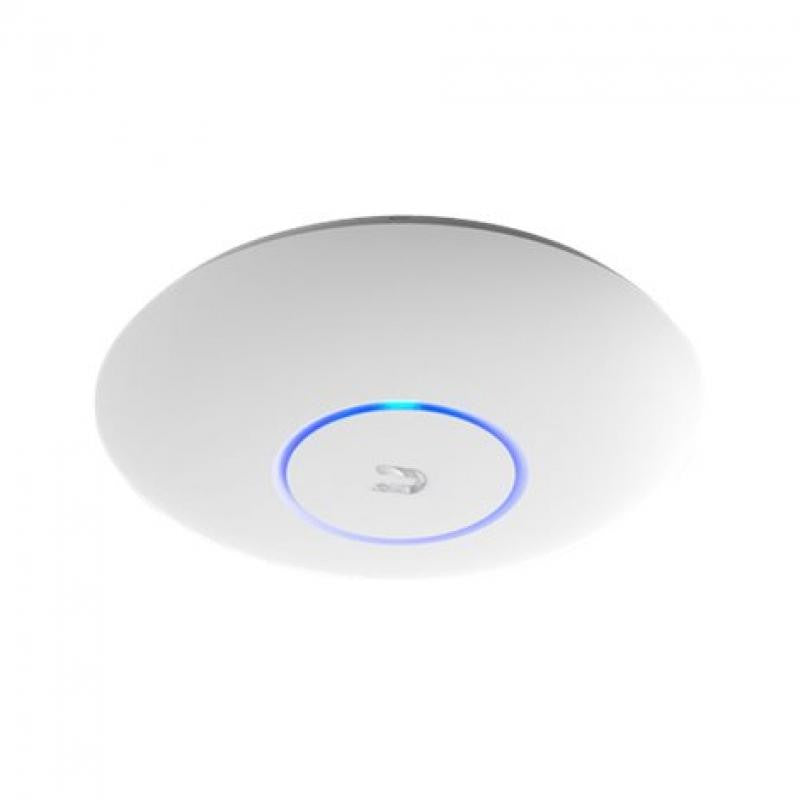

Ubiquiti UniFi UAP-AC-PRO Dual Band PoE+ Access Point WiFi Solutions

Long-range, high-performance AC 1750 Mbps MIMO 3x3 Wi-Fi access point.

AP Pro
The Ubiquiti UniFi UAP-AC-PRO is a very PRO-based access point, operating under the Wi-Fi 802.11ac standard with a wide coverage range and high wireless performance, and that allows it to be used both indoors and outdoors. It allows dual-band 2.4GHz and 5GHz operation offering combined speeds of up to 1750 Mbps and has an innovative 3x3 MIMO antenna design that provides a much larger coverage area than most access points, guaranteeing optimal radio frequency performance. In addition, its 2 Gigabit Ethernet ports allow Power over Ethernet under 802.3af (PoE) and 802.3at (PoE+).

Optimal RF
The Ubiquiti UniFi UAP-AC-PRO is designed to deliver optimal RF performance for high-performance wireless network deployments. The new UniFi controller has been redesigned to optimize RF usage and deliver the highest possible performance, ensuring successful communications between transmitters and receivers with the highest quality and performance. It also includes a Power over Ethernet adapter, which will allow you to place them wherever you want.

Scalable Business Wi-Fi
The Ubiquiti UniFi UAP-AC-PRO access point is a high-performance device that is fully scalable and manageable through the UniFi Controller v5 software, a powerful business application that will help you manage and deploy high-density wireless client environments that require high performance and the lowest possible latency. It also allows remote access to the UniFi controller to update the deployed UniFi access points.

Characteristics

• Create your own business AC Wi-Fi network
• High performance access point
• Increase the range of your Wi-Fi network
• Multiple operating modes
• Power over Ethernet Adapter
• Encrypted security
• Includes ceiling mounting kit

Technical specifications

• Wireless standard
  • IEEE 802.11 a/b/g/n/ac
• Wireless speed
  • 2.4GHz: 450Mbps
  • 5 GHz: 1300 Mbps
• Frequency
  • 2.4 GHz
  • 5 GHz
• Antennas
  • 2.4GHz MIMO 3x3
  • 5GHz MIMO 3x3
• Antenna power
  • 2.4GHz: 22 dBm
  • 5 GHz: 22 dBm
• Security
  • WEP
  • WPA-Enterprise
  • WPA-WPA2
  • TKIP/AES
• Connectivity
  • 2 x 10/100/1000 Mbps
• Dimensions
  • 196.7 x 196.7 x 35 mm
• Weight
  • Without assembly: 350 g
  • With mounting: 450 g

Compatibility

• Mac
• iOS
• PC
• Android

Box contents

• Ubiquiti UniFi UAP-AC-PRO
• Mounting bracket
• Ceiling support plate
• 4 x Flat head screws
• 4 x Keps Nuts
• 4 x Screws
• 4 x Screw plugs
• Power cord plug
• Gigabit PoE (48V, 0.5A) with mounting bracket
• Power cable
