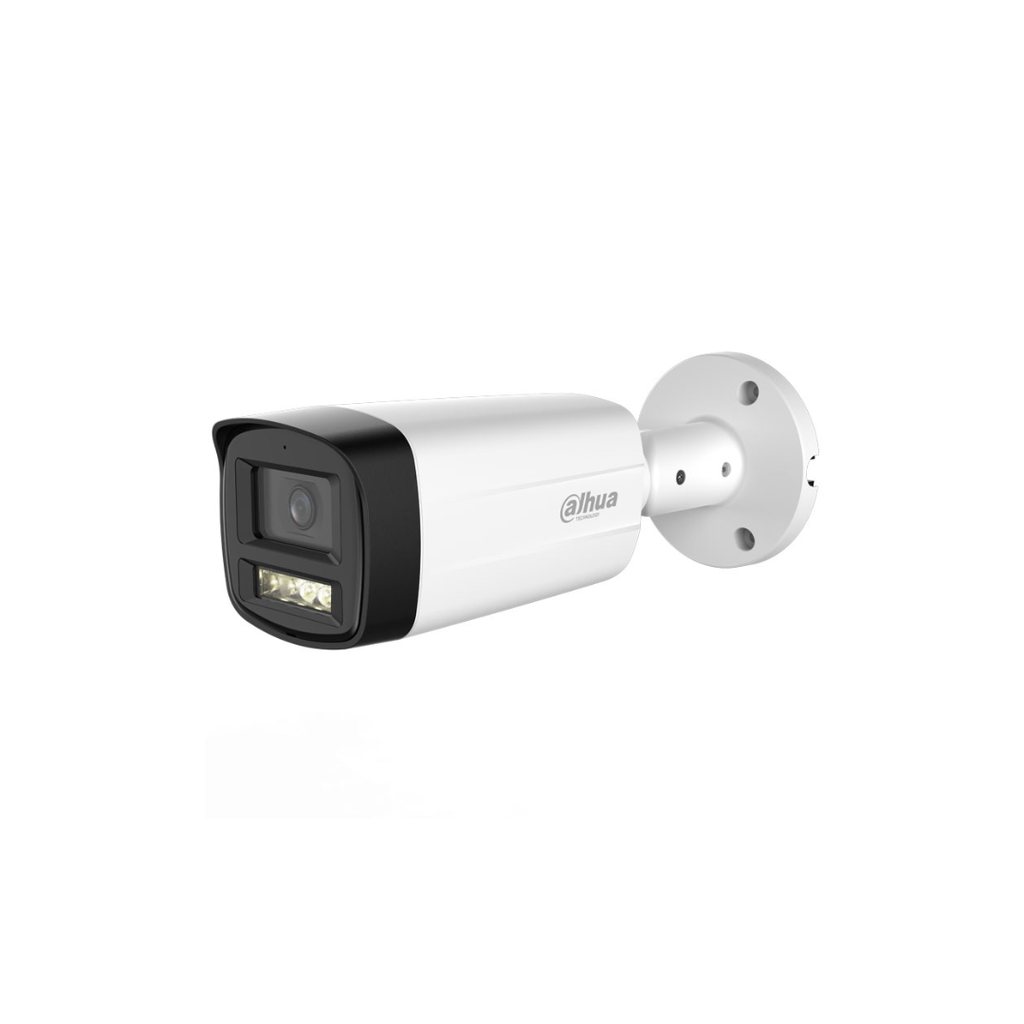

Monitor wide outdoor areas in colour or black and white with Dahua's 4-in-1 5MP Smart Dual Light bullet camera. Its 2.8 mm lens gives a 113° horizontal view and combines infrared and warm light up to 80 m.
In smart mode it runs on IR and switches on the warm light when it detects motion, so it records in colour when it matters. The CVI/TVI/AHD/CVBS output is selected with a DIP switch.
Key features
- 5 MP resolution (2880 × 1620) in 16:9 format
- Smart Dual Light: IR and warm light up to 80 m with 3 modes
- 2.8 mm fixed lens with 113.3° horizontal field of view
- 4-in-1 output selectable via DIP switch
- Built-in microphone
- DWDR and 3D NR for backlight and low light
- IP67 protection, −40 °C to +60 °C
Specifications
| Brand | Dahua |
| Model | HAC-HFW1500THP-IL-A-0280B-S3-DIP |
| Image sensor | 5 MP CMOS |
| Resolution | 5 MP (2880 × 1620) at 25 fps (CVI, PAL) |
| Video output | CVI / TVI / AHD / CVBS selectable via DIP switch |
| Lens | 2.8 mm fixed, F1.6 |
| Field of view | H: 113.3°; V: 62.1°; D: 134.3° |
| Minimum illumination | 0.01 lux colour; 0.001 lux B/W; 0 lux with illuminator |
| Illumination | Smart Dual Light: IR up to 80 m and warm light up to 80 m |
| Illumination modes | Smart IR + warm light, warm light only, IR only |
| WDR | DWDR |
| Noise reduction | 3D NR |
| Audio | Built-in microphone |
| Power supply | 12 V DC ±30%, max. 6.5 W |
| Operating temperature | −40 °C to +60 °C |
| Protection rating | IP67 |
| Dimensions | 240.7 × 90.7 × 90.4 mm |
| Net weight | 0.45 kg |
