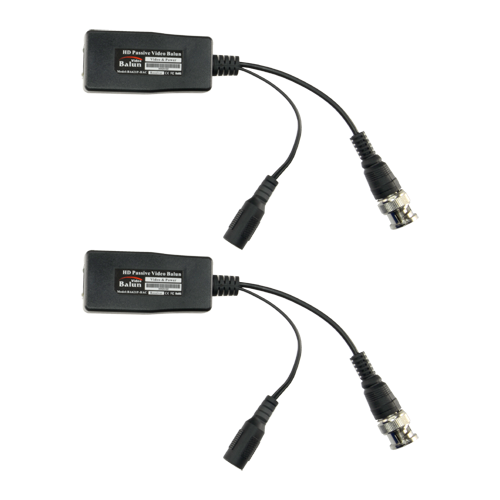

Passive Twisted Pair Transceiver Safire - 4N1 (Hdtvi, Hdcvi, AHD and Cvbs) Baluns

Safire passive video and power transceiver by twisted pair, 2 units for transmission and reception, specific for analogue high definition (HD). Optimised for the transmission of the video signal and power of 1 analogue HDTVI or HDCVI high definition camera by twisted pair. System formed by two baluns, one of which acts as transmitter (splitter) and the other as receiver (injector). They have a BNC connection (video) and female power (transmitter) or male power (receiver) by jack, as well as an RJ45 connector for the UTP cable that interconnects both baluns. Of the 4 pairs of wires in the UTP cable, 1 pair will be used for video and 3 pairs for power. The data or audio signal is transmitted through the video carrier wave in analogue HD technologies, such as HDTVI or HDCVI. The maximum length between the end that connects to the camera and the end that connects to the video output depends on the signal resolution and the high definition technology used: HDTVI 720p - 230 m. HDTVI 1080p - 230 m. HDCVI 720p - 450 m. HDCVI 1080p - 180 m. Surge and discharge protected, anti-static design with exceptional noise rejection.

Specs:

• Safire
• Balun (Transceiver)
• 1 channel
• Range: 180 ~ 450 m
• Power: Not required (Passive)
• Video Input/Output: BNC (male)
• Power input/output: Standard jack (male/female)
• Transmission distance: HDTVI: 230 m (720p and 1080p) / HDCVI: 450 m (720p) and 180 m (1080p)
• Twisted pair connector: RJ45
• Crosstalk: 60 dB
• Input impedance: 75 Ohm
• Output impedance: 100 Ohm
• Cable Category: UTP Category 5/6
• 2 units
