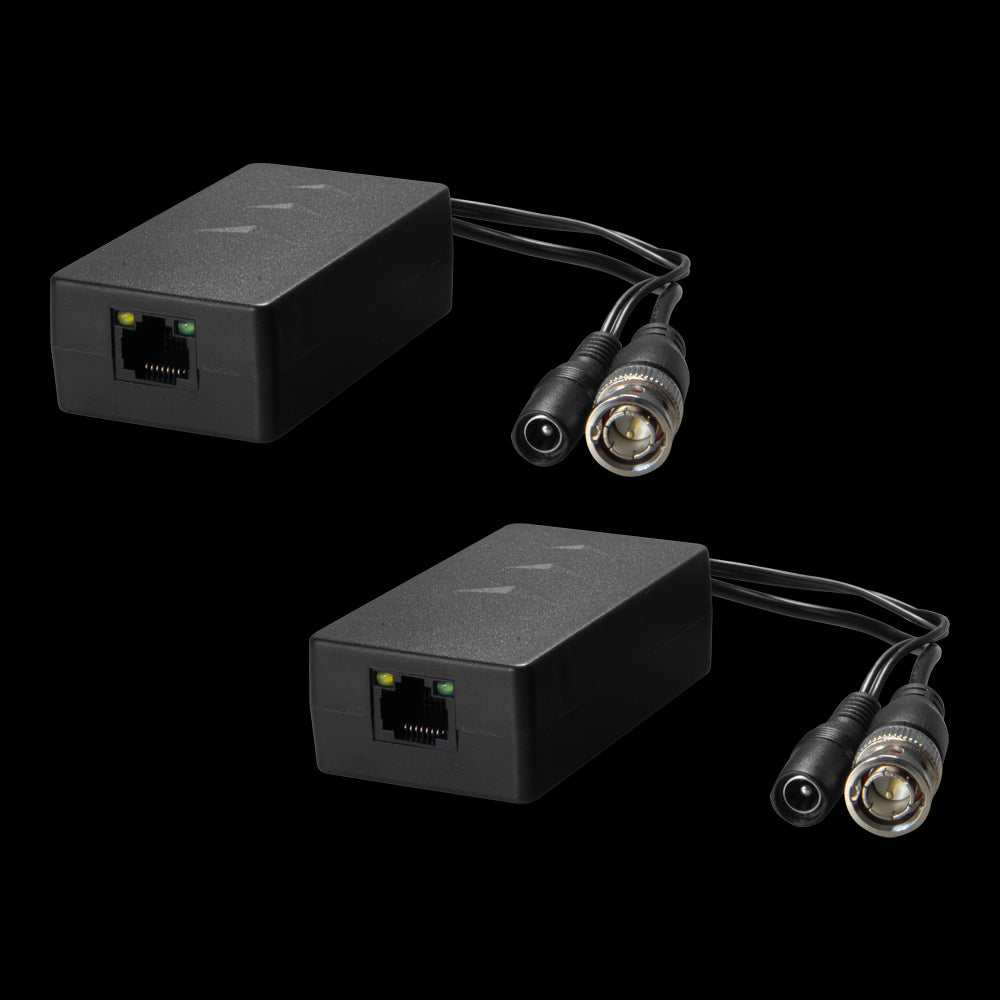

Passive Twisted Pair Transceiver - Optimized for HDTVI, HDCVI and AHD 1 Video Channel Power RJ45 (UTP) connector, BNC
Regular price
13,20 €
Unit price
/
Unavailable
MARCA BLANCA | SKU:
BA607PV-HD
Passive Twisted Pair Transceiver - Optimized for HDTVI, HDCVI and AHD 1 Video Channel Power RJ45 (UTP) connector, BNC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Estimated delivery 1 to 5 business days after order
Description
Description
| Number of channels | 1 channel |
| Video input/output | BNC (male) |
| Power input/output | Standard jack (male/female) |
| Input/Output Voltage | Input: 24-36V DC / Output: 12V DC 10W |
| Transmission distance | HDTVI 200/200/100/100 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K) AHD 300/200/200 m (720p/1080p/4 Mpx), CVBS 300 m |
| twisted pair connector | RJ45 |
| Crosstalk | 60 dB |
| BNC impedance | 75 Ohm |
| UTP impedance | 100 Ohm |
| Cable Category | UTP category 5/6 |
