FM/TV-SAT Socket Antenna Accessories

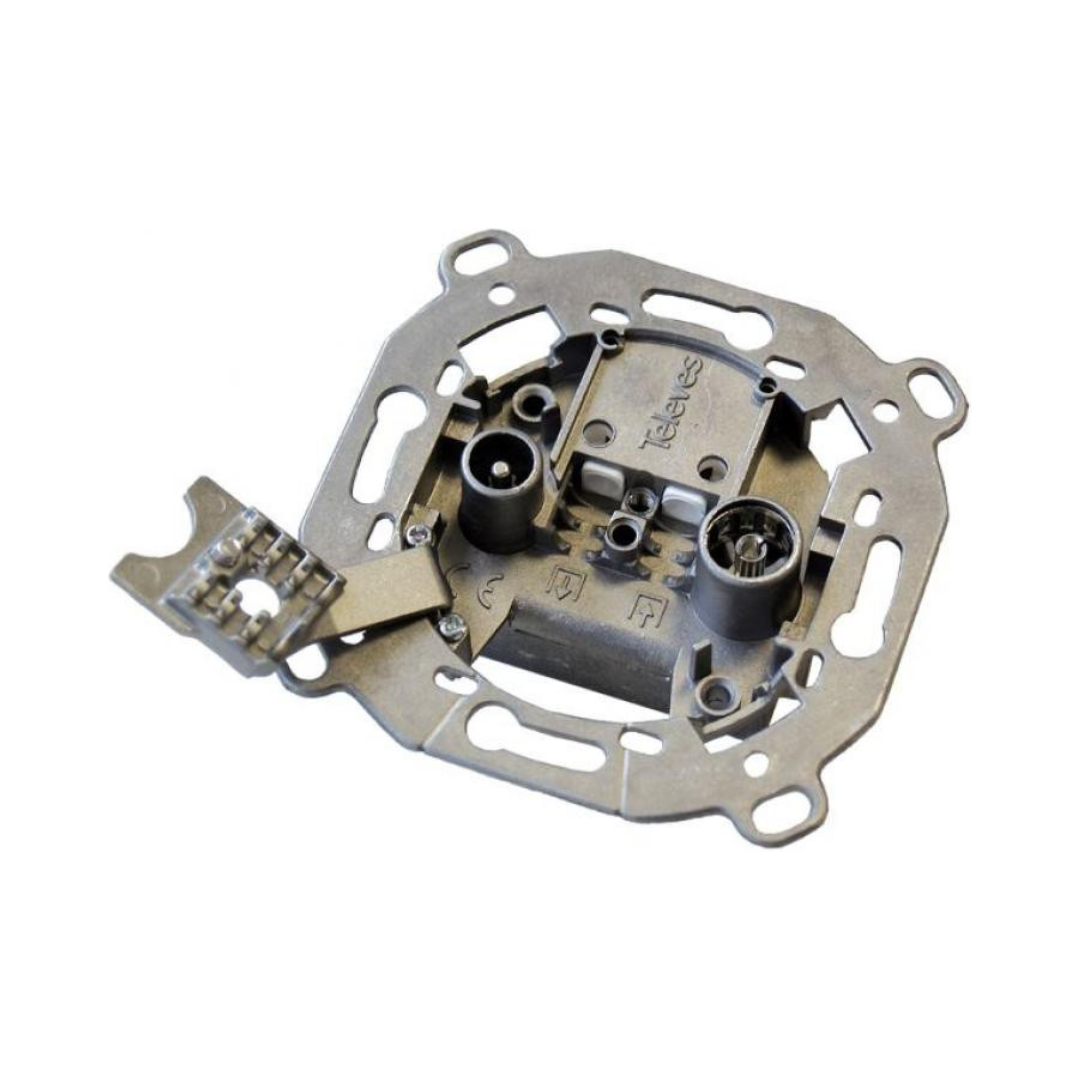

Splitter terminal socket with two IEC connectors. The one on the left is a male IEC for FM (radio) and terrestrial TV and the one on the right is a female IEC for satellite TV (IF).

It stands out for

• High rejection splitter filter: SAT signal is filtered at the IEC male FM/TV connector, and terrestrial FM/TV is filtered at the IEC female satellite connector.
• Automated manufacturing on a robotic line
• High shielding
• Great isolation between outputs

Main Features

• Made of Zamak, highly resistant
• DC step from the SAT connector to the input
• Compatible with coaxial cables with sheath diameter Ø 5...7mm

Specs:

• Type: TV-SAT
• Band:
  • MATV (5-862MHz)
  • SAT-FI (950-2150 /2150-2400MHz)
• Connector
  • “CEI” Male
  • “CEI” Female
• Anchoring method: Screwless
• Rejection between outputs:
  • >8 (5-47MHz) >10 (47-862MHZ)
  • >8 (950-2150MHz) >15 (2150-2400MHz)
• Passageway: No
• DC step (24V – 350mA) SAT → Input
