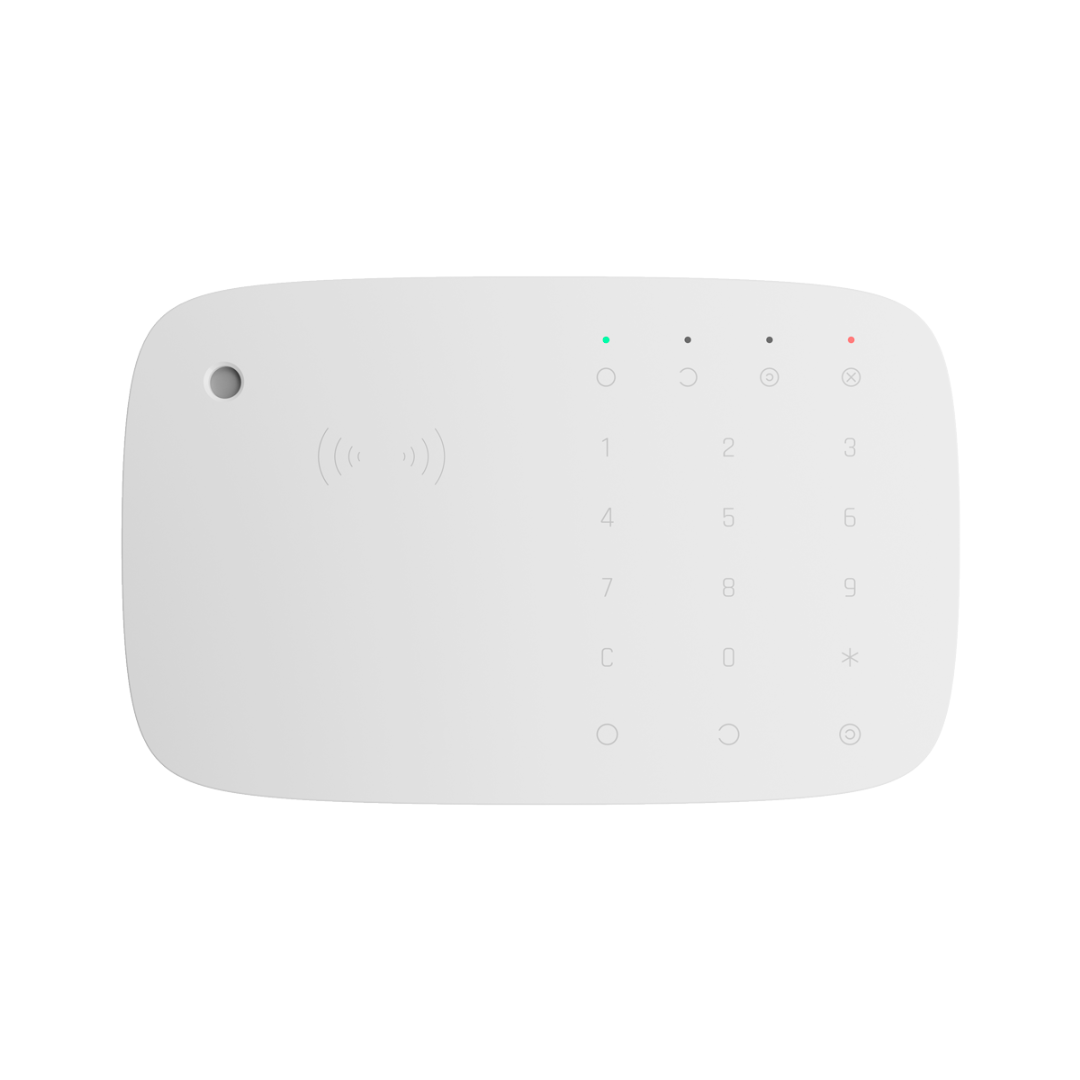

The Ajax KeyPad Combi keyboard combines alarm control, an RFID reader, and an integrated siren of up to 105 dB in a single device. It allows arming and disarming by code, Tag key fob, or Pass card. Grade 2 certified.
Highlighted features:
- Keypad + RFID reader + siren in one device
- Integrated siren up to 105 dB
- Access by code, Tag or Pass
- Grade 2 certified
- Up to 3 years of battery life
Specifications:
| Brand |
Ajax |
| Security grade |
Grade 2 |
| Functions |
Arming, disarming, partial arming and emergency |
| Frequency |
868 MHz Jeweller |
| Transmission distance |
≤ 1700 m in open space |
| Siren volume |
81~105 dB at 1 m |
| Alarm duration |
Configurable between 3 s and 3 min |
| Audible indication |
Arm/disarm signal and delay beep |
| RFID technology |
Mifare DESFire EV1, EV2 (ISO 14443-A 13.56 MHz) |
| RFID reading |
Ajax Tag key fobs and Ajax Pass cards |
| Compatibility |
Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher) |
| Battery |

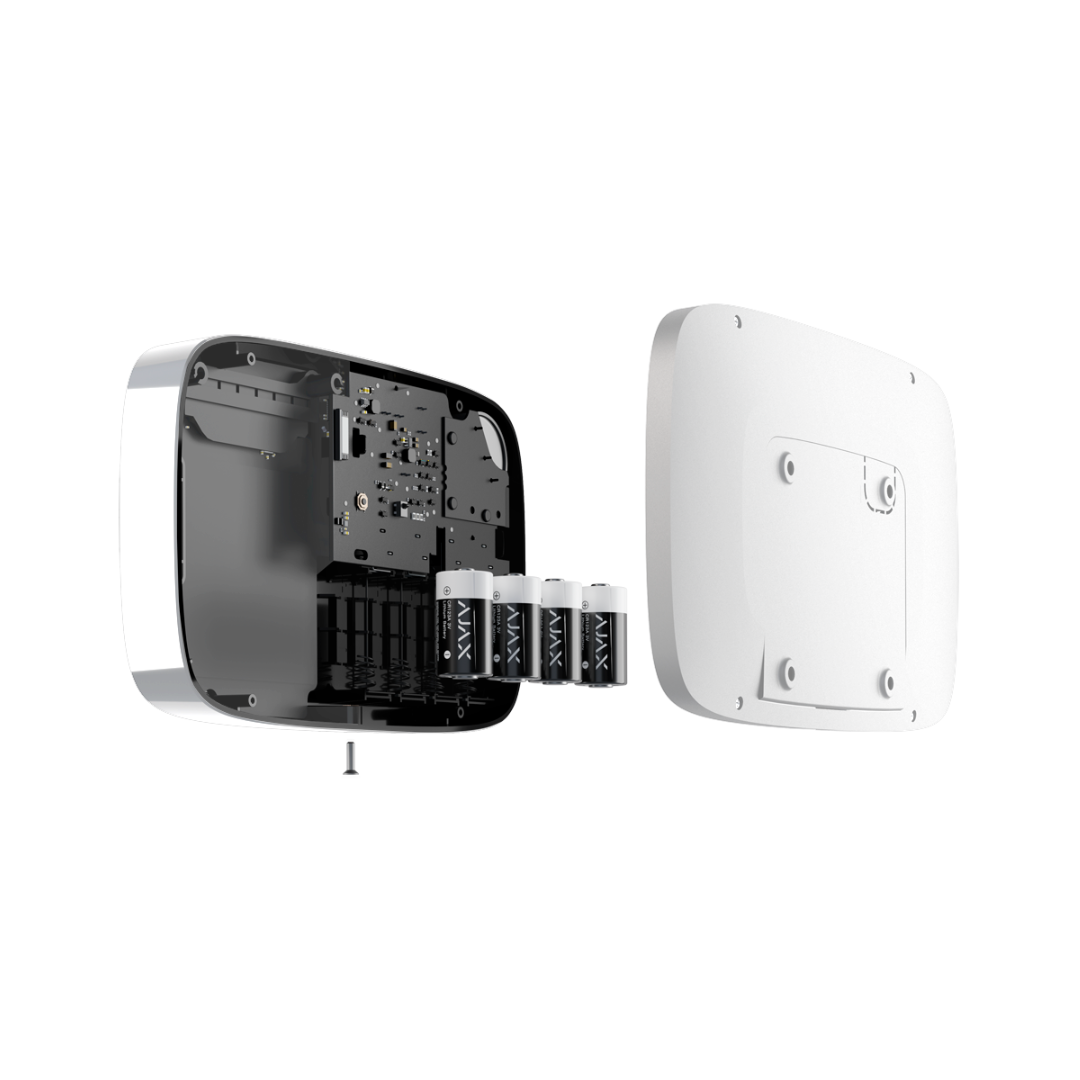

4 CR123A 3.0 V batteries (approx. 3 years duration) |
| Cover material |
ABS Plastic |
| Operating temp. |
-10º C ~ 40º C |
| Dimensions |
115 (H) x 182 (W) x 27 (D) mm |
| Weight |
275 g |
