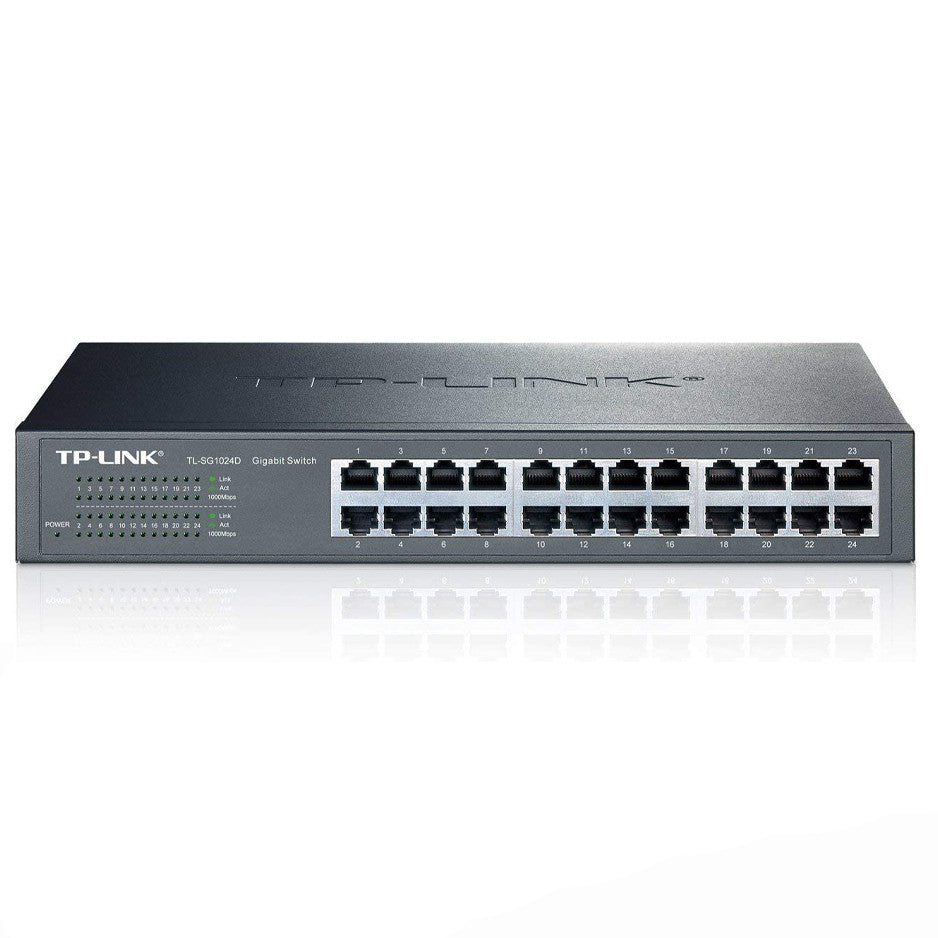

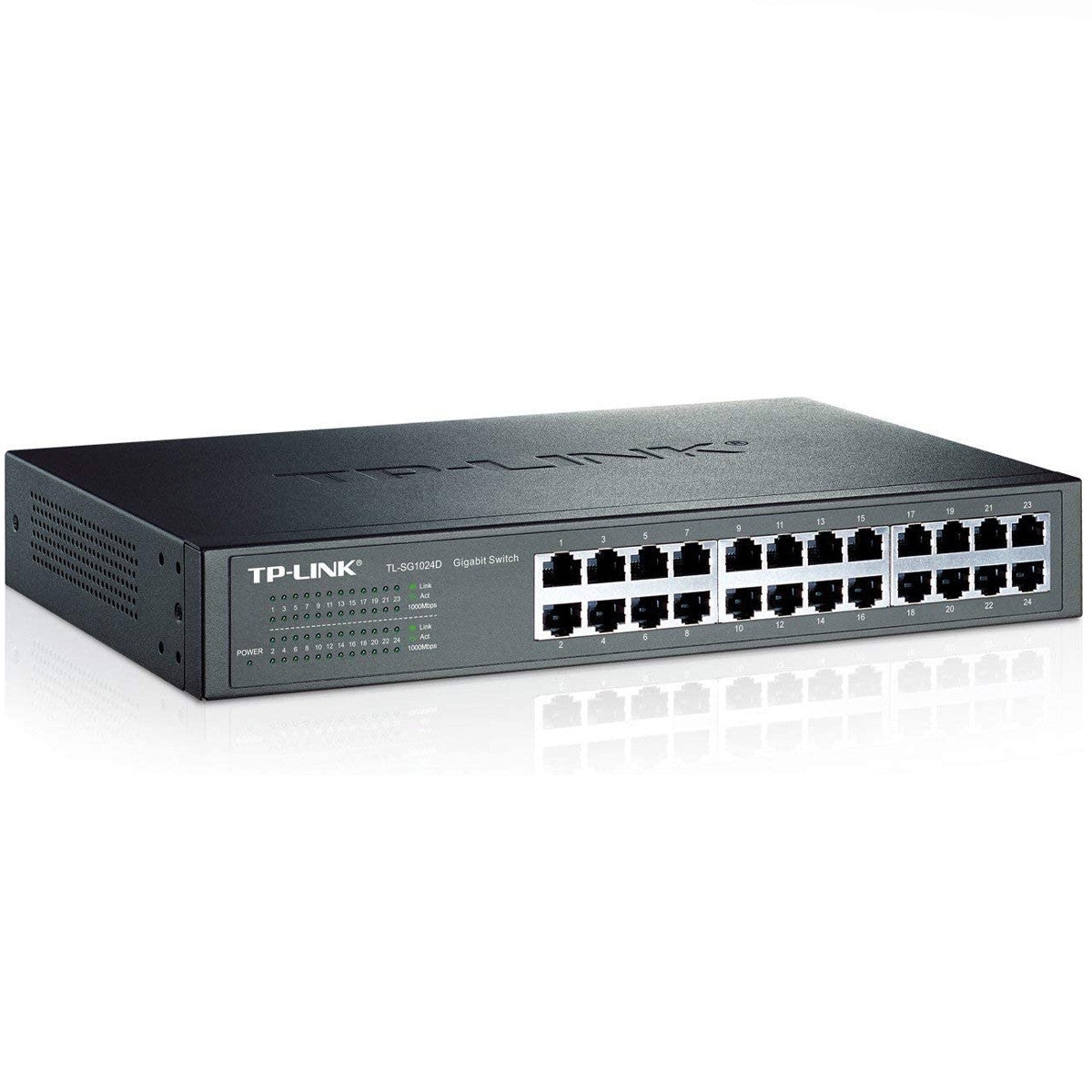

24-Port Gigabit Desktop/Rackmount Switch Networking, Rack & Accessories

What is this product for?
The TL-SG1024D Gigabit Ethernet Switch offers you a high-performance, low-cost, easy-to-use, seamless and standard solution to upgrade your legacy network to a 1000Mbps network. All ports support auto MDI/MDIX so there is no need to worry about the cable type, just plug and play. Moreover, with innovative energy-efficient technology, the TL-SG1024D saves on power consumption; and most of the packaging material can be recycled, so it is an eco-friendly solution for your business network.

TP-LINK Energy Efficient Technology
This next-generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power consumption. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It is also compliant with EU RoHS, which prohibits the use of certain hazardous materials. In addition, most of the packaging material can be recycled.

High performance
All 24 ports are Gigabit RJ-45 ports that provide great file transfer and are also backward compatible with 10Mbps and 100Mbps Ethernet devices. With its non-blocking architecture, the TL-SG1024D redirects and filters packets at full wire speed for maximum throughput. With its 10KB Jumbo packet, the performance of large file transfers is greatly improved. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate traffic congestion and make the TL-SG1024D's work reliably. It is a perfect choice to upgrade your network to Gigabit while properly protecting your previous investment.

Easy to use
This Gigabit Switch's auto-negotiation features make installation plug-and-play and hassle-free. No configuration is required. Its auto MDI/MDIX eliminates the need for crossover cables, and its auto-negotiation on each port detects a network device's link speed (10, 100, or 1000 Mbps) and intelligently adjusts for optimal compatibility and performance.

Specs:

• Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface 24 RJ45 ports at 10/100/1000 Mbps with auto-negotiation
• (auto MDI/MDIX)
• Network Media 10BASE-T: UTP cable category 3, 4, 5 (maximum 100 meters) 100BASE-TX/1000BASE-T: UTP cable category 5, 5e or above cable (maximum 100 meters)
• Number of Fans: Fanless
• Physical Security Lock: No
• Power Supply 100-240VAC, 50/60Hz
• Dimensions (294*180*44 mm)
• Mounting Rack Mounting
• Maximum Power Consumption 13.08W(220V/50Hz)
• Max Heat Dissipation 44.63BTU/h
