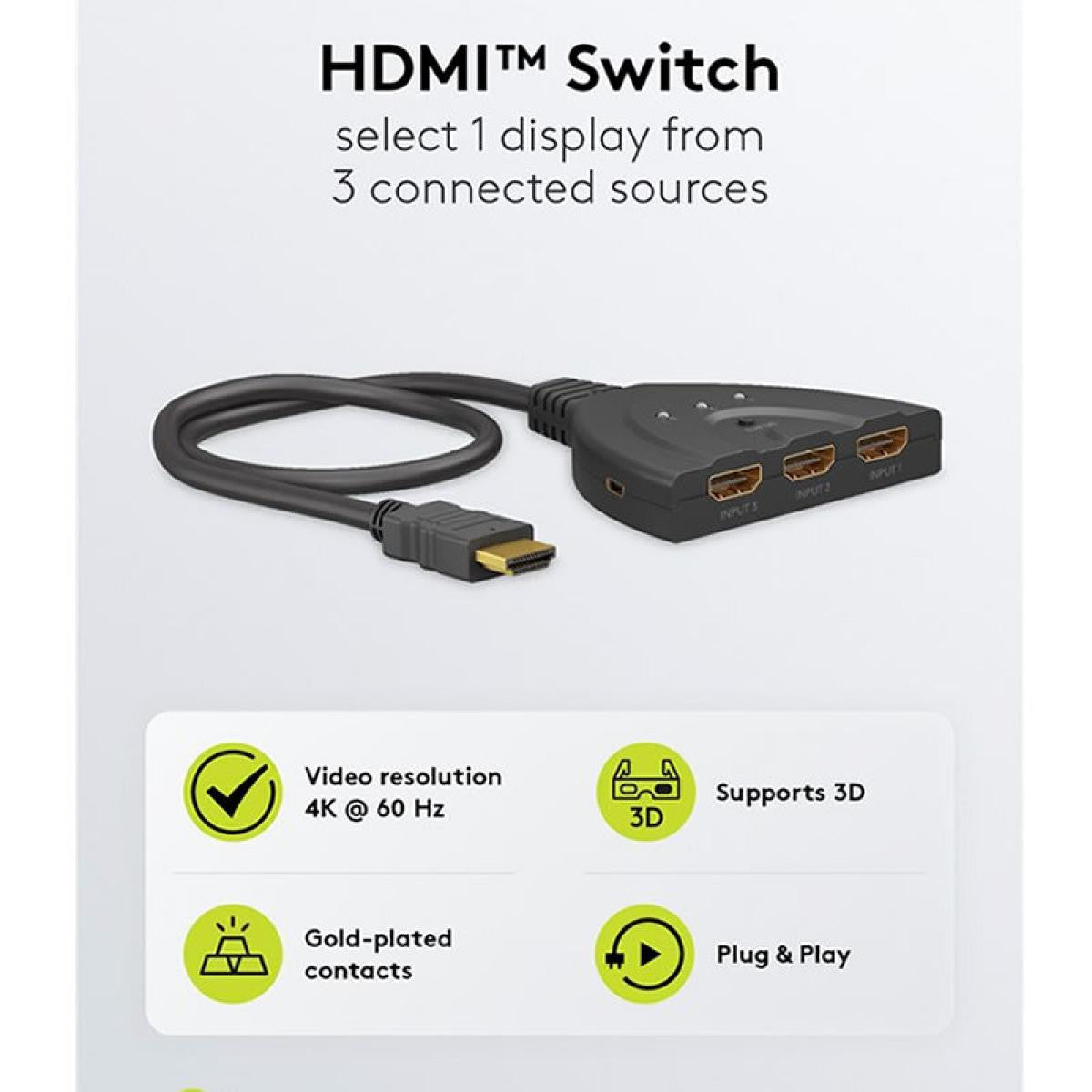

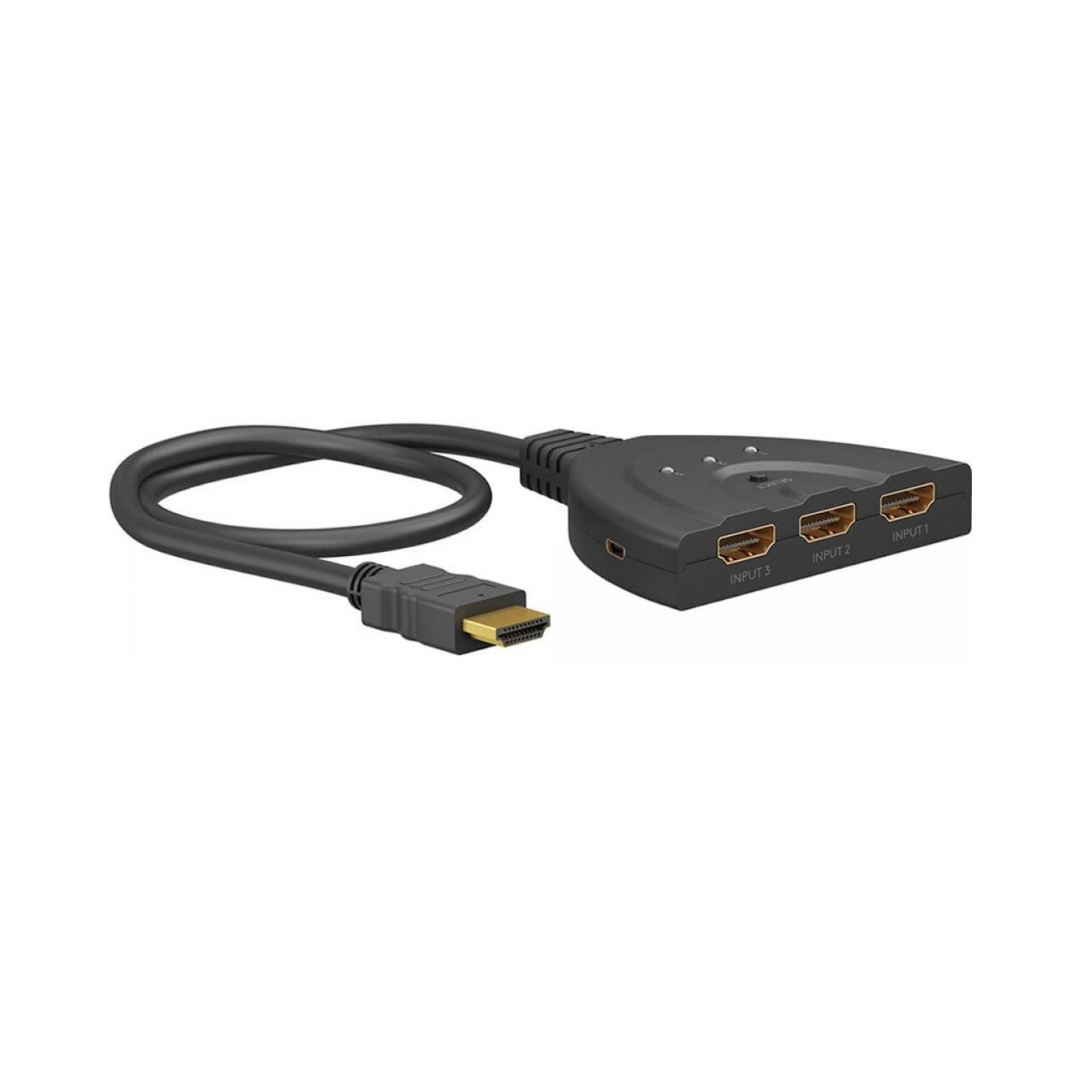

HDMI™ 3 to 1 manual switch with 4K resolution at 60 Hz, 0.55 m long, black

What is it for?

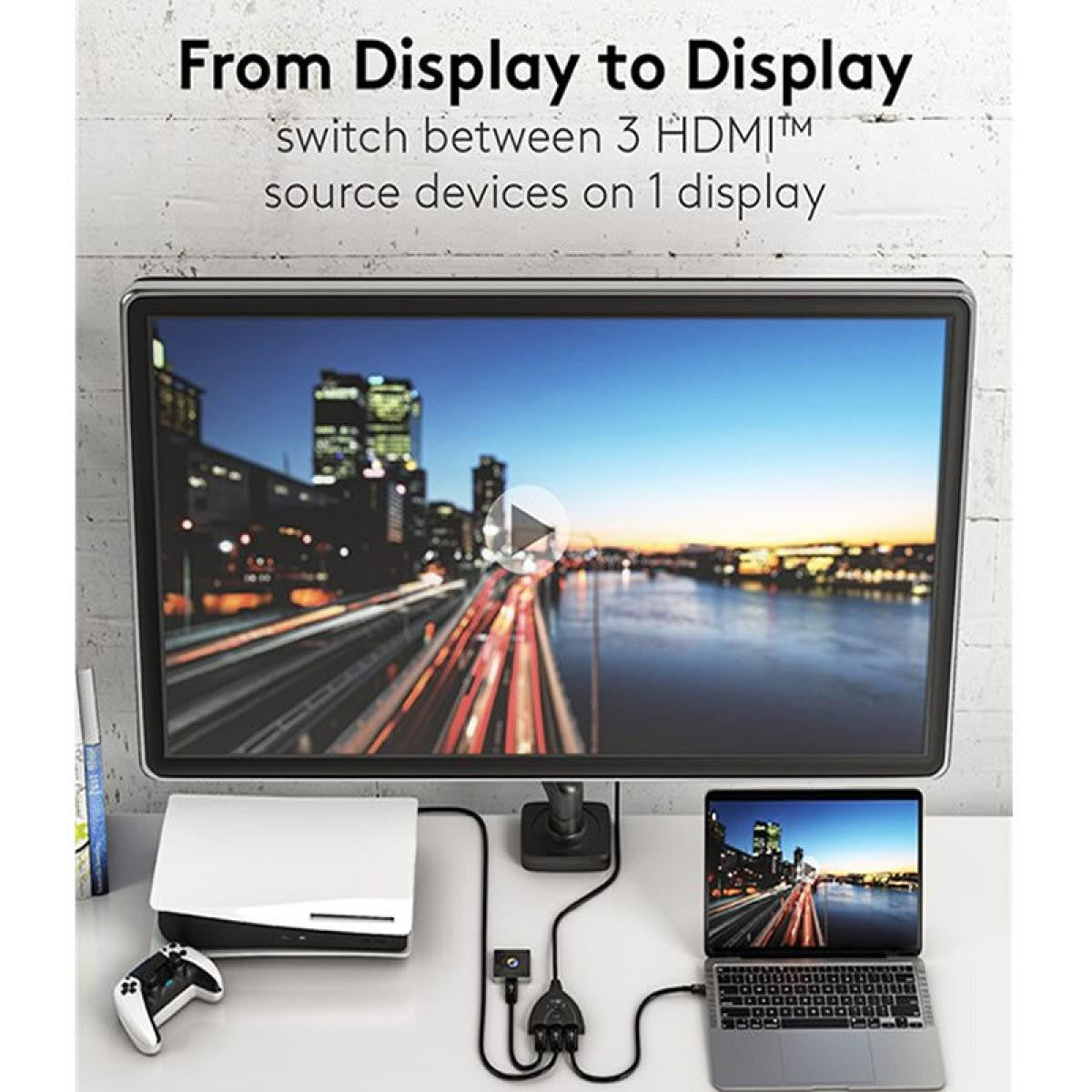

• Device to conveniently switch what you want to see on the screen, TV, monitor or projector between 3 HDMI™ sources, such as game consoles, or DVD players. This way you avoid the hassle of frequently changing cables when using different HDMI™ devices.
• Suitable, for example, for connecting Blu-ray players, DVD players, SAT/TV receivers, game consoles such as PS4 or Xbox to a TV, projector or monitor.

Characteristics

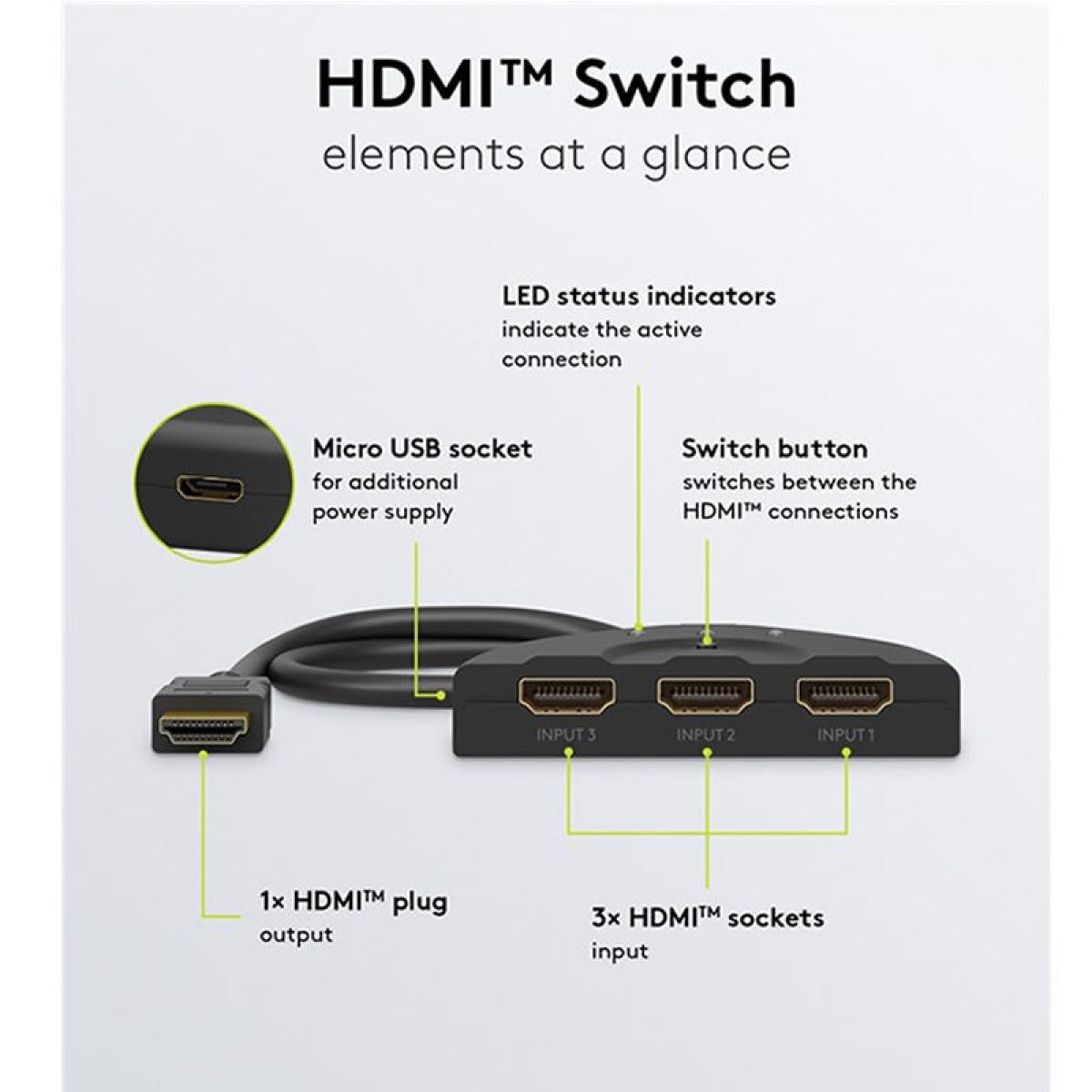

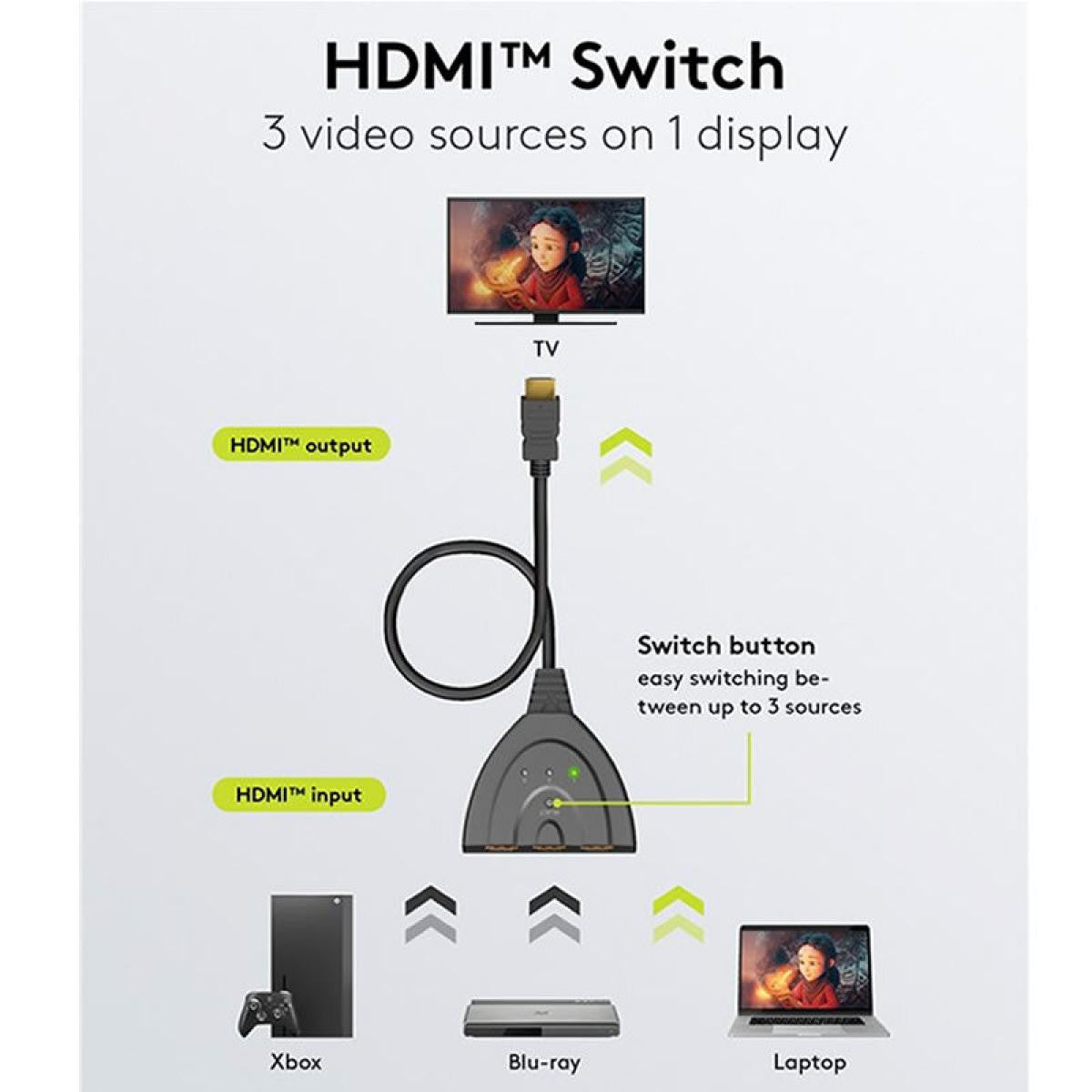

• The HDMI™ switch allows you to simultaneously connect up to 3 HDMI™ source devices to 1 HDMI™ output device.
• The 3-in-1 HDMI™ switch supports up to 4K@60Hz and is HDCP compliant.
• The HDMI™ switch with flexible cable automatically switches to the enabled device when multiple HDMI™ sources are connected.
• You can also choose to manually switch between port 1 and 3 via the switch on the top.
• Plug & Play allows easy connection without the need to install additional drivers.
• The 3x1 HDMI™ Breakout Box is powered via the connected HDMI™ device, either without an external power supply or via the Micro-USB socket.

Note: The HDMI™ Switch does not work as a splitter! (Our Solution:Ref: 58481, 58483, 58484).

Specs

Device Connections

• Input Type: 3 x HDMI™ Female (Type A)
• Output Type HDMI™ Female (Type A)

Wire

• Cable length: 0.55 meters

Signal Transmission (Unidirectional)

• Max. Transmission rate: 18 Gbit/s
• 4K Ultra HD 2160p (60 Hz)
• Supported video standards 4K Ultra HD 2160p (60 Hz), 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D, HDCP
• Supported color spaces: Deep Color (10-bit)

General

• Color: Black
• Operating temperature from 0 ºC
• Operating temperature up to 70 ºC
• Dimensions: Length (115.5mm) x Width (107mm) x Height (19mm)
• Weight: 107 gr
