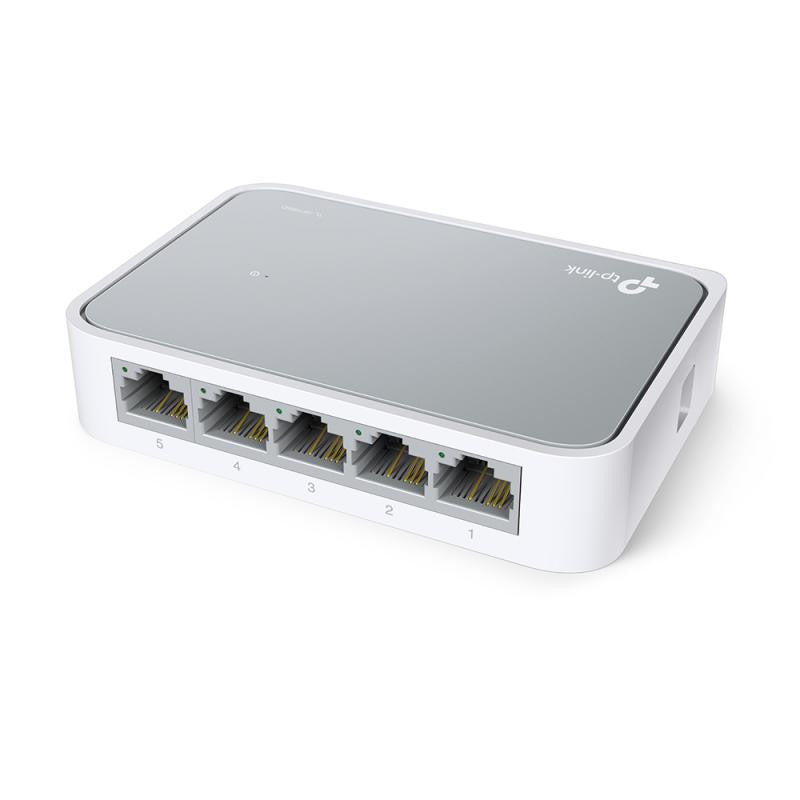

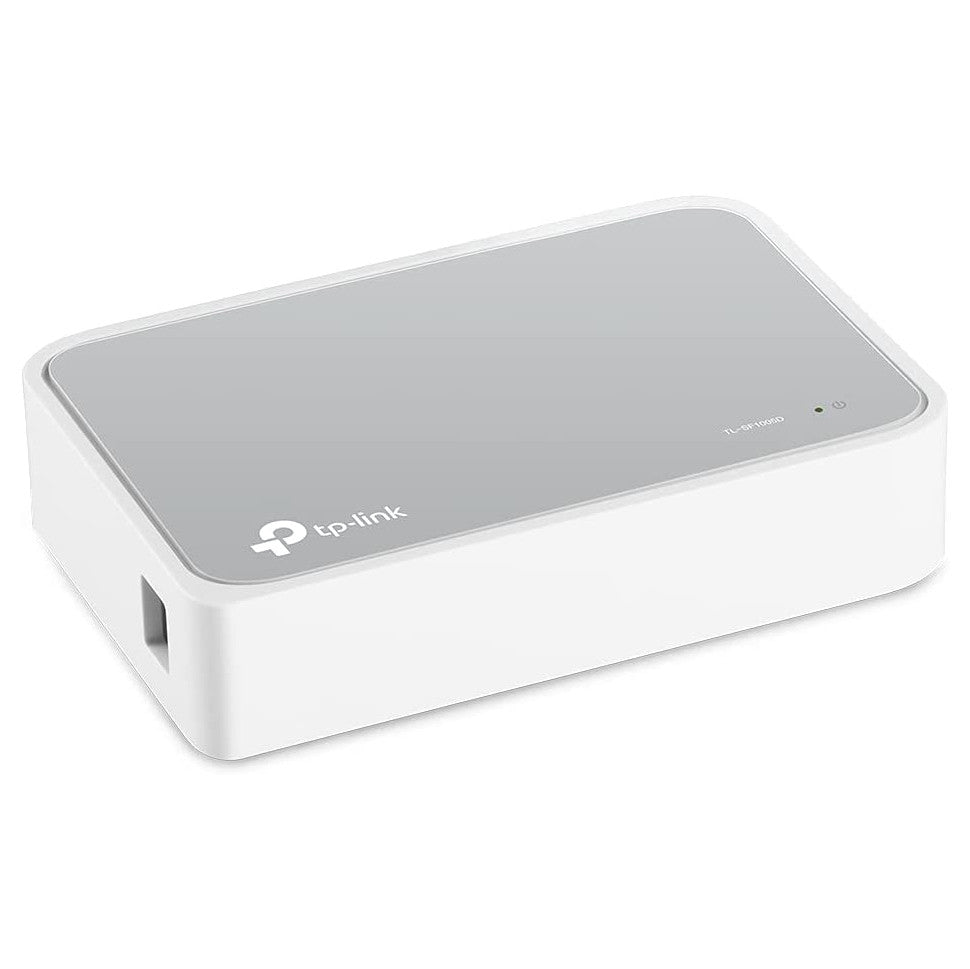

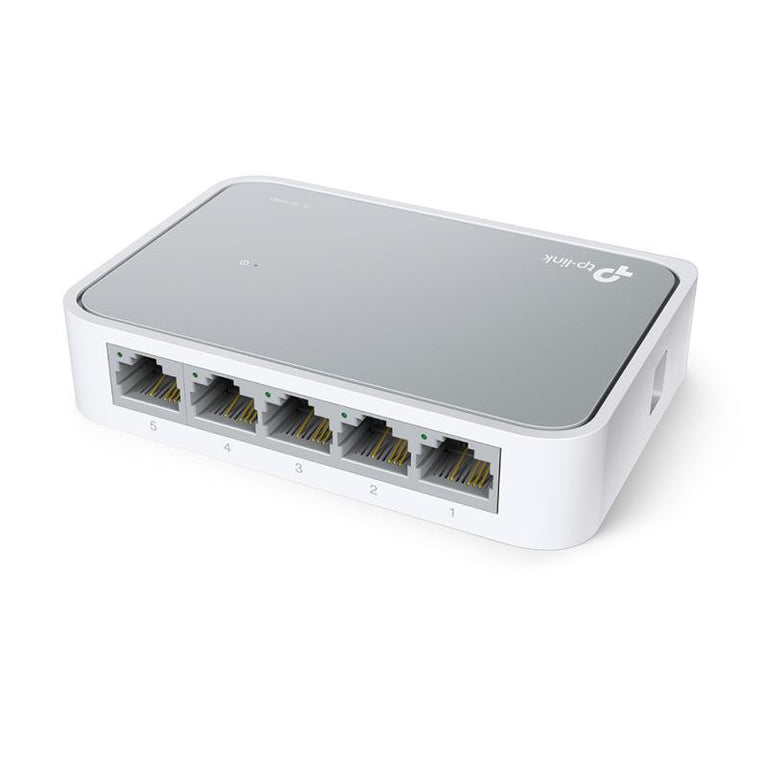

5-Port 10/100Mbps Desktop Switch

The TL-SF1005D is a 5-port 10/100Mbps desktop switch that lets you easily expand your wired network. All ports support auto MDI/MDIX, saving you the worry of which cable to use. The TL-SF1005D supports Full Duplex mode and processes data at a speed of 200Mbps, making it ideal for expanding a high-performance wired network. Additionally, thanks to its innovative energy-efficient technology, the TL-SF1005D saves up to 60% of electricity, making it an eco-friendly solution for your home or workplace network.

High Performance
The TL-SF1005D Fast Ethernet switch features 5 10/100Mbps RJ45 ports with auto-negotiation speed. All ports support Auto MDI/MDIX, eliminating the need for a crossover cable or Uplink ports. The TL-SF1005D features non-blocking switching architecture with full wire-speed packet filtering and forwarding for optimal performance. It supports 10K jumbo frames, significantly improving the performance of large file transfers. In addition, with support for IEEE 802.3x flow control in Full Duplex mode and Back-Pressure in Half Duplex mode, the TL-SF1005D can alleviate traffic congestion as well as increase operational reliability.

Easy to use
The automatic features of this Ethernet switch enable a hassle-free Plug and Play installation. No configuration is required. MDI/MDIX auto-sensing eliminates the need for crossover cables. The port auto-sensing feature identifies the link speed of the network device (10, 100Mbps) and intelligently adjusts it to ensure compatibility and best performance.

Specs:

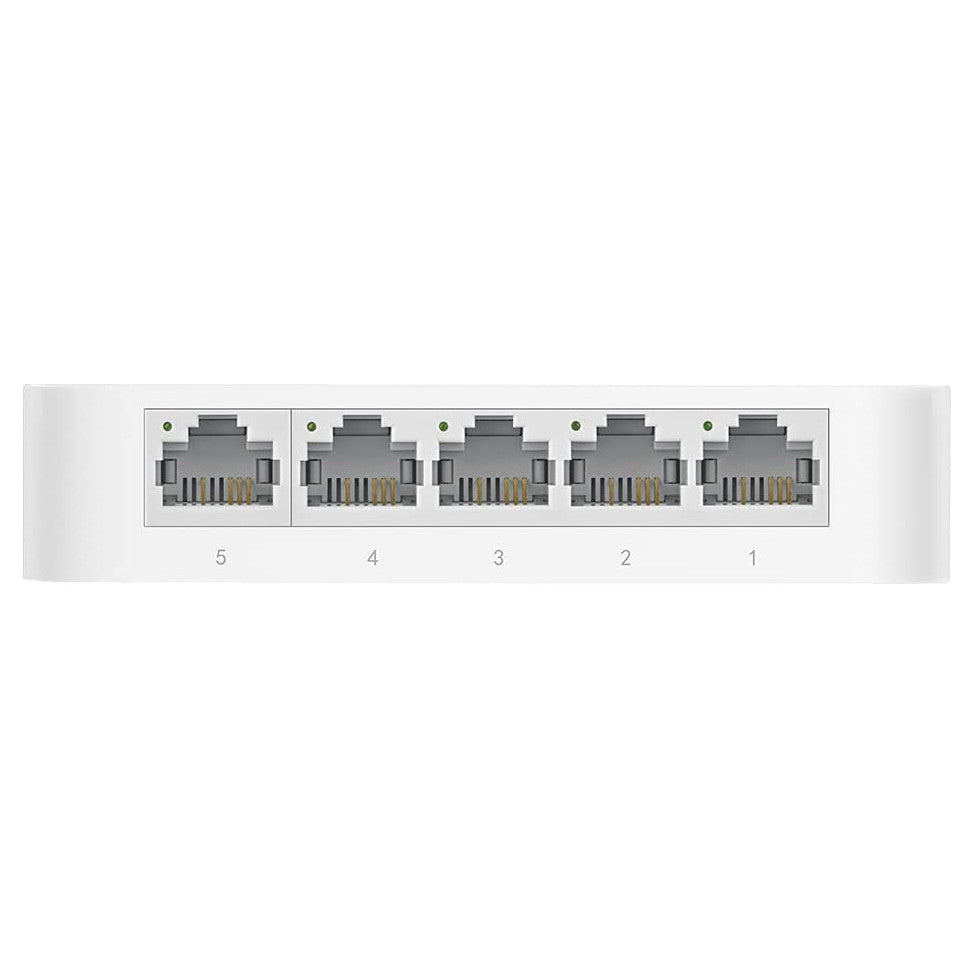

• 5x 10/100Mbps RJ45 ports with auto-sensing speed, support for auto MDI/MDIX
• Power-saving technology for Ethernet that reduces consumption by up to 60%
• IEEE 802.3x flow control enables reliable data transmission
• Plastic housing, desktop design
• Plug and Play, without any additional configuration
