What is it for?
With the HDMI™ switch, you can conveniently switch between up to 4 HDMI™ devices connected to a single HDMI™ display with the touch of a button or by using the remote control. Avoid the hassle of reconnecting cables while protecting your connections. By connecting only one cable to the display, the switch reduces cable clutter and creates a clean appearance.
Characteristics

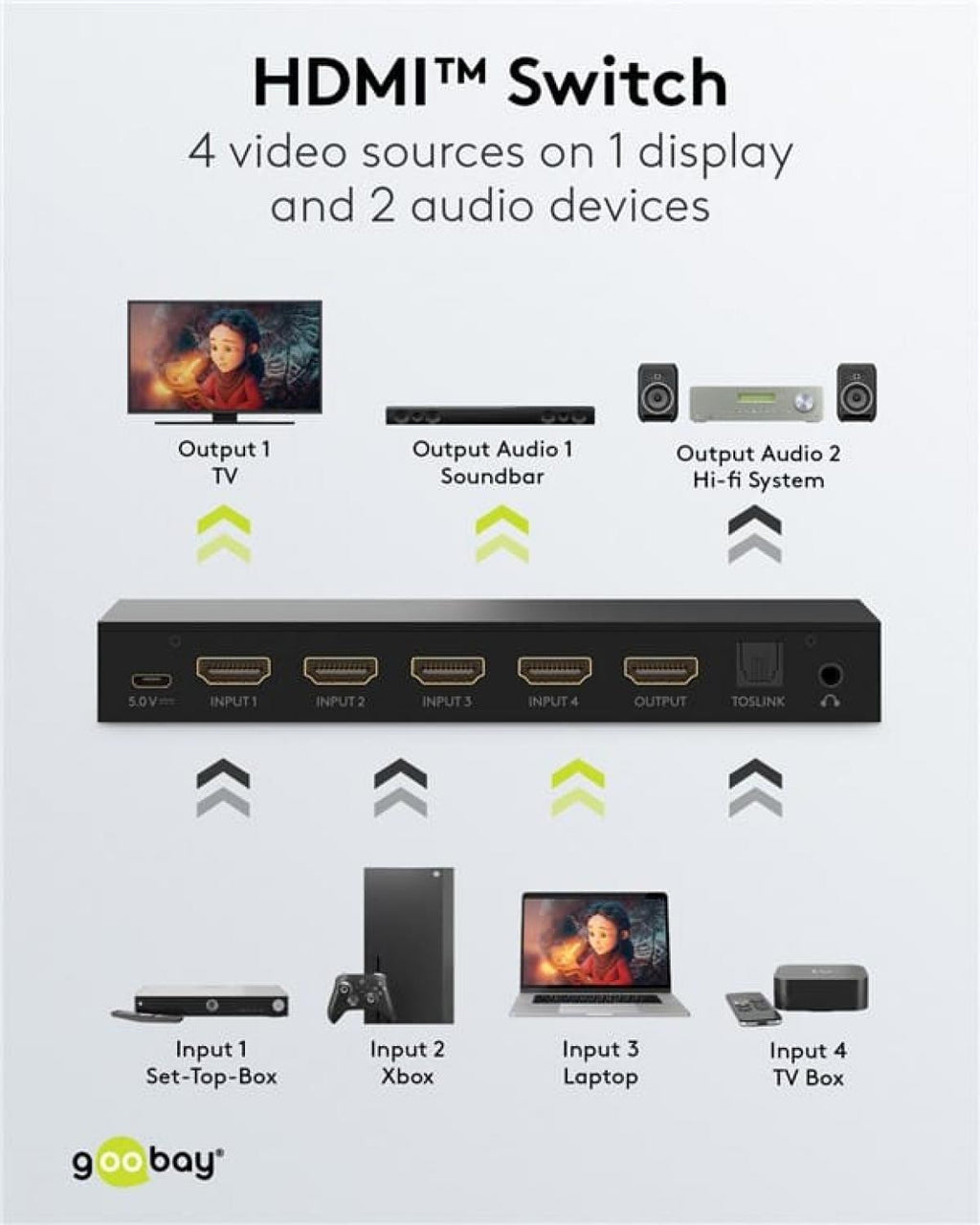

- The HDMI™ switch allows you to simultaneously connect up to 4 HDMI™ source devices to 1 HDMI™ output device.
- Easily connect audio devices such as a Hi-Fi system or headphones via the HDMI™ switcher's 3.5mm jack or TOSLINK connection.

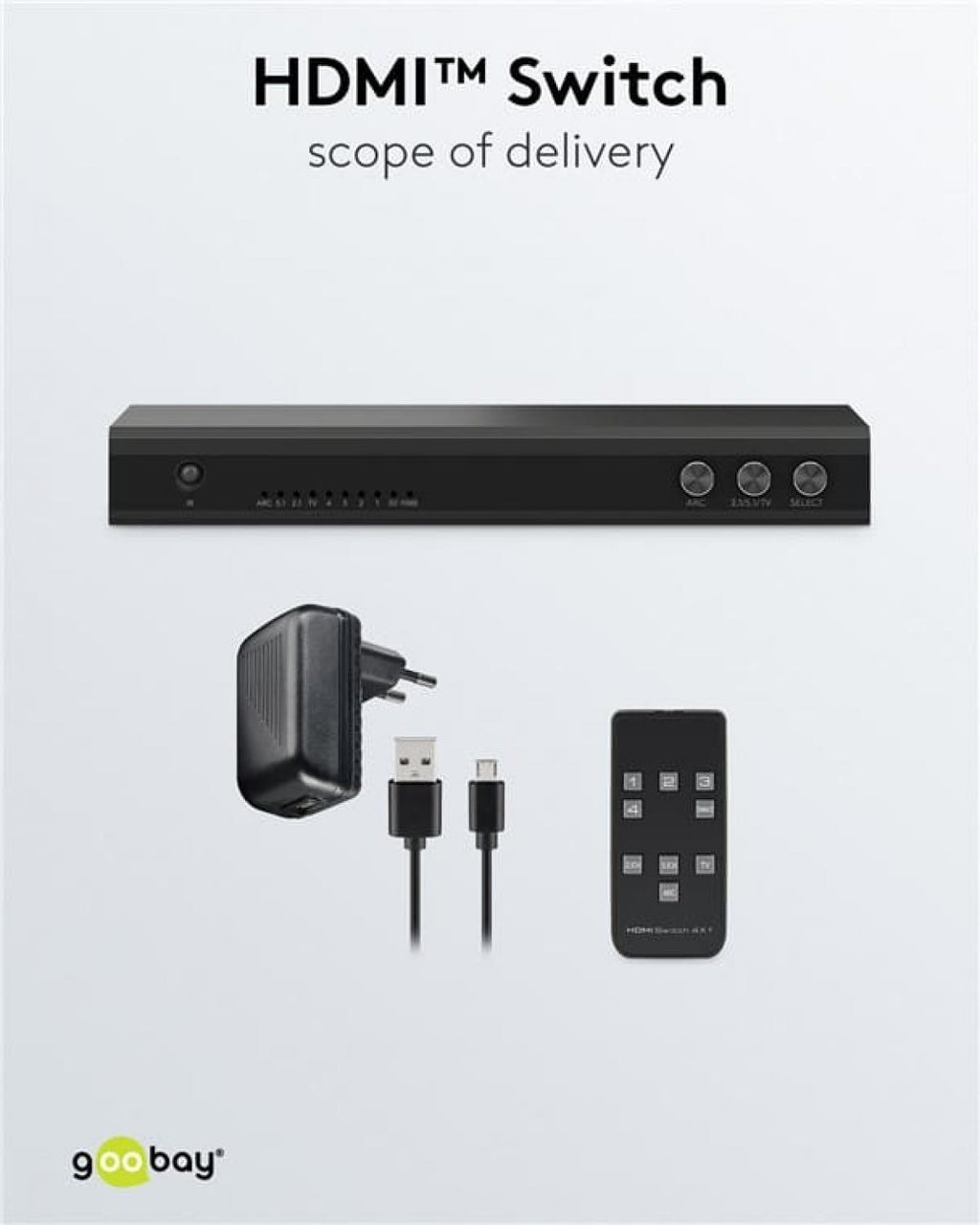

- Conveniently switch ports using the button on the front of the HDMI™ switch box or the remote control (included).

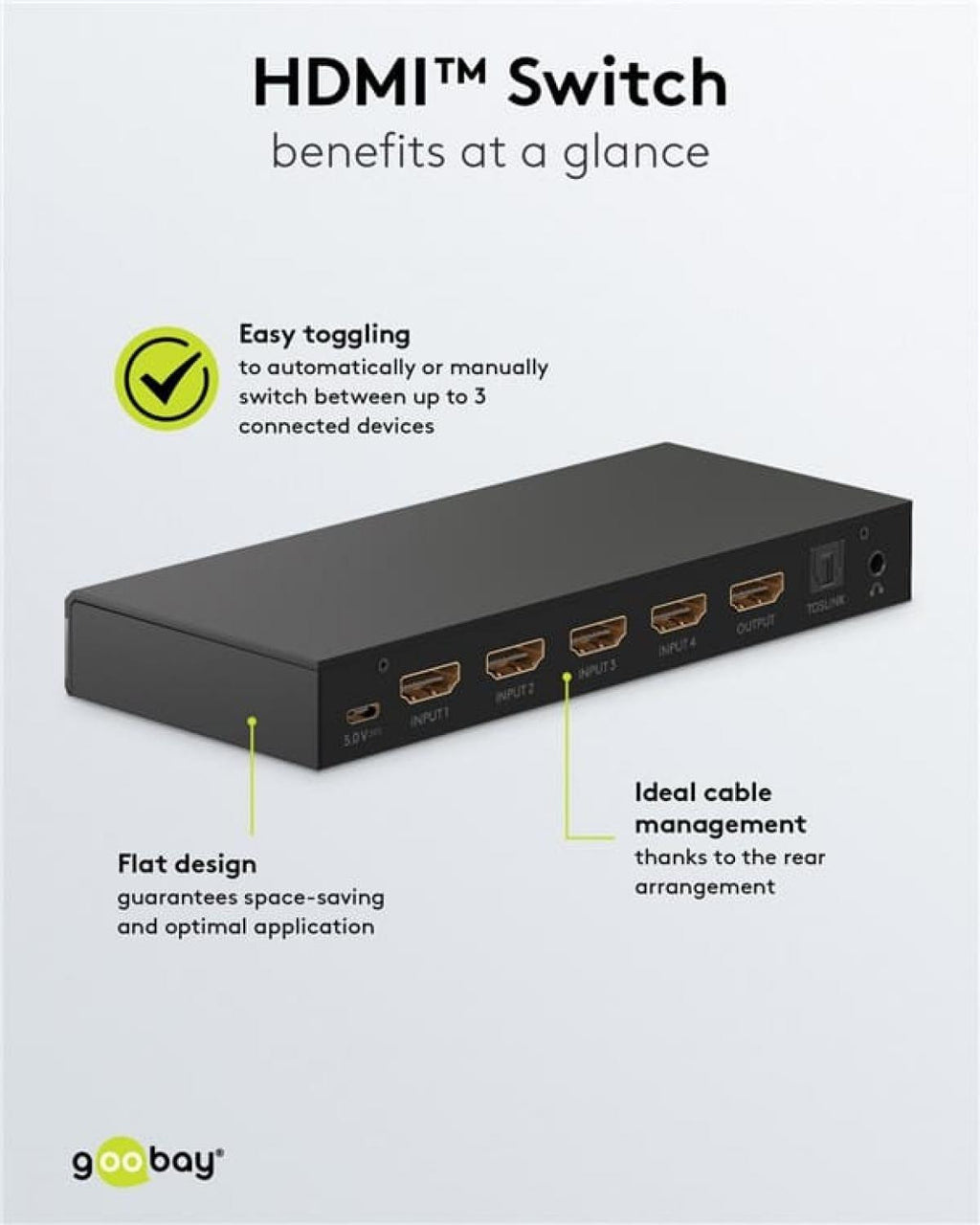

- The 4-in-1 HDMI™ extender can be placed discreetly behind furniture thanks to its slim design.
- Suitable, for example, for connecting Blu-ray players, DVD players, TV/SAT receivers, game consoles such as PS4 or Xbox to a TV, projector or monitor.
Specs
- Connection, HDMI™ female type (Type A)
- Connection 2, Toslink male type
- Connection type HDMI™ female (Type A), 3.5 mm female, Toslink connector
- Connection 3, type 3.5 mm Jack connector (3 pin, stereo)
Device connections
- Input Type 4 HDMI™ female (Type A) x input
- Output, HDMI™ female (Type A)
- Output 3, 3.5mm female type (3 pin, stereo)
- Output 2, Toslink male type
Signal transmission
- Signal direction: unidirectional
- Maximum resolution 4K Ultra HD 2160p (60 Hz)
- Supported video standards 4K Ultra HD 2160p (60 Hz), 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D, HDCP, HDCP 2.2
- Other supported standards HDCP 2.2, HDCP 1.4
- Supported audio standards Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Dolby Digital Audio Return Channel (ARC)
- Maximum transmission speed 18 Gbps
