Switch with 16 Gigabit Ports

What is this product for?

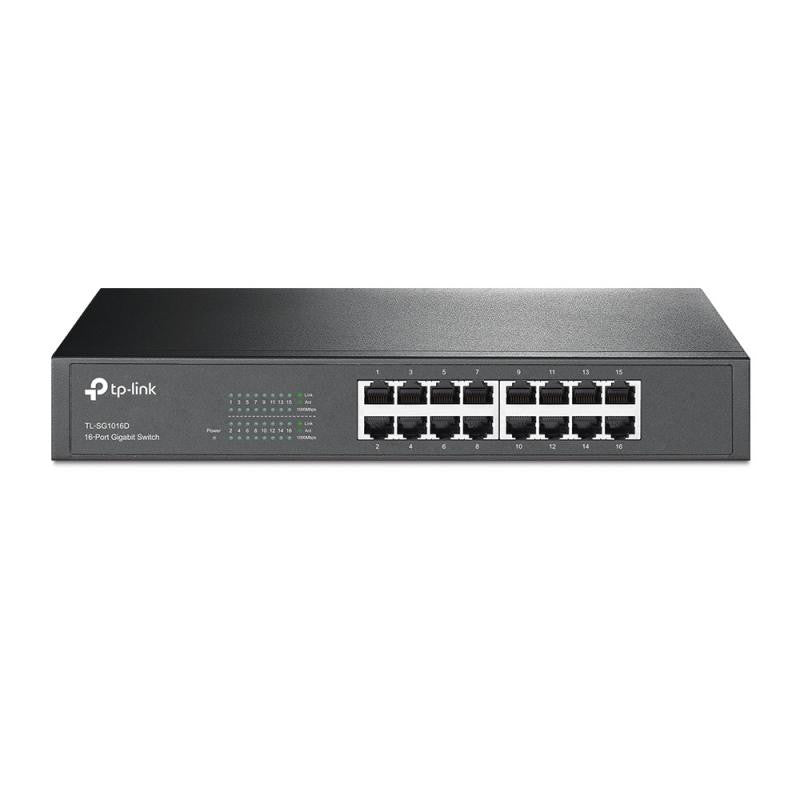

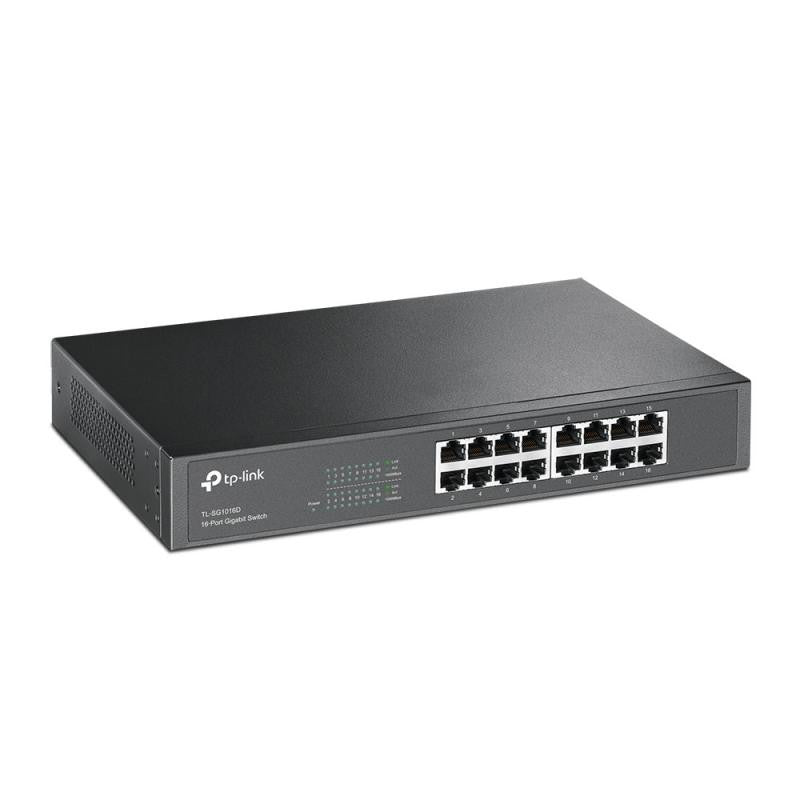

The TL-SG1016D Gigabit Ethernet Switch offers you a low-cost, easy-to-use, seamless, and standard high-performance upgrade to improve your legacy network to a 1000Mbps network. All of its 16 ports support auto MDI/MDIX; so there is no need to worry about the cable type, just plug and play. Moreover, with its innovative energy-efficient technology, the TL-SG1016D can save on power consumption and be an eco-friendly solution for your business network.

TP-LINK Energy Efficient Technology

This next-generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to link status to limit your network's carbon footprint. It also complies with EU RoHS, which prohibits the use of certain hazardous materials. Plus, most of the packaging material can be recycled.

High performance

All 16 ports are Gigabit RJ-45 ports which can provide great file transfer and also be compatible with 10Mbps and 100Mbps Ethernet devices. With its non-blocking architecture, the TL-SG1016D redirects and filters packets at full wire speed for maximum throughput. With the 10KB Jumbo Packet, the performance of large file transfers is greatly improved. Moreover, IEEE 802.3x flow control for Full Duplex mode and Back Pressure for Half Duplex mode alleviate traffic congestion and make the TL-SG1016D's work completely reliable. It is a perfect choice to upgrade your network to Gigabit while properly protecting your previous investment.

Easy to use

The auto-negotiation features of this Gigabit switch make installation plug-and-play and hassle-free. No configuration is required. MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port detects a network device's link speed (10, 100, or 1000 Mbps) and intelligently adjusts for optimal compatibility and performance.

• Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
• Interface 16 RJ45 ports at 10/100/1000 Mbps with auto-negotiation
• (auto MDI/MDIX)
• Network Media 10Base-T: UTP cable categories 3, 4, 5 (maximum 100 meters) 100Base-Tx/1000Base-T: UTP cable categories 5, 5e (maximum 100 meters)
• Number of Fans: Fanless
• Physical Security Lock: No

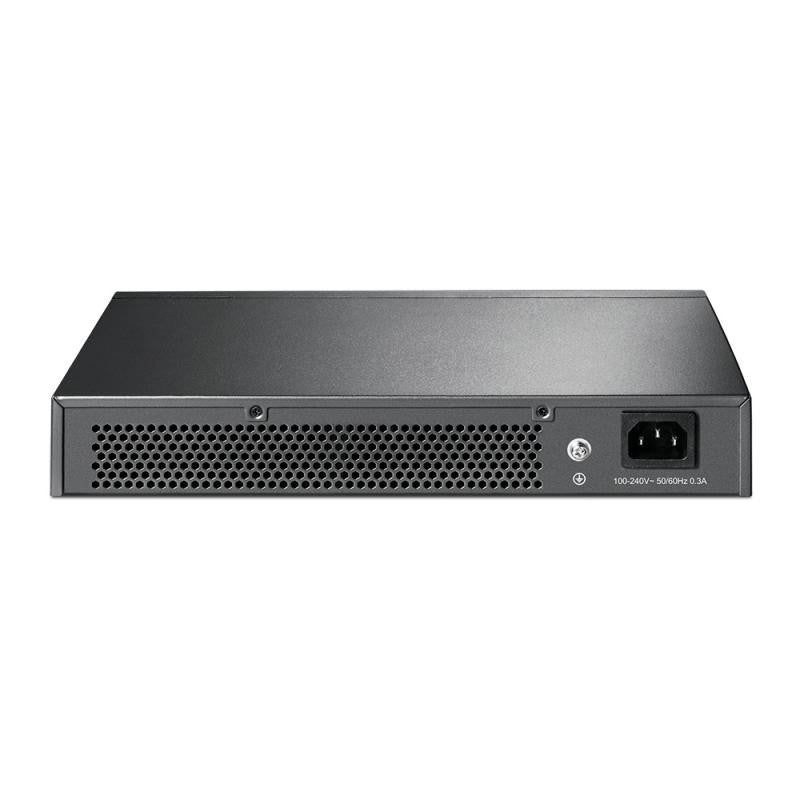

• Power Supply 100-240VAC, 50/60Hz
• Dimensions 11.6*7.1*1.7 inches (294*180*44 mm)
• Maximum Power Consumption: 9.26W(220V/50Hz)
• Max Heat Dissipation: 31.60BTU/h
