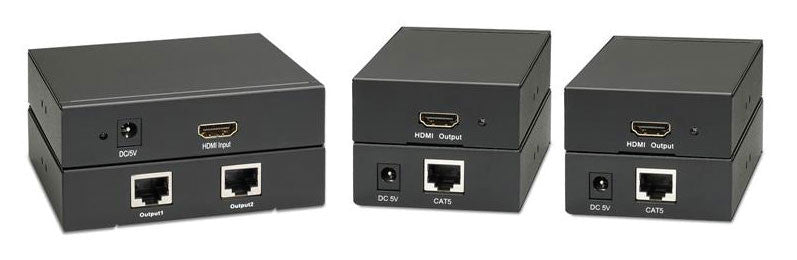

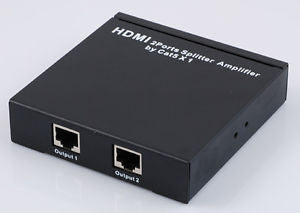

INTRODUCTION : This HDMI splitter is a HDMI splitter with two RJ45 outputs. It distributes the HDMI signal input to the two identical outputs simultaneously. Two additional HDMI receivers by Cat5e/6 x1 cable receive the distributed signal from the splitter and transmit to the displays individually. Each receiver works with the splitter as a complete functional module. With only one very inexpensive CAT-5e/6 cable, the module works fully extending the HDMI signal display up to 50 meters for 1080p.
FEATURES: This HDMI splitter has many features that allow for a clean installation. Among those features are:
* Easy to use: Installation in seconds, no adjustment required.
* One pair per functional module.
* A CAT-5e/6 cable can replace the HDMI cable to achieve long distance transmission.
* Follows IEEE-568B standard.
* Transmission distance can be up to 50 meters for 1080p using CAT-6 cable.
* Support HDMI1.2a.
* Support 1080P high video resolution.
*/ 1.65Gbps per channel (4.95Gbps all channel) bandwidth 165MHz Support.
* Support 8-bit per channel (24bit all channel) deep color.
* Support for uncompressed audio such as LPCM
Specifications:
- Signal Inputs/Output
- Input DDC Signal: 5 volts pp (TTL)
- Maximum Single Link Range: 1920X1080p
- Video Output: HDMI 1.2a
- Video Amplifier Bandwidth: 1.65Gpbs/165MHz
- Vertical Frequency Range: 50/60Hz
- Resolutions(HDTV)
- Interlaced(50&60Hz): 480i,576i,1080i
- Progressive(50&60Hz): 480p,576p,720p,1080p
- Size of HDMI 4 Ports Splitter Amplifier (LWH): 100x102x25cm
- Weight of HDMI 4 Ports Splitter Amplifier (Net): 285gr
- Size of Receiver (LWH): 100x65x25.5mm
- Weight of Receiver (Net): 385G
- Power Supply for HDMI 4 Ports Splitter amplifier:5V DC@ 2A,10W
- Power Supply for Receiver: 5V DC@ 2A, 5W
