What is it for?

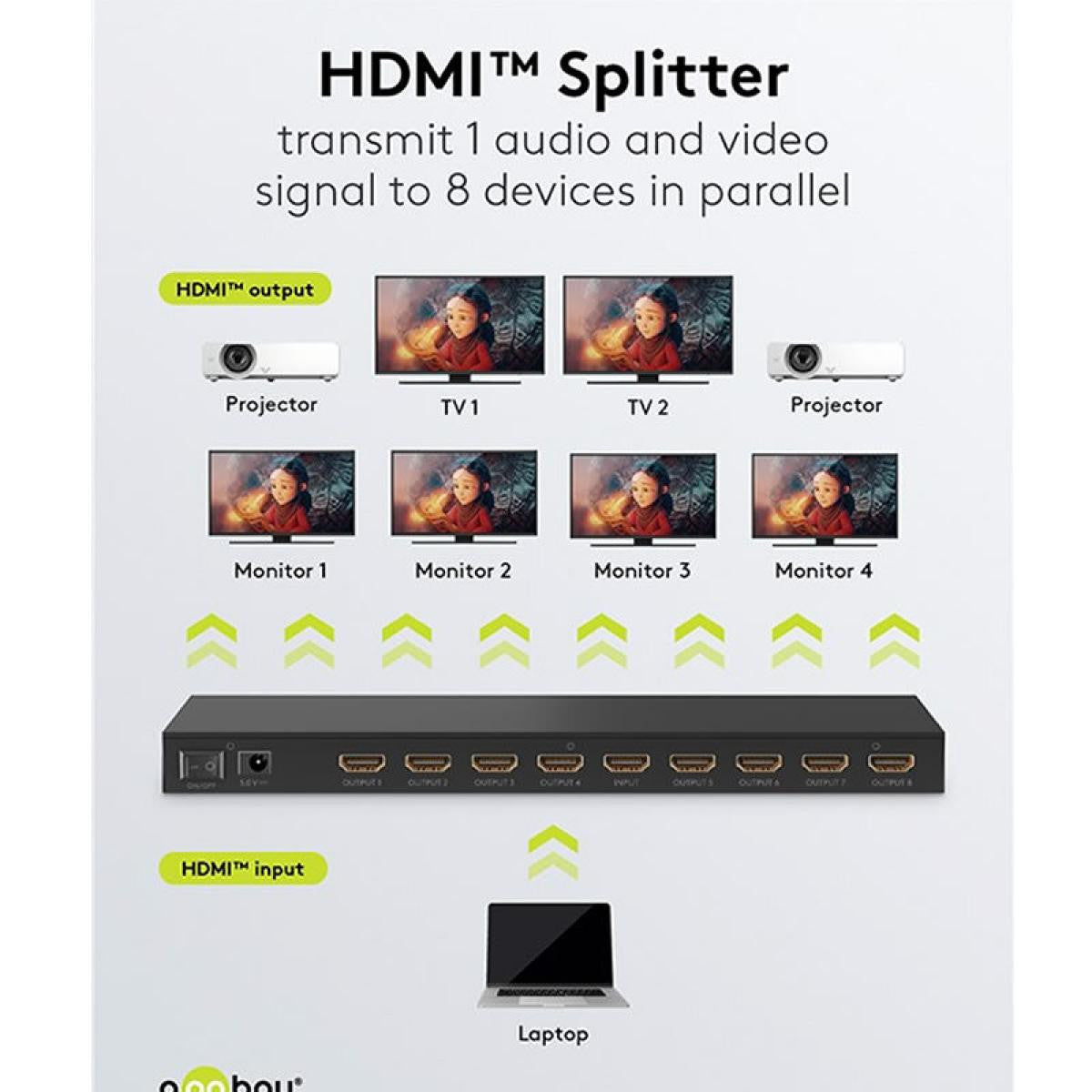

This HDMI™ Splitter duplicates the signal from a 1 x HDMI™ input device to up to 8 HDMI™ output devices. In other words, it is a device that mirrors the audio and video signals to the connected devices, for example for simultaneous projection of TVs, monitors or projectors.
Characteristics
- The 1 x 8 HDMI™ splitter box supports resolutions up to 4K@60Hz (backwards compatible).

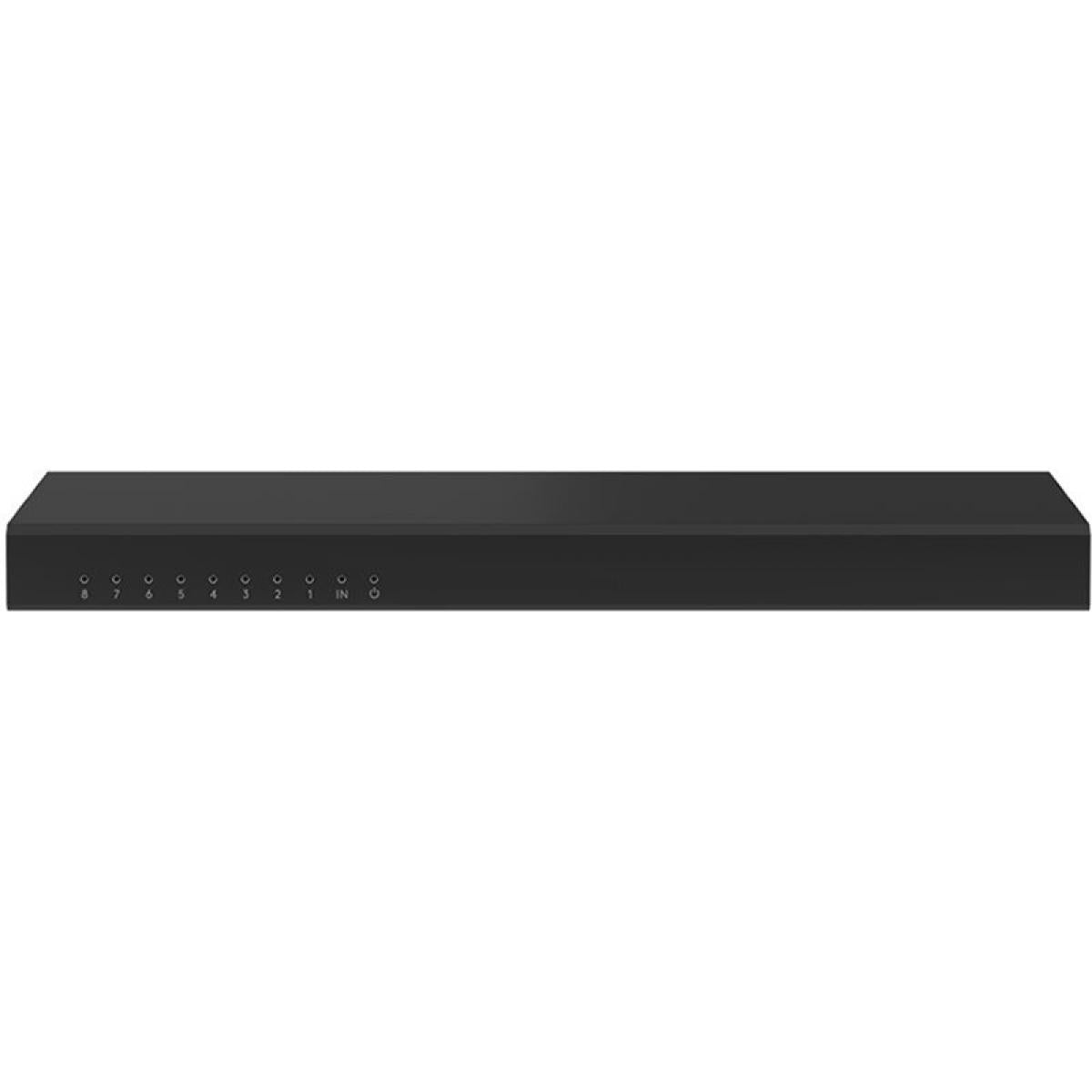

- The HDMI™ extender's LED display indicates which connections are active.

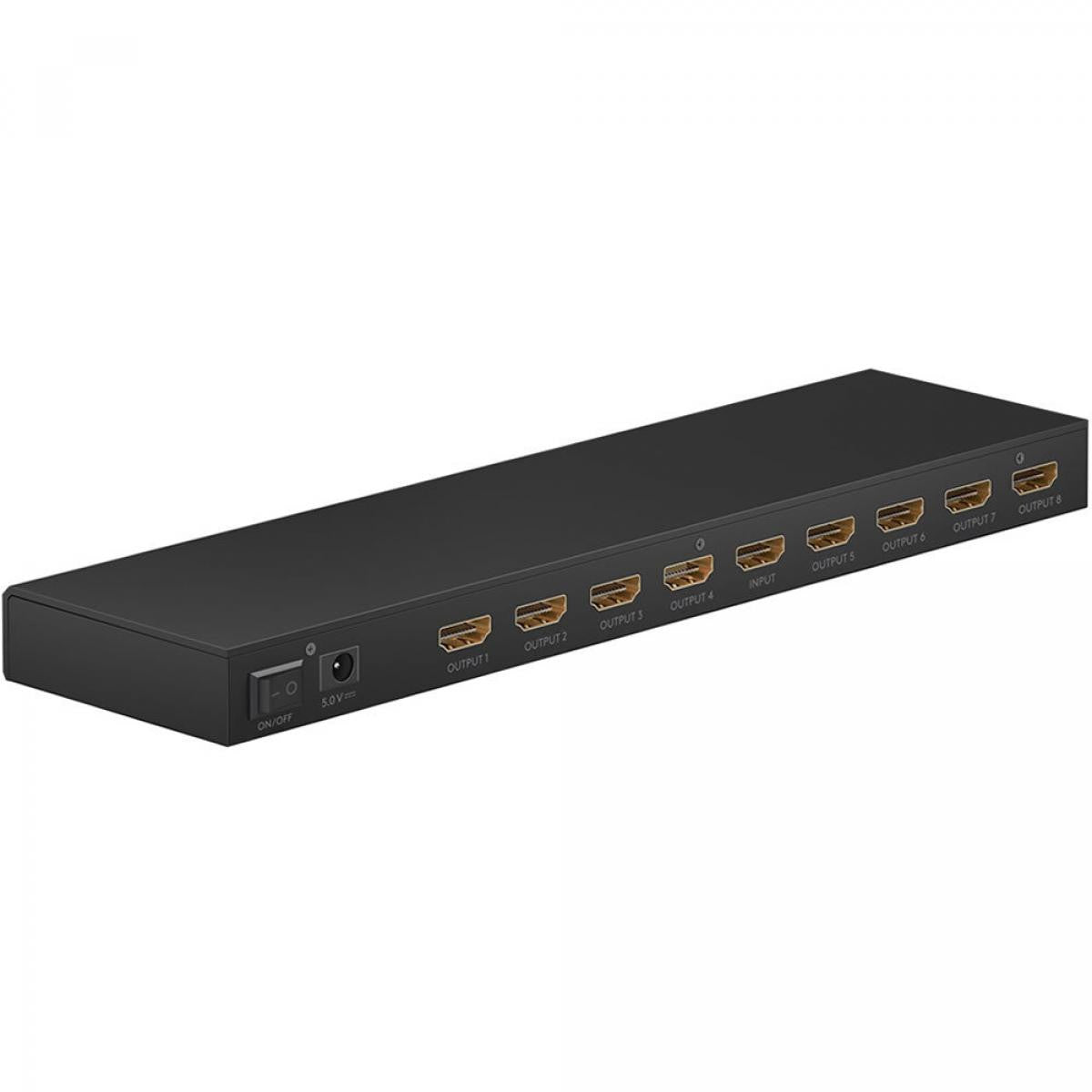

- HDMI™ adapter 1 input, 8 output in flat design, equipped with heat-dissipating aluminum housing and gold-plated connectors.
- Plug & Play allows easy connection without the need to install additional drivers.
- Powered via a 5V power supply and Micro-USB cable (both included in delivery).
Specs

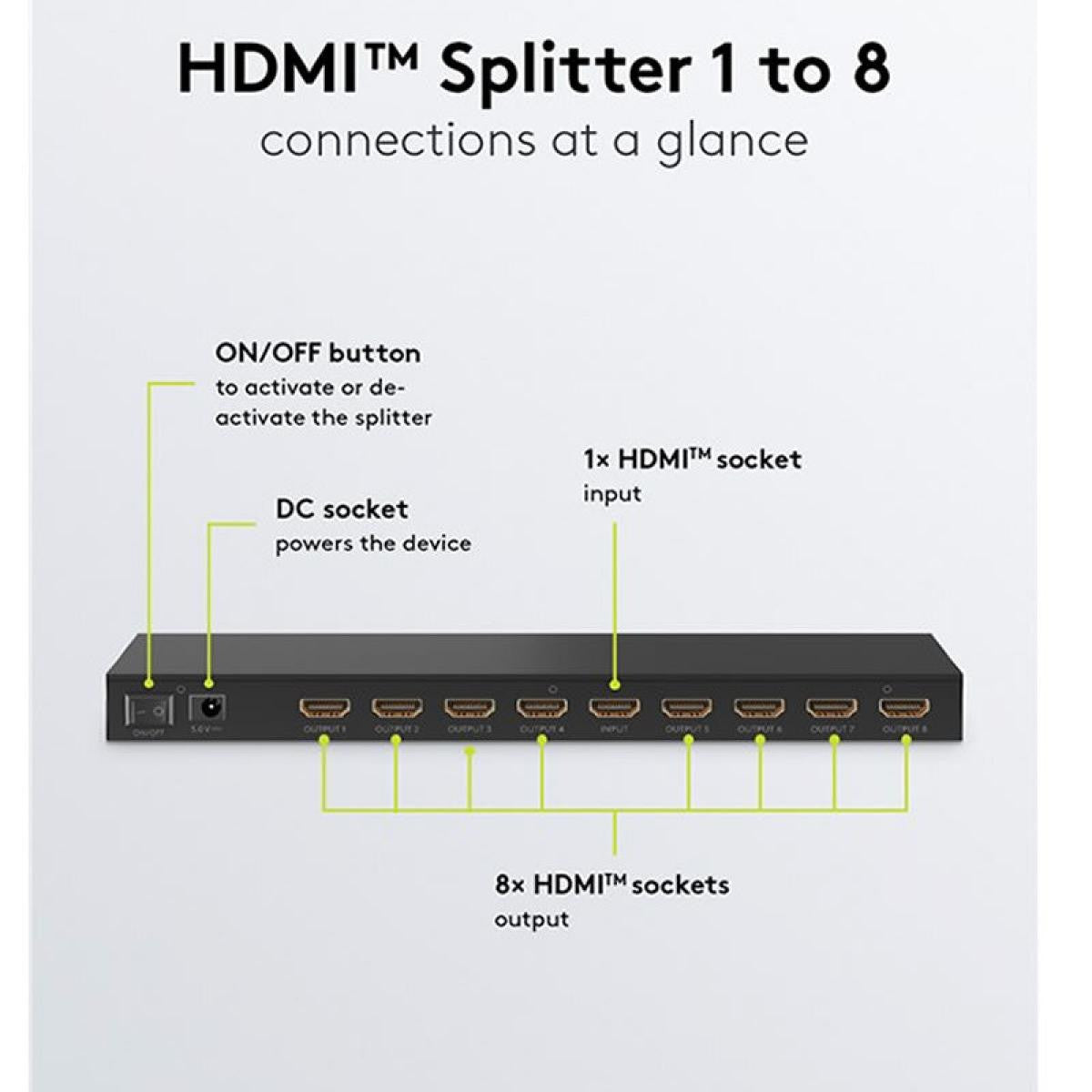

Device Connections
- Input Type: HDMI™ Female (Type A)
- Output Type: 8 x HDMI™ Female (Type A)
Signal Transmission (Unidirectional)
- Max.Transmission speed: 18 Gbit/s
- 4K Ultra HD 2160p (60 Hz)
- Supported video standards 4K Ultra HD 2160p (60 Hz), 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D.
- Supported audio standards:LPCM 7.1, Dolby Digital HD (DTS HD), Dolby Digital TrueHD.
General
- Color: Black
- Operating temperature from 0 ºC
- Operating temperature up to 40 ºC
- Dimensions: Length (269.6mm) x Width (70.8mm) x Height (21.2mm)
- Weight: 387 gr
