What is it for?

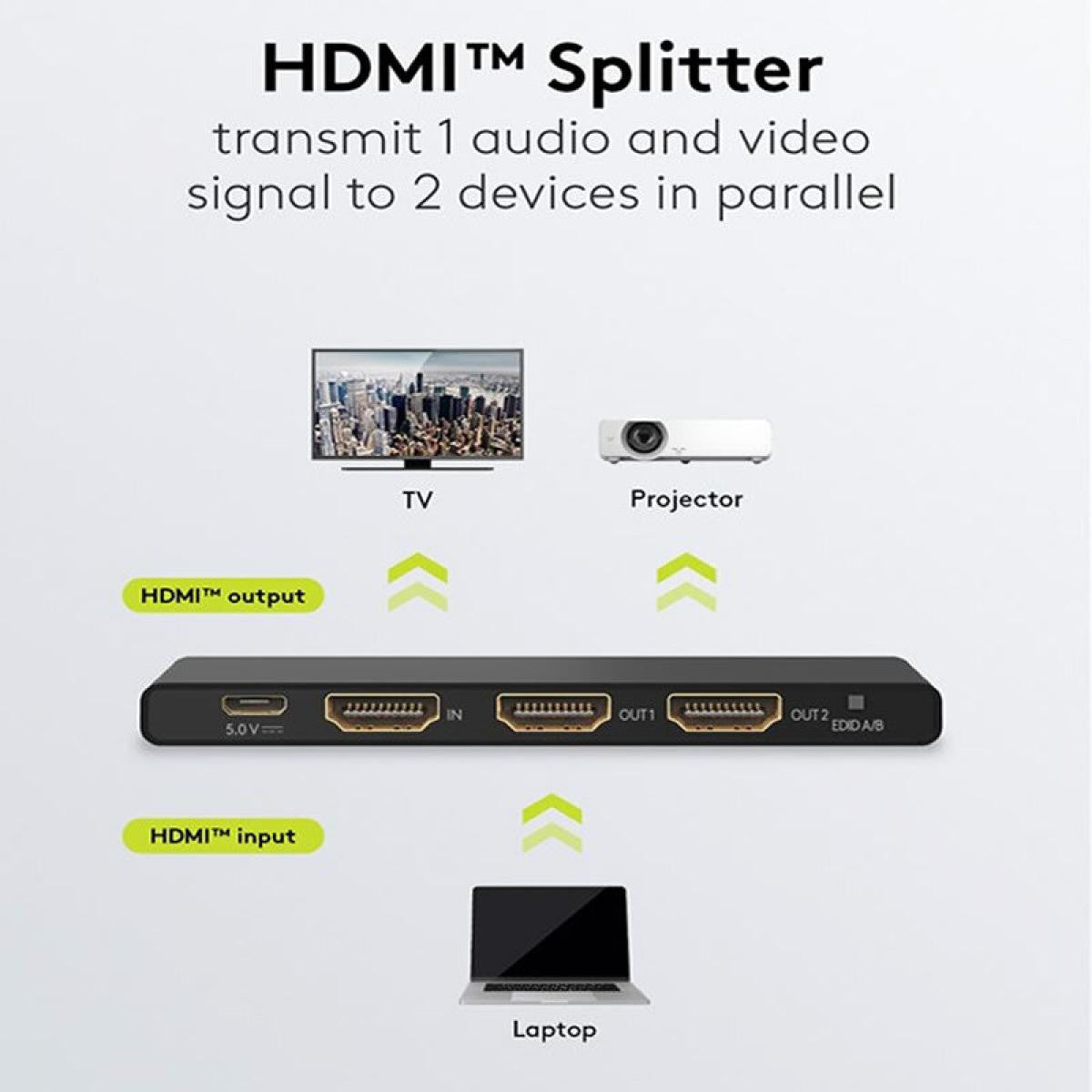

This HDMI™ Splitter duplicates the signal from one HDMI™ input device to up to two HDMI™ output devices. In other words, it's a device that reflects audio and video signals to connected devices, for example, for simultaneous projection on TVs, monitors, or projectors.
Characteristics
- The HDMI™ 1 x 2 splitter box supports resolutions up to 4K at 60 Hz (backward compatible).

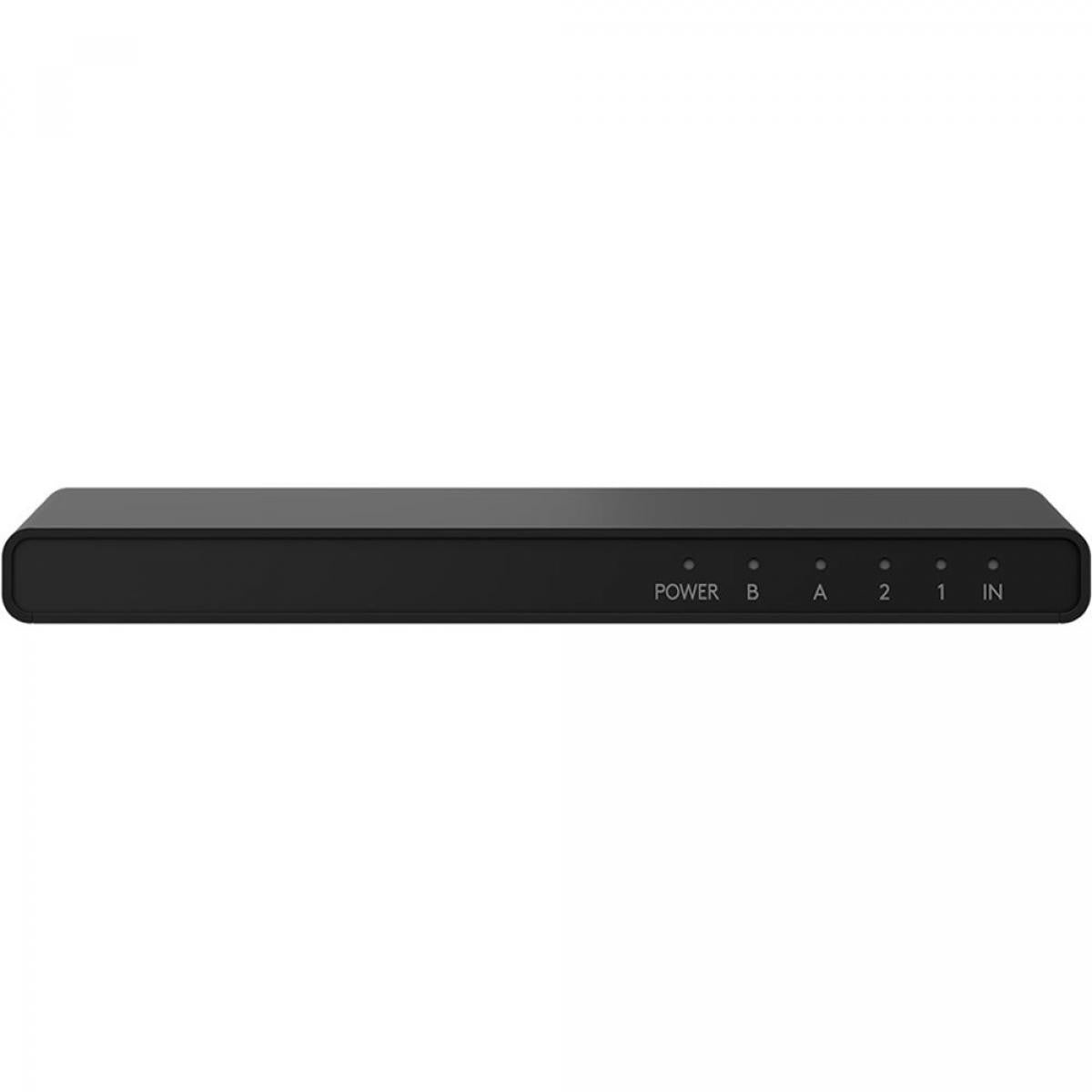

- The HDMI™ extender's LED display indicates which connections are active.

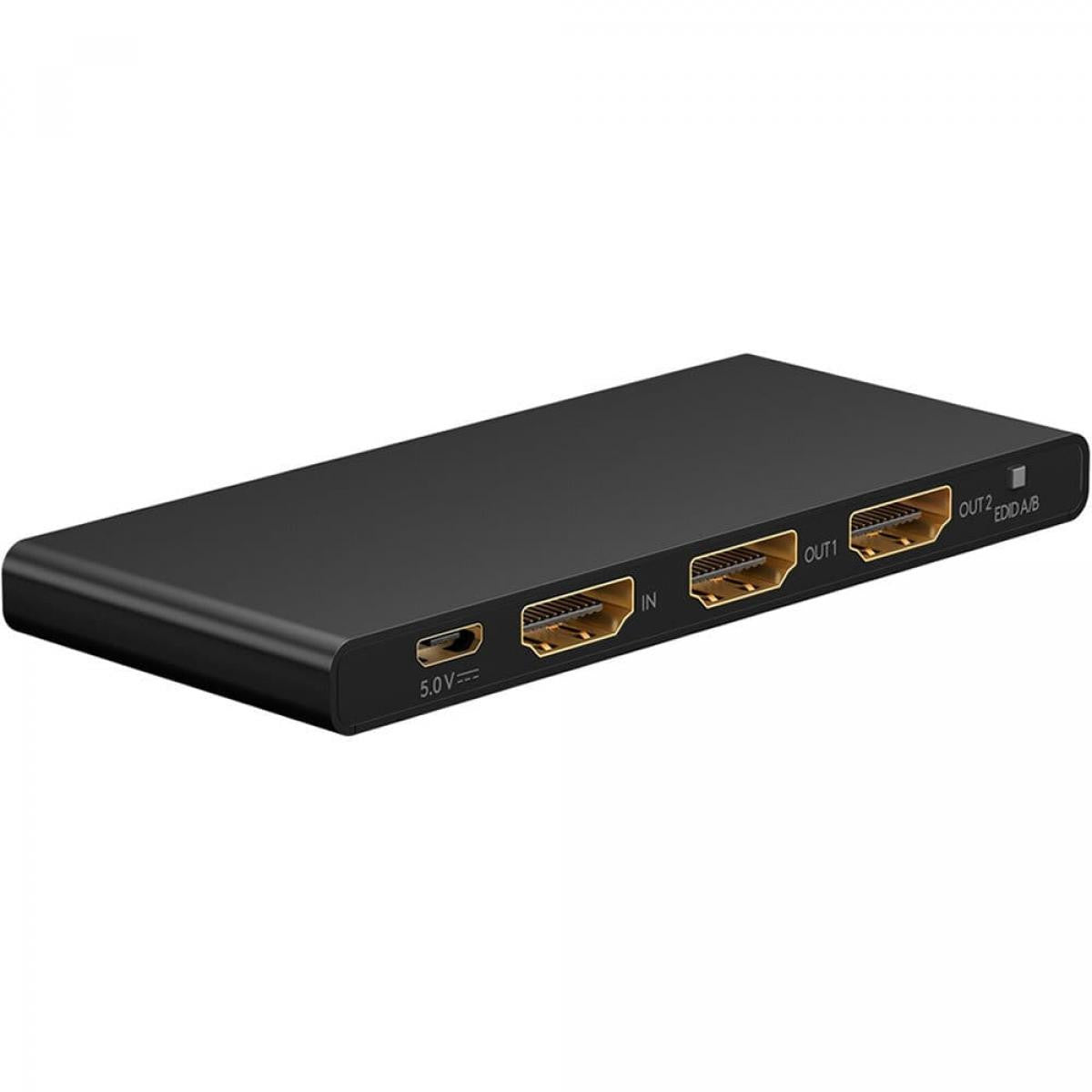

- HDMI™ adapter with 1 input, 2 outputs in a flat design, equipped with an aluminum heat sink housing and gold-plated connectors.
- Plug & Play allows for easy connection without the need to install additional drivers.
- Powered via a 5V power supply and a Micro-USB cable (both included in the delivery).
Specs

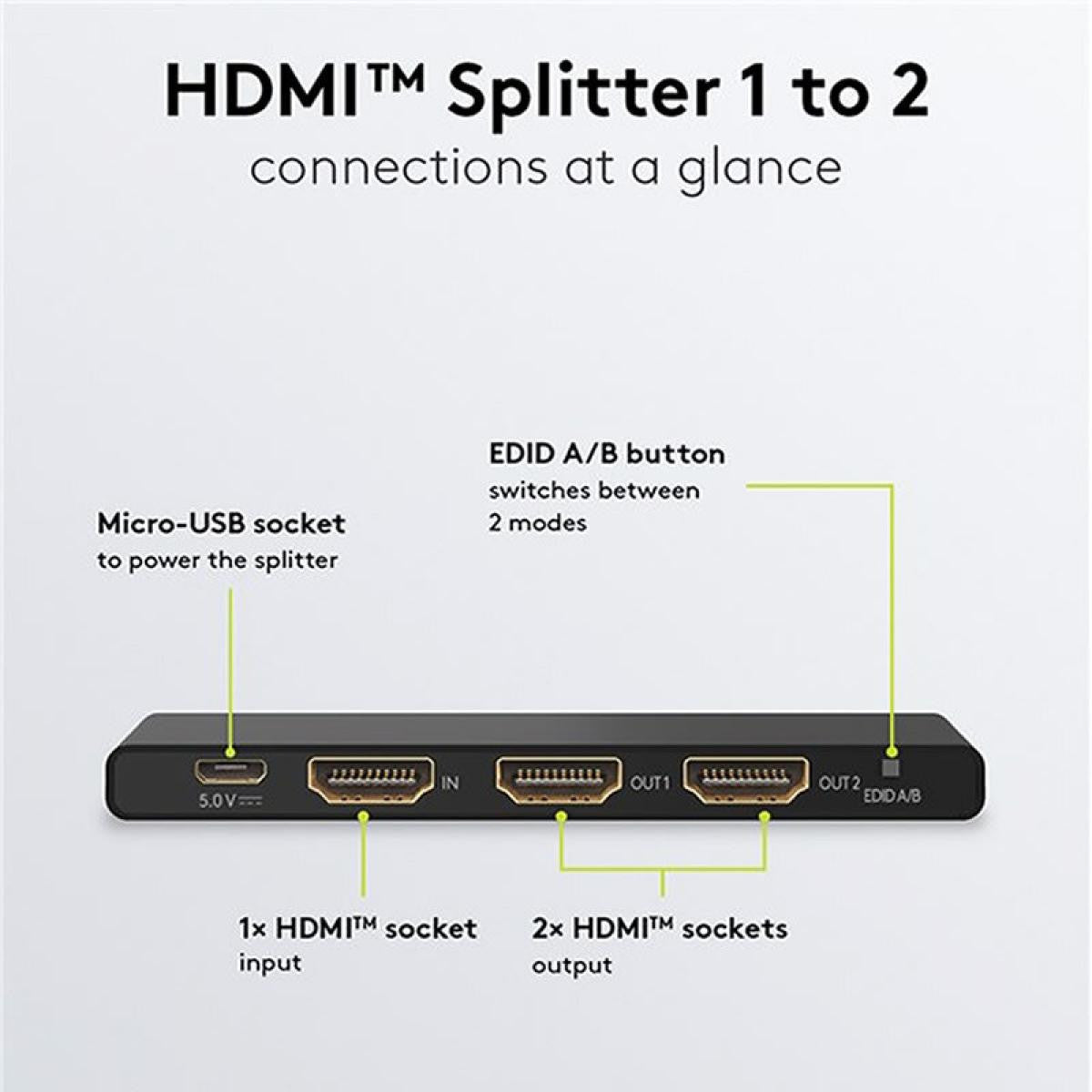

Device connections
- Input type: HDMI™ female (Type A)
- Output type: 2 x HDMI™ female (Type A)
Signal transmission (Unidirectional)
- Max. transmission speed: 18 Gbit/s
- 4K Ultra HD 2160p (60 Hz)
- Supported video standards 4K Ultra HD 2160p (60 Hz), 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D, HDCP 2.2
- Other supported standards: HDCP 2.2, HDCP 1.4
- Supported audio standards: Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Enhanced Audio Return Channel (eARC), Audio Return Channel (ARC)
General
- Color: Black
- Operating temperature from 0°C
- Operating temperature up to 40°C
- Dimensions: Length (109mm) x Width (47.4mm) x Height (9.5mm)
- Weight: 71 gr
