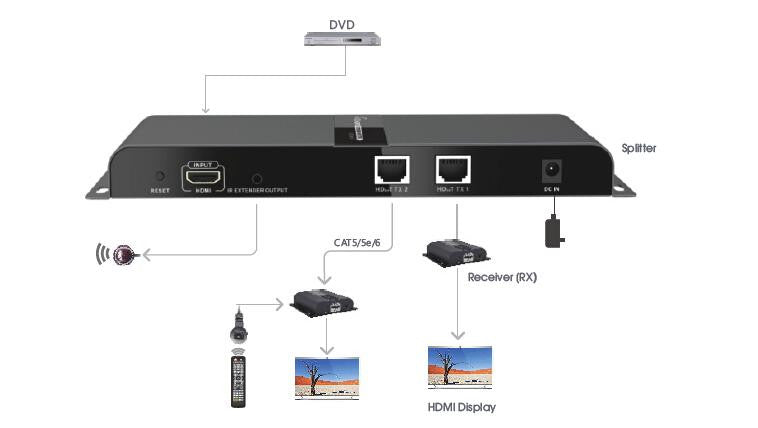

This HDMI duplicator with two RJ45 outputs distributes the HDMI input signal to two outputs simultaneously. Using UTP CAT6 cable we can reach a maximum distance of 120m (with a tolerance of 17%) with each receiver, with respect to the transmitter.
Characteristics :
* Easy to use: Installation in seconds, no adjustment required.
* One pair per functional module.
* A Cat6 cable can replace the HDMI cable to achieve long distance transmission.
* Follows IEEE-568B standard.
* Transmission distance can be up to 120 meters for 1080p using Cat6 cable.
* Support HDMI1.4.
* Support 1080P high video resolution.
* Supports HDCP.
* Supports IR Control
Specifications:
- Maximum Single Link Range: 1920X1080p
- Video Output: HDMI 1.4
- Vertical Frequency Range: 50/60Hz
- Resolutions(HDTV)
- Interlaced(50&60Hz): 480i,576i,1080i
- Progressive(50&60Hz): 480p,576p,720p,1080p
- Dimensions (LWH): 299x110.7x29.6mm
- Kit weight: 430g
- IR frequencies: 20 to 60kHz
- Consumption: < 24W
- Power supply: 12V - 3@

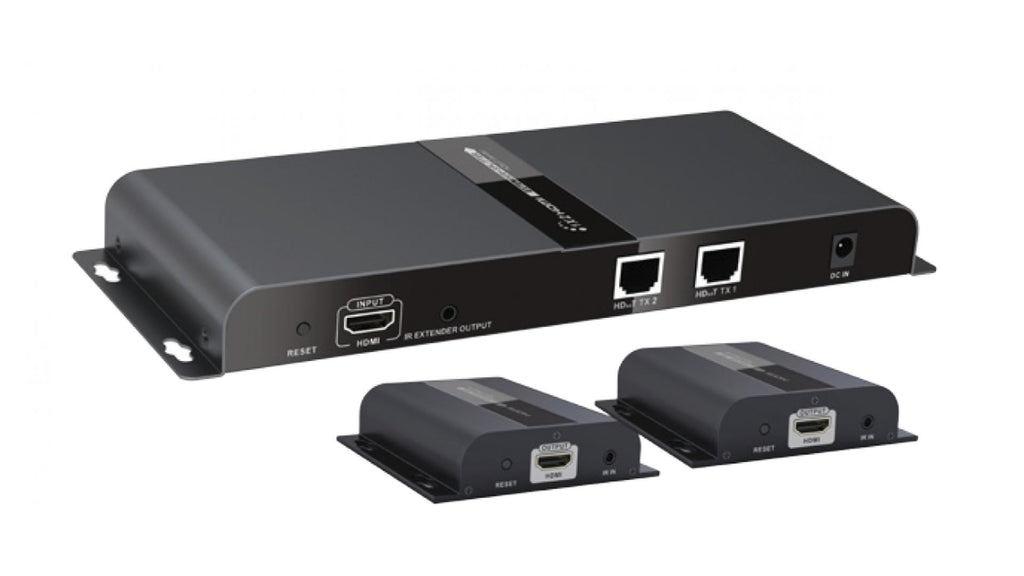

- Kit of 1 transmitter and 2 receivers
- Network cables not included
