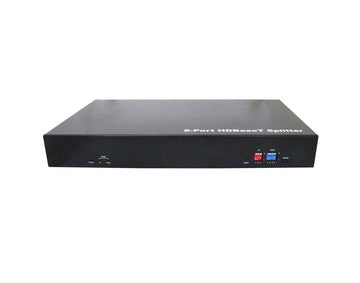

The HDMI 1 extender distributes 1 Ultra HD HDMI signal to 8 identical HDBaseT outputs, with 8 HDMI outputs and 2 Ethernet ports passing only one RJ45 cable, (CAT.6). It supports a bandwidth of up to 10.2 Gbps so it supports resolutions up to 4K @ 60hz YUV 4: 2: 0.
It can transmit 4K signals up to a maximum distance of 70m and FullHD 1080p signals up to a maximum of 100m, and includes EDID configuration to control the resolution of the screens.
Specs
- Incorporate HDBaseT technology
- Supports local and remote EDID Copy functionality
- Supports Dolby TrueHD, DTS-HD Master Audio
- HDCP 2.2 Compliant (HDCP 2.2 Input, HDCP 1.4 Output)
- Maximum transmission distance: 4Kx2K up to 70m, Full HD (1080p) up to 100m
- Power supply: 12V 3A
- Power consumption: 15 W
- Dimensions: 220.0mm (Width) x 112.7mm (Depth) x 27.5mm (Height)
- Compatible with receiver: TCEXTRX4K
