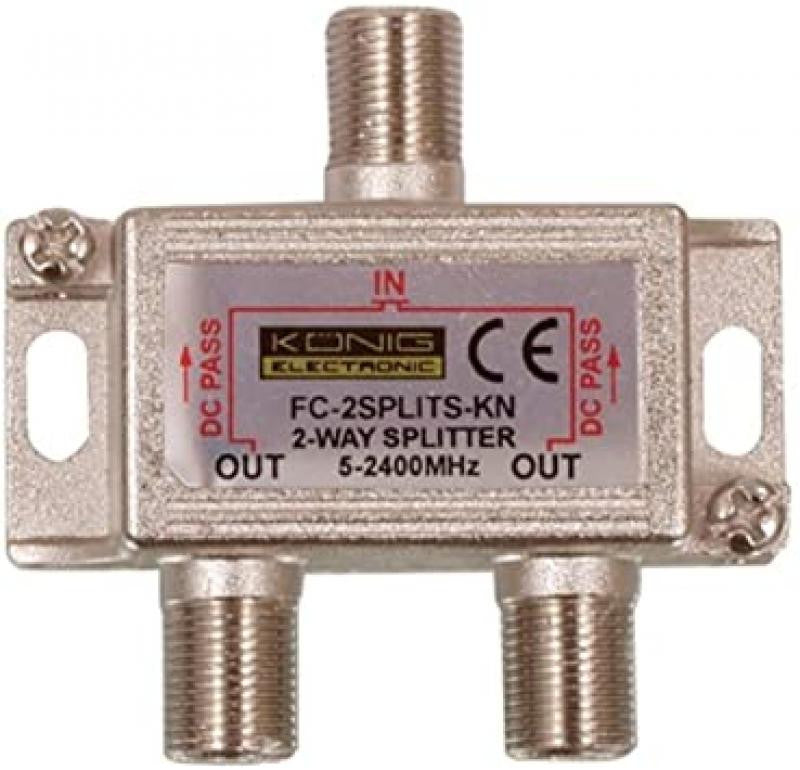

Satellite Splitter 2 Outputs TV Antenna Adapter

Distributor in zinc die-cast housing with satellite DC power shunt, nickel plated.

General information

• • Insertion 5-40 MHz: 5.0 dB
• • Loss 40-450 MHz: 4.5 dB
• (IN-OUT) 470-860 MHz:4.5 dB
• (IN-OUT) 950-1750 MHz:6.0 dB
• (IN-OUT) 1750-2400 MHz:6.5 dB
• • Isolation 5-40 MHz:15 dB
• • loss 40-450 MHz: 20 dB
• (OUT-OUT) 470-860 MHz:20 dB
• (OUT-OUT) 950-1750 MHz:18 dB
• (OUT-OUT) 1750-2400 MHz:16 dB
• • Return loss: 14 dB

• Color: Silver
• Impedance: 75 Ohm
• Materials: Zinc
• Number of outputs: 2
• Number of entries: 1
• Connector Type: F Connector
• Insertion loss: 6.5 dB
• CATV Accessory Type:CATV Splitter
• Frequency range: 5 - 2400 MHz
