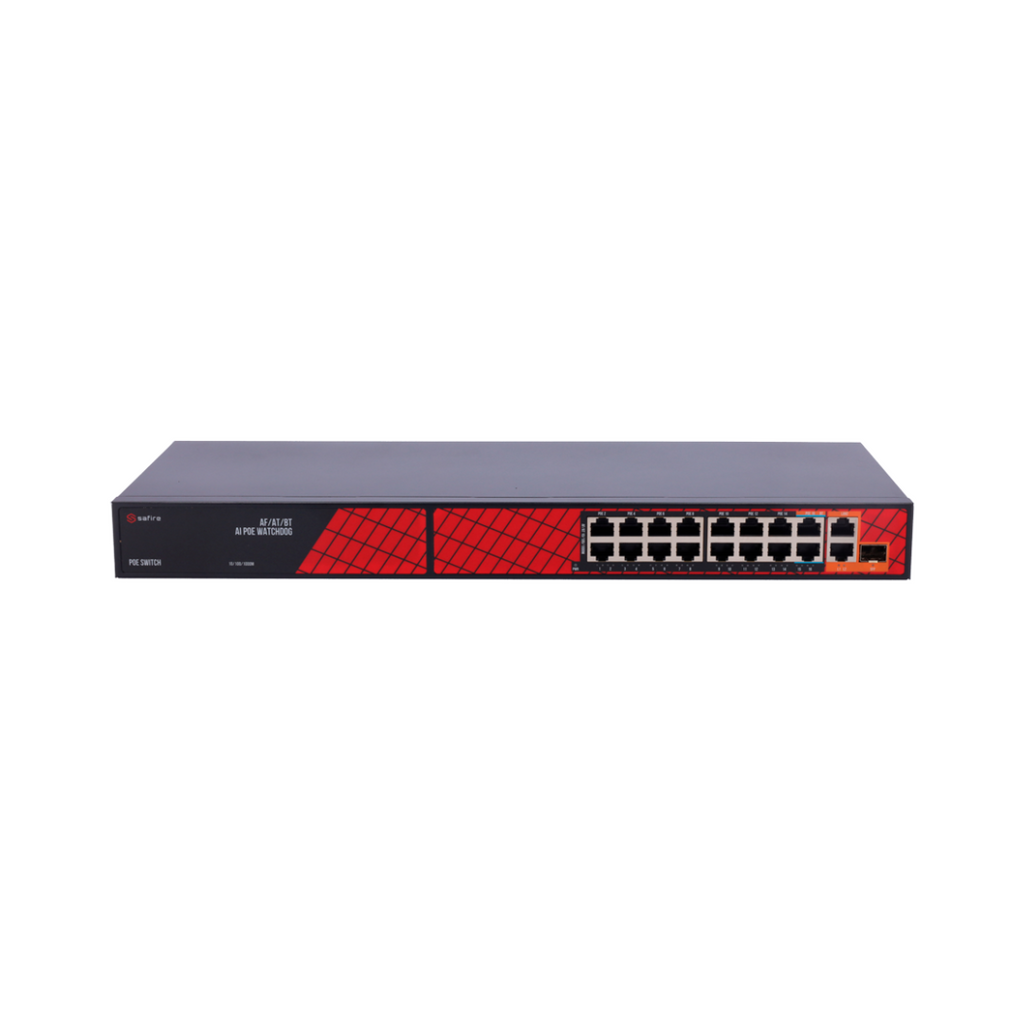

16-port PoE switch with a 300 W total budget designed to centralise medium and large video surveillance installations without running short of power.
Its last two Hi-PoE ports deliver up to 60 W for motorised PTZ cameras without external injectors, and the three uplink ports (2 Gigabit RJ45 + 1 SFP) connect it to the rest of the network, including over fibre.
Key features
- 16 PoE ports: 14 × PoE+ 30 W and 2 × Hi-PoE 60 W (802.3bt)
- 300 W total PoE budget
- 3 Gigabit uplinks: 2 × RJ45 + 1 × SFP for fibre
- PoE Watchdog: restarts the port if the camera stops responding
- Extended PoE mode up to 250 m
- 6 kV lightning and 8 kV ESD protection
- Plug and play, no configuration; desktop or rack with kit included
Specifications
| Brand | Safire |
| Model | SF-SW1916HIPOE-HF-300 |
| Type | Unmanaged PoE switch |
| Total ports | 19 (16 PoE + 2 RJ45 uplinks + 1 SFP uplink) |
| PoE ports | Ports 1-14: PoE+ 30 W (802.3af/at); ports 15-16: Hi-PoE 60 W (802.3af/at/bt) |
| PoE port speed | Ports 1-15: 10/100 Mbps; port 16: 10/100/1000 Mbps |
| Uplink ports | 2 × RJ45 10/100/1000 Mbps + 1 × SFP 10/100/1000 Mbps |
| Total PoE budget | 300 W |
| Switching capacity | 12.8 Gbps |
| MAC table | 8K |
| Latency | < 16 µs at 10/100 Mbps (64-byte packets) |
| Transmission distance | 130 m; up to 250 m in extended PoE mode |
| PoE functions | PoE Watchdog (automatic port restart if the device stops responding) and extended PoE |

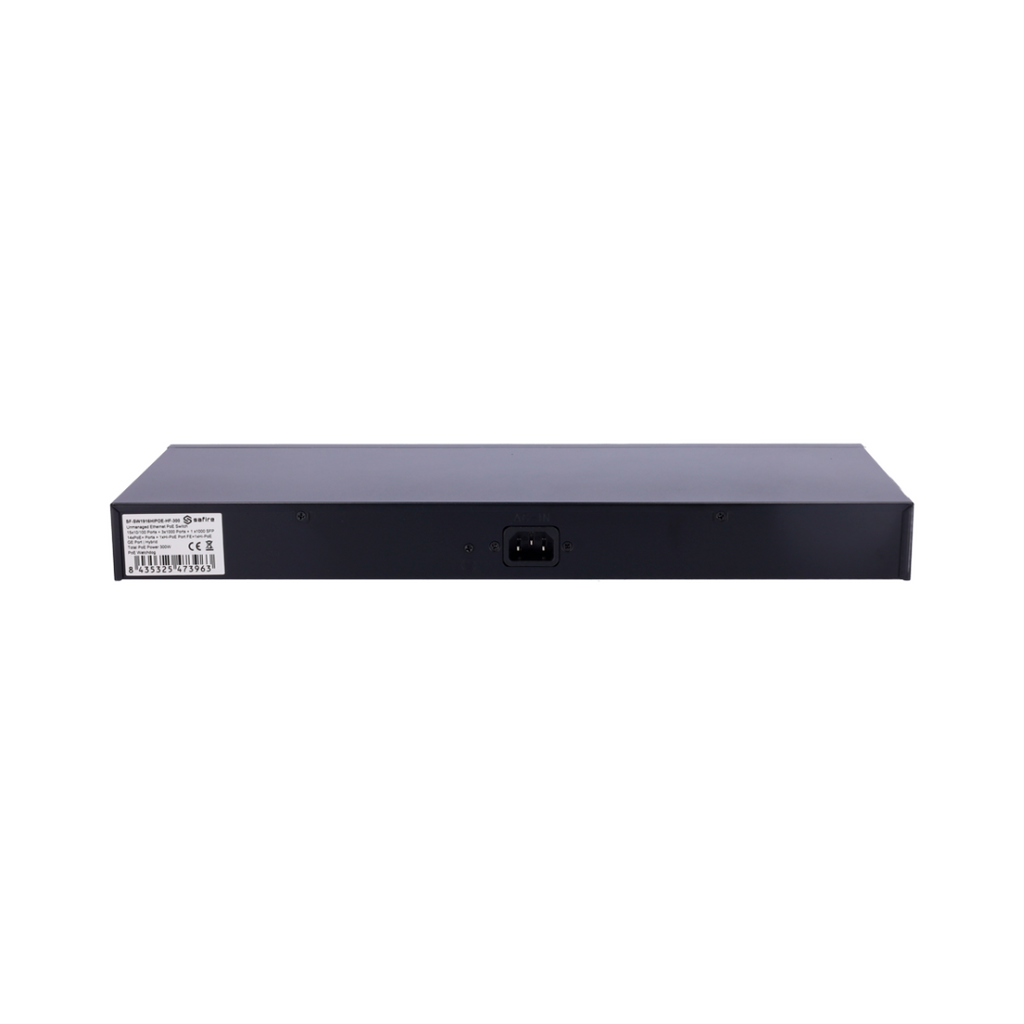

| Power supply | 180-240 V AC (rear inlet) |
| Protection | 6 kV lightning and 8 kV ESD |
| Mounting | Desktop or rack |
| Operating temperature | -30 °C to 60 °C |
| Dimensions | 430 × 180 × 45 mm |
| Weight | 2.65 kg |
| Includes | AC power cable and rack mounting kit (ears and screws) |
