| Brand |
Ruijie Reyee |
| Network Interfaces |

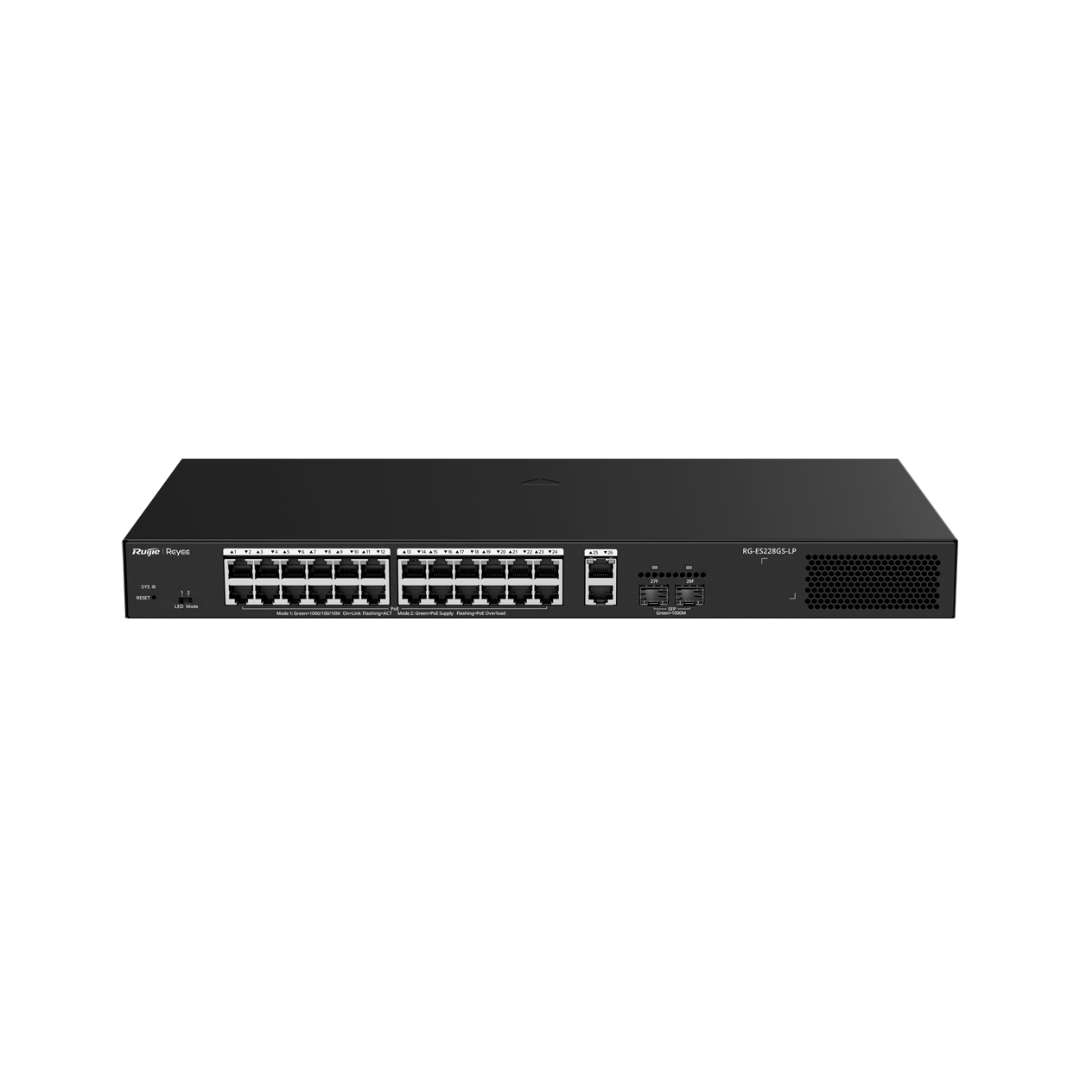

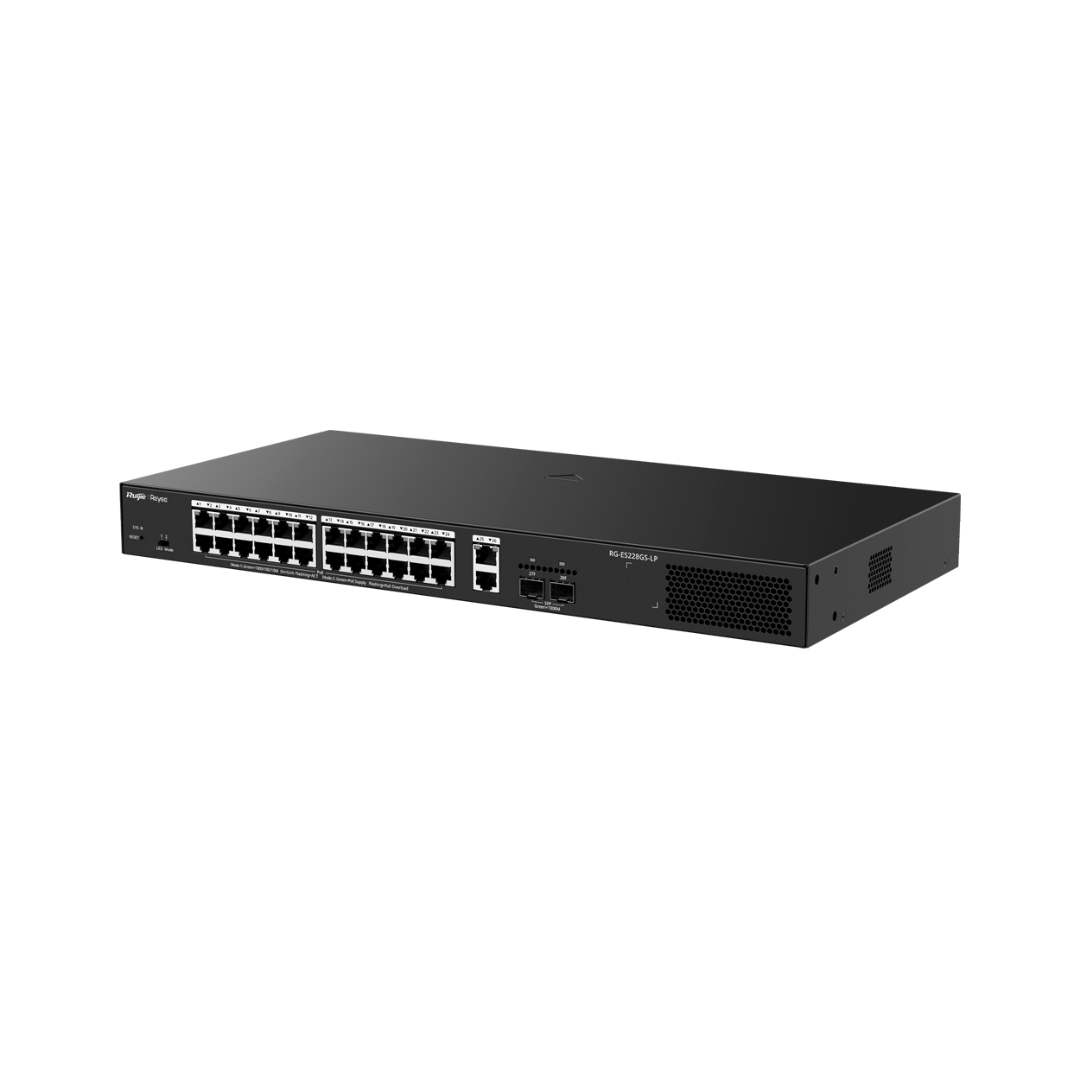

24 × 10/100/1000BASE-T PoE/PoE+ RJ45, 2 × 10/100/1000BASE-T Uplink RJ45, 2 × 1GE SFP (Uplink) |
| PoE Standard |
IEEE 802.3af, IEEE 802.3at (PoE / PoE+) |
| PoE Power per Port |
Up to 30 W per port |
| PoE Power Pins |
1–2 (+), 3–6 (-) |
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.66 Mpps |
| Flash Memory |
8 MB |
| MAC Address Table |
8000 entries (Supports static configuration) |
| Jumbo Frame Size (MTU) |
10000 bytes |
| VLAN Configuration |
IEEE 802.1Q VLAN, Assignment on LAN ports, Max. 16 VLANs |
| Smart PoE Functions |
Native PoE Watchdog (Detection and auto-restart of frozen cameras) |
| Smart Network Technology |
SON (Self-Organizing Network for automatic deployment) and eWeb management |
| Video and Intelligence Functions |
Automatic IP Camera Recognition, Camera Detection |
| Recommended CCTV Capacity |
Up to 80 H.265 200W (2MP) cameras or 40 H.265 400W (4MP) cameras |
| Security and Traffic Control |
Port isolation, Flow Control, Ingress/Egress rate limiting per interface |
| Storm Protection |
Broadcast, Multicast and Unknown Unicast storm suppression |
| Network Maintenance |
DHCP Client, DNS Client, Port Mirroring, Cable Test |
| System Security |
DHCP Snooping for secure environments, CPU Protection Policy |
| Energy Efficiency |
Supports IEEE 802.3az (Energy Efficient Ethernet) |
| Management Platforms |
Lifetime Ruijie Cloud (Web/App), Local eWeb (HTTP/HTTPS login), Ruijie Reyee App |
| Housing Material |
Metallic (Metal Casing) |
| Cooling Mechanism |
1 × fixed fan (Automatic speed adjustment / Front-to-back airflow) |
| Acoustic Noise Level |
< 40 dB at 25 °C |
| Mounting Options |
Rack-mounted (1U height) or Desk-mounted |
| Cabling Support |
Hot-swapping (Hot-swapping supported on service ports and power connector) |
| Reliability (MTBF) |
200,000 hours of continuous use |
| ESD Protection |
Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge Protection |
Service ports: ± 6 kV (common mode) / Power connector: ± 6 kV (common mode and differential mode) |

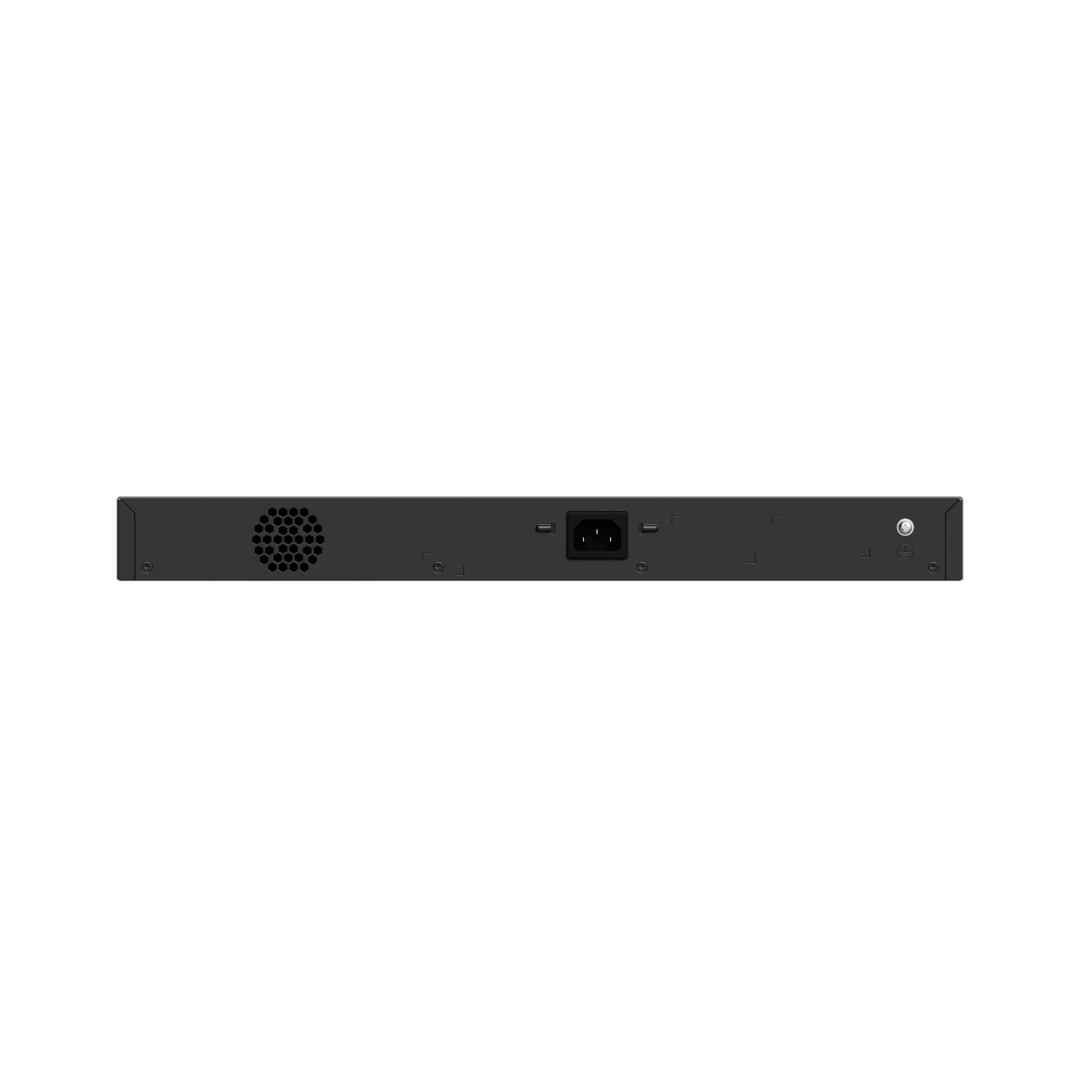

| Power Supply |
Integrated fixed AC power supply (Input: 100-240 V AC, 50/60 Hz, 6 A) |
| Power Consumption (without PoE) |
< 21 W (110 V) / < 20 W (220 V) |
| Power Consumption (with full PoE) |
< 302 W (110 V) / < 294 W (220 V) |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity |
10% to 90% RH (non-condensing) |
| Dimensions (W × D × H) |
440 mm x 214.9 mm x 43.2 mm |
| Net Weight |
2.80 kg |
