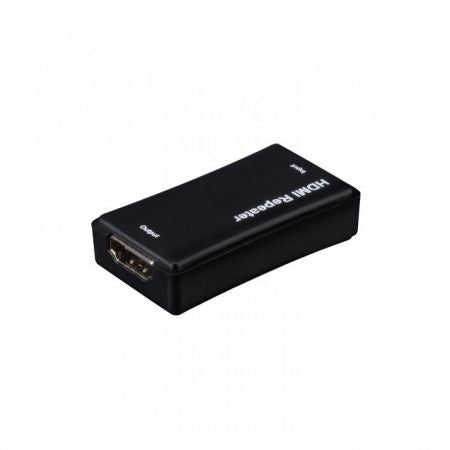

HDMI Signal Repeater 45m

Product description

The HDMI repeater is designed to repeat and boost the HDMI signal, extending it over a cable up to 45 meters long. The gold-plated connectors ensure a secure connection. It is powered via the HDMI input itself and also receives an additional 5V 1A power supply via a USB cable and connector.

Characteristics

• Integrated amplifier to extend the HDMI signal up to 45 m
• active self-powered circuit for quick, easy, elegant installation
• Supports 1080p
• It supports 225 MHz/2.25 Gbps per channel (6.75 Gbps all channels) bandwidth
• It supports 12-bit per channel (36-bit all channels) color depth
• HDCP and CEC pass-through
• Uncompressed audio as it is LPCM
• Supports compressed audio such as DTS, Dolby Digital (DTS-HD Master AudioTM and Dolby TrueHD)
• Ultra-thin design
• 3D Support

Specs

• Input signal: HDMI
• HDMI Input/Output Connector; 19-pin HDMI Type A
• Video Output; HDMI 1.3b
• Vertical Frequency Range; 50/60Hz
• Video Amplifier Bandwidth; 2.25 Gbps/225 MHz
• Interlaced resolutions (50 and 60Hz); 480i, 576i, 1080i
• Progressive resolutions (50 and 60Hz); 480p, 576p, 720p, 1080p
• Power Supply; Micro USB Power Cable
• Power consumption (Max); 1.5 W

Package Contents 1) Main Unit 2) Micro USB Power Cable 3) User Manual
