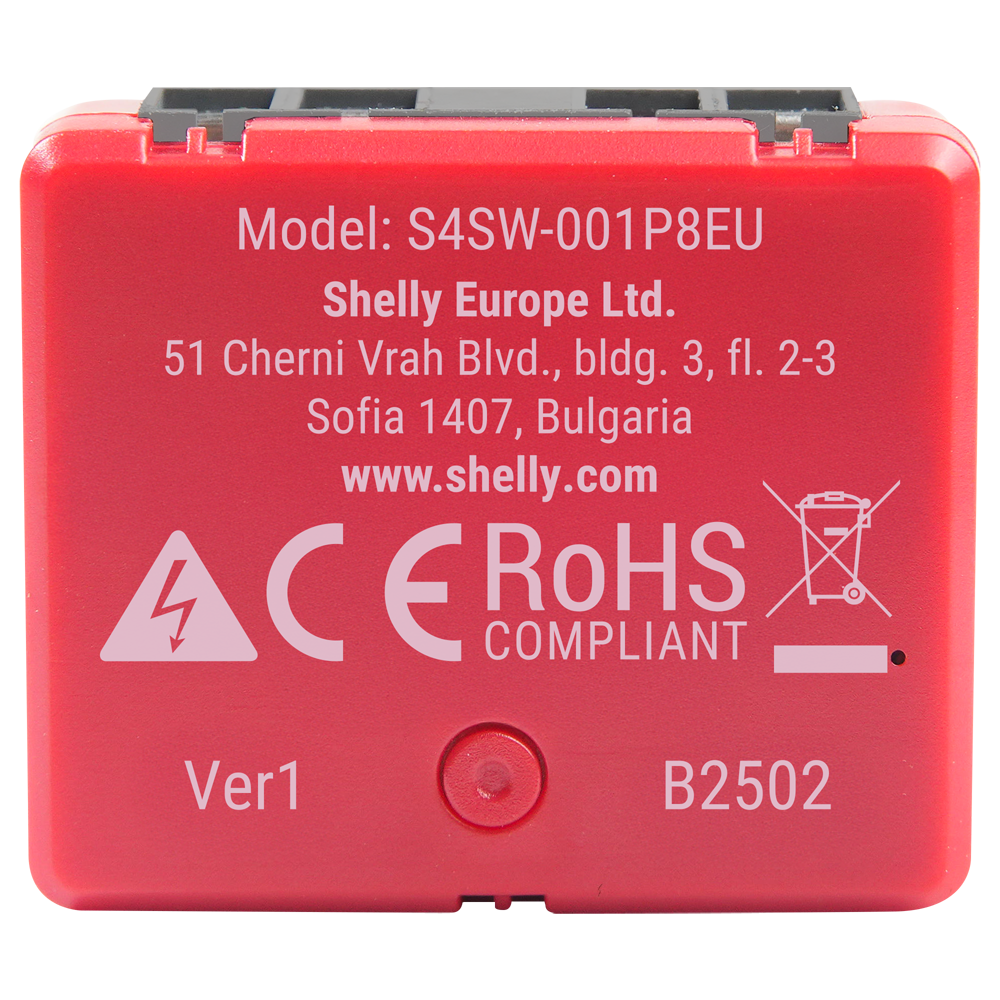

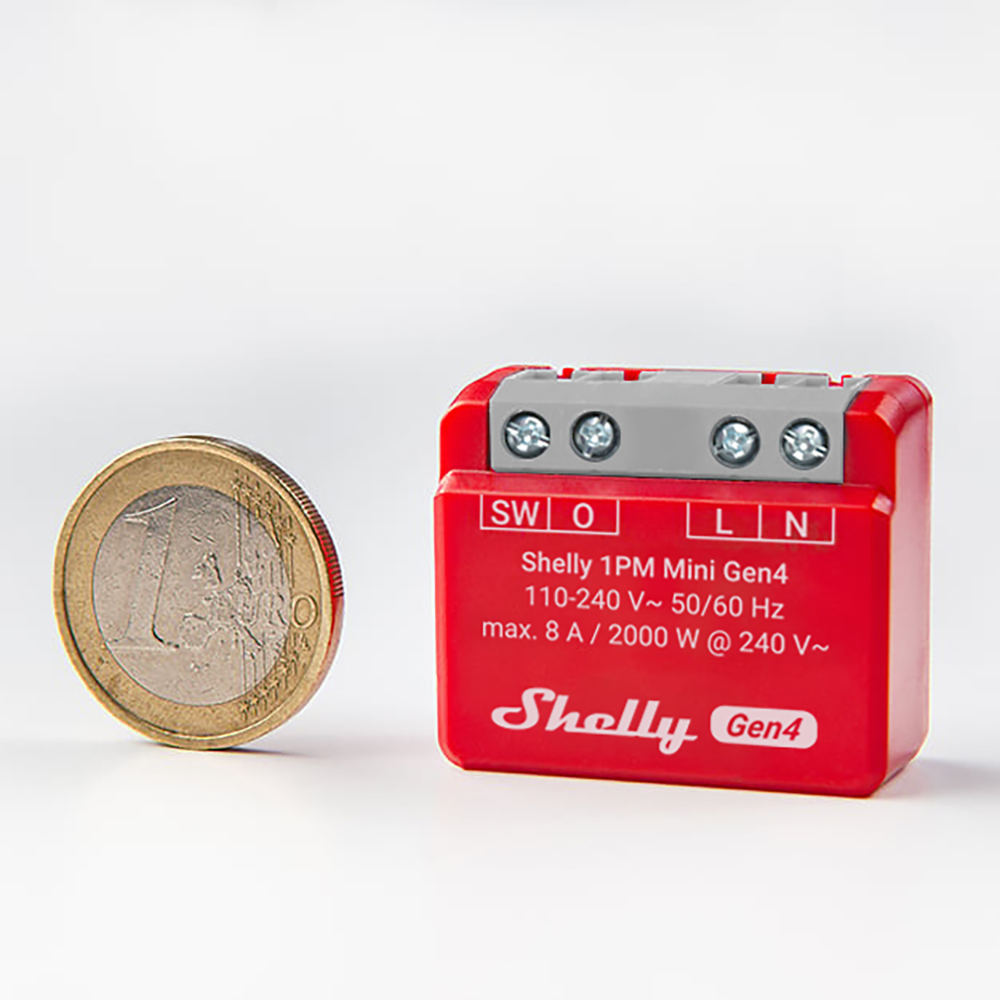

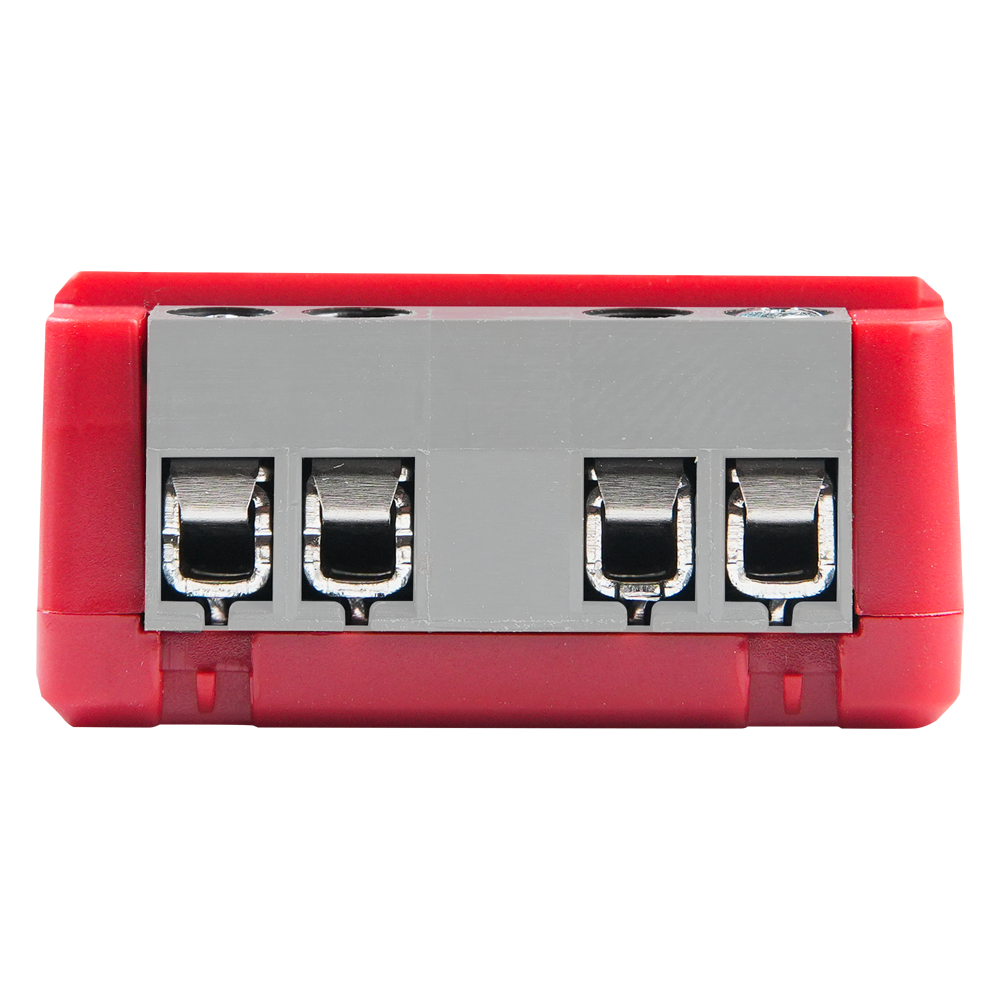

Shelly 1PM Mini Gen4 smart relay, one of the smallest power consumption monitoring devices on the market: monitor the electricity usage of appliances or lighting circuits from junction boxes where space is critical. Fourth generation with Matter support, combining WiFi, Bluetooth, and Zigbee, no hub needed, and runs scripts locally.
Technical specifications
-
Output: 1 channel · 8 A · max. 2000 W (AC) · NO contact
-
Power supply: 110–240 V AC · consumption < 1.2 W
-
Measurement: real-time power · overvoltage, overcurrent, and overpower protection
-
Connectivity: 2.4 GHz WiFi · Bluetooth 5.0 · Zigbee · Matter · no hub
-
Automation: scripts, webhooks, MQTT, WebSocket, HTTPS · 20 schedules
-

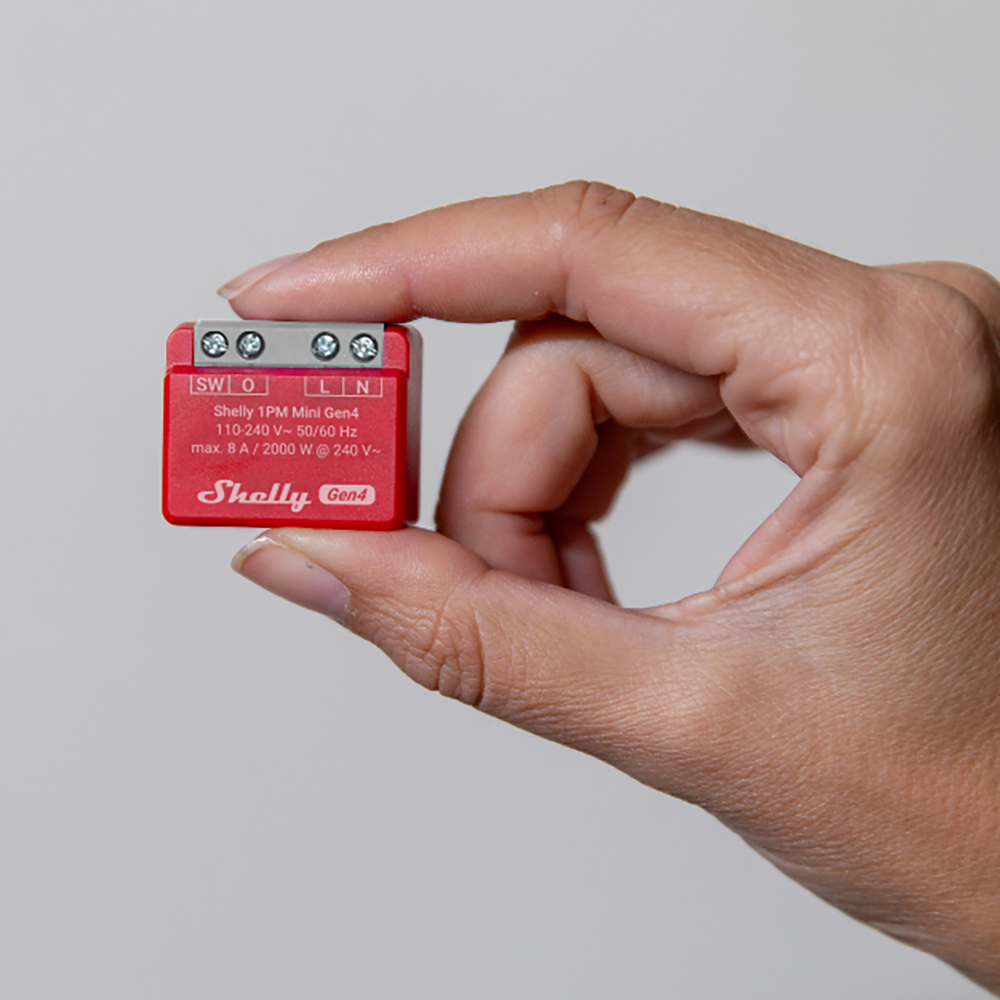

Format: 29 × 34 × 16 mm · 18 g
