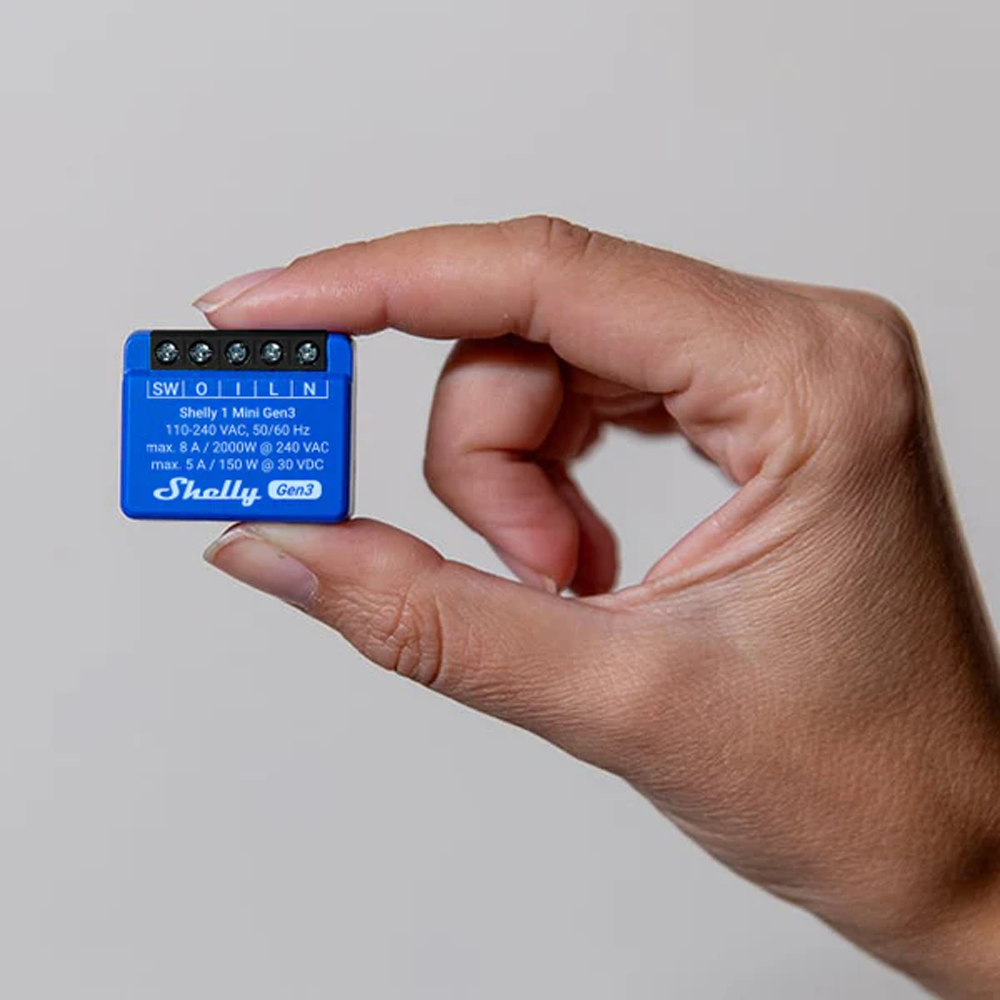

The Shelly 1 Mini Gen3 is the smallest WiFi smart relay in the world: it fits behind any switch, socket, or even inside a lamp's ceiling rose, and turns your installation into a smart home in less than 10 minutes. Its great advantage is the dry contact (potential-free), which allows it to control devices with a different power supply than its own—garage door motors, boilers, locks, or irrigation systems—without external modules. Thanks to the new Gen3 chip with 8 MB of memory, it gains stability and speed, and is ready for Matter upgrades, ensuring your automations run with imperceptible latency.
Why choose the Shelly 1 Mini Gen3?
-

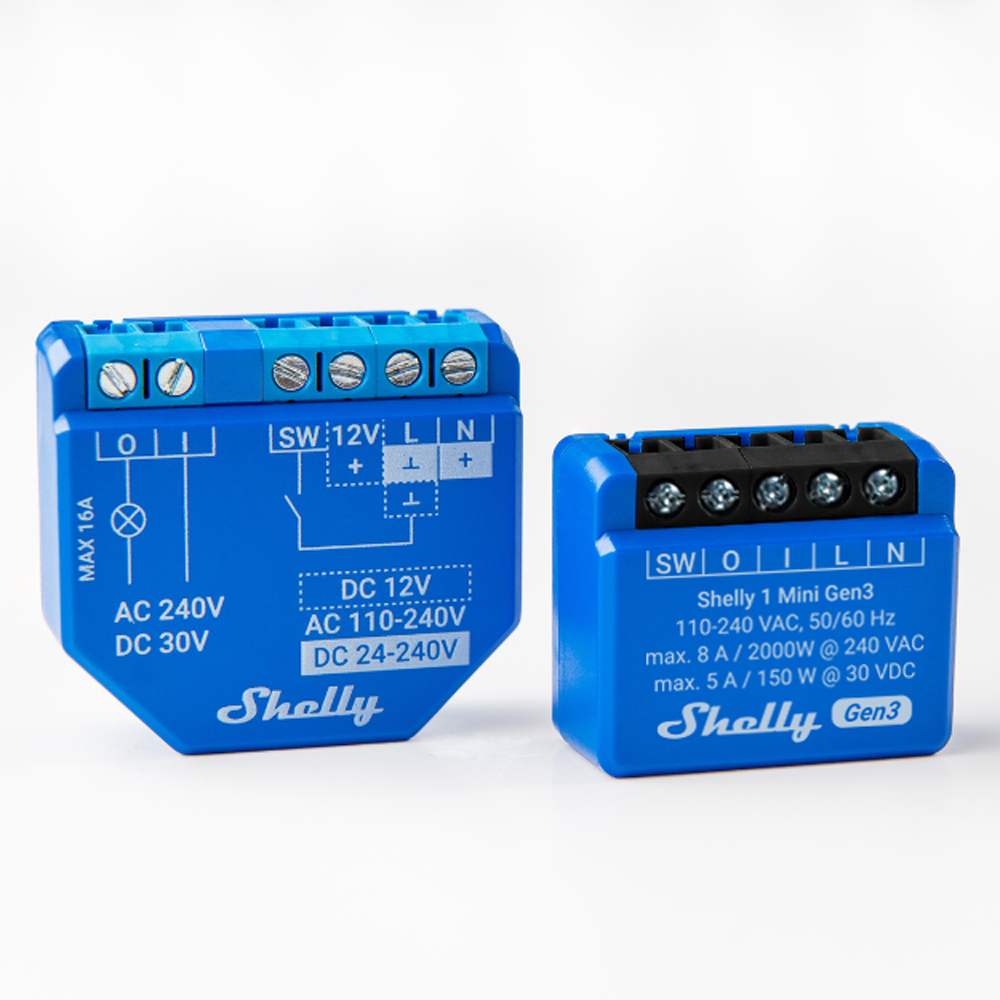

Minimum size, maximum control: 35% smaller than the Plus series, ideal for crowded switch boxes.
-
Dry contact: controls AC or DC loads independently of their voltage, perfect for garage, irrigation, or boiler.
-
No HUB or subscriptions: works on your 2.4 GHz WiFi network and Bluetooth.
-
Matter-ready: Gen3 devices are upgradeable to Matter for universal compatibility.
-
Compatible with everything: Alexa, Google Home, Home Assistant, and apps for iOS and Android.
-
Designed for integrators: documented HTTP API, MQTT(s), WebSockets, Webhooks, UDP, and mJS scripting.
-
Extra features: WiFi range extender and Bluetooth gateway for Shelly BLU devices.
-
3-year manufacturer's warranty.
Key Features
- 1-channel WiFi and Bluetooth smart relay (8A)
- Potential-free dry contact
- Automates lights, garage doors, irrigation, or other small appliances
- No HUB required
- WiFi range extender and Bluetooth Low Energy (BLE) gateway
- Compatible with Alexa and Google Home
- App for iOS and Android
Technical Specifications
| CPU |
ESP-Shelly-C38F |
| Flash |
8 MB |
| Power Supply |
110 - 240 VAC |
| Relay |
Dry, NO contact, 1 pole, µ contact |
| Power Consumption |
< 1.2W |
| External Protection |
10A |
| Max. Control Voltage |
110-240 V |
| Max. Switching Voltage |
240 V |
| Max. Switching Current |
8A |
| Communication |
WiFi 2.4 GHz
Bluetooth 4.2 |
| Mounting |
Wall |
| Material |
Plastic |
| Working Temperature |
-20°C to 40°C |
| Humidity |
30% to 70% RH |
| Range |
Up to 10 m indoors and 30 m outdoors |
| WiFi Range Extender |
Yes |
| BLE Gateway |
Yes |
| Scripting (mJS) |
Yes |
| MQTT |
Yes |
| UDP |
Yes |
| Measurements |
29 x 35 x 16 mm |
| Weight |
19 g |
