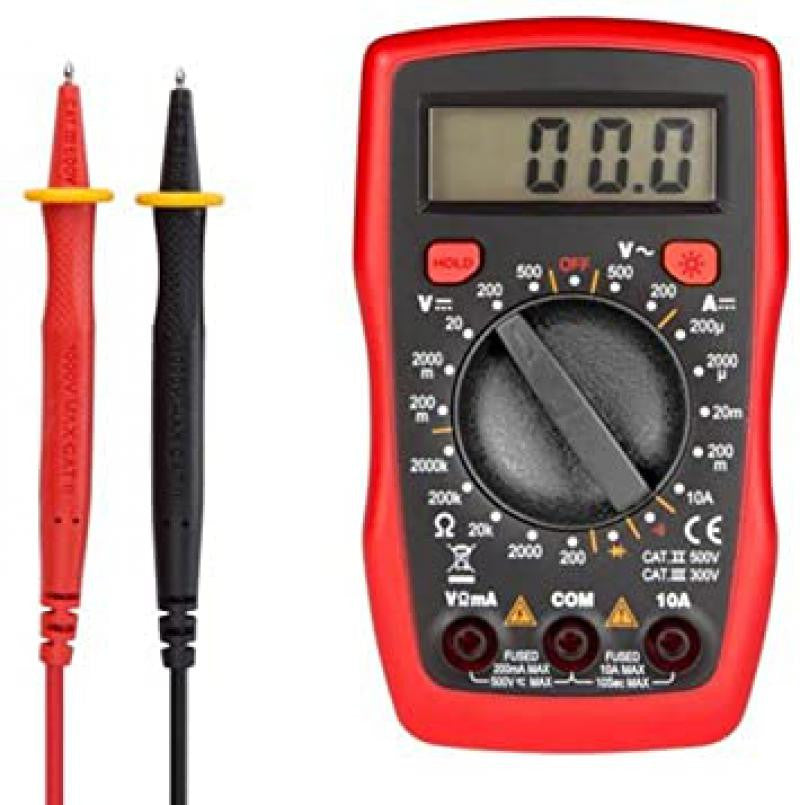

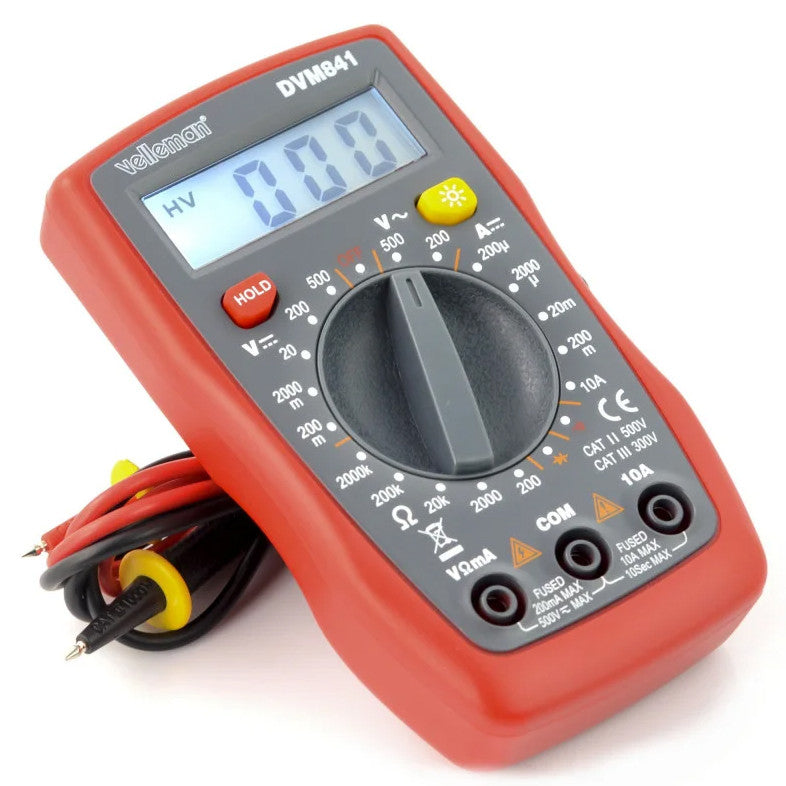

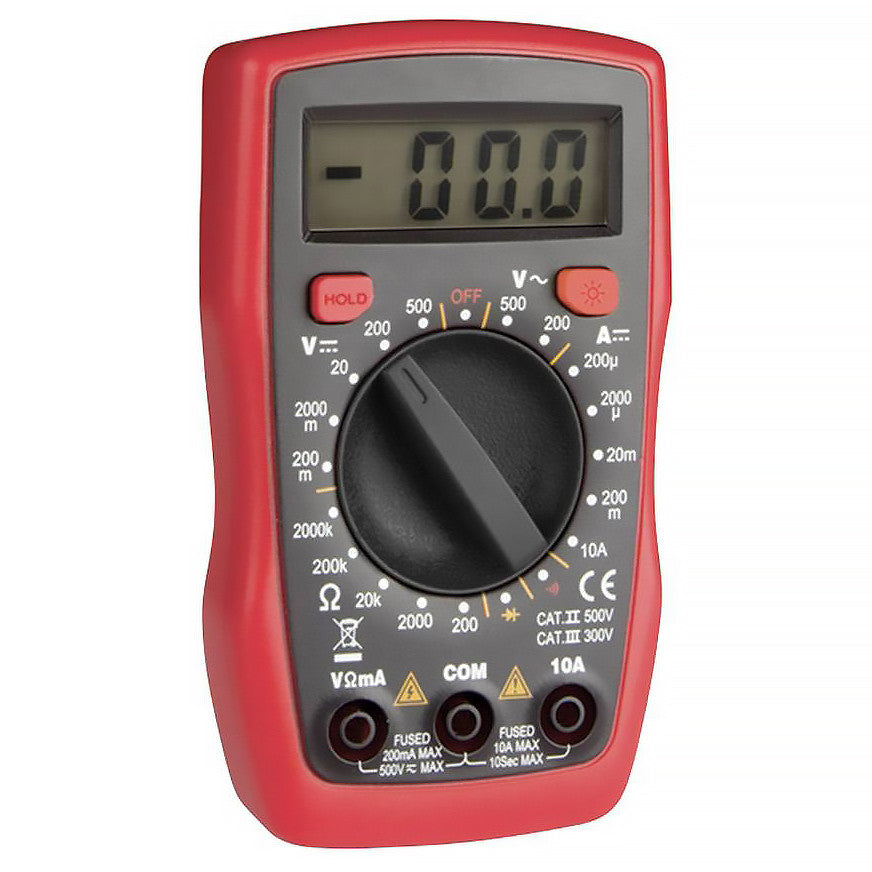

Digital Multimeter II 500 V/cat III 300 V-10 A

Characteristics

• CAT II 500V / CAT III 300V
• 19 ranks
• Read hold (data hold)
• Backlit display
• Automatic polarity indication
• Automatic zero adjustment
• Voltage measurements: 500 VAC and 500 VDC max.
• Current measurements: DC 10 A max.
• Resistance measurements: 2 MOhm
• Separate test leads (incl.)

Specs

• DC voltage: 0-200 mV / 2000 mV / 20 V / 200 V / 500 V
  • Basic Accuracy: ±(1.0% of reading + 2 digits), ±(1.2% of reading + 2 digits) for 500 V range
  • Input impedance: 1 MOhm
  • Overload protection: 500 V DC or AC rms
• AC voltage: 0-200V / 500V
  • Basic accuracy: ± (1.5% of reading + 3 digits)
  • Input impedance: 450 kOhm
  • Frequency range: 40-500 Hz
  • Max input: 500 V DC or AC rms
• DC current: 200 µA / 2000 µA / 20 mA / 200 mA / 10 A
  • Basic Accuracy: ±(1.5% of reading + 2 digits), ±(2.0% of reading + 2 digits) for 200 mA range; ±(2.0% of reading + 3 digits) for 10 A range
  • Overload protection: 0.5 A / 500 V fuse on mA range; 10 A / 500 V fuse on 10 A range
• Resistance: 0-200 Ohm / 2000 Ohm / 20k Ohm / 200 kOhm / 2000 kOhm
  • Basic Accuracy: ±(1.0% of reading +3 digits); ±(1.0% of reading + 5 digits) for 200 Ohm range, ±(1.5% of reading + 3 digits) for 2 kOhm range
  • Overload protection: 0.5A/500V fuse
• Battery test: 1.5V/9V
  • Basic accuracy: ± (5.0% of reading + 5 digits)
  • Overload protection: 0.5A/500V fuse
• Continuity buzzer: the built-in buzzer sounds in case of a resistance less than 50 Ohm
  • Test voltage: ± 1.8 V
• Diode Measurements: Check the forward voltage of a diode
  • Test voltage: ± 1.8 V
• Over range: yes
• Continuity buzzer: yes
• Diode test: Yes
• Low battery indicator: Yes
• Max display: 3 ½
• LCD display:
  • Dimensions: 47 x 15 mm
  • Digits: max. 1999
• Range selection: manual
• Read hold (data hold): yes
• Backlight: Yes
• Dimensions: 74 x 30 x 125 mm
• Weight (with batteries): 100 g
• Power: 2 x 1.5 V AAA / R03P
• Auto-off: No
• Operating environment:
  • Temperature: 0°C to 40°C (32 to 104°F)
  • Humidity: <80% RH
• Storage environment:
  • Temperature: -20°C to 60°C (-4 to 140°F)
  • Humidity: <90% RH
• Fuse:
  • F0.5 A / 500 V 5 x 20 mm; breaking capacity 1 kA (not replaceable)
  • F10A / 500V 5 x 20mm; breaking capacity 8 kA (not replaceable)
