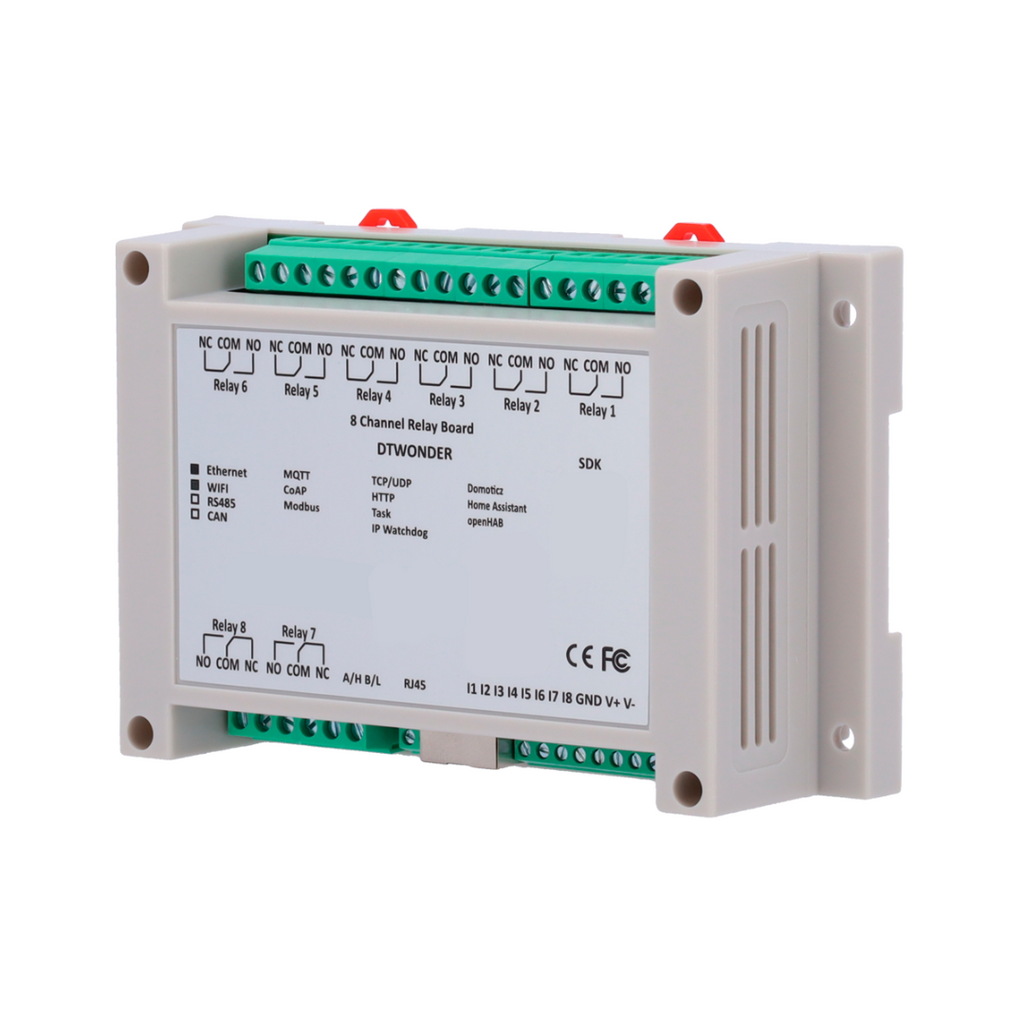

The Dingtian DT-R008 data acquisition and control module combines 8 digital inputs and 8 NO/NC relay outputs that you can monitor and trigger over the network via Ethernet or Wi-Fi. It is a compact solution for activating equipment remotely in security, automation and smart home installations.
It supports Modbus/TCP, TCP/IP, UDP, HTTP, DHCP and MQTT, includes a built-in web server and a watchdog function for automatic system recovery, and integrates with platforms such as Home Assistant, Domoticz or openHAB.
Key features
- 8 digital inputs and 8 relay outputs (NO/NC)
- Modbus/TCP, TCP/IP, UDP, HTTP, DHCP and MQTT protocols
- 10/100 Base-TX Ethernet port and Wi-Fi
- Built-in web server and LED indicators
- Programmable system and communication watchdog
- AND logic operations between inputs and outputs (firmware V3.1.5406 or later)
- Compatible with Home Assistant, Domoticz and openHAB
- 12-24 V DC or AC power (power supply not included)
Specifications
| Brand | Dingtian |
| Model | DT-R008 |
| Inputs | 8 digital |
| Outputs | 8 NO/NC relays |
| Protocols | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT |
| Communication | 1 x 10/100 Base-TX Ethernet port, Wi-Fi |
| Watchdog | System and communication, programmable |

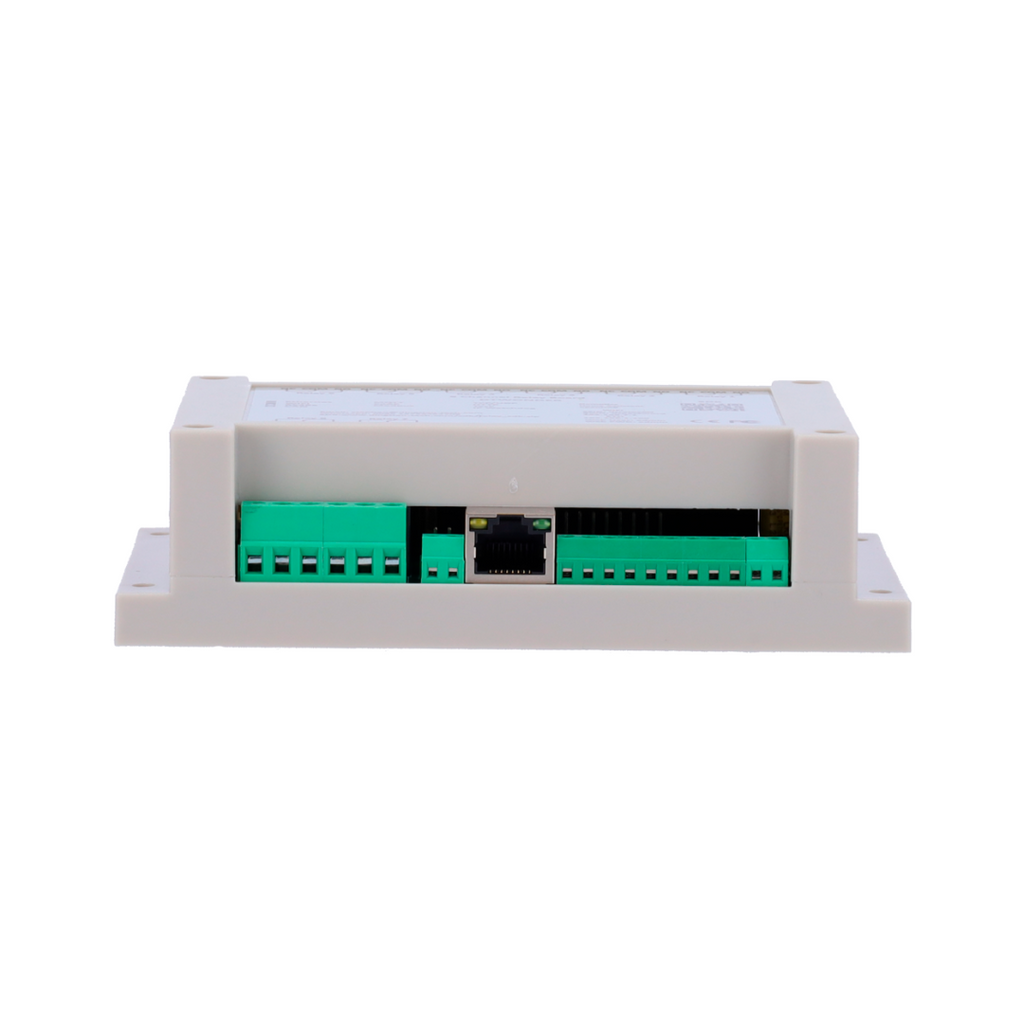

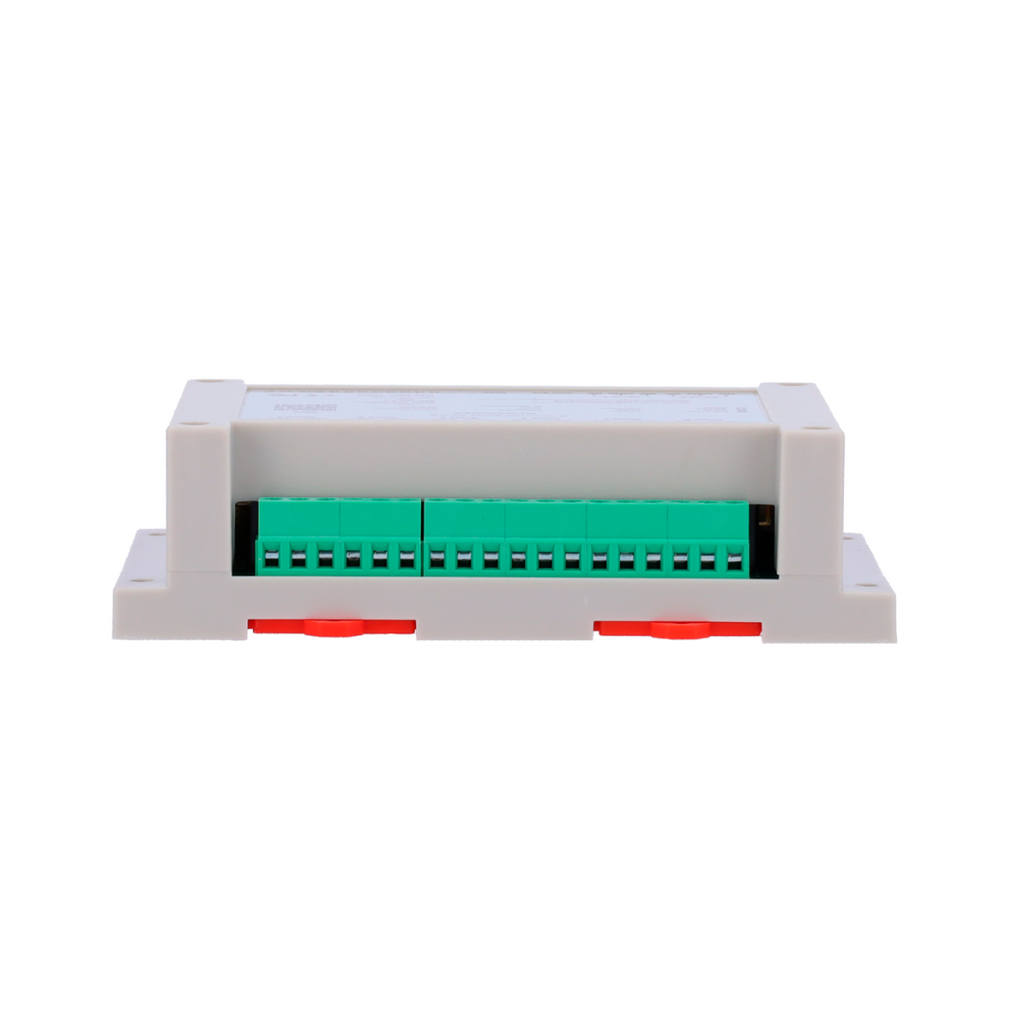

| Connectors | Plug-in screw terminals |
| Power supply | 12-24 V DC / 12-24 V AC |
| Current | 1.5 A at 12 V DC |
| Power consumption | 5 W |
| Operating temperature | -10 to 85 °C |
| Dimensions | 122 x 87 x 27 mm |
| Includes | Installation material and instructions |
