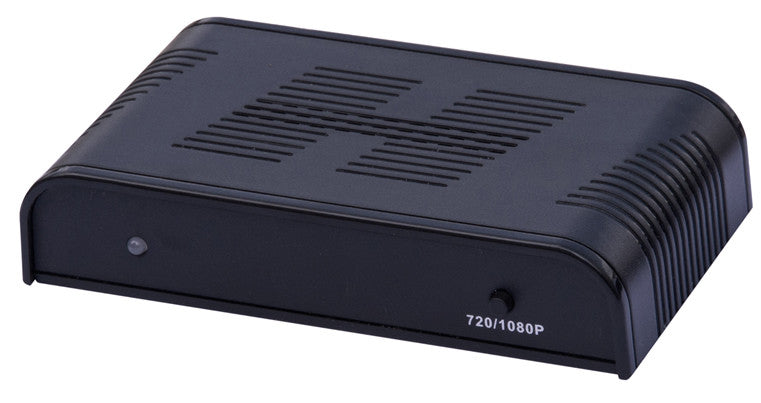

PAL/NTSC Composite Video input signal scaler converter to HDMI output of 720p and up to 1080p.
Specifications: CVBS
Input: Video signal: NTSC/PAL Output signal voltage: 1.0Vp-p
Impedance: 75 Ohms

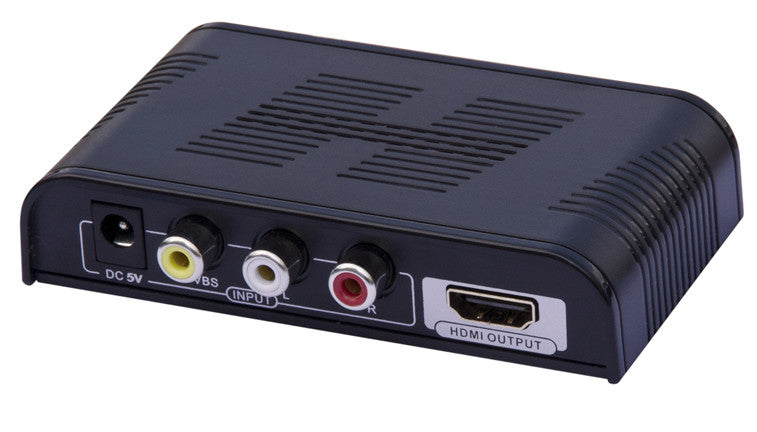

Connector: RCA Composite Video Audio: L/R
HDMI Output: Standard HDMI
Output resolution: 720P@ 50/60Hz, 1080P@ 50/60Hz
Bandwidth: 24bit~30bit
HDMI signal format: EIA/CEA-861D
HDCP version: HDCP1.2
Dimensions: 105.5*64.5*23 mm
