Matrix Extender Hdmi Fullhd 1080p 8x8 Up to 50m Matrices

Matrix Extender HDMI FullHD 1080P 8x8 over CAT5e/CAT6 cable up to 50m with Wifi control , RS232 and IR Remote Control.

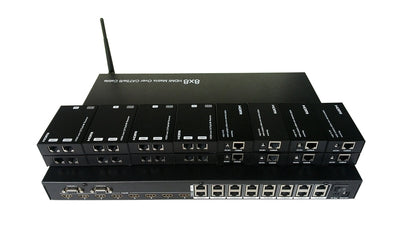

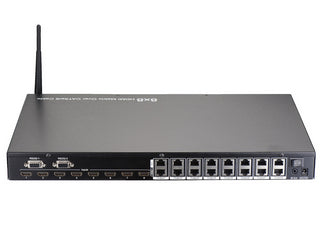

The Matrix Extender TCCEXTMX88 sends any of the 8 FullHD 1080P HDMI input signals to any of the 8 connected UTP outputs, each of them, by a single cable up to 50m away to the receivers (supplied) of said signals that provide the FullHP 1080P HDMI signal. It has several control modes: Via Wifi (using SmartPhone or tablets with Android or IOS OS (such as iPhone or iPad), using RS232 control commands (Compatible with advanced video control systems (such as Control 4 ®, Creston ®, etc.) and local IR remote control . It is supplied with the 8 UTP to HDMI signal receivers, power supplies, control software and user manual.

Features and Benefits

• It has 8 HDMI inputs and 8 UTP outputs to connect with up to 8 UTP receivers that provide the HDMI output. Includes the receivers and their power supplies.
• Allows connection of any of 8 sources to any of 8 displays, projectors or HDTVs that support HDMI or DVI input (using an HDMI/DVI adapter not supplied).
• Supports remote display devices located up to 50m away connected to the matrix using a single or dual UTP cable .
• Supports Full HD 1080p high definition resolutions.
• Supported Control Modes. There are three control modes:
  • WIFI Control :
    • With Android OS for SmartPhone and Tablets. (App : matrix88.apk), Included.
    • With iOS OS for iPhone and iPad . (App Store: Matrix88). Included
  • With local IR remote control to the matrix with remote control
  • By RS232 Control with commands compatible with advanced digital video control systems ( Compatible with Control 4 ®, Crestron ® systems, etc.) allowing its integration into sophisticated control systems.

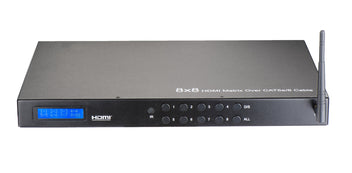

• It has a front LED display for alphanumeric status indication.
• Allows reading and storage of EDID information (resolution and characteristics of connected monitors and screens)
• Supports LPCM 7.1 Digital Audio
• Bandwidth up to 6.75 Gbps
• Supports 3D
• DC 12V 4A power supply
• Supplied with 19" rack mounting hardware
• Size: H42.5mm L436.9xW280x
