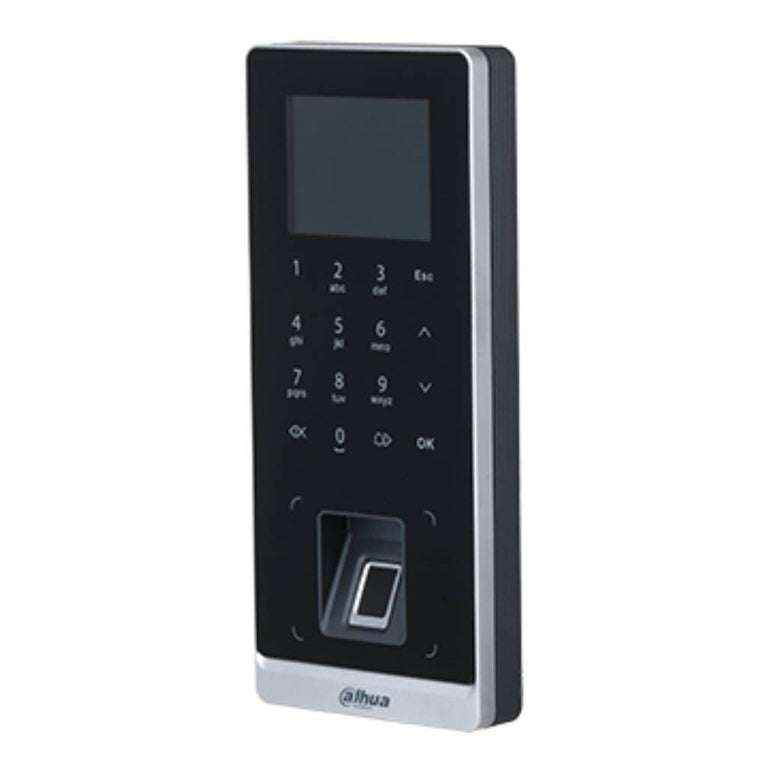

Dahua standalone access control terminal with fingerprint reader, keypad, 125 kHz ID card and TCP/IP and WiFi connectivity. It supports 30,000 cards and 150,000 records, and can be extended with an external reader via Wiegand or RS-485. Suitable for offices, warehouses and small businesses that want to manage access locally or remotely.
Key features
- Unlocking by fingerprint, PIN, card, remote or a combination of methods.
- 2.4" LCD display with keypad.
- Capacity for 30,000 cards and 150,000 records.
- TCP/IP and WiFi communication with auto-registration, P2P and DHCP.
- Door open, intrusion and tamper alarms, plus anti-passback.
- Web client for PC and mobile, online and USB updates.
Specifications
| Brand | Dahua |
| Model | ASI2212H-DW |
| Display | 2.4" LCD, 320 x 240 |
| Unlock methods | Fingerprint, PIN, remote, card and combinations |
| Cards | ID 125 kHz |
| Card capacity | 30,000 |
| Record capacity | 150,000 |
| Communication | TCP/IP, WiFi |
| External reader | Wiegand or RS-485 |
| Anti-passback | Yes |
| Installation | Surface mount (bracket included) |
| Dimensions | 183 x 80 x 25.5 mm |
| Weight | 0.264 kg |
