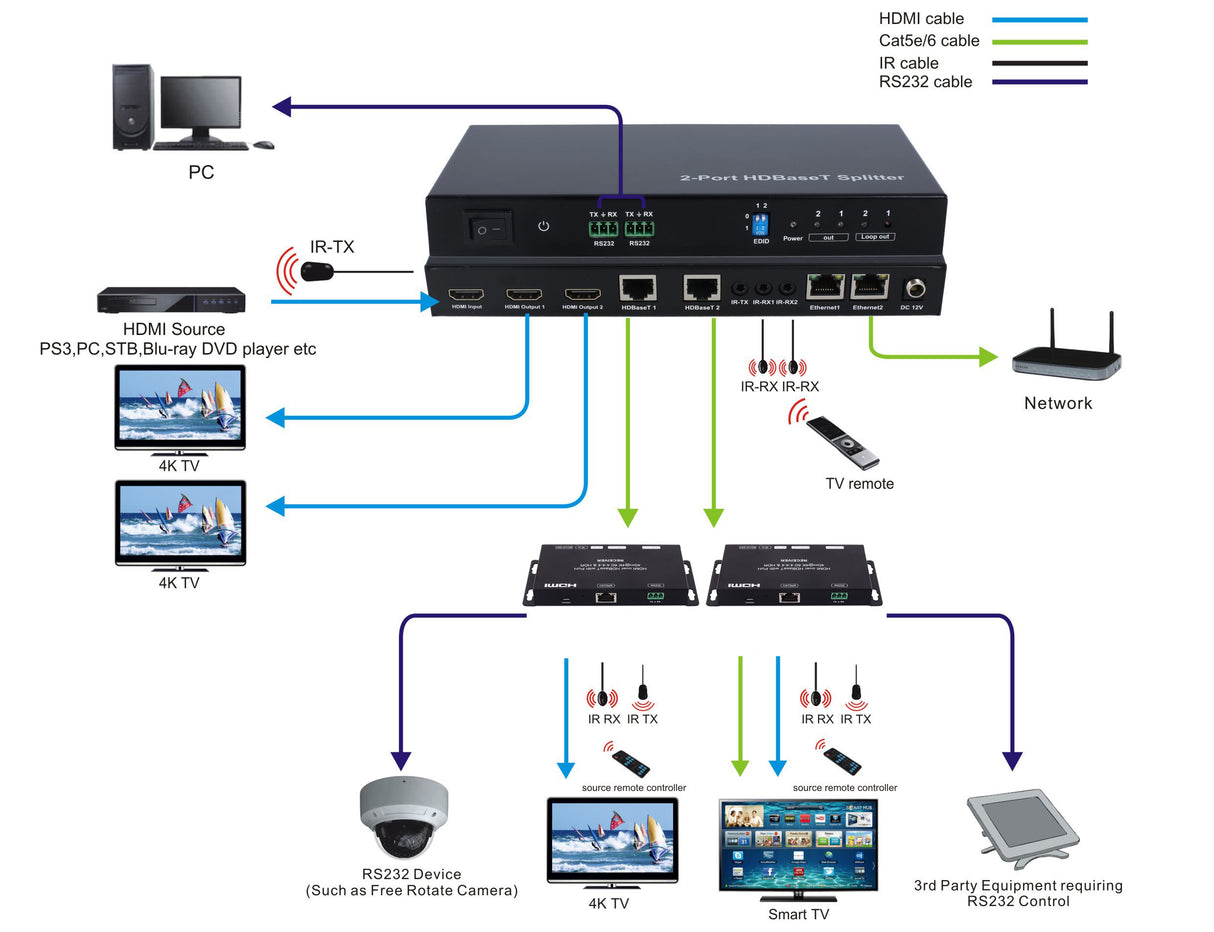

The HDMI extender distributes one Ultra HD HDMI signal to two identical HDBaseT outputs, with two HDMI outputs and two Ethernet ports, all connected via a single RJ45 cable (CAT.6). It supports bandwidths up to 10.2 Gbps, enabling resolutions up to 4K @ 60Hz YUV 4:2:0.
It can transmit 4K signals up to a maximum distance of 70m and FullHD 1080p signals up to a maximum of 100m, and incorporates EDID configuration to control screen resolution.
Specs
- Incorporate HDBaseT technology
- It supports local and remote EDID functionality of Copy
- Supports Dolby TrueHD, DTS-HD Master Audio
- Compatible with HDCP 2.2 (HDCP 2.2 Input, HDCP 1.4 Output)
- Maximum transmission distance: 4Kx2K up to 70m, Full HD (1080p) up to 100m
- Power supply: 12V 3A
- Power consumption: 15 W
- Dimensions: 220.0mm (Width) x 112.7mm (Depth) x 27.5mm (Height)
- Includes 2 x TCEXTRX4K receivers

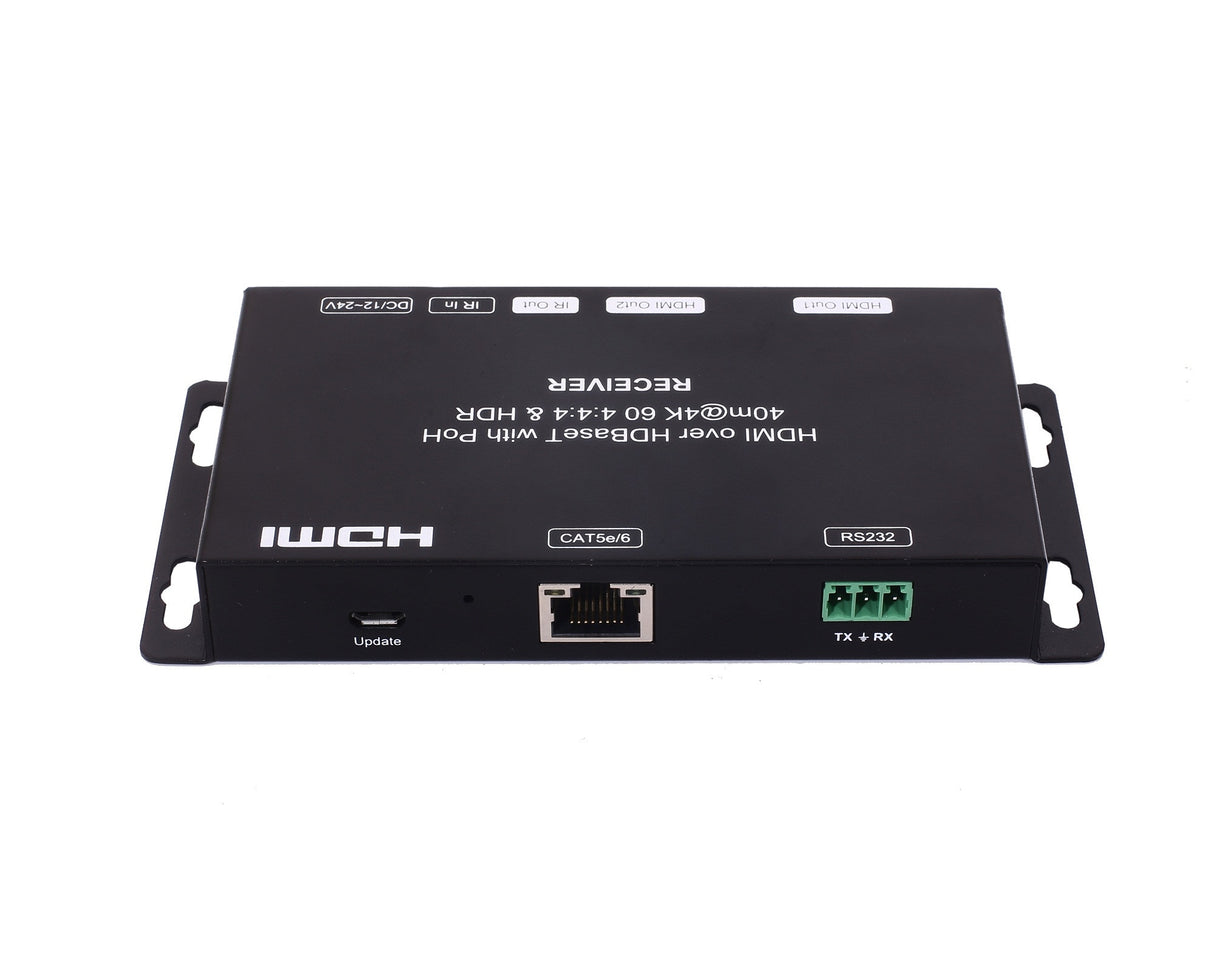

Receiver Specifications
- Bandwidth up to 18 Gbps, resolution up to 4k @ 60hz YUV 4:4:4
- Transmit up to 100m at 1080p resolution, 70m at 4k resolution
- HDR10 and 3D support
- With 2 HDMI outputs on the receiver
- Bidirectional broadband IR and RS232
- Transmitter-powered receiver
- HDCP 2.2 / HDCP 1.4 compatible
