Professional Alarm Kit, Grade 2 Certified, Ethernet and Gprs Communication, 868 MHz Jeweller Wireless, Up to 100 Inputs

Characteristics

• Complete wireless alarm system for professional installations in both residential and commercial settings. Communication is via Ethernet and/or GPRS. The supervised bidirectional link between detectors and accessories is established via radio frequency using its own protocol, Jeweller, in the 868 MHz band. The devices in the kit are Grade 2 certified.

• The wireless connection achieves high reliability thanks to its advanced Jeweller protocol with high-security AES encryption. The unique, intelligent, instant monitoring system detects signal jamming by identifying periods of inactivity and reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open spaces. It also includes features to facilitate installation, such as the Smart-Bracket and easy pairing of detectors to the alarm system.

• Ethernet communication is its main advantage for remote access, both for the user and the installer, as it allows connection via the AJAX PRO Desktop PC software and the Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professional) mobile apps for iOS and Android. These apps allow you to configure the entire system, manage users and their permissions, add devices, group them into rooms, and modify their settings. Cloud usage is compatible with dynamic IPs without the need to open ports. Ajax users will enjoy numerous benefits, including receiving reliable and instant notifications in both the desktop software and the mobile apps.

• It allows for up to 100 wireless zones, enabling the grouping of these devices into up to 9 different groups, which can then be armed, partially armed, or disarmed. These Ajax wireless devices offer various configuration options, such as 24-hour zones, zones with entry or exit delays, and more.

• The AJ-HUB-W panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 15 hours.

• As an additional complement to the Ajax alarm system, up to 10 IP cameras or video recorder channels can be added from the mobile application to be able to verify the live video stream.

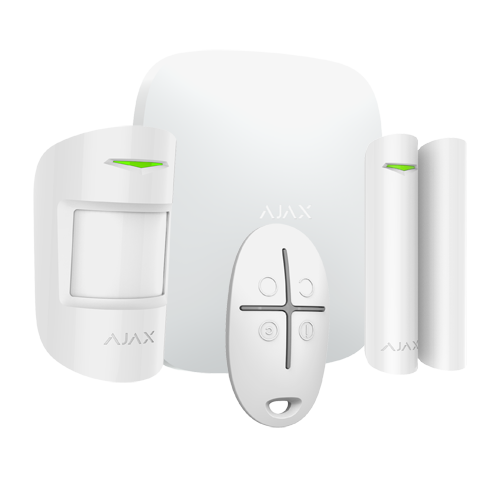

• The kit includes the Ajax Hub AJ-HUB-W control panel, an AJ-DOORPROTECT-W magnetic contact, an AJ-MOTIONPROTECT-W motion detector, and an AJ-SPACECONTROL-W remote control.

Specs

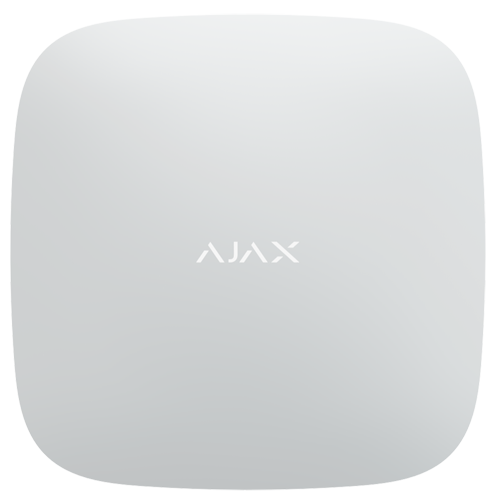

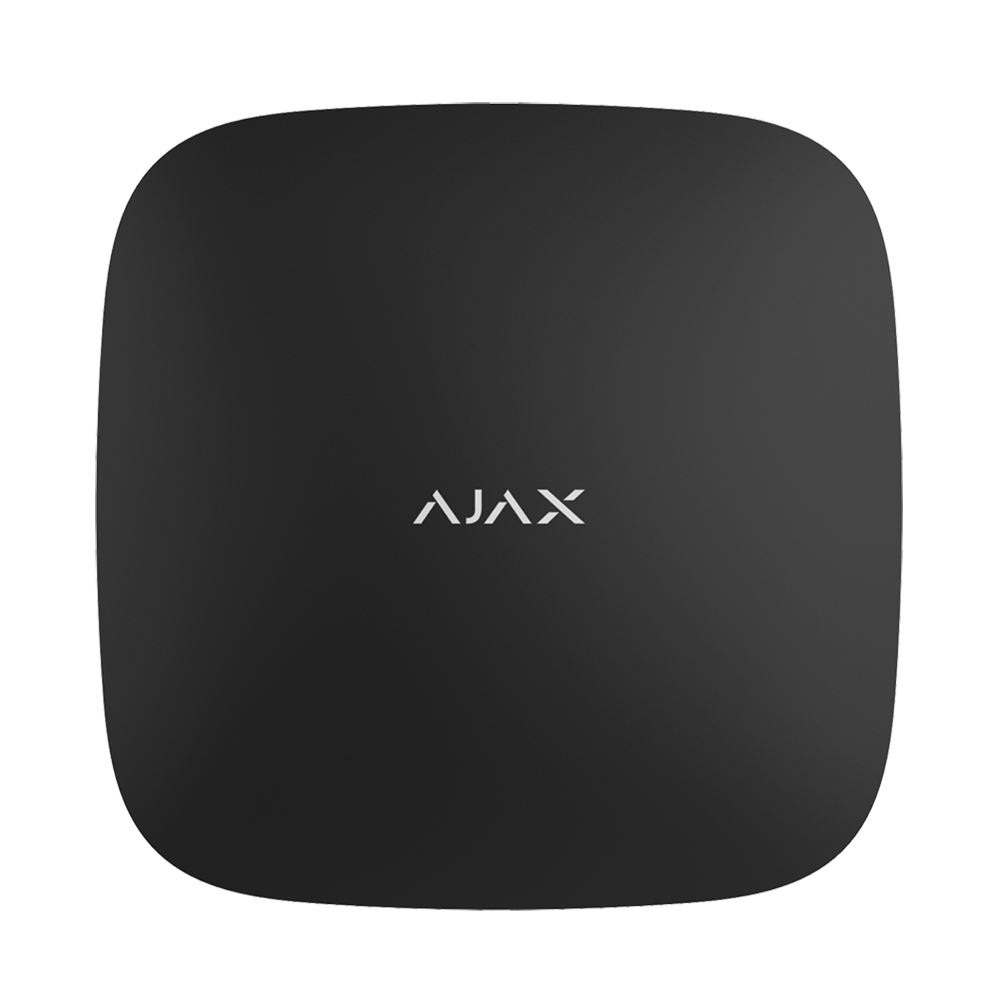

AJ-HUB-W

• Brand: AJAX
• Security level: Level 2
• RF Frequency: 868 MHz. Jeweller Radio Protocol
• Internal security: Tamper-proof
• Internal siren: Not available
• Communication: Ethernet / GPRS
• Maximum number of devices: 100
• Video integration: Up to 10 IP cameras or video recorder channels
• Number of users: Up to 50
• Communication with CRA: Contact ID / SIA
• Cover material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: Lasts up to 15 hours
• Operating temperature: +5º C ~ 40º C
• Dimensions: 163 (H) x 163 (W) x 36 (H) mm

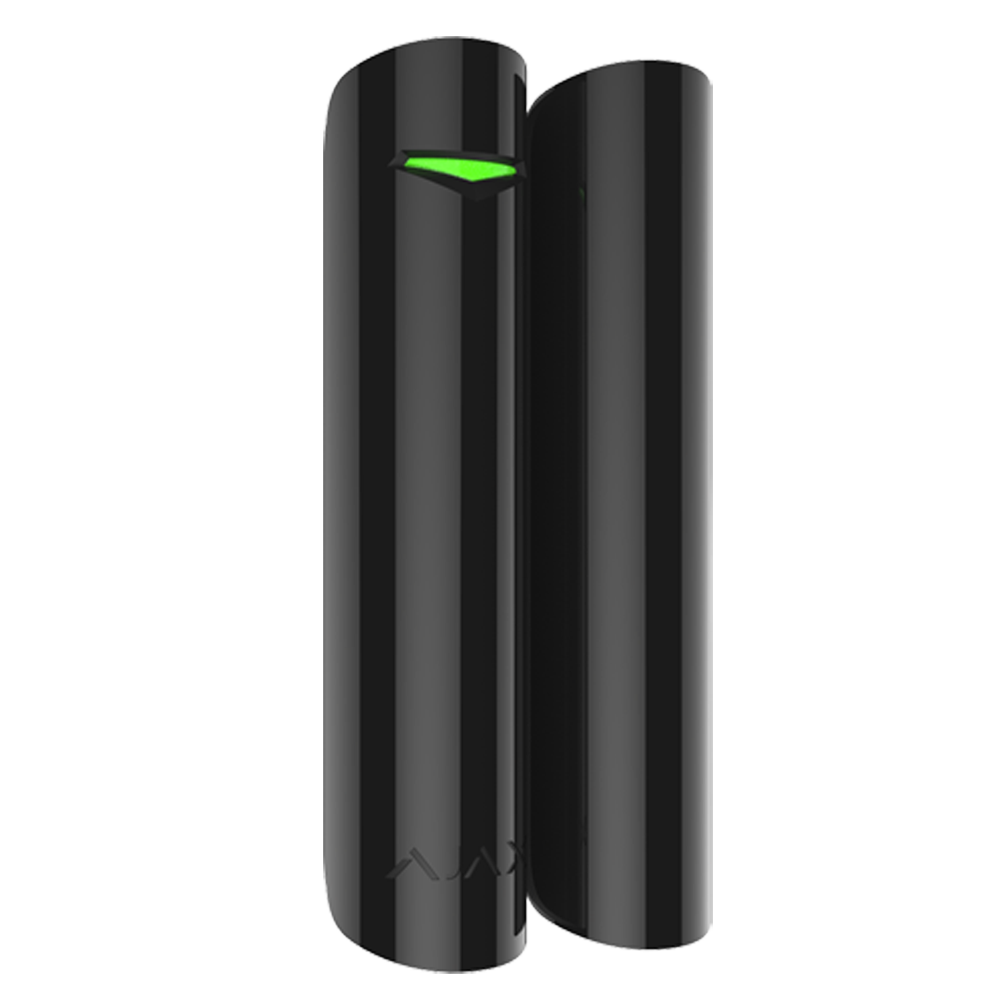

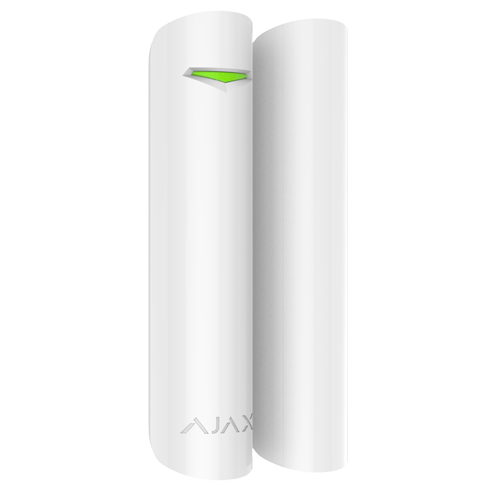

AJ-DOORPROTECT-W

• Security level: Level 2
• Transmission distance: ≤ 2000 m (in open space)
• Frequency: 868 MHz
• Battery: 1 CR123A 3.0V battery (approximate lifespan 7 years)
• Cover material: ABS plastic
• Dimensions: 90 mm (Fo) x 20 (Ø) mm

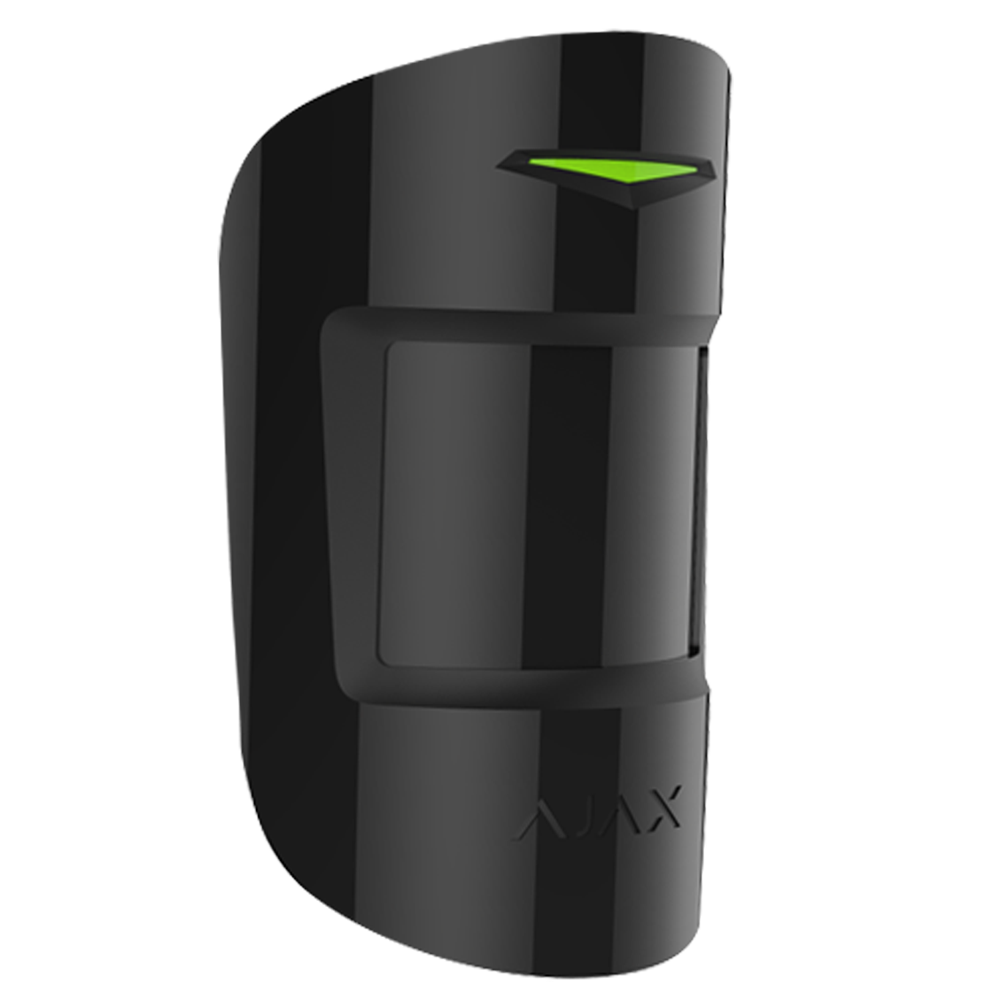

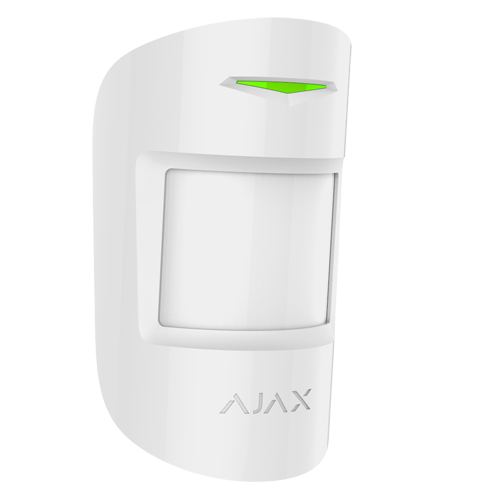

AJ-MOTIONPROTECT-W

• Technology: Volumetric PIR
• Security level: Level 2
• PIR lens: 24 zones and 6 planes
• Detection range: 12 m / H: 88.5º / V: 80º / Installation distance: 2.4 m
• Pet immunity: ≤ 20 kg, ≤ 50 cm
• Frequency: 868 MHz
• Transmission distance: ≤ 2000 m (in open space)
• Masking: Not available
• Adjustable Sensitivity: 3 levels (low, medium, and high)
• LED indications: Alarm, tamper, signal
• Battery: 1 CR123A 3.0V battery (approximate lifespan 7 years)
• Operating temperature: 0ºC ~ 50ºC
• Cover material: ABS plastic
• Dimensions (without stand): 110 (H) x 65 (W) x 50 (D) mm

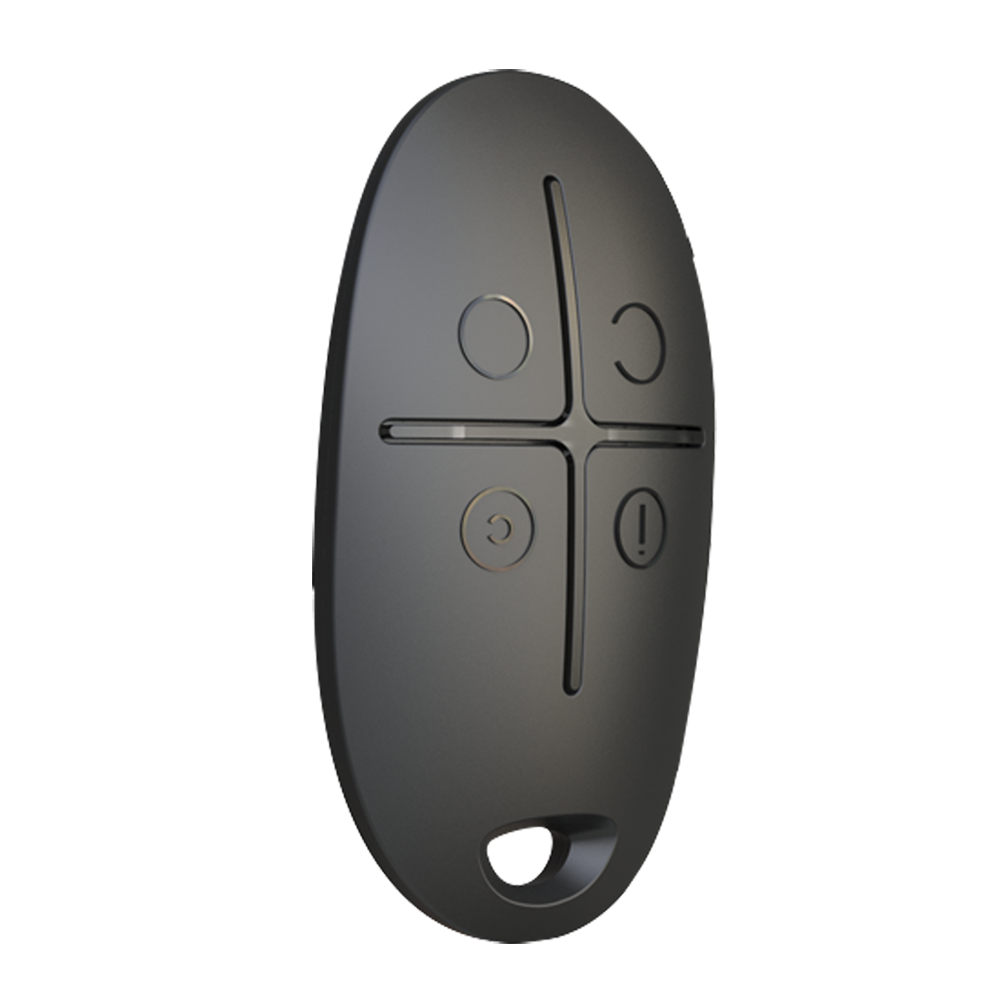

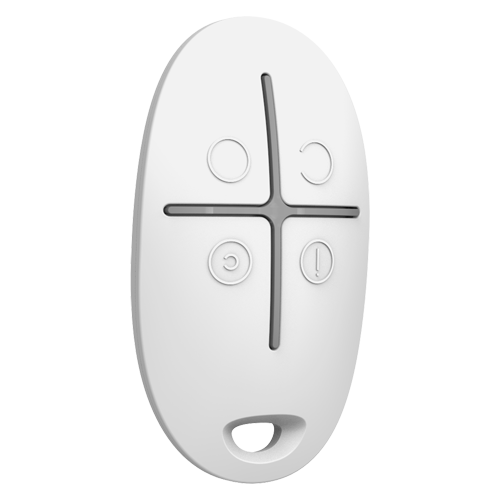

AJ-SPACECONTROL-W

• Power supply: 1 x 3V CR2032 battery
• Transmission distance: ≤ 1000 m (in open space)
• Frequency: 868 MHz
• Battery: 1 CR123A 3.0V battery (approximate lifespan 5 years)
• Operating temperature: -20º C ~ 50º C
• Cover material: ABS plastic
• Dimensions: 65 (H) x 37 (W) x 10 (D) mm
