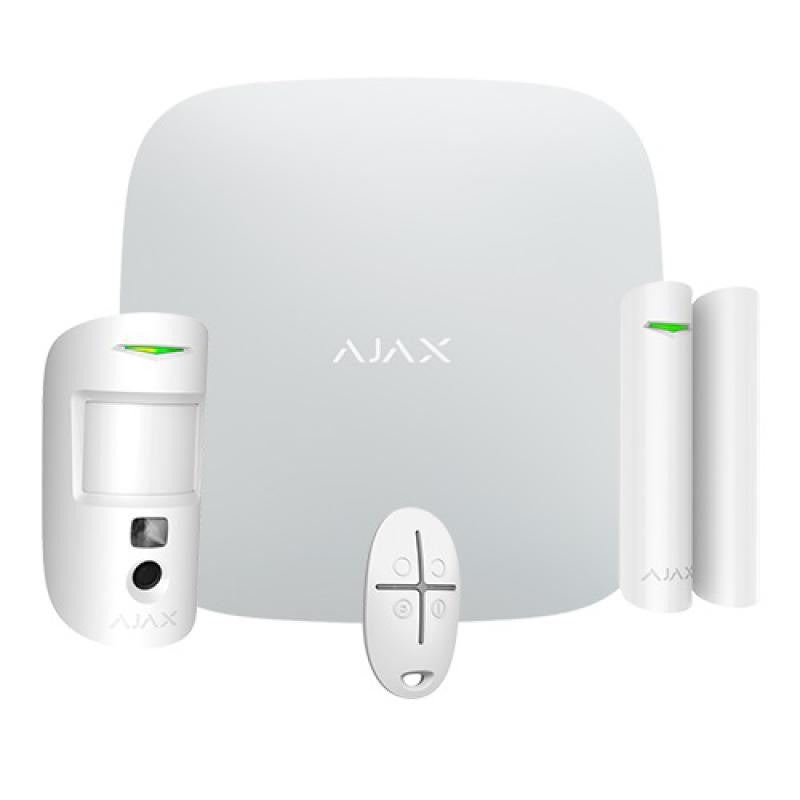

Professional Alarm Kit - Grade 2 Certified Ethernet Communication and Dual SIM Wireless Gprs 868 MHz Jeweller Wings Ajax H

498,25 €
AJAX  |  SKU: AJ-STARTERKIT-CAM-W

Estimated delivery 1 to 5 business days after order

Description

KIT Specifications
Control Panel

  • Brand: Ajax
  • Security level: Level 2
  • Model: AJ-HUB2-W
  • RF Frequency: 868 MHz. Jeweller Radio Protocol
  • Internal security: Tamper-proof
  • Internal siren: Not available
  • Communication: Ethernet / Dual SIM 2G (GPRS)
  • Maximum number of devices: 100
  • Video integration: Up to 25 IP cameras or video recorder channels
  • Number of users: Up to 50
  • Communication with CRA: Contact ID / SIA
  • Compatibility: Not compatible with ocBridge and uartBridge
  • Cover material: ABS plastic
  • Power supply: AC 110~250 V, 50/60 Hz
  • Backup battery: Lasts up to 16 hours
  • Operating temperature: +5º C ~ 40º C
  • Dimensions: 163 (H) x 163 (W) x 36 (H) mm
PIRCAM
  • Model: AJ-MOTIONCAM-W
  • Technology: Volumetric PIR with camera
  • Security level: Level 2
  • PIR lens: 24 zones and 6 planes
  • Detection range: 12 m / H: 88.5º / V: 80º / Installation distance: 2.4 m
  • Frequency: 868 MHz Jeweller and Wings (image transmission)
  • Transmission distance: ≤ 1700 m in open space
  • Pet immunity: ≤ 20 kg, ≤ 50 cm
  • Masking: Not available
  • Sensitivity: Adjustable. 3 levels (low, medium, and high)
  • Image resolution: Up to VGA (640 x 480)
  • Number of images: Up to 5 images per detection
  • Image transmission: Sending and receiving images in less than a minute
  • Infrared illumination: IR for night mode
  • LED indications: Alarm, tamper, signal
  • Battery: 2 CR123A 3.0V batteries (lasts up to 4 years)
  • Compatibility: AJ-HUB2-W/B
  • Operating temperature: 0º C ~ 40º C
  • Cover material: ABS plastic
  • Dimensions: (without stand) 135 (H) x 70 (W) x 60 (D) mm
Magnetic contact
  • Model: AJ-DOORPROTECT-W
  • Security level: Level 2
  • Transmission distance: ≤ 2000 m in open space
  • Frequency: 868 MHz
  • Battery: 1 CR123A 3.0V battery (approximate lifespan 7 years)
  • Cover material: ABS plastic
  • Dimensions: 90 mm (Fo) x 20 (Ø) mm
Remote control
  • Model: AJ-SPACECONTROL-W
  • Transmission distance: ≤ 1000 m in open space
  • Frequency: 868 MHz
  • Battery: 1 CR2032 3.0 V battery (approximate lifespan 5 years)
  • Operating temperature: -20º C ~ 50º C
  • Cover material: ABS plastic
  • Dimensions: 65 (H) x 37 (W) x 10 (D) mm

Characteristics

  • Complete wireless alarm system for professional installations in both residential and commercial settings. Communication is via Ethernet and/or GPRS. The supervised bidirectional link between detectors and accessories is established via radio frequency using its own protocol, Jeweller, in the 868 MHz band. The devices in the kit are Grade 1 certified.
  • The wireless connection achieves high reliability thanks to its advanced Jeweller protocol with high-security AES encryption. The unique, intelligent, instant monitoring system detects signal jamming by identifying periods of inactivity and reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open spaces. It also includes features to facilitate installation, such as the Smart-Bracket and easy pairing of detectors to the alarm system.
  • It allows for up to 100 wireless zones, enabling the grouping of these devices into up to 9 different groups, which can then be armed, partially armed, or disarmed. These Ajax wireless devices offer various configuration options, such as 24-hour zones, zones with entry or exit delays, and more.
  • The AJ-HUB-W panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 15 hours.
  • Ethernet communication is its main advantage for remote access, both for the user and the installer, as it allows connection via the AJAX PRO Desktop PC software and the Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professional) mobile apps for iOS and Android. These apps allow you to configure the entire system, manage users and their permissions, add devices, group them into rooms, and modify their settings. Cloud usage is compatible with dynamic IPs without the need to open ports. Ajax users will enjoy numerous benefits, including receiving reliable and instant notifications in both the desktop software and the mobile apps.
  • As an additional complement to the Ajax alarm system, up to 10 IP cameras or video recorder channels can be added from the mobile application to be able to verify the live video stream.
