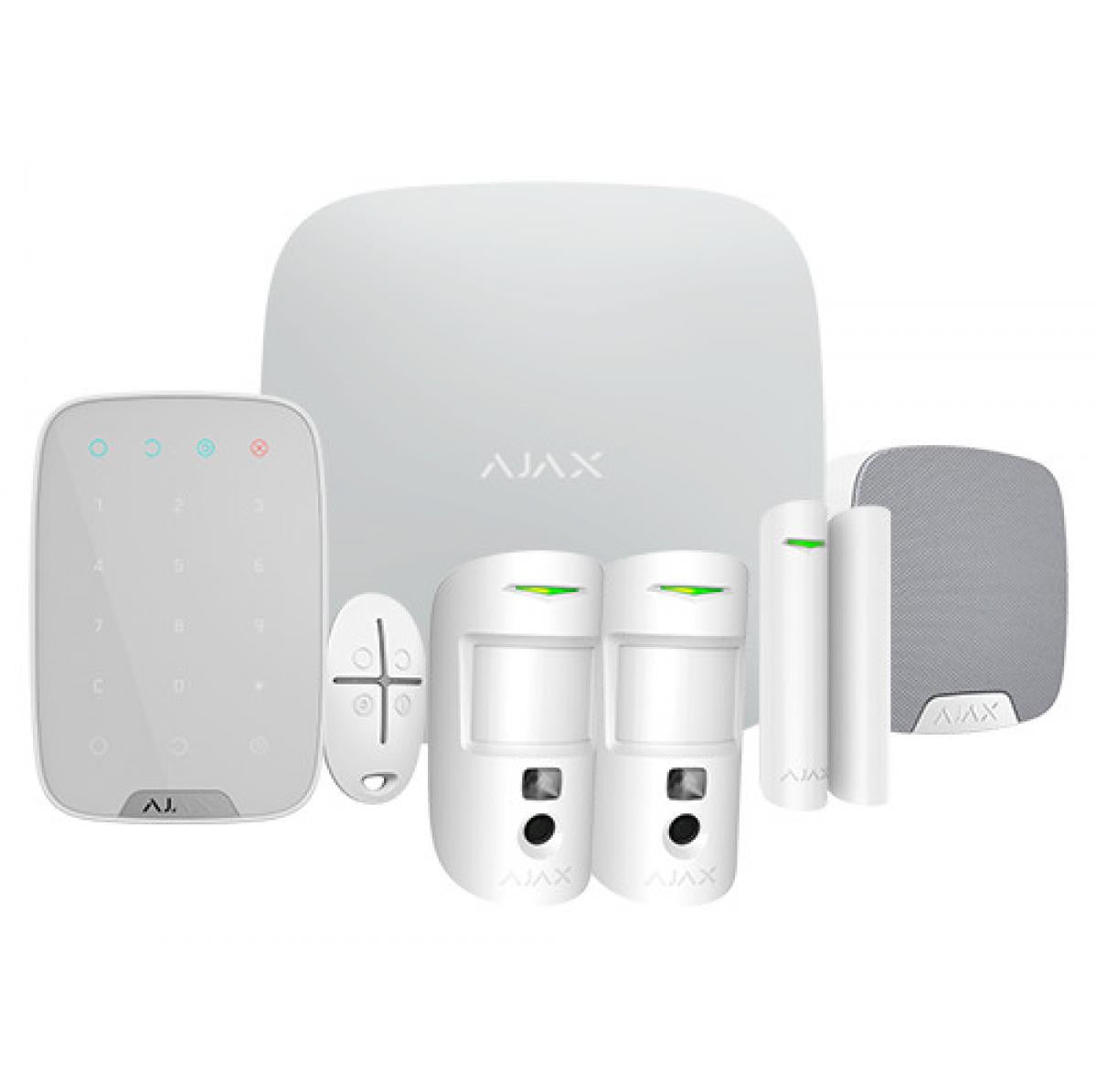

AJAX Kit - Anti-intrusion alarm system - Grade 2 - Ethernet communication / dual SIM - Wireless 868 MHz Jeweller and Wings

The kit includes

• 1 x AJ-HUB2-W Control Panel
• 2 x photodetectors with photo on demand
• 1 x AJ-MOTIONCAM-PHOD-W
• 1 x magnetic contact AJ-DOORPROTECTPLUS-W
• 1 x remote control AJ-SPACECONTROL-W
• 1 x AJ-KEYPAD-W Wireless Keyboard
• 1 x indoor siren AJ-HOMESIREN-W.

AJ-SPACECONTROL-W

• Brand: Ajax
• Security level: Level 2
• Functions: Arming, disarming, partial arming, and panic
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 1300 m in open space
• Battery: 1 CR2032 3.0 V battery (approximate lifespan 5 years)
• Cover material: ABS plastic
• Operating temperature: -20º C ~ 50º C
• Dimensions 65 (H) x 37 (W) x 10 (D) mm

AJ-HOMESIREN-W

• Ajax Brand
• Security level: Level 2
• Volume: 81~105 dB at 1 meter
• Alarm duration: Configurable between 3 seconds and 3 minutes
• Battery: 2 CR123A 3.0V batteries (approximate lifespan 5 years)
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 2000 m in open space
• LED indicators: Alarm alert and audible arming/disarming signal
• Internal security: Rear tamper protection
• Protection: IP50
• Dimensions: 75 (H) x 75 (W) x 27 (D)mm
• Weight: 96 g

AJ-KEYPAD-W

• Brand: Ajax
• Security level: Level 2
• Functions: Arming, disarming, partial arming, and emergency
• Frequency: 868 MHz Jeweller
• Transmission distance: ≤ 1700 m in open space
• Compatibility: Compatible with the Ajax HUB from firmware version 2.0 or higher
• Battery: 4 AAA 1.5V batteries (approximate lifespan 2 years)
• Cover material: ABS plastic
• Operating temperature: -10º C ~ 50º C
• Dimensions: 150 (H) x 102.5 (W) x 13.2 (D) mm

AJ-DOORPROTECTPLUS-W

• Brand: Ajax
• Frequency: 868 MHz Jeweller
• Security level: Level 2
• Transmission distance: ≤ 1000 m in open space
• Auxiliary input external contact Voltage-free NC or pulse-counting card function compatible with LINCE-8023-RSCP shutter detector
• Indications: LED Alarm, tamper, signal
• Cover material: ABS plastic
• Battery: 1 CR123A 3.0V battery (approximate lifespan 5 years)
• Operating temperature: 0º C ~ 50º C
• Transmitter dimensions: 90 mm (Fo) x 20 (Ø) mm
• Magnetic dimensions: 90 mm (Fo) x 20 (Ø) mm

AJ-HUB2-W

• Brand: AJAX
• Frequency: RF 868 MHz.
• Protocol: via Jeweller and Wings radio
• Security level: Level 2
• Internal security: Tamper-proof
• Internal siren: Not available
• Communication: Ethernet / Dual SIM 2G (GPRS)
• Maximum number of devices: 100 (max. 10 sirens)
• Video integration: Up to 25 IP cameras or video recorder channels. Number of users: Up to 50
• Communication: with CRA Contact ID / SIA Compatibility Not compatible with ocBridge and uartBridge
• Cover material: ABS plastic
• Power supply: AC 110~250 V, 50/60 Hz
• Backup battery: Lasts up to 16 hours
• Operating temperature: +5º C ~ 40º C
• Dimensions: 163 (H) x 163 (W) x 36 (H) mm

AJ-MOTIONCAM-PHOD-W

• Brand: Ajax
• Volumetric PIR technology with camera
• Security level: Level 2
• PIR lens: 24 zones and 6 planes
• Detection field 12 m / H: 88.5º / V: 80º /
• Installation 2.4 m
• Frequency 868 MHz Jeweller and Wings (image transmission)
• Transmission distance ≤ 1700 m in open space
• Pet immunity ≤ 20 kg, ≤ 50 cm
• Anti-masking: Not available
• Adjustable sensitivity. 3 levels (low, medium, and high)
• Privacy management: End-user management of image request permissions
• Image resolution: Up to VGA (640 x 480)
• Number of images: Up to 5 images per detection
• Image transmission: Sending and receiving images in less than a minute
• Infrared illumination: IR for night mode
• LED indications: Alarm, tamper, signal
• Battery: 2 CR123A 3.0V batteries (lasts up to 4 years)
• Compatibility: Hub 2 and Hub 2 Plus
• Operating temperature: 0º C ~ 40º C
• Cover material: ABS plastic
• Dimensions: (without stand) 135 (H) x 70 (W) x 60 (D) mm

Characteristics

• Complete wireless alarm system for professional installations in both residential and commercial settings. Communication is via Ethernet and/or GPRS. The supervised bidirectional link between detectors and accessories is established via radio frequency using its own protocol, Jeweller, in the 868 MHz band. The devices in the kit are Grade 1 certified.

• The wireless connection achieves high reliability thanks to its advanced Jeweller protocol with high-security AES encryption. The unique, intelligent, instant monitoring system detects signal jamming by identifying periods of inactivity and reduces maintenance costs by significantly extending detector battery life without compromising security. The wireless signal can cover distances of up to 2 km in open spaces. It also includes features to facilitate installation, such as the Smart-Bracket and easy pairing of detectors to the alarm system.

• It allows for up to 100 wireless zones, enabling the grouping of these devices into up to 9 different groups, which can then be armed, partially armed, or disarmed. These Ajax wireless devices offer various configuration options, such as 24-hour zones, zones with entry or exit delays, and more.

• The AJ-HUB-W panel has an AC 110-250 V power input and also a rechargeable backup battery with a duration of up to 15 hours.

• Ethernet communication is its main advantage for remote access, both for the user and the installer, as it allows connection via the AJAX PRO Desktop PC software and the Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professional) mobile apps for iOS and Android. These apps allow you to configure the entire system, manage users and their permissions, add devices, group them into rooms, and modify their settings. Cloud usage is compatible with dynamic IPs without the need to open ports. Ajax users will enjoy numerous benefits, including receiving reliable and instant notifications in both the desktop software and the mobile apps.

• As an additional complement to the Ajax alarm system, up to 10 IP cameras or video recorder channels can be added from the mobile application to be able to verify the live video stream.
