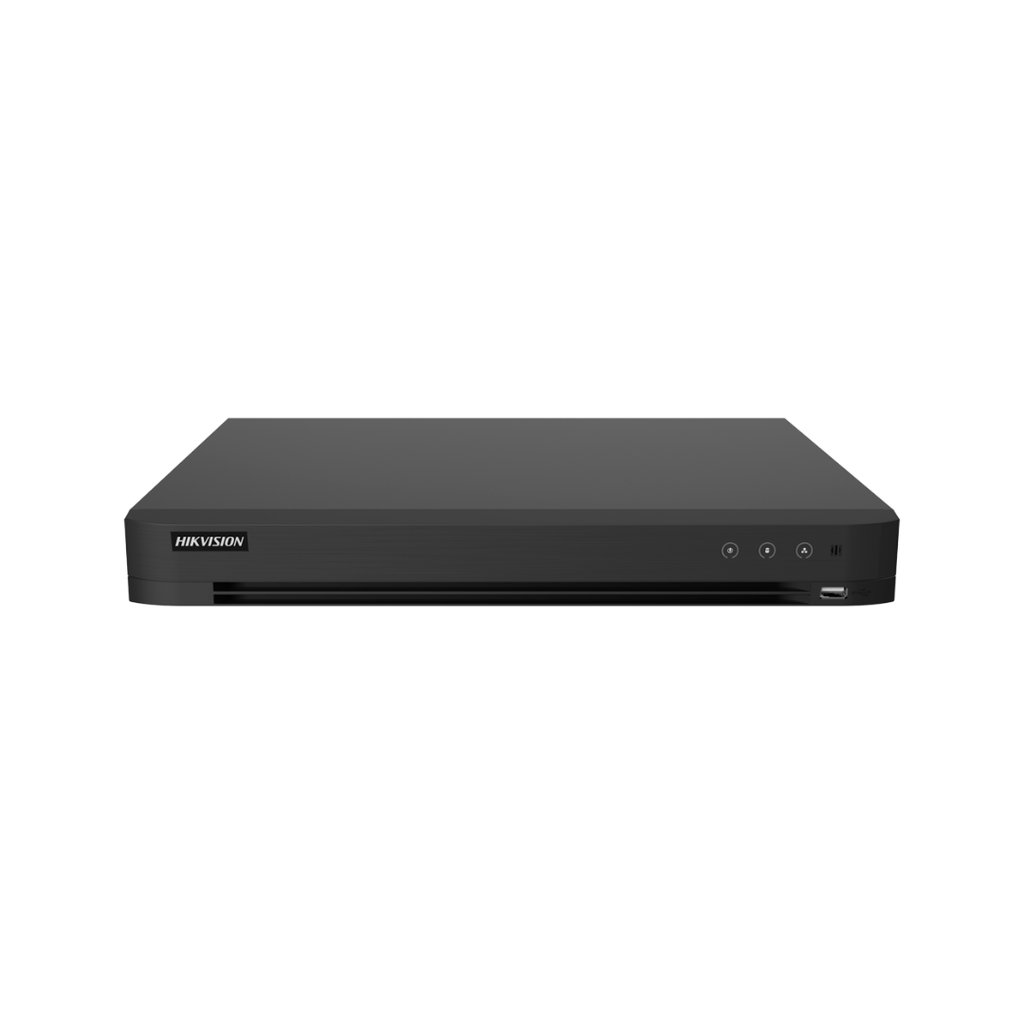

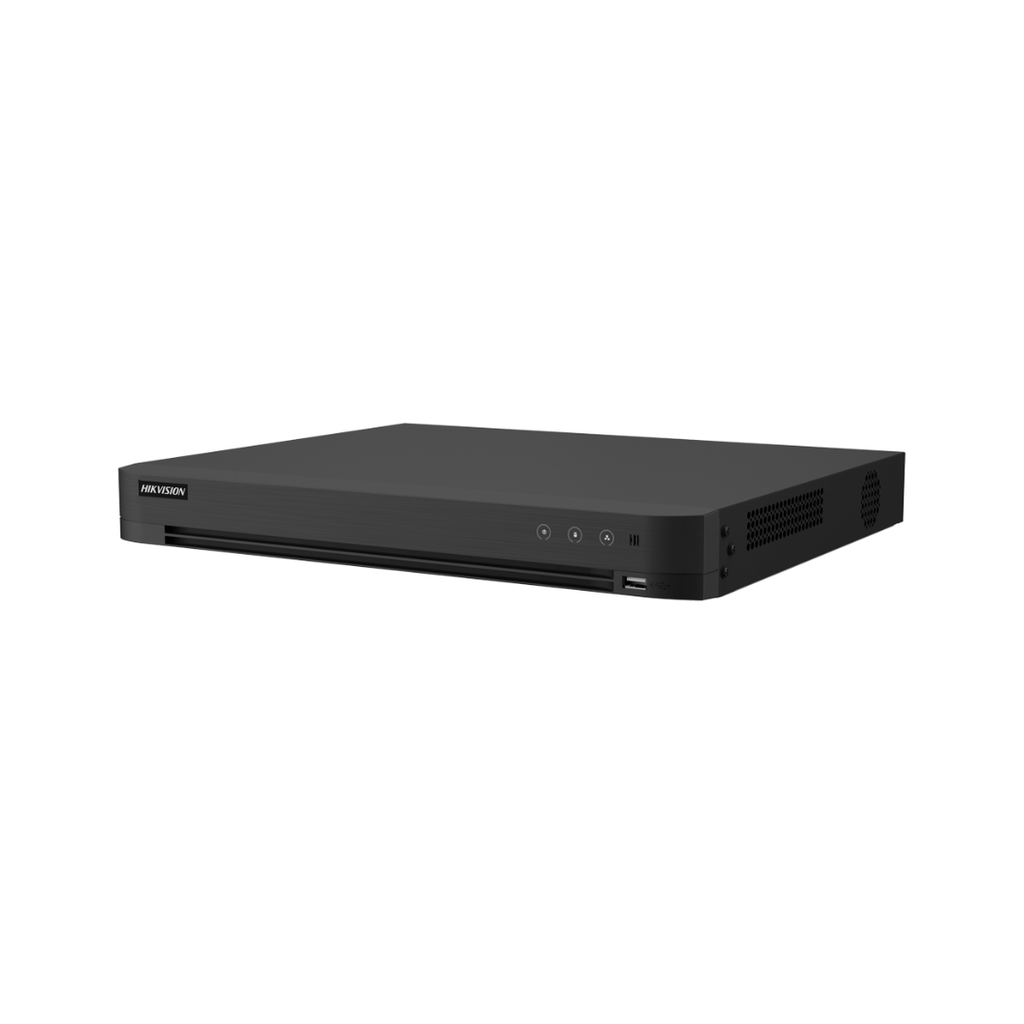

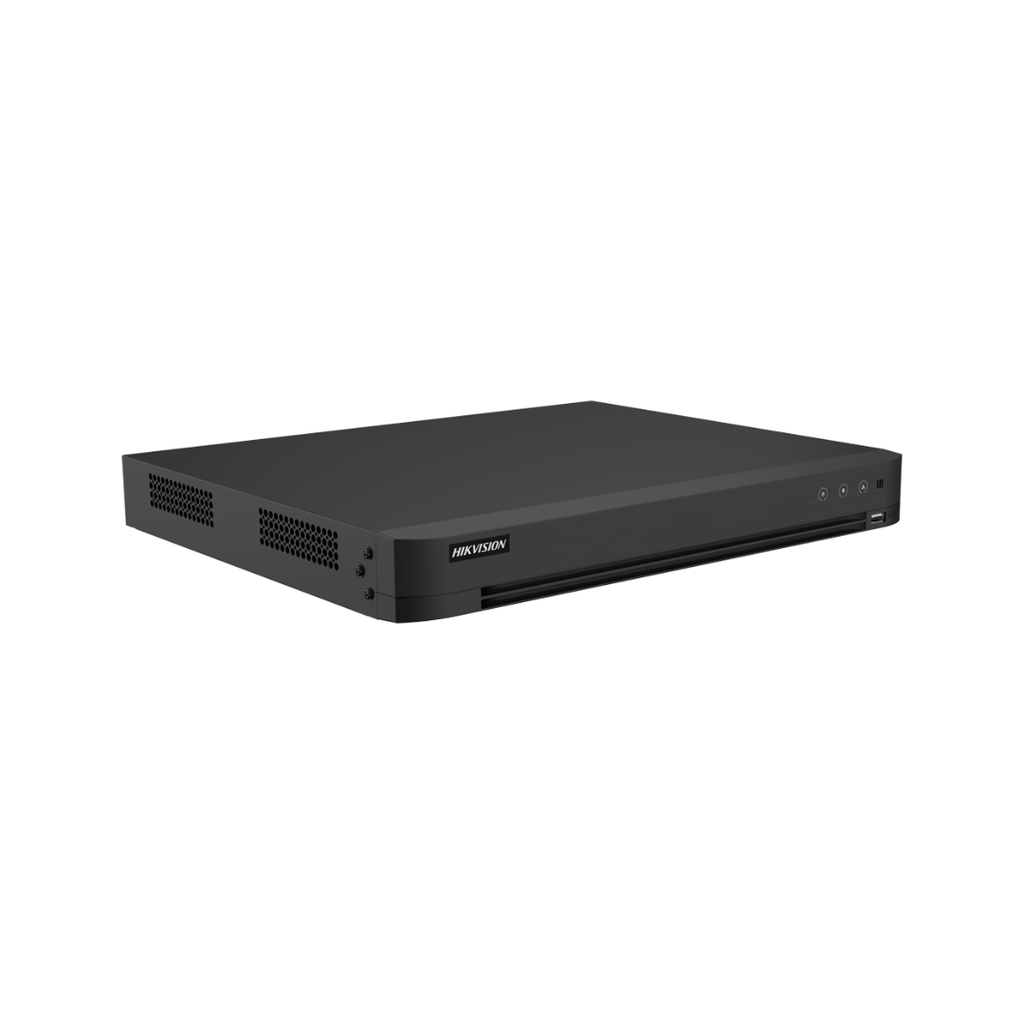

16-channel 5-in-1 DVR that accepts HDTVI, HDCVI, AHD, CVBS and IP cameras in the same system. You can add 8 IP channels and reach up to 24 IP cameras, with input resolutions of up to 3K.
It features AcuSense analytics for perimeter protection with human and vehicle filtering, facial recognition on 4 channels and 4K HDMI output. Its two SATA bays take up to 12 TB per drive.
Key features
- 16 analogue 5-in-1 inputs: HDTVI / HDCVI / AHD / CVBS / IP
- Up to 24 IP channels
- Input resolution up to 3K
- AcuSense: line crossing and intrusion with human/vehicle filter (8 channels)
- Face detection and recognition on 4 channels
- 4K HDMI, VGA and CVBS outputs
- 2 SATA bays up to 12 TB each and Gigabit network
Specifications
| Brand | Hikvision |
| Model | iDS-7216HQHI-M2/XT |
| Range | PRO (AcuSense) |

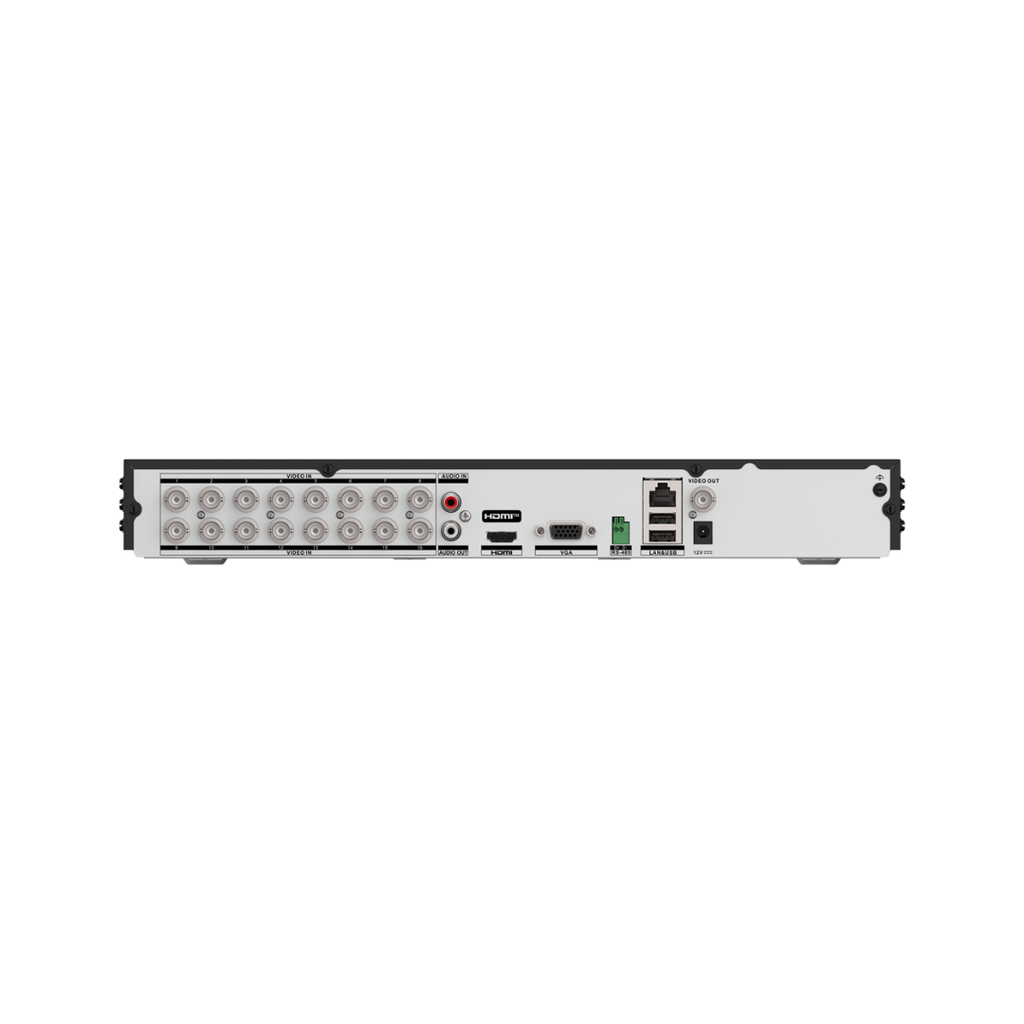

| Analogue inputs | 16 × BNC HDTVI / HDCVI / AHD / CVBS |
| IP channels | 8 additional; up to 24 IP when replacing analogue channels (up to 6 MP each) |
| Max. input resolution | 3K (HDTVI); 5 MP (HDTVI / HDCVI / AHD) |
| Compression | Analogue: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264; IP: H.265+ / H.265 / H.264+ / H.264 |
| Video outputs | 1 × HDMI up to 4K, 1 × VGA up to 1080p (simultaneous) and 1 × CVBS |
| Perimeter protection | AcuSense: line crossing and intrusion with human/vehicle filter, up to 8 analogue channels |
| Facial recognition | Face detection and comparison on up to 4 channels, up to 16 libraries |
| Motion detection | 2.0 with human/vehicle classification on all analogue channels (not simultaneous with AcuSense) |
| Audio | Input: 1 × RCA + 16 over coax; output: 1 × RCA; two-way audio |
| Storage | 2 × SATA HDD up to 12 TB each (not included) |
| Network | 1 × RJ45 Ethernet 10/100/1000 Mbps |
| Other interfaces | 1 × USB 2.0 front, 2 × USB 3.0 rear, 1 × RS-485 |
| Remote access | Web browser, Hik-Connect, iVMS-4200, HikCentral |
| Power supply | 12 V DC, 3.3 A; consumption ≤ 40 W |
| Operating temperature | −10 °C to +55 °C |
| Dimensions | 384 × 317 × 52 mm (1U) |
| Weight | ≤ 2 kg (without HDDs) |
| Included | 12 V power adapter and mouse |
