4-channel NVR with 4 built-in PoE ports, ideal for small IP video surveillance systems: cameras connect over a single cable carrying data and power, with no extra power supplies. It records up to 6 MP with H.265+ compression to make the most of your hard drive.
It takes one SATA hard drive of up to 6 TB and offers simultaneous HDMI and VGA outputs. With compatible cameras it supports Motion Detection 2.0, and it can be managed from the Hik-Connect app or a PC.
Key features
- 4 IP channels with 4-port PoE switch (≤ 36 W total)
- Recording up to 6 MP
- H.265+ / H.265 / H.264+ / H.264 compression
- 40 Mbps incoming bandwidth
- Simultaneous Full HD HDMI and VGA outputs

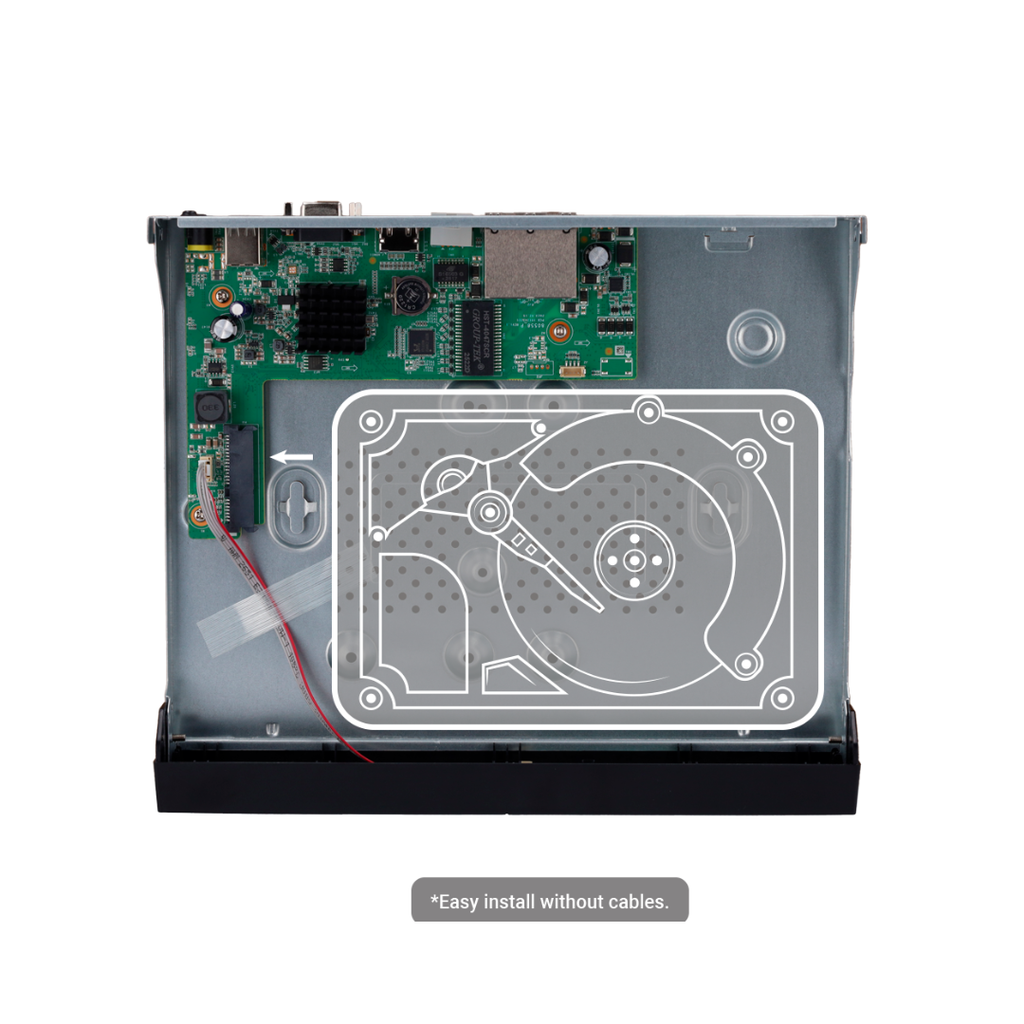

- 1 SATA bay for a hard drive up to 6 TB

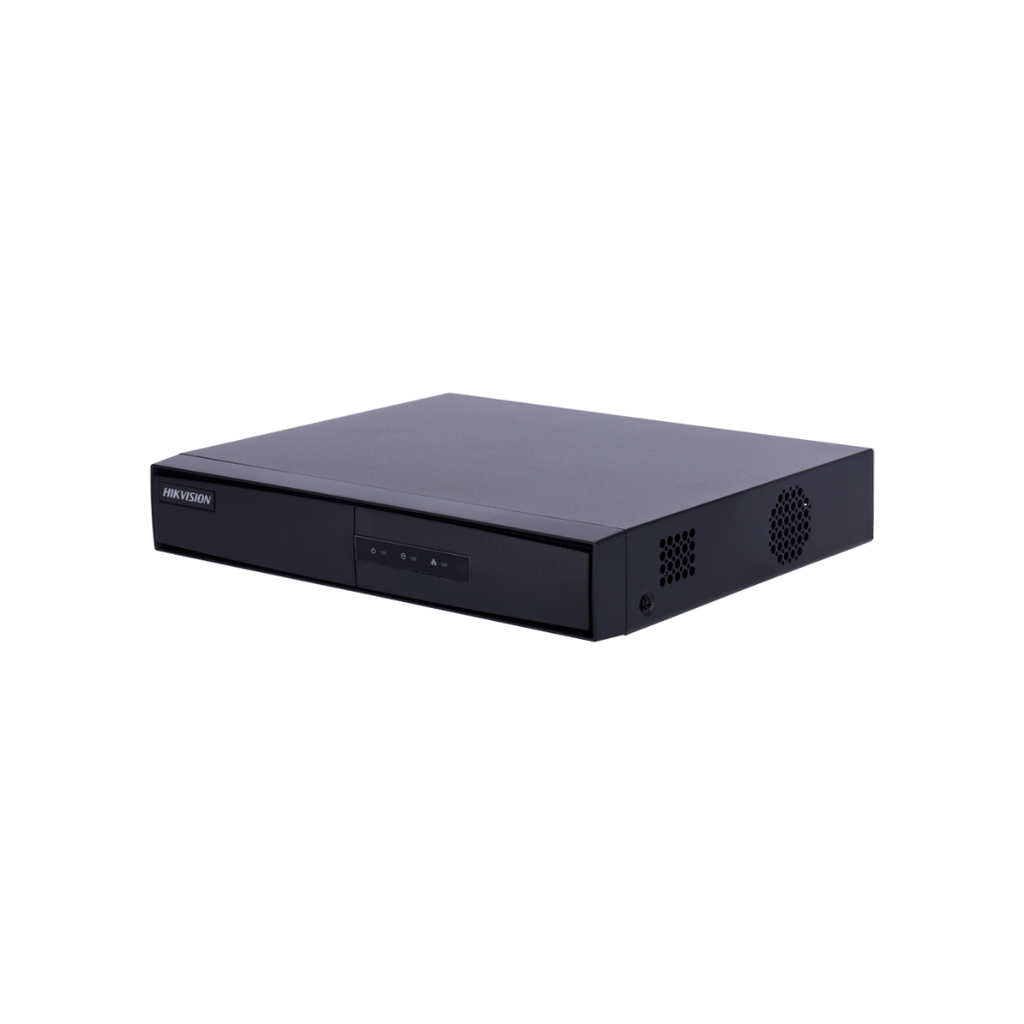

- Compact mini 1U form factor
Specifications
| Brand | Hikvision |
| Model | DS-7104NI-Q1/4P/M(D) |
| Range | Value |
| IP channels | 4 |
| PoE ports | 4 × RJ45 10/100 Mbps, IEEE 802.3af/at, total budget ≤ 36 W |
| Bandwidth | 40 Mbps incoming / 60 Mbps outgoing |
| Recording resolution | Up to 6 MP (6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF) |
| Decoding capability | 4-ch @ 1080p, 2-ch @ 4 MP or 1-ch @ 6 MP (30 fps) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video outputs | 1 × HDMI and 1 × VGA simultaneous, up to 1920 × 1080 |
| Smart detection | Motion Detection 2.0 (with compatible cameras) |
| Storage | 1 × SATA HDD up to 6 TB (not included) |
| Network | 1 × RJ45 Ethernet 10/100 Mbps |
| USB | 2 × USB 2.0 (rear) |
| Compatibility | Hikvision and ONVIF cameras; Hik-Connect, iVMS-4200, HikCentral |
| Power supply | 48 V DC, 1 A; consumption ≤ 10 W (without HDD or PoE) |
| Operating temperature | −10 °C to +55 °C |
| Dimensions | 265 × 223 × 48 mm (mini 1U) |
| Weight | ≤ 1 kg (without HDD) |
| Included | Power supply, mouse and Ethernet cable |
