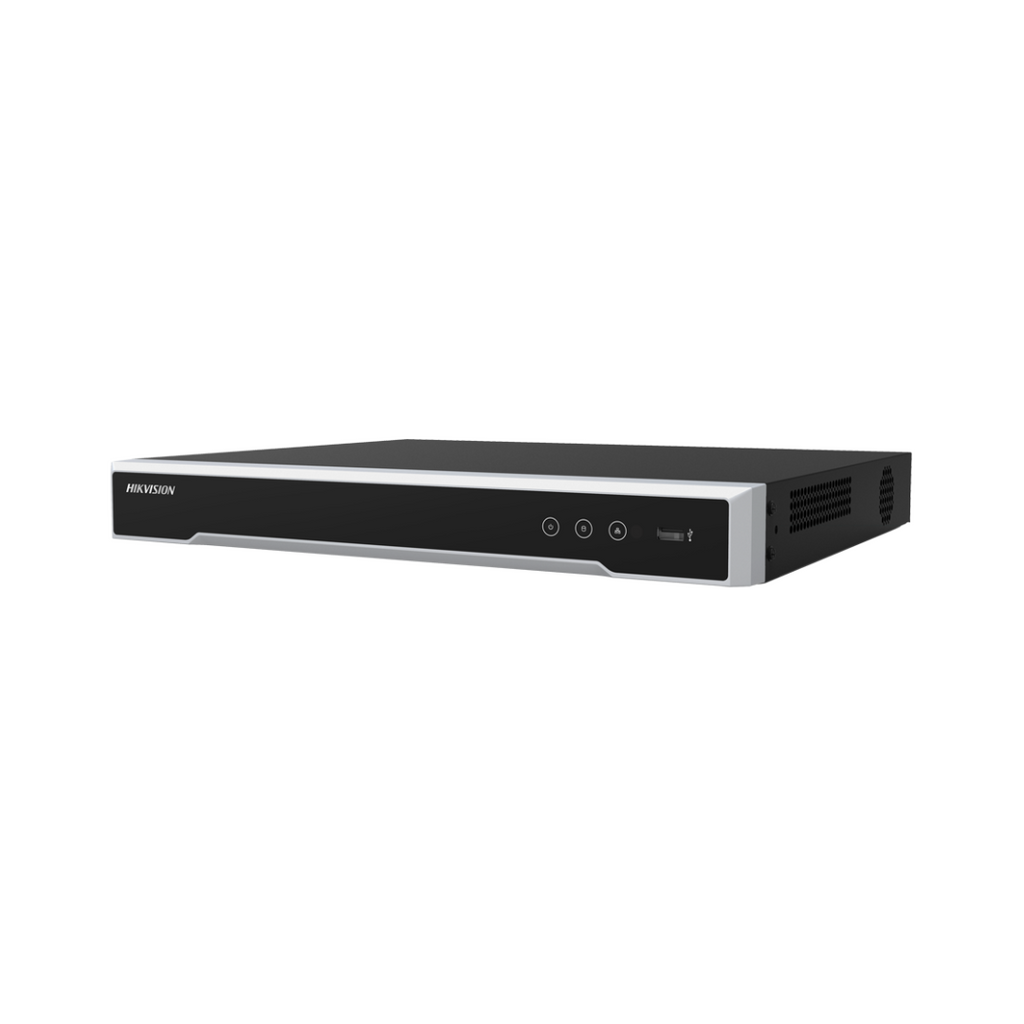

16-channel NVR with built-in PoE switch for IP video surveillance with a single cable per camera: data and power over the same RJ45, up to 150 W in total.
It records up to 8 MP with H.265+ compression, offers 4K HDMI output and takes two SATA drives of up to 8 TB each for weeks of footage.
Key features
- 16 IEEE 802.3af/at PoE ports with a 150 W total budget
- Up to 8 MP recording with H.265+ to save disk space
- 160 Mbps incoming bandwidth
- Simultaneous 4K HDMI and VGA outputs
- Motion Detection 2.0 with human and vehicle classification (4 channels)
- 2 SATA bays, up to 8 TB each
- Remote management via Hik-Connect, iVMS-4200 and HikCentral; ONVIF compatible
Specifications
| Brand | Hikvision |
| Model | DS-7616NI-Q2/16P(D) |
| Range | Pro |
| IP channels | 16 |
| PoE ports | 16 × RJ45 10/100 Mbps, IEEE 802.3af/at, max. 150 W |
| Recording resolution | Up to 8 MP |
| Video compression | H.265+ / H.265 / H.264+ / H.264 |
| Bandwidth | 160 Mbps incoming / 80 Mbps outgoing |
| Decoding | 1 channel at 8 MP or 5 channels at 1080p (30 fps) |
| Video outputs | 1 × HDMI up to 4K (4096 × 2160) and 1 × VGA up to 1920 × 1080, simultaneous |
| Audio | 1 × RCA output and 1 × RCA two-way audio |
| Motion Detection 2.0 | Human and vehicle classification on up to 4 channels |
| Network interface | 1 × RJ45 10/100/1000 Mbps |
| Storage | 2 × 3.5" SATA bays, up to 8 TB each (drives not included) |
| USB | 2 × USB 2.0 |
| Remote connections | 32 |
| Remote access | Web browser, Hik-Connect app, iVMS-4200 and HikCentral |
| Compatible cameras | Hikvision (native protocol) and ONVIF |
| Power supply | 100-240 V AC, 50/60 Hz |
| Consumption | ≤ 15 W (without HDD) |
| Form factor | 1U chassis |
| Operating temperature | -10 °C to 55 °C (10% to 90% humidity) |
| Dimensions | 385 × 315 × 52 mm |
| Weight | ≤ 2.6 kg (without HDD) |
| Includes | Mouse, Ethernet cable and hard drive cables |
