Universal power supply 3V - 12V, max 27W, 2.25A

Characteristics

• The versatile power supply with innovative USB connectors and interchangeable DC adapters is the practical all-rounder for your small devices.
• With the latest generation USB-C™ adapters and connector, you always have the right connection at hand for your electronic devices, from radios to routers.
• Variable voltage power supply, perfect as a replacement unit for electronic devices such as TV box, router, LED strips, video camera, digital photo frame, dartboard, baby monitor or toy.

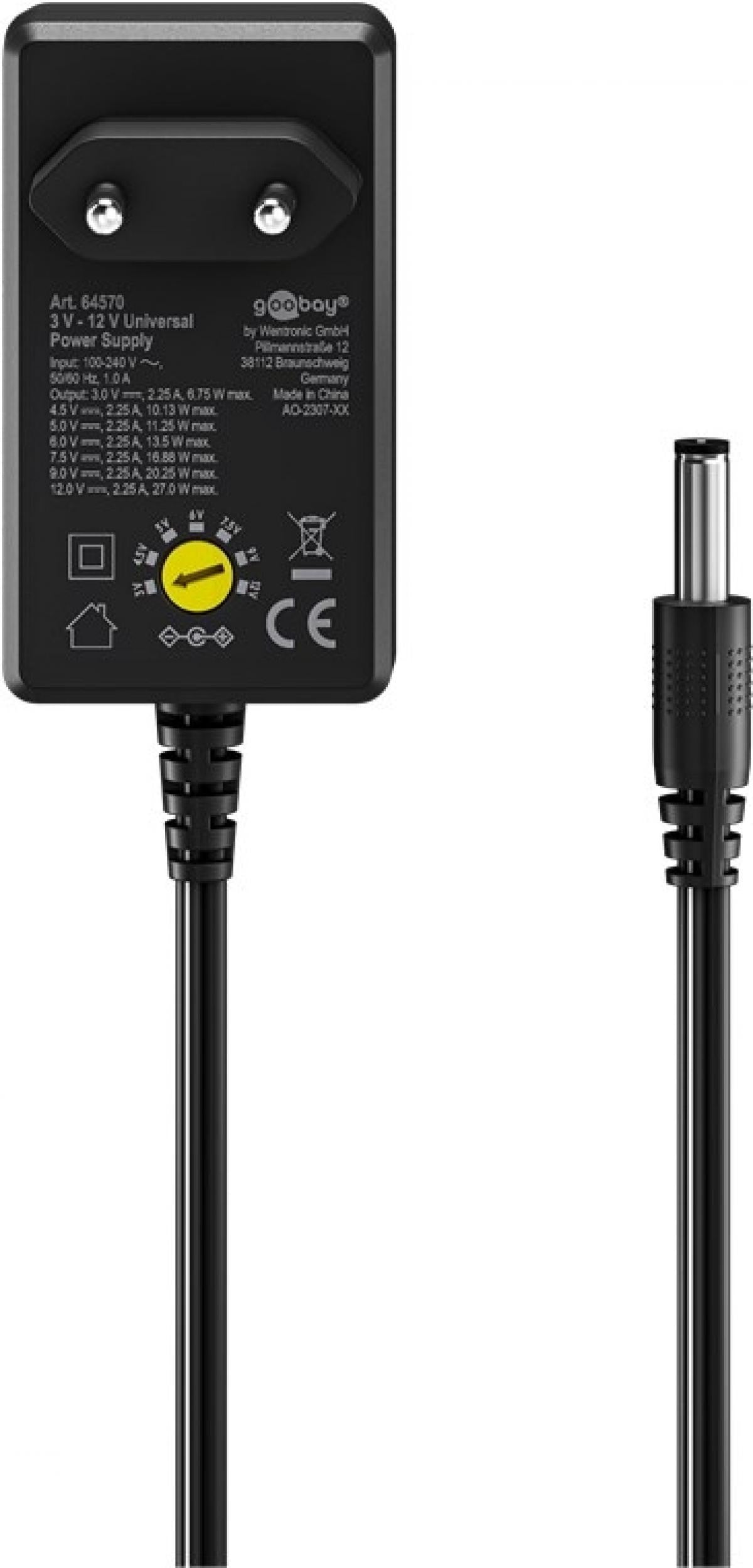

• The output voltage can be regulated by the included rotary switch to select 3V/4.5V/5V/6V/7.5V/9V/12V at 2.25A.
• The USB-C™ adapter supports a wide range of new devices and, as a new hardware standard, makes switching power supplies a viable long-term option.
• Micro-USB and Mini-USB power many small devices such as portable radios, battery chargers, Bluetooth speakers or headphones.

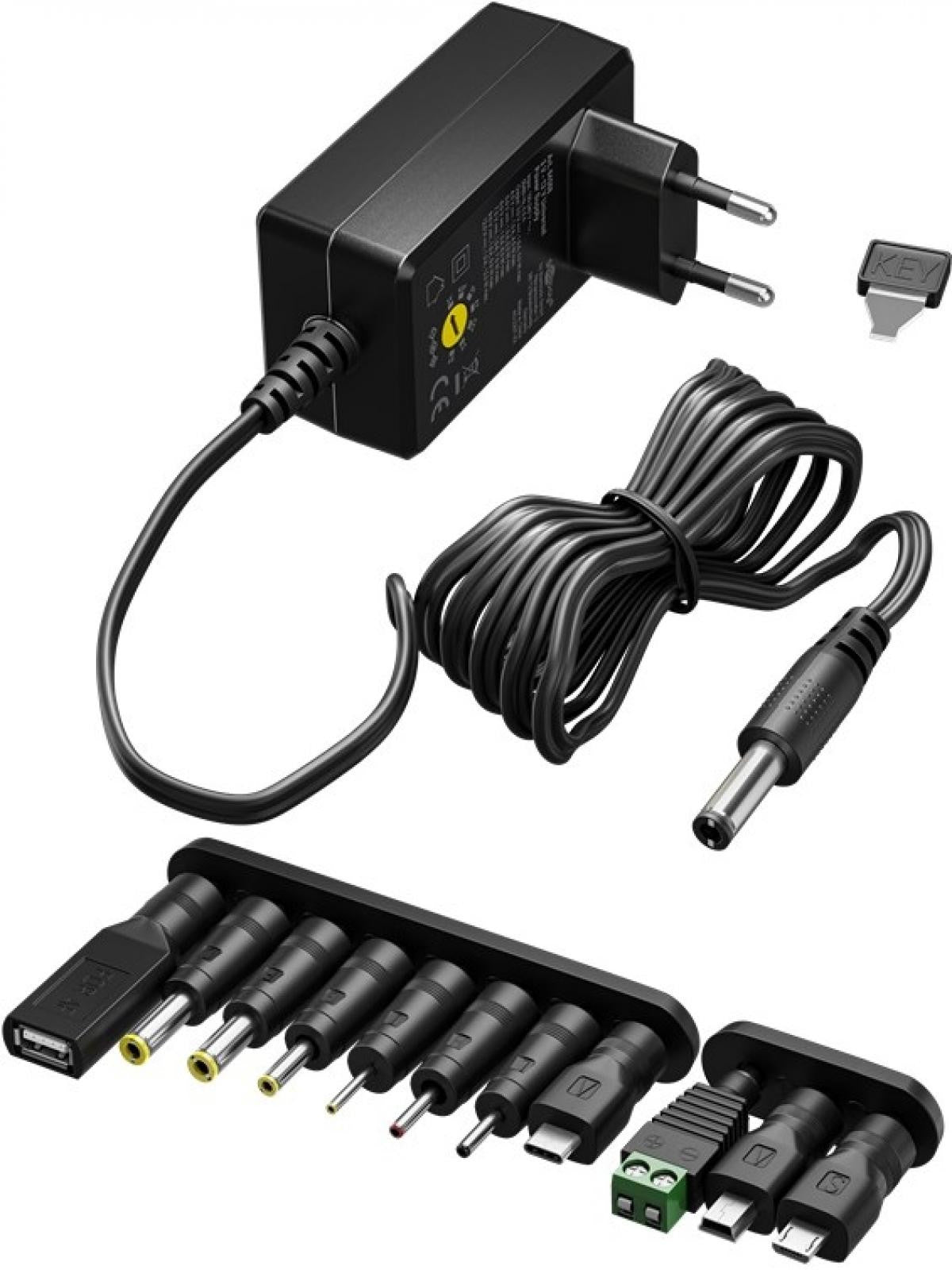

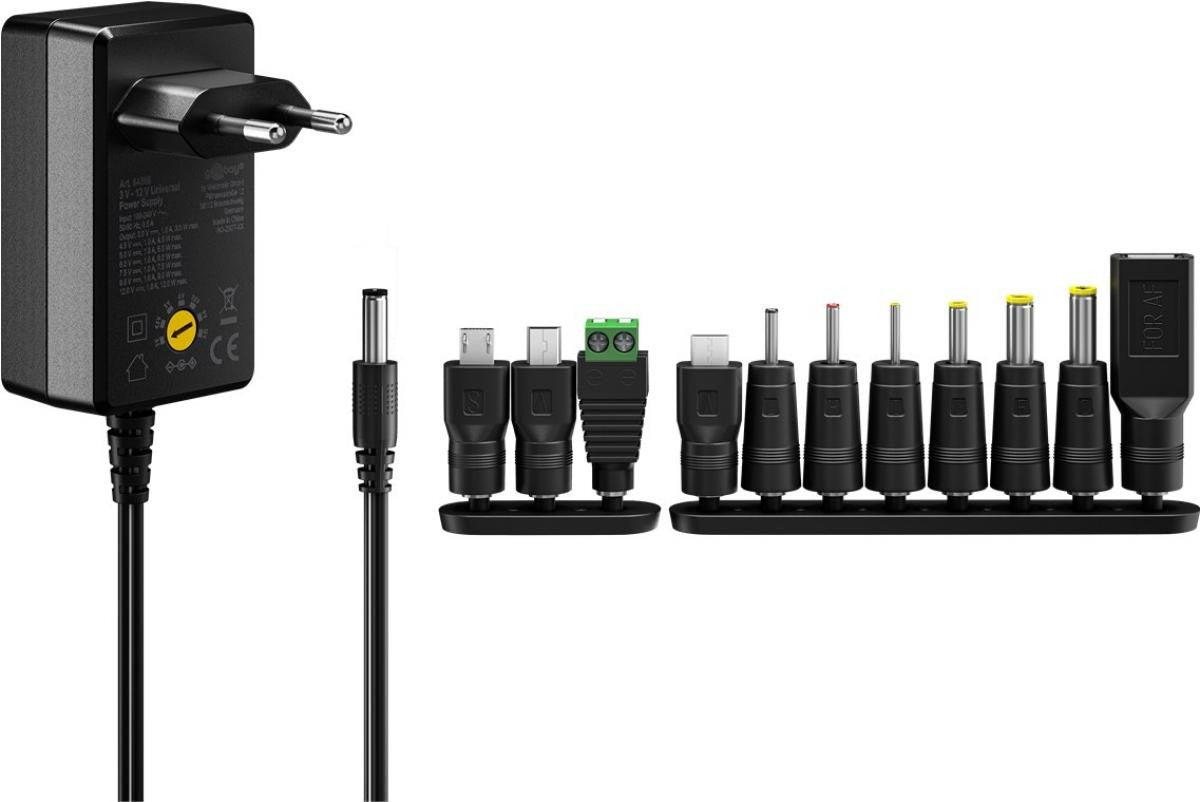

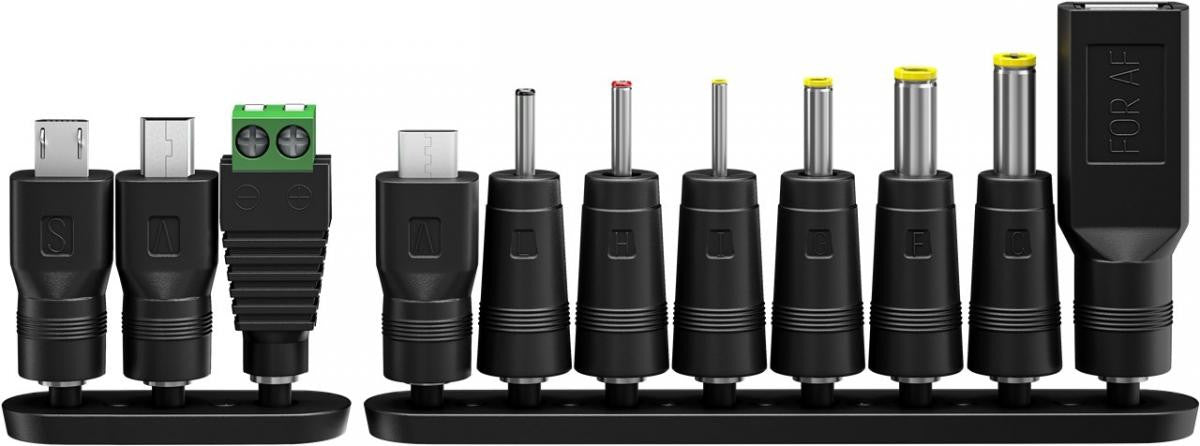

• Includes 5.5 x 2.1 mm hard-wire DC connector and 6 additional DC adapters: 5.5 x 2.5 mm, 2.5 x 0.7 mm, 3.0 x 1.1 mm, 3.5 x 1.35 mm, 4.0 x 1.7 mm, 4.8 x 1.7 mm With interchangeable DC adapters, the 12 V power supply with Euro plug (CEE 7/16) eliminates the need to purchase additional chargers.
• Fuses in the plug-in power supply protect the device against short circuits, overload, overvoltage and overcurrent.

Technical specifications

ERP

• Average active efficiency 81%
• Efficiency at low load (10%) 71.8%
• No-load power consumption 0.08 W

Performance

• Maximum performance 27 W
• Output 3.0 V max. 2.25 A (6.75 W) DC 4.5 V max. 2.25A (10.13W) DC 5.0V max 2.25 A (11.25 W) DC 6.0 V max. 2.25 A (13.5 W) DC 7.5 V max. 2.25 A (16.88 W) DC 9.0 V max. 2.25 A (20.25 W) DC 12.0 V max. 2.25 A (27.0 W) DC
• Maximum output 27.0 W

Device connections

• Input voltage range 100 - 240 (AC) V
• Input Type European plug (Type C CEE 7/16) x in.
• Output, maximum amperage 2.25 A
• Output, maximum amperage 2.3 A
• Input current 1.0 A

Wire

• Cable length 1.8 meters

General

• Black color
• CE, WEEE, Home, Grid markings
