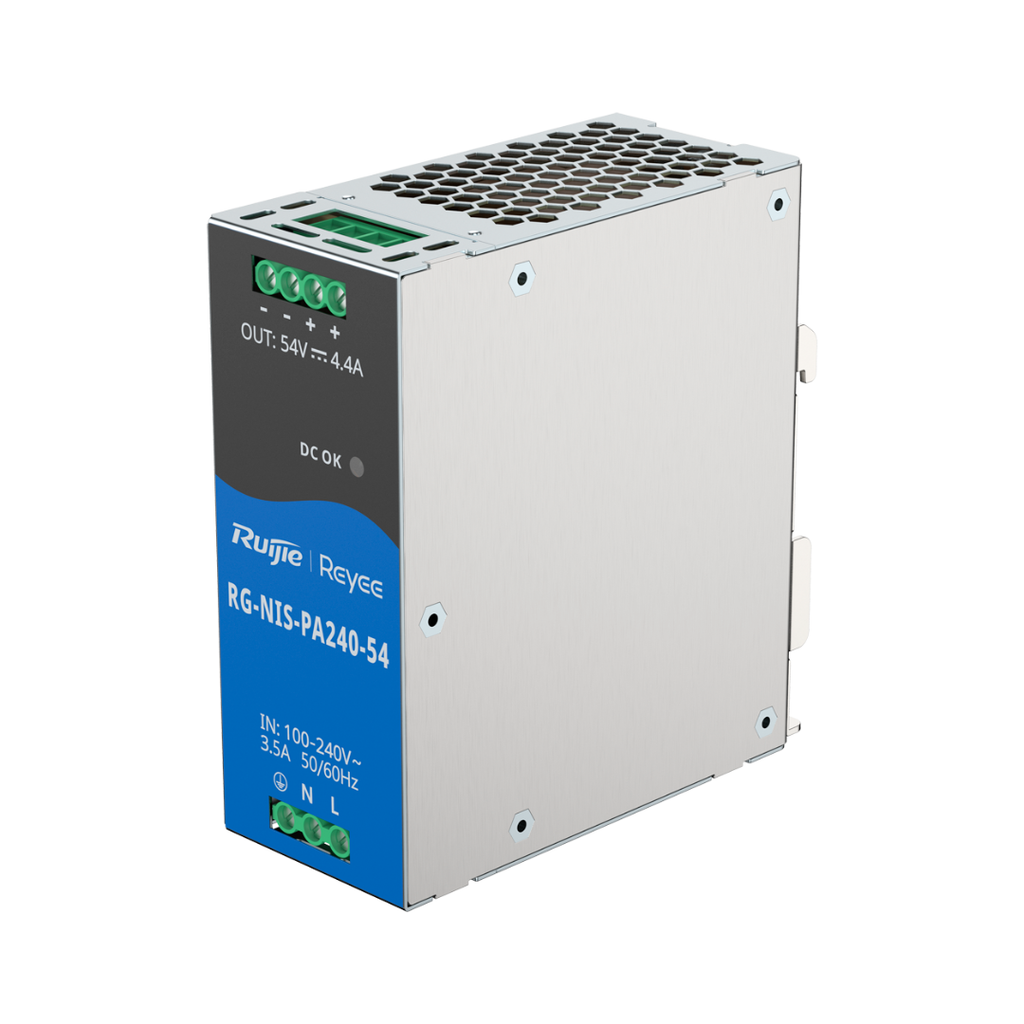

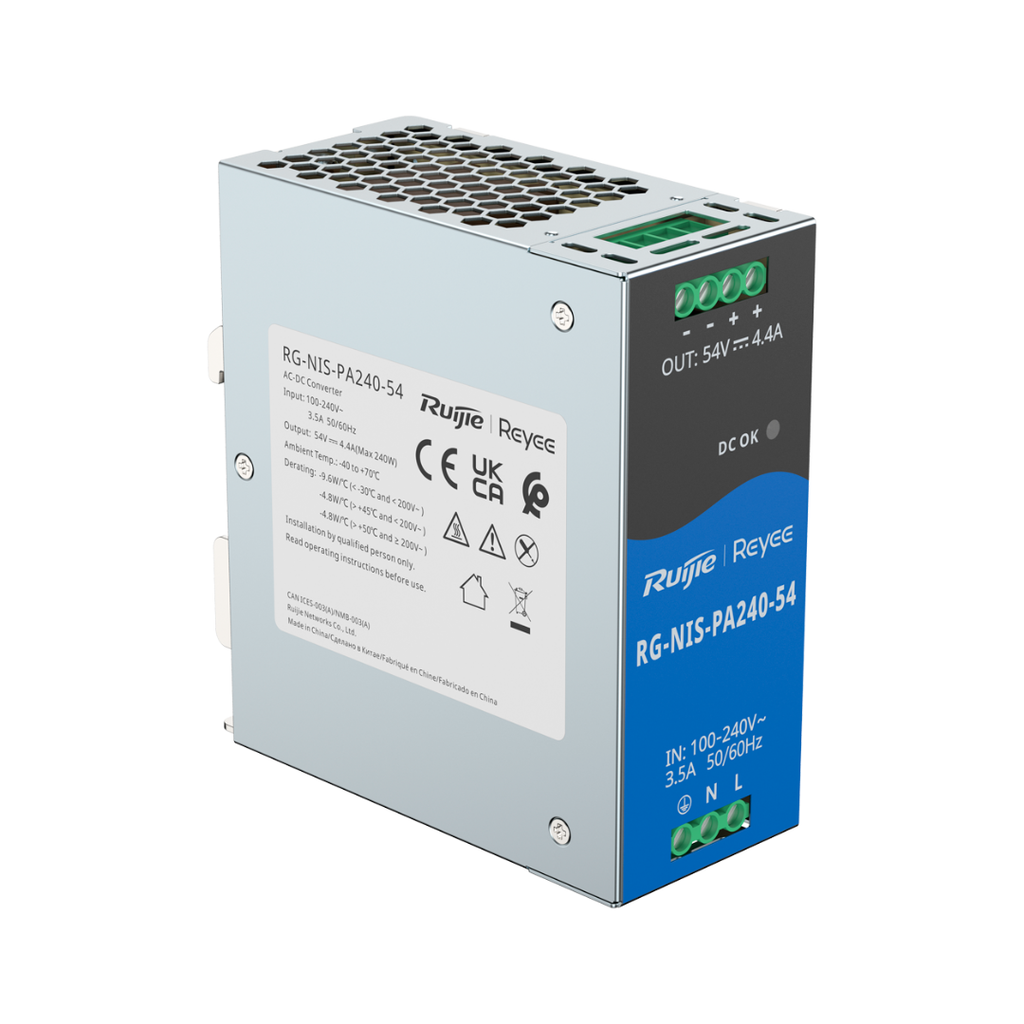

240 W industrial DIN-rail power supply delivering 54 V DC at 4.4 A, the voltage industrial PoE switches need to power cameras, access points and other network devices.
Fanless metal chassis, completely silent, built for control cabinets and harsh environments from -40 °C to 70 °C.
Key features
- 240 W output at 54 V DC and 4.4 A
- Universal 90-264 V AC input
- DIN-rail mounting and metal chassis
- Passive fanless cooling: silent and dust-free
- Short circuit, overcurrent, overvoltage and overtemperature protection
- 4 kV surge and 8 kV ESD protection
- Operates from -40 °C to 70 °C; MTBF over 150,000 hours
Specifications
| Brand | Reyee |
| Model | RG-NIS-PA240-54 |
| Type | Industrial DIN-rail power supply |
| Power | 240 W |
| Output voltage | 54 V DC (52.38 to 55.62 V DC range) |
| Output current | 4.4 A |
| Input voltage | 100-240 V AC, 50/60 Hz (90-264 V AC range) |
| Input current | 3.5 A |
| Protection | Short circuit, overcurrent, overvoltage and overtemperature |
| Surge protection | 4 kV common mode / 2 kV differential mode |
| ESD protection | 8 kV air / 6 kV contact |
| Cooling | Passive, fanless (silent) |
| Max. heat dissipation | 820.8 BTU/h (at 220 V / 50 Hz) |
| LED indicator | DC OK (green) |
| Chassis | Metal |
| Operating temperature | -40 °C to 70 °C (with thermal derating) |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 5% to 95% non-condensing |
| Operating altitude | -500 m to 5000 m |
| MTBF | > 150,000 hours |
| Certification | CE |
| Dimensions | 52 × 110 × 125 mm |
| Net weight | 0.75 kg |
