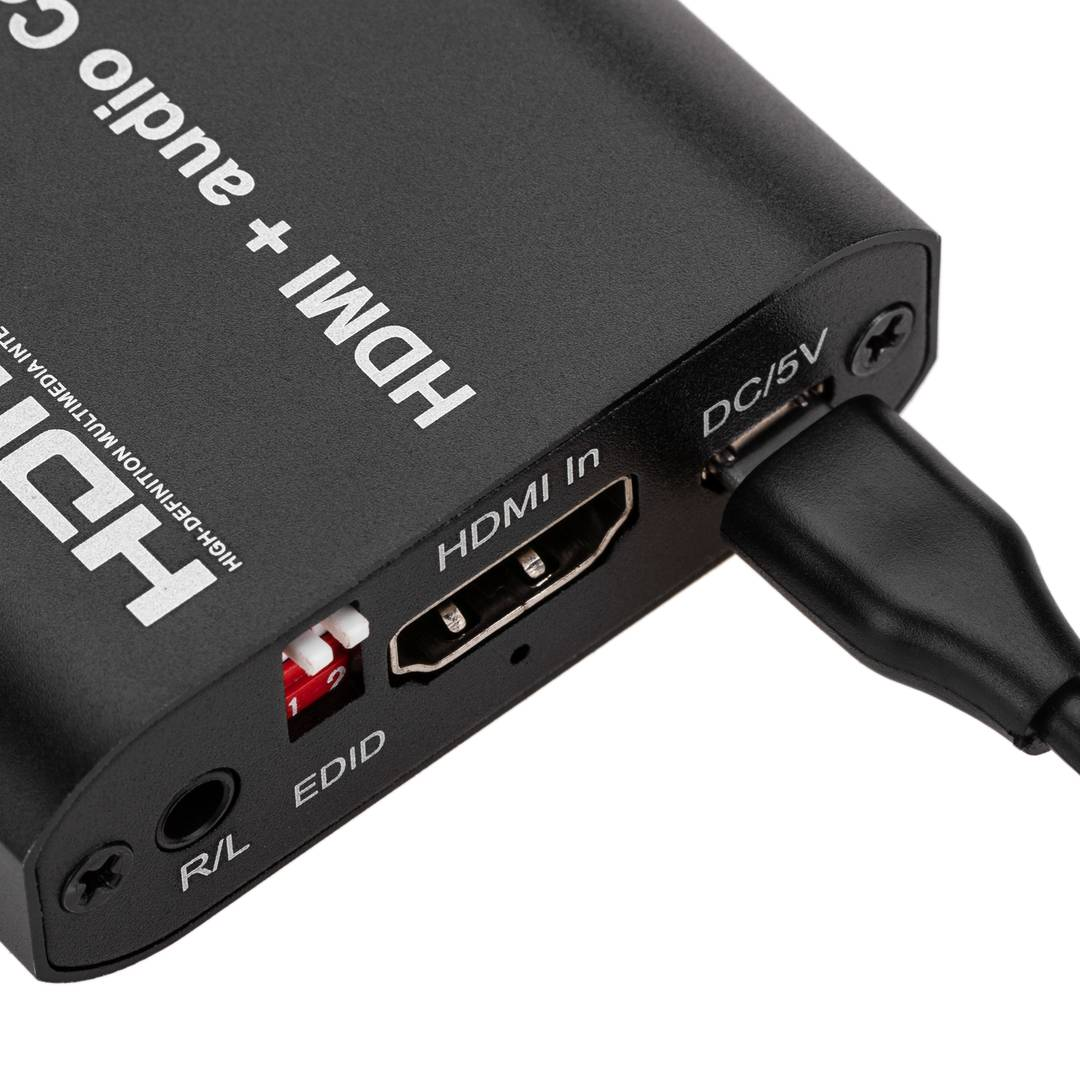

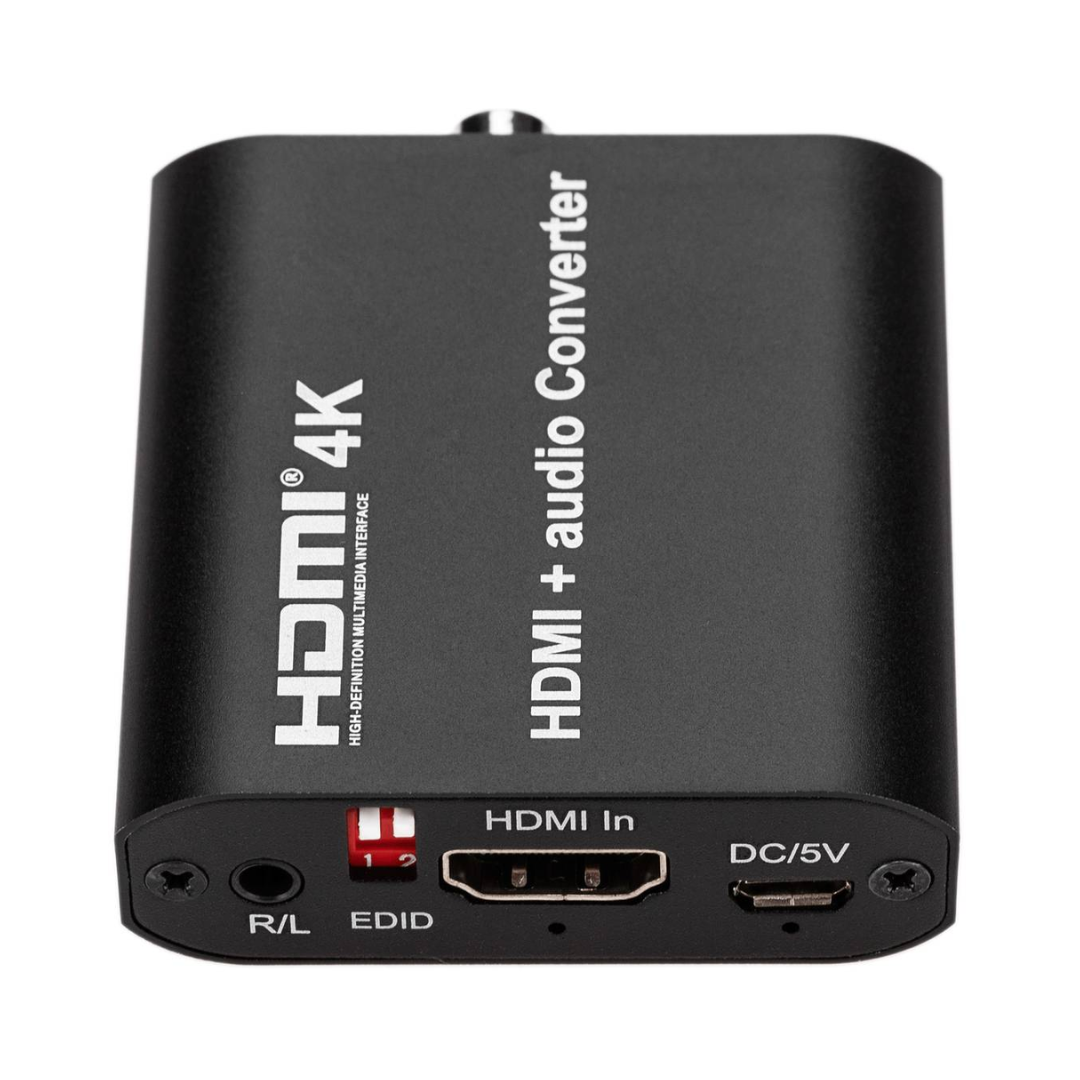

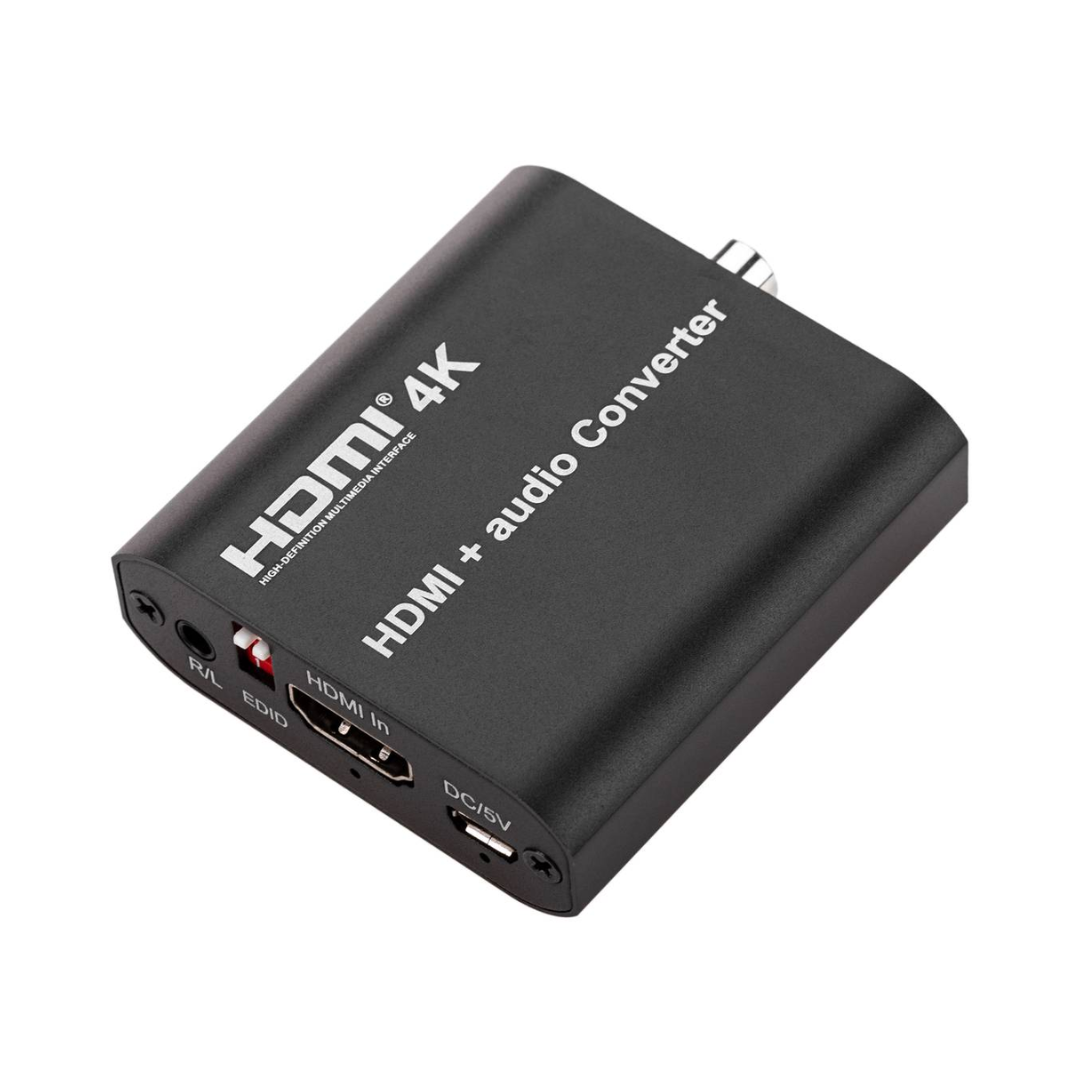

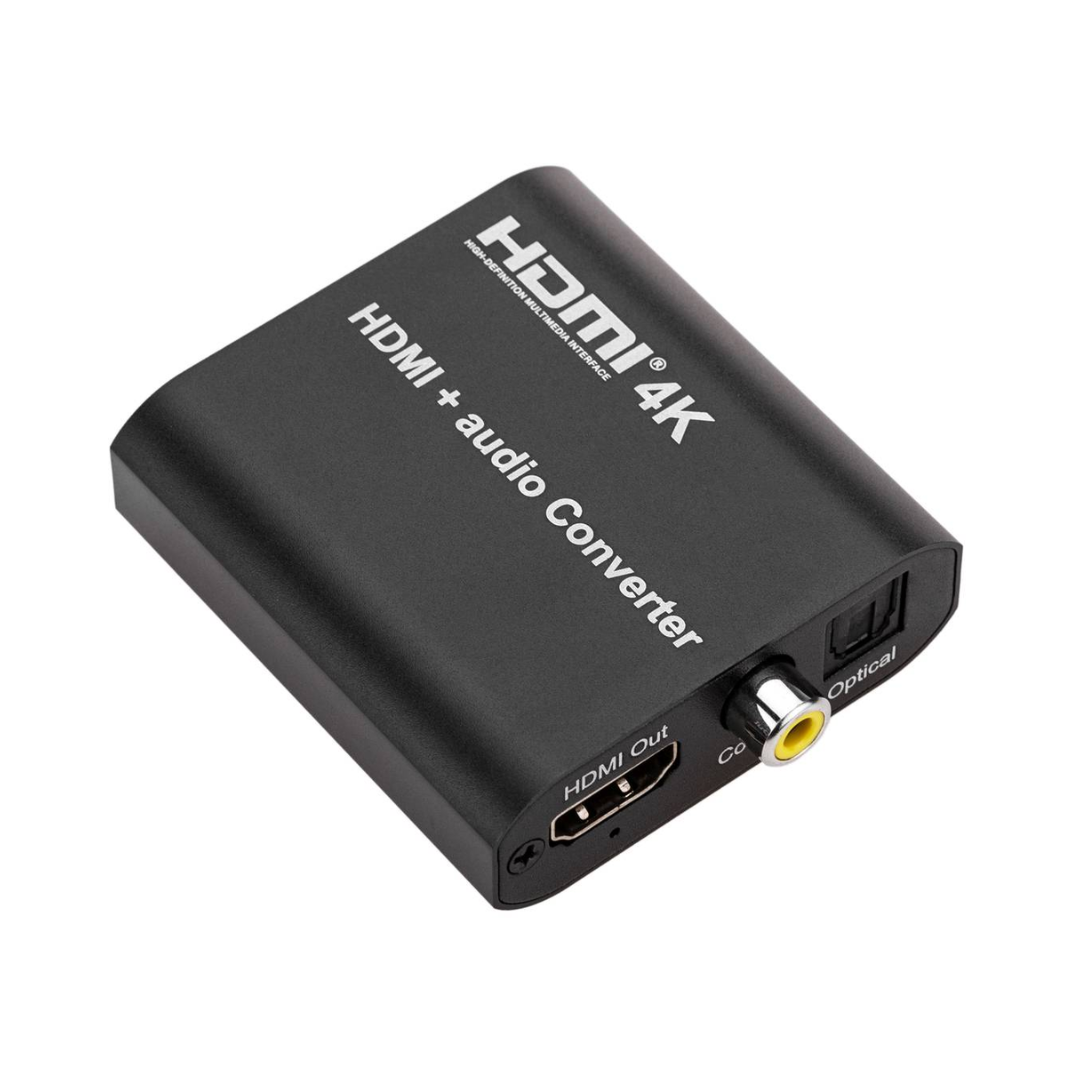

HDMI to Toslink and RCA Audio Extractor

This device takes an HDMI input and provides an HDMI output, a Toslink optical digital audio output, and a stereo analog audio output. The HDMI digital audio and video signals pass through the device, and the two additional audio signals are also output separately.

Specs

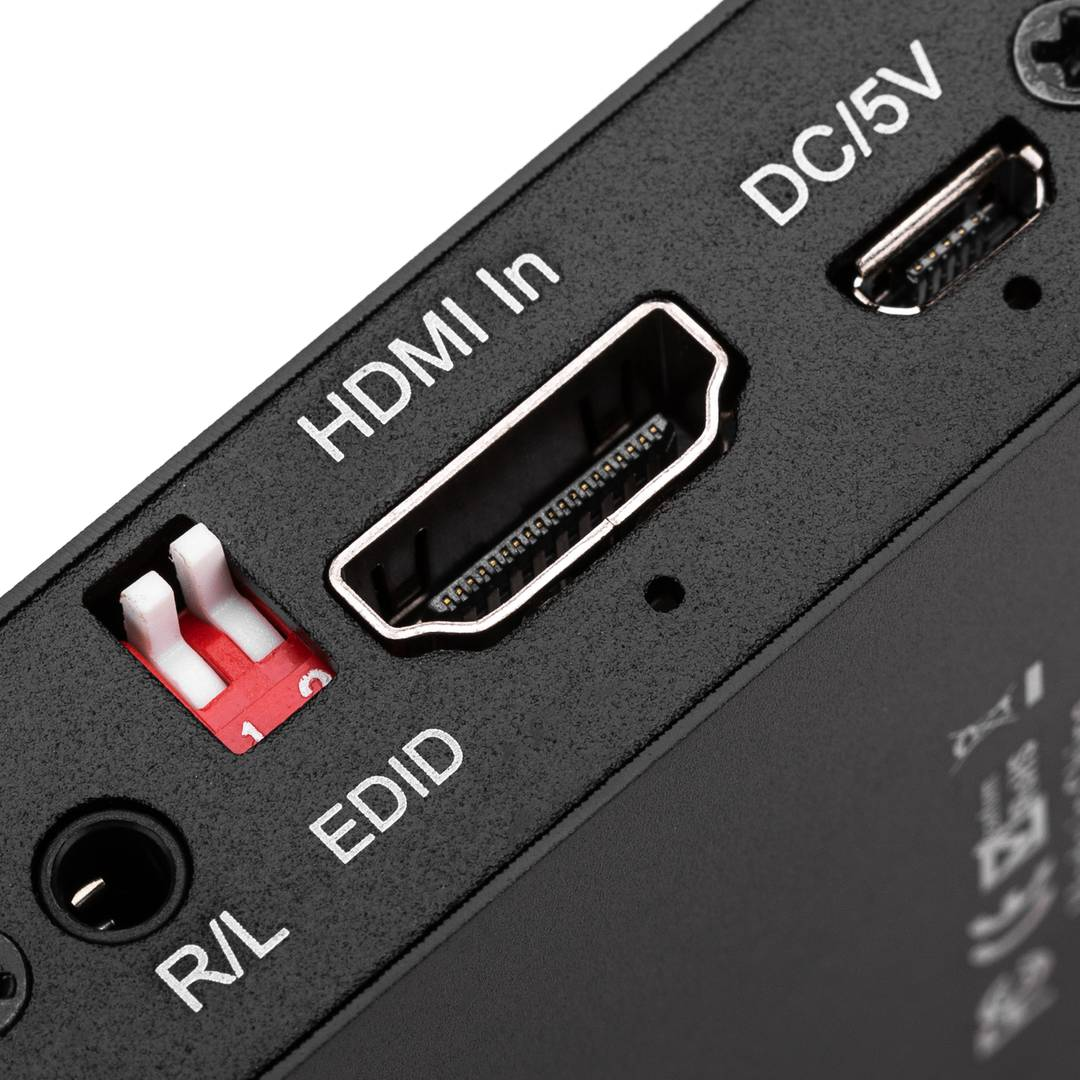

• Input: 1 x HDMI type A female.

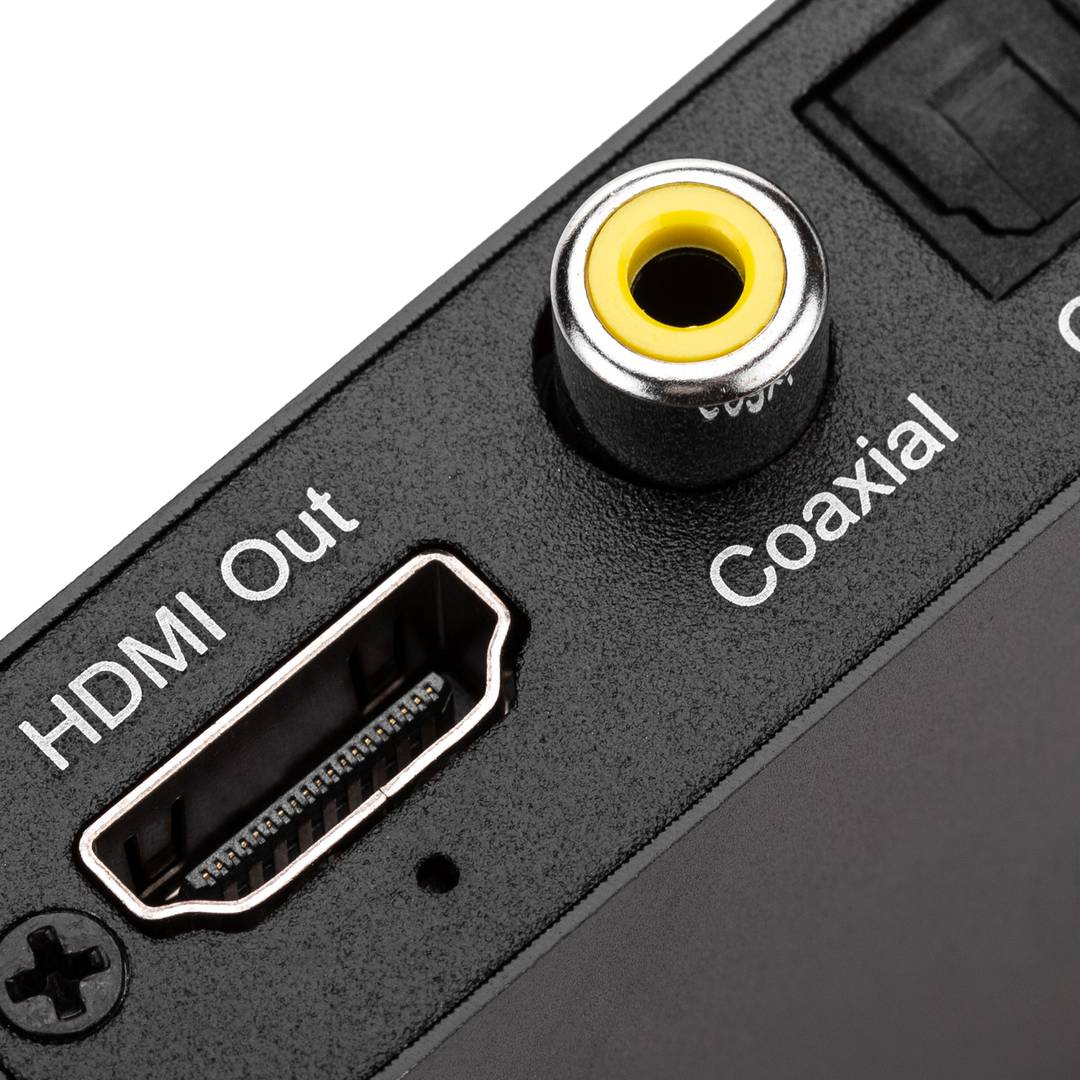

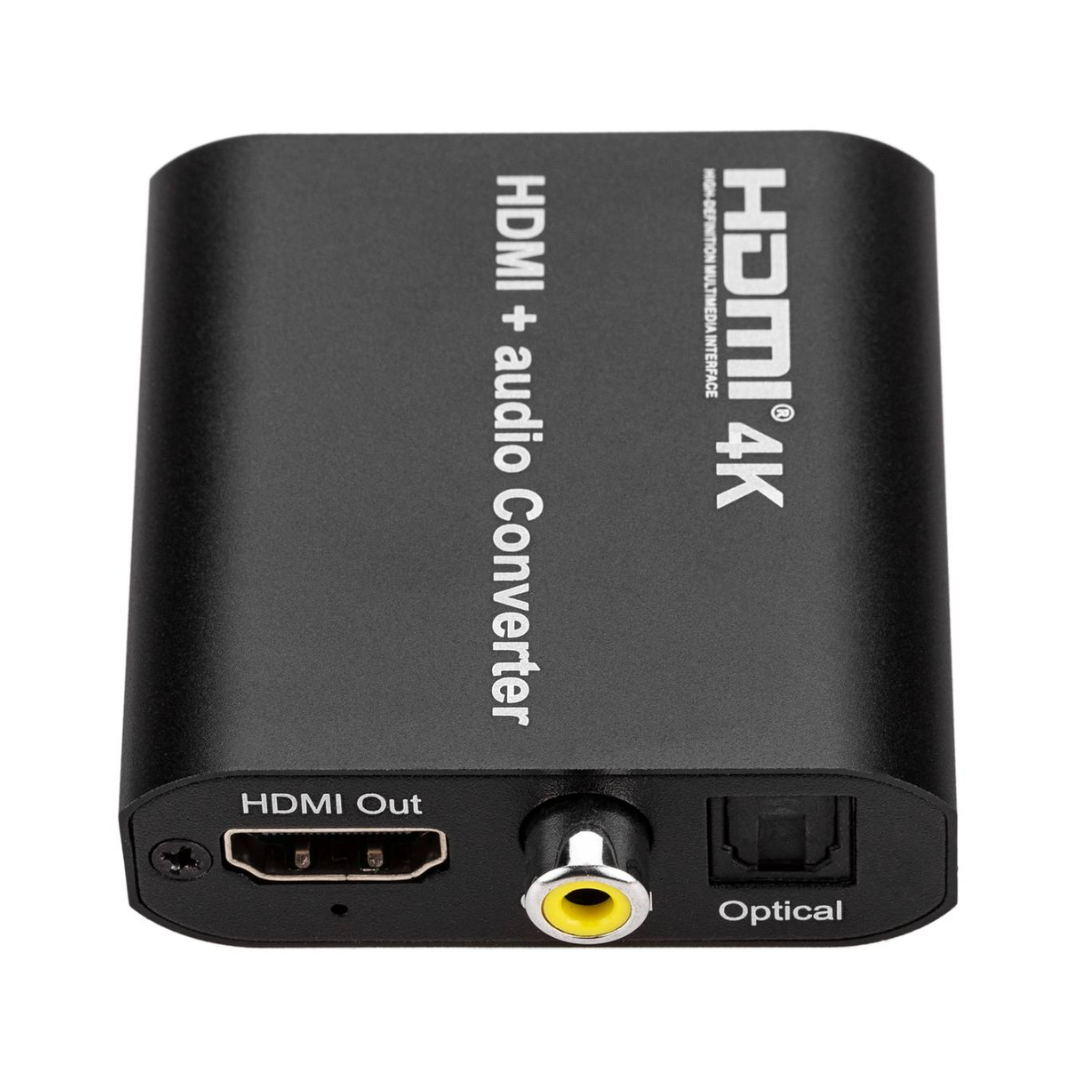

• Output: 1 x HDMI type A female, 1 x toslink female and 2 x RCA female.
• 3-position LPCM selector: TV, bitstream or 2CH.
• POWER button.

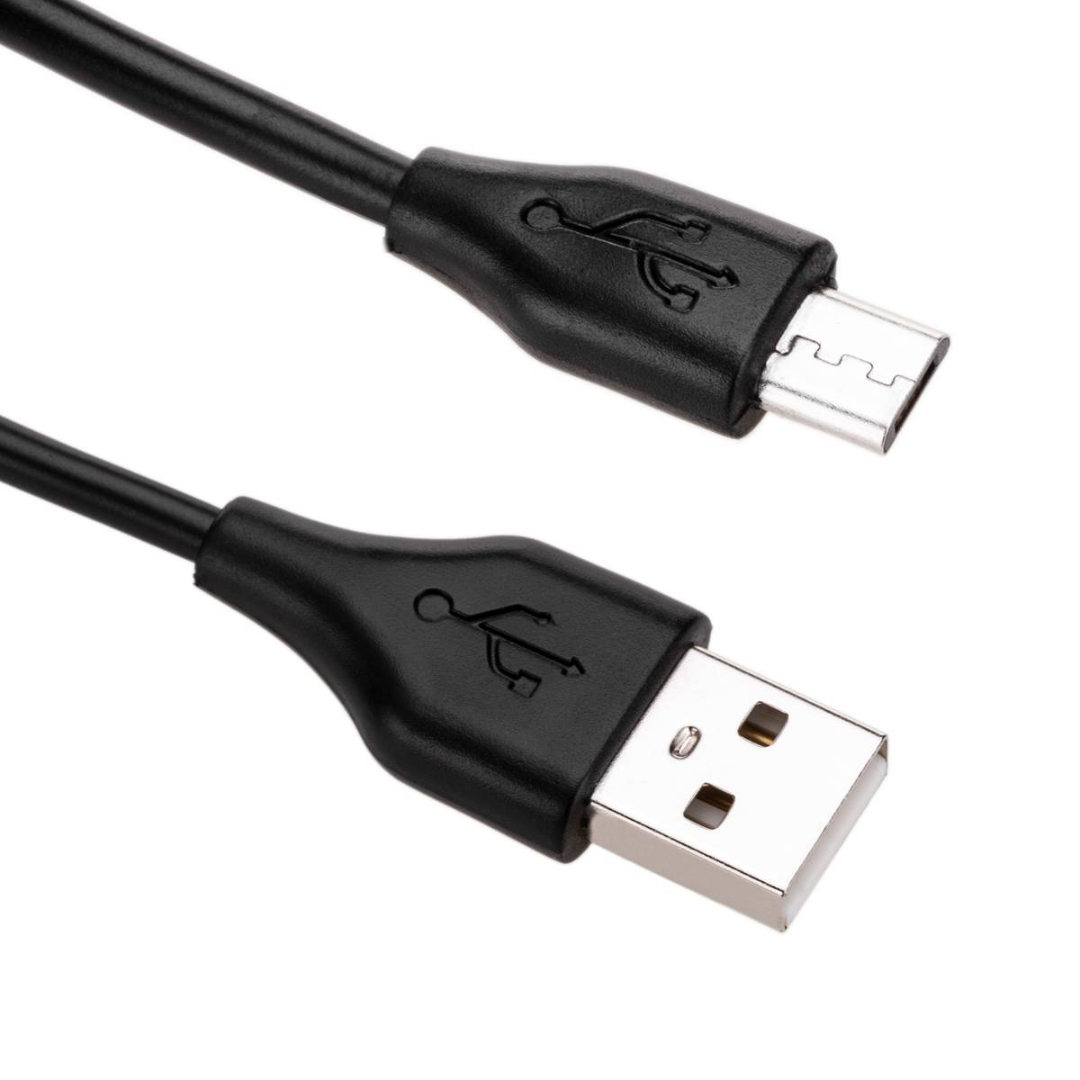

• Requires 5VDC power supply (included).
• HDMI sampling rate up to 192 kHz.
• Optical sampling frequency up to 48 kHz.
• HDMI Audio Format: PCM2/5.1/7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, DTS-HD.
• Optical audio format: PCM2, Dolby 5.1 and DTS 5.1.
• Stereo analog audio format: LPCM2.
• Compatible with HDMI 1.3, HDCP 1.2, DVI 1.0 and 3D signal.
• Size: 91 x 86 x 34 mm.
