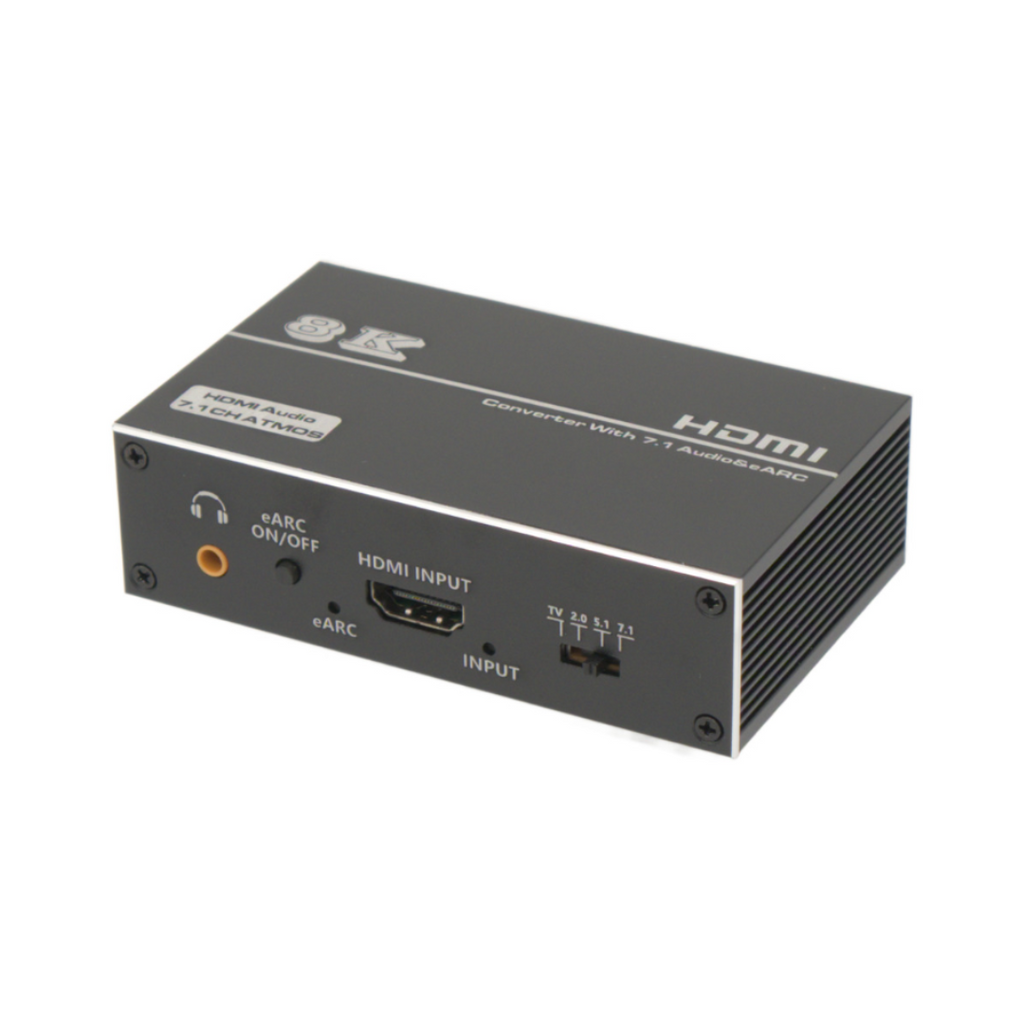

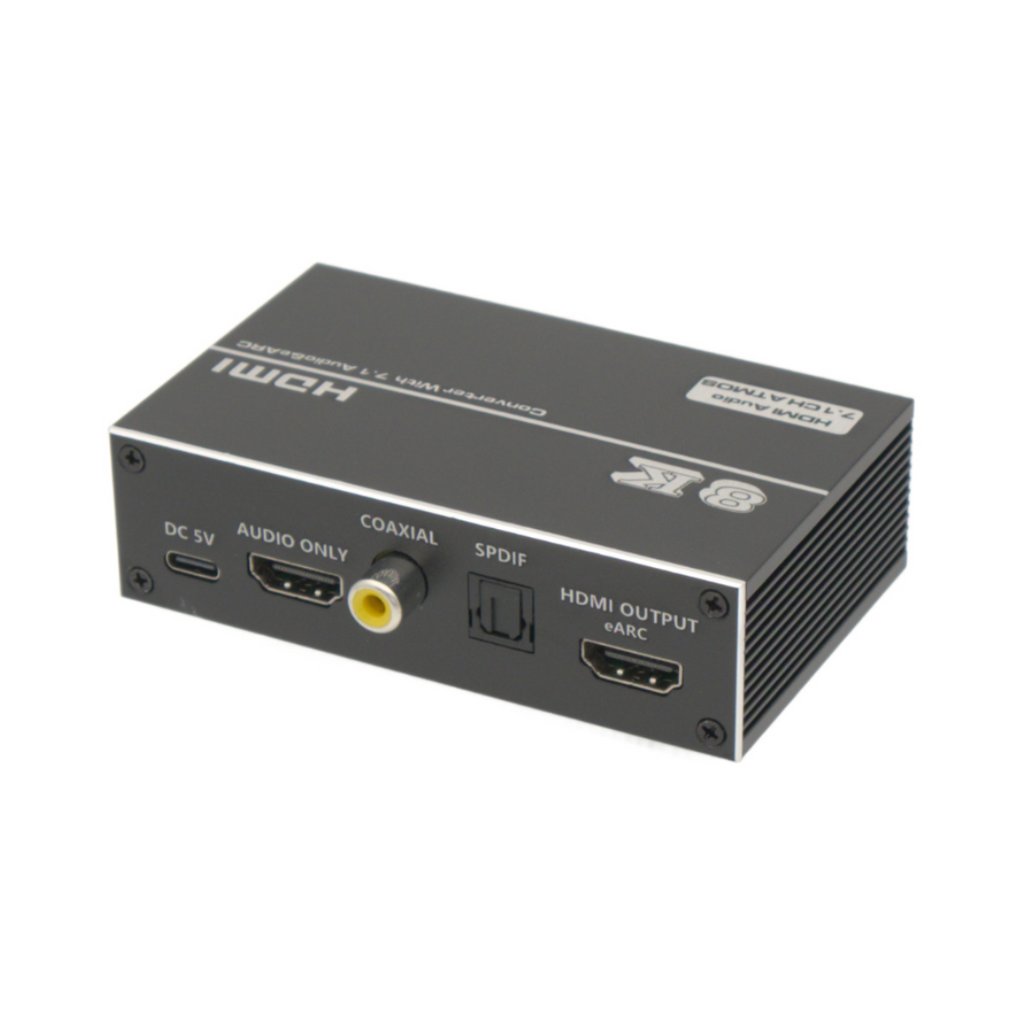

One-in, one-out HDMI audio extractor: it passes the picture to the TV in 4K at 60 Hz with HDR and outputs the sound via optical (Toslink), coaxial, 3.5 mm jack and an audio-only HDMI output for AV receivers.
It supports HDCP 2.3, so it works with current players and consoles, and ARC to receive the sound from the TV. It passes DTS-HD, Dolby TrueHD, DTS, Dolby Digital and DSD. It has no EDID management, button or remote control.
It is powered by USB-C at 5 V and comes with a cable and power adapter. Black aluminium housing. It is the Euroconnex AV20 model.
Key features
- 1 HDMI input and 1 output, 4K at 60 Hz
- HDCP 2.3, HDR and 3D
- Optical, coaxial, jack and HDMI audio outputs
- ARC
- USB-C powered, aluminium housing
Specifications
| Brand |
Euroconnex |
| Reference |
AV20 |
| HDMI |
1 input and 1 output, HDMI 2.0b |
| Maximum resolution |
3840 × 2160 at 60 Hz |
| Bandwidth |
18 Gbps |
| HDCP |
2.3 |
| HDR |
10-bit |
| Audio outputs |
Optical, coaxial, 3.5 mm jack and audio-only HDMI |
| Audio formats |
DTS-HD, Dolby TrueHD, DTS, Dolby Digital, DSD |
| ARC |
Yes |
| EDID |
No |
| Power |
5 V, 1 A via USB-C |
| Housing |
Aluminium, black |
| Includes |

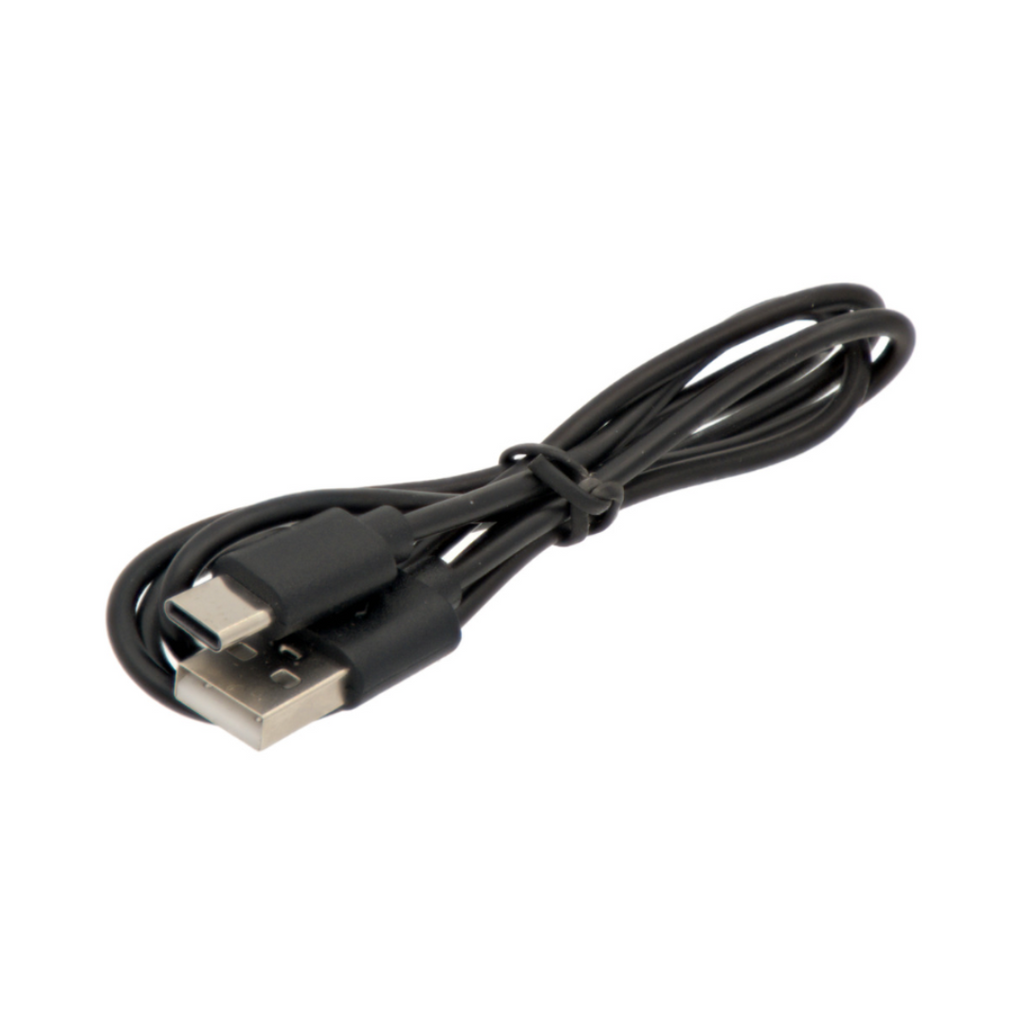

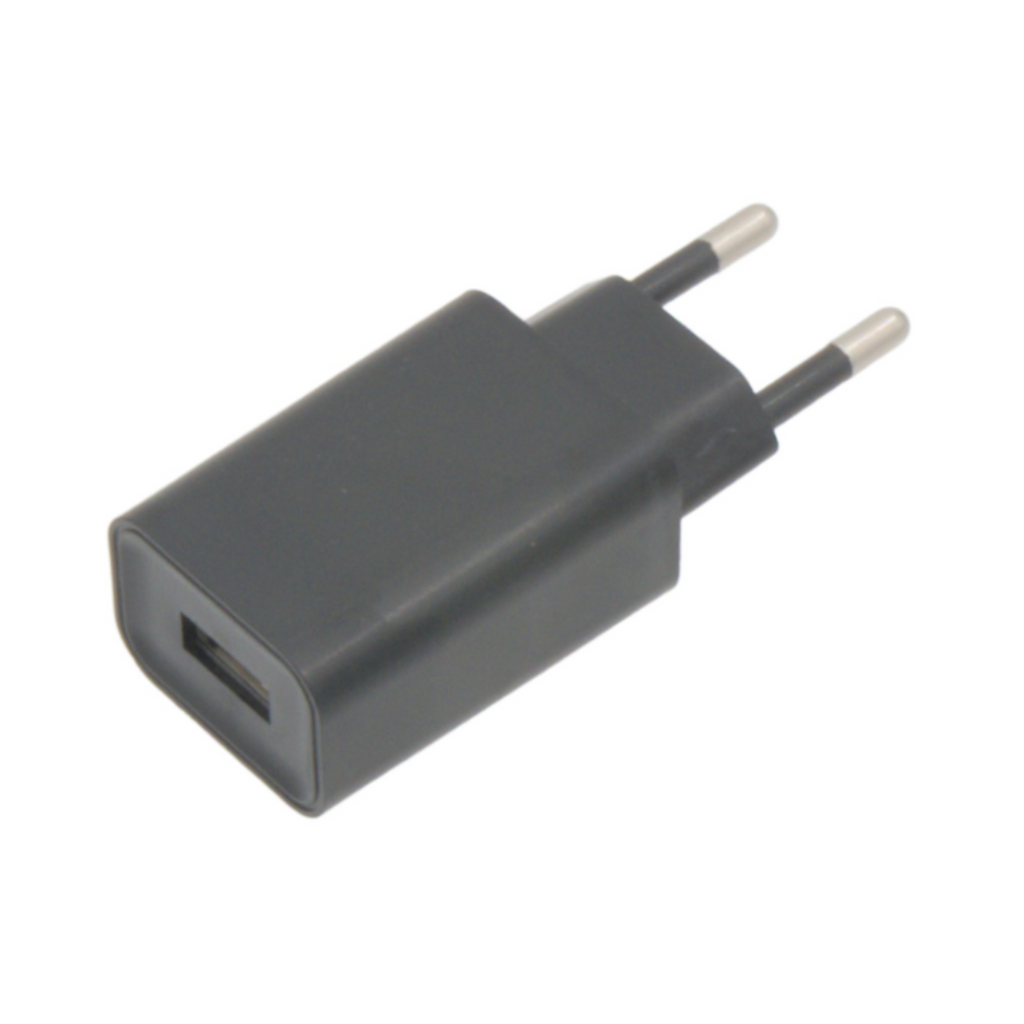

USB-A to USB-C cable, USB power adapter and manual |
