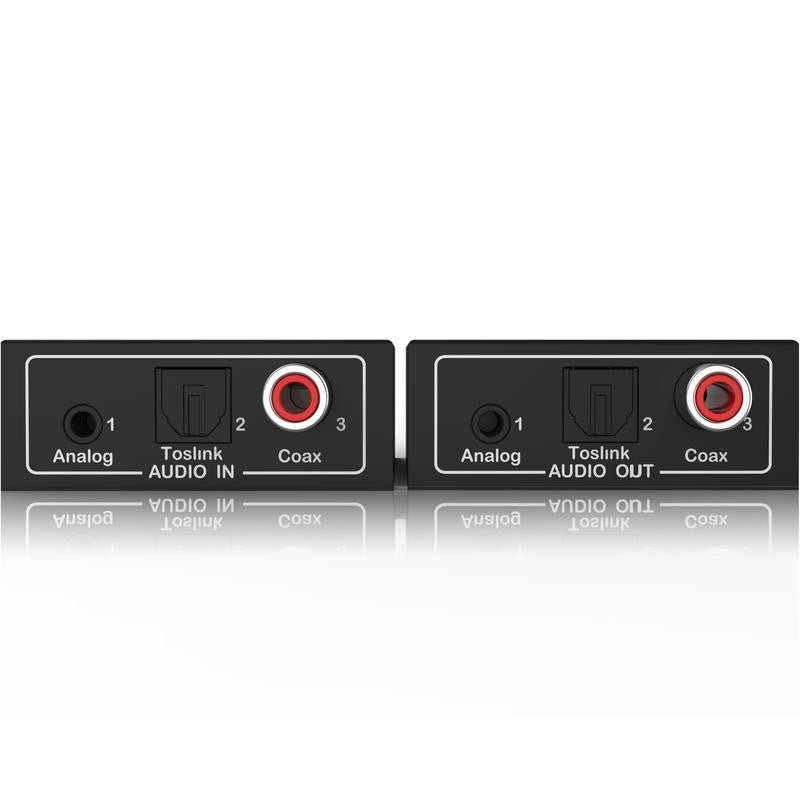

Digital & Analog Audio Extender by Cat5e/6 Up to 450m Extend Signal

Audio extender over CAT5e/6 cable that transmits digital and analog audio signals up to a distance of 500m. And transmits analog audio signal up to a distance of 450m

Accepts Toslink, coaxial digital and 3.5mm analog

Characteristics

• Extend analog audio signal up to 450m and Coaxial/Toslink Digital audio signal up to 500m.
• Accepts Analog Mini Jack, Digital Coax or Optical Toslink
• Audio input auto-identification: Analog>Digital Coax>Optical Toslink
• Supports Coaxial & Toslink audio formats: Digital Audio up to 7.1 channels, supports Dolby Digital, DTS, PCM, Sampling Rate: 48k/96k/192k (16bit/18bit/24bit); RCA (L+R): Stereo
• Bi-directional Power over Cable (PoC)

Specs

• Operating temperature range 0 to +40 (+32 to +104 )
• Operating humidity range 5 to 90% RH (non-condensing)
• Data transfer rate 6.9Mbps
• Transmitter Connectors
  • 1xCat5e/6 out
  • 1xPower DC
  • 3xAudio in(for analog, optical and coaxial)
• Receiver Connectors
  • 1xCat5e/6 in
  • 1xPower DC
  • 3xAudio out(for analog, optical and coaxial)
• Audio format
  • PCM2.0, Dolby Digital EX, Dolby Digital 5.1,
  • Dolby Digital 2/0 Surround, Dolby Digital 2/0,
  • DTS-HD, DTS ES Discrete 6.1, DTS ES
  • Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
• Power consumption 1.5 watts (maximum)
• Dimensions: 58.5x54.7x21mm
• Net weight: 182g

Package contents

• Digital & Analog Audio Extender over Cat5e/6 Cable (Transmitter and Receiver)
• Operating instructions
• DC 12V 1A Power Adapter x1PCS
