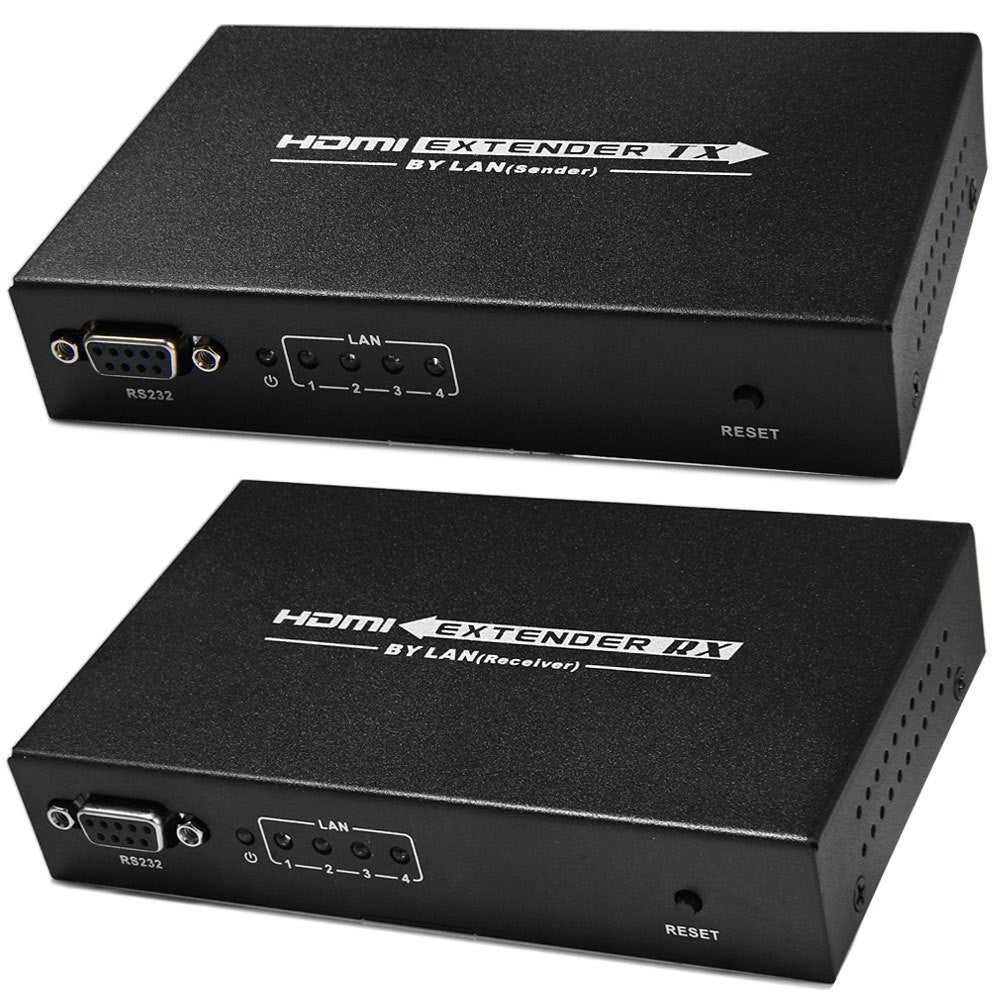

Extend HDMI over Cat5e/Cat6 cable, supporting transmission distances up to 120m and a spliced router. It features four RJ45 inputs. Input 1 receives the TX signal, and inputs 2, 3, and 4 allow for the connection of more than 50 additional RX devices (not included). The built-in RJ45 hub eliminates the need for this separate device. It also includes an RS232 port for configuring IP addresses.
Specs:

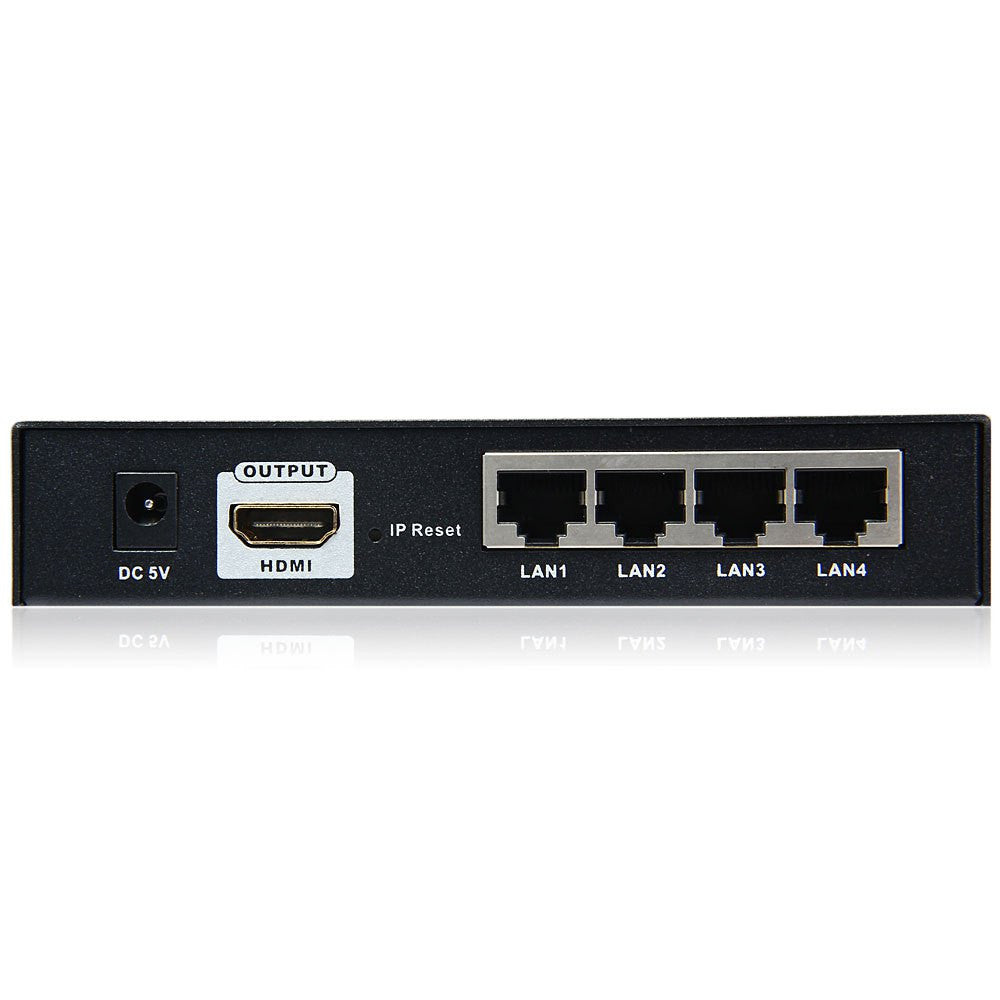

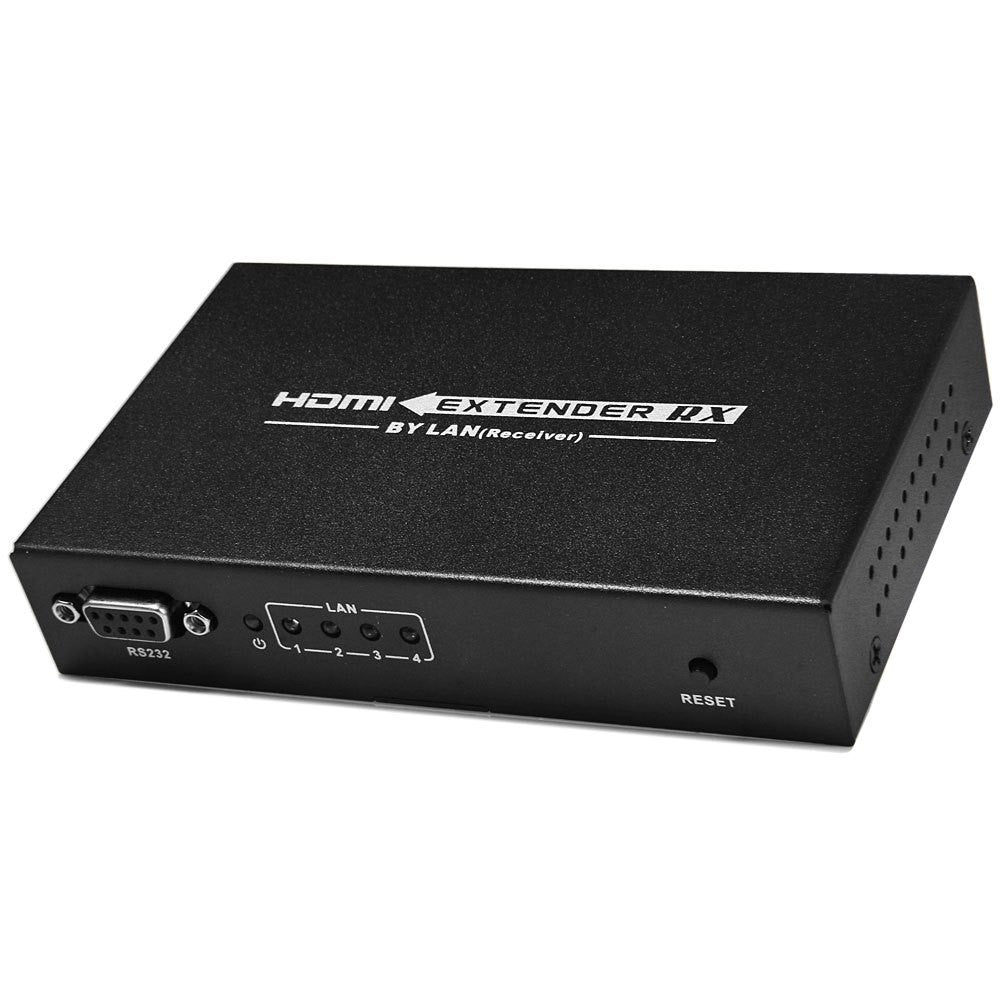

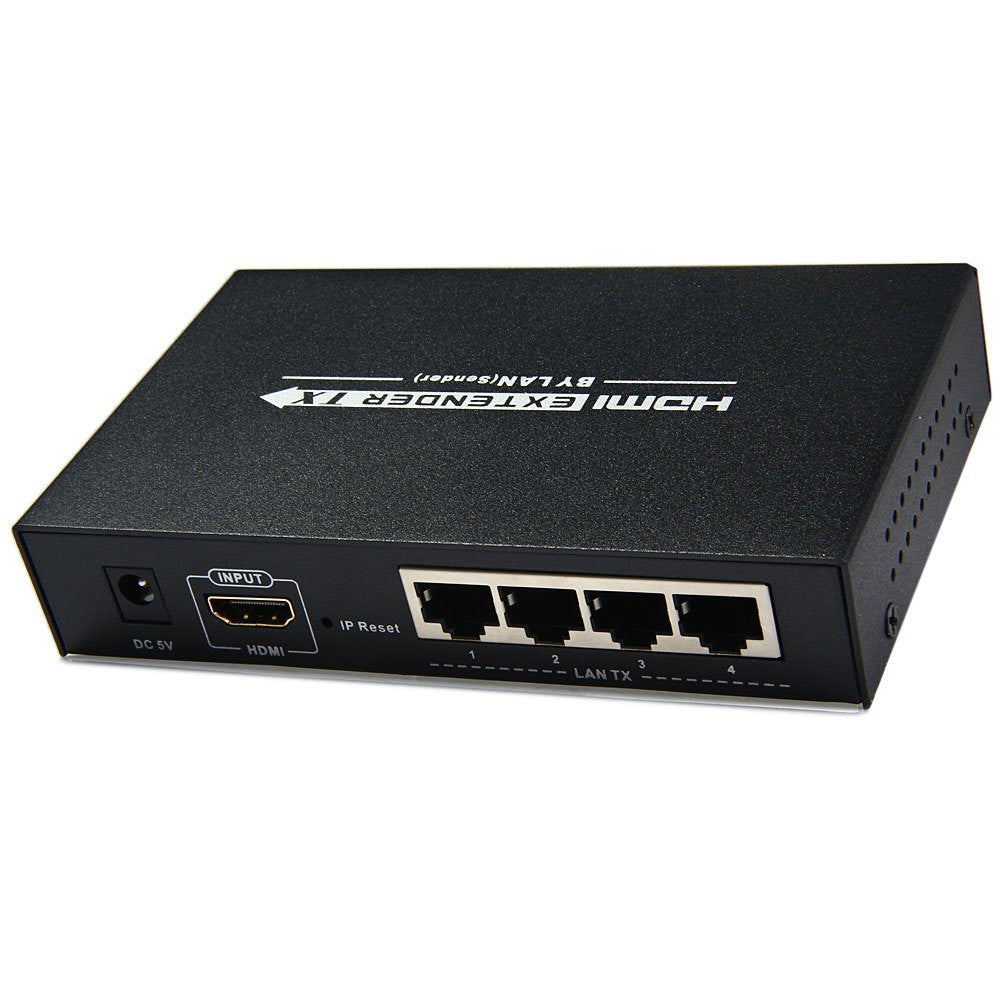

- Input/Output: 1xHDMI, 1xLAN, LAN1-LAN4 on TX: up to 4 receivers can be connected, with the network signal as output. LAN1-LAN4 on RX: Any of the LAN ports can be used as a signal input; the other 3 LAN ports can be used to connect 3 or more PCs in a cascade.
- TCP/IP standard, good compatibility with network equipment and good for network transmission and extension.
- Supports Ethernet bandwidth: 100m
- HDCP compliant; Audio frequency: 44.1kHz, 48kHz
- Video compression format: M-JPEG
- Transmission delay: up to 70 ms for direct TX and RX connection
- Network data transmission speed: up to 80MHz at maximum resolution
- Supports HDMI input resolutions of 480i/480p@60Hz; 576i/576p@50Hz; 720p/1080i/1080p@50/60Hz, 640x480/ 800x600/1024
- It supports HDMI output resolutions of 480p@60Hz; 576p@50Hz; 720p/180p@50/60Hz
- Extend via LAN connection, maximum length: Cat5 80m, Cat5e 100m and Cat6 120m distance between the two devices.
