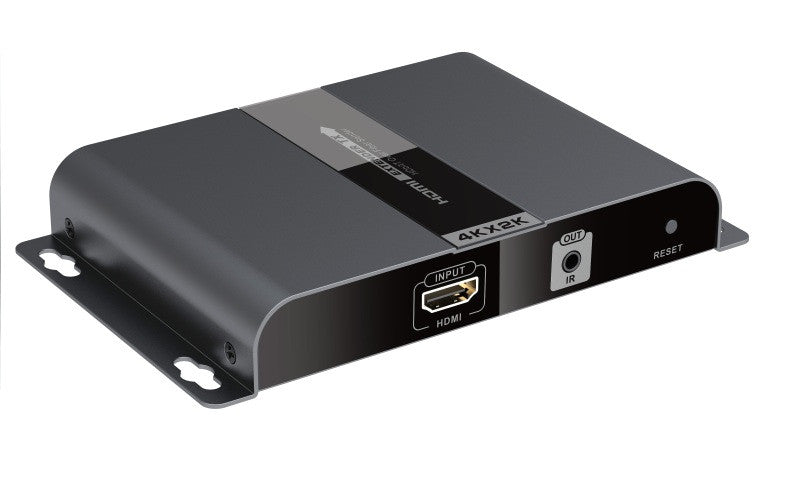

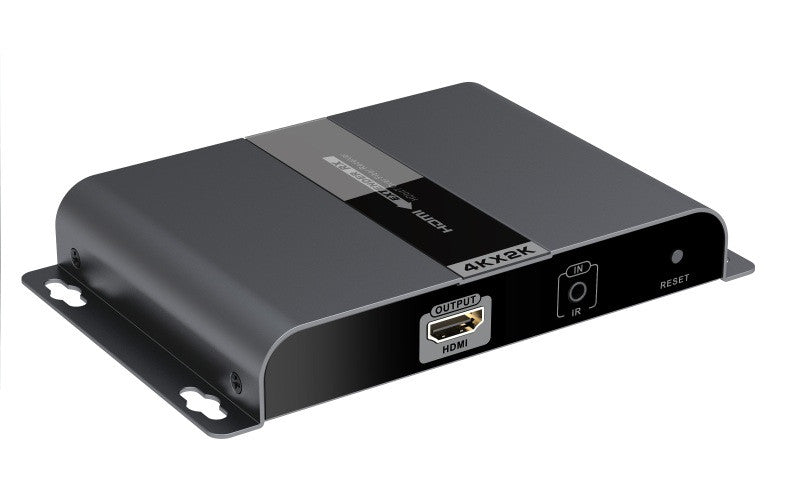

Extender HDMI Fiber Optic SC 4K

Super HDMI extender over SC fiber optic cable. Supports up to 20 km of 4K HDMI signal transmission over SC fiber optic cable, and IR signal retransmission. Supports HDMI standard specifications. This device uses HDbitT technology.

Specifications:

• Maximum distance: 20 KM
• TMDS bandwidth: 10.2 Gbps
• Supported Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4kx2k@25/30Hz
• Power supply: 2 x 5V 2@
• TX consumption: <5 W
• RX consumption: < 4W
• Operating temperature: 0°C to 60°C
• IR Frequencies: 20 to 60KHz Ir
• Tx protocol: HDbitT
