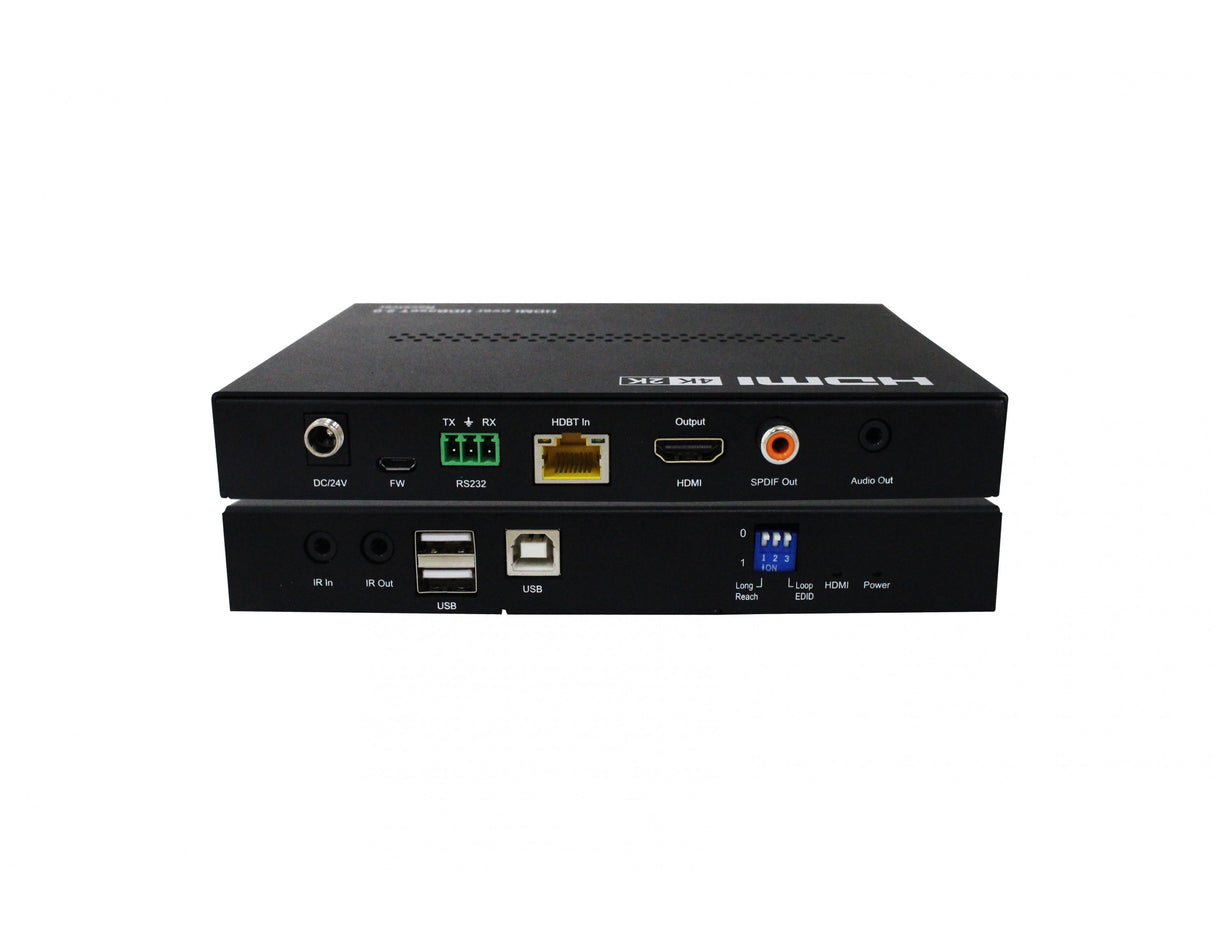

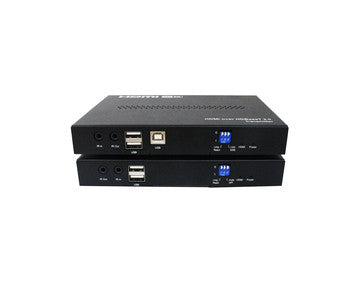

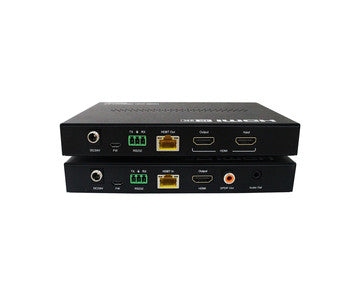

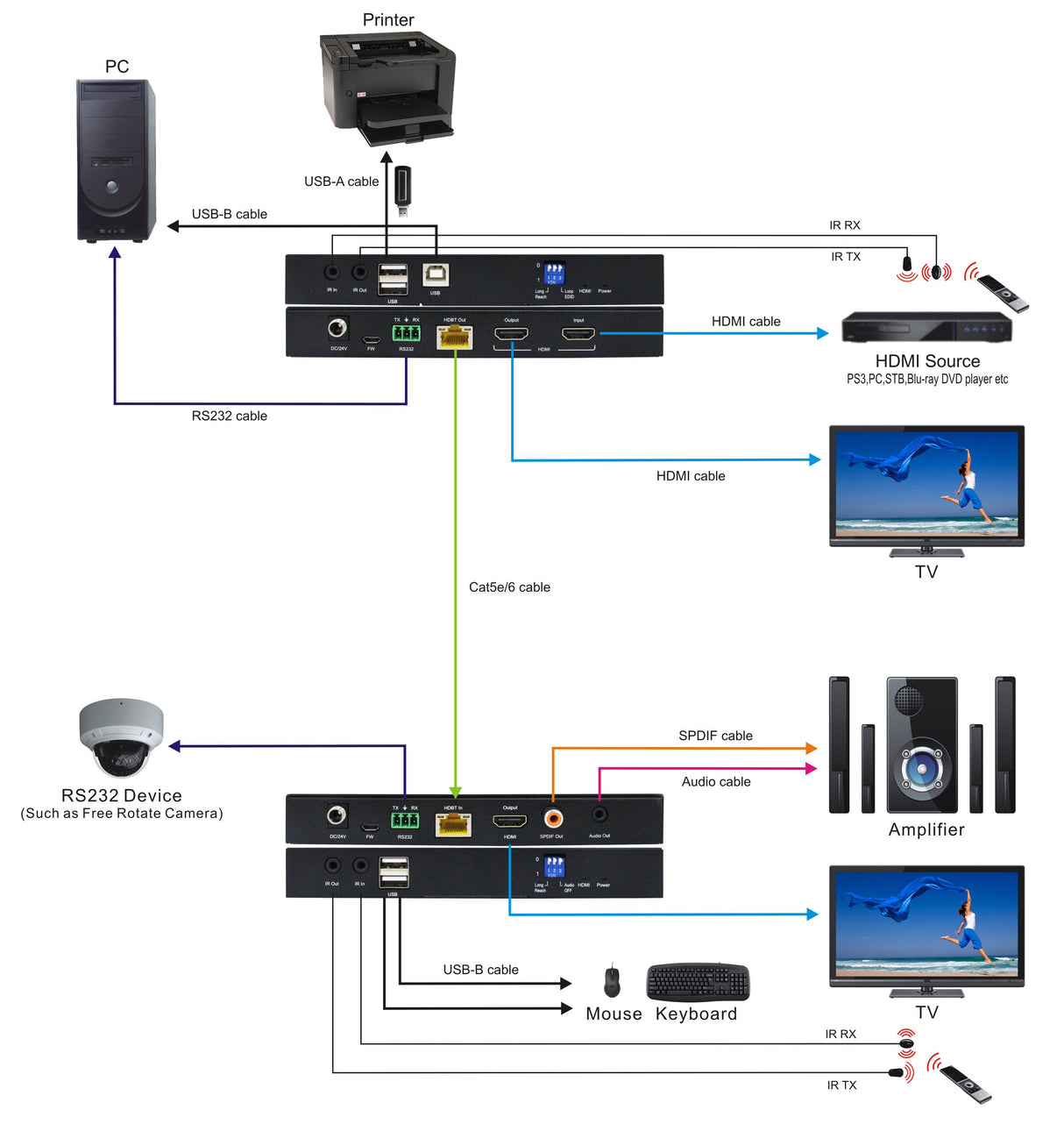

The HDMI extender is used to connect a player to a television or monitor using only an RJ45 cable (CAT.5e/CAT.6). It supports a bandwidth of up to 18 Gbps, therefore supporting resolutions up to 4K2K @ 60Hz YUV 4:4:4.
It can transmit 4K2K signals up to a maximum distance of 100m and FullHD 1080p signals up to a maximum of 150m, supports HDR10, KVM and USB 2.0, supports bidirectional wideband IR and RS232 pass-through.
Dual POC support (receiver powered by transmitter or transmitter powered by receiver)
Specs:
- Supported video format: DTV/HDTV; 4K / 1080P / 1080i / 720P (50HZ) / 576P / 480P / 576i / 480i
- Video output: HDMI 2.0 + HDCP 1.4 / 2.2
- It supports local and remote EDID functionality of Copy
- Audio output support: PCM, DTS-HD, Dolby-HD
- Supports audio extraction rates up to 192 kHz 10) Supports PCM7.1, Dolby, DTS
- Maximum transmission distance: 4Kx2K up to 100m, Full HD (1080p) up to 150m
- Power supply: 24V 1A
- POC power supply from TX (Transmitter) to RX (Receiver) using Cat5/6 cable
- Dimensions: 172.4mm (Width) x 113.2mm (Depth) x 24mm (Height)
