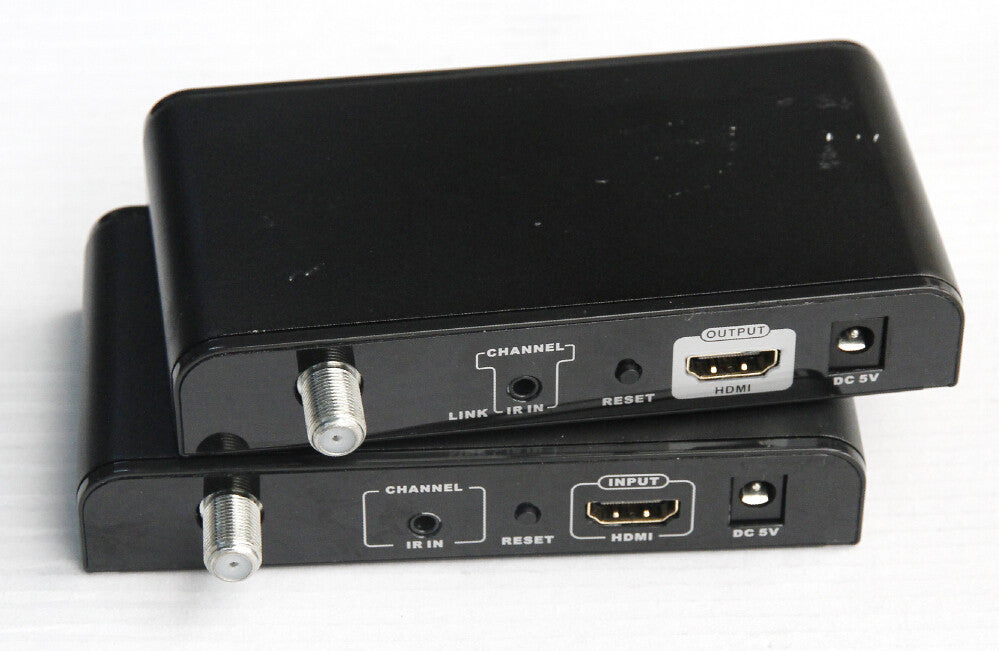

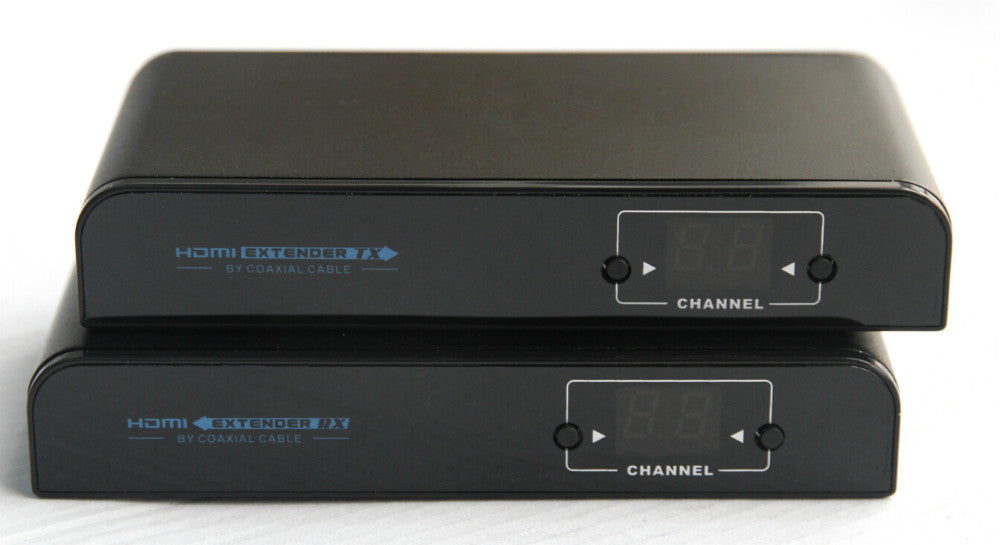

HDMI Extender Over Coaxial Cable and Catv Splitters with IR Remote Control

Product Description

This LKV379 HDMI extender is designed to convert HDMI signal to HD digital TV signal, based on DVB-T cable TV transmission mode. It is different from traditional analog cable TV signal, it uses 64QAM mode to realize HD signal conversion to HD digital TV signal and transmit it through coaxial cables for long distance, it is easy to connect multiple input network to one output matrix through CATV splitter.

With the advantages of good image quality, fully support DHCP, strong interference resistance and hundred available channels, it can be widely applied in CCTV, large outdoor display, shopping mall advertisement, media education and digital KVM fields etc.

IR remote control that supports channel changes.

The distances achieved for transmission with RG6 cable are up to 700 meters maximum.

Product specifications

• HDMI signal; Fully supports DHCP
• Power supply; DC 5Vp-p (TTL)
• Supported Resolutions Input; 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz,720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz.
• Supported Resolutions Input; 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz,720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz.
• Supported HDMI Resolutions; 1280x72@60Hz, 1920x1080@60Hz
• Video Encoding; H.264
• Audio coding; MPEG2
• Coaxial cable; RG6,RG7,RG11 et.
• Frequency range; 100-10000 Mhz.
• Effective bit rate; Max 31.6M bits
• Insertion loss; <2dBm
• RF TX output consumption; +0dBm
• RF connector; Imperial System (75homs Type F)
• Transmission delay; 500ms
• Power supply; DC 5V 1 A
• Power Consumption; Tx: <3.5W Rx: <3W
• Dimensions; 130x80x24 mm
• Weight; TX:167g RX:169g
• Case material; Metal
• Color; Black
