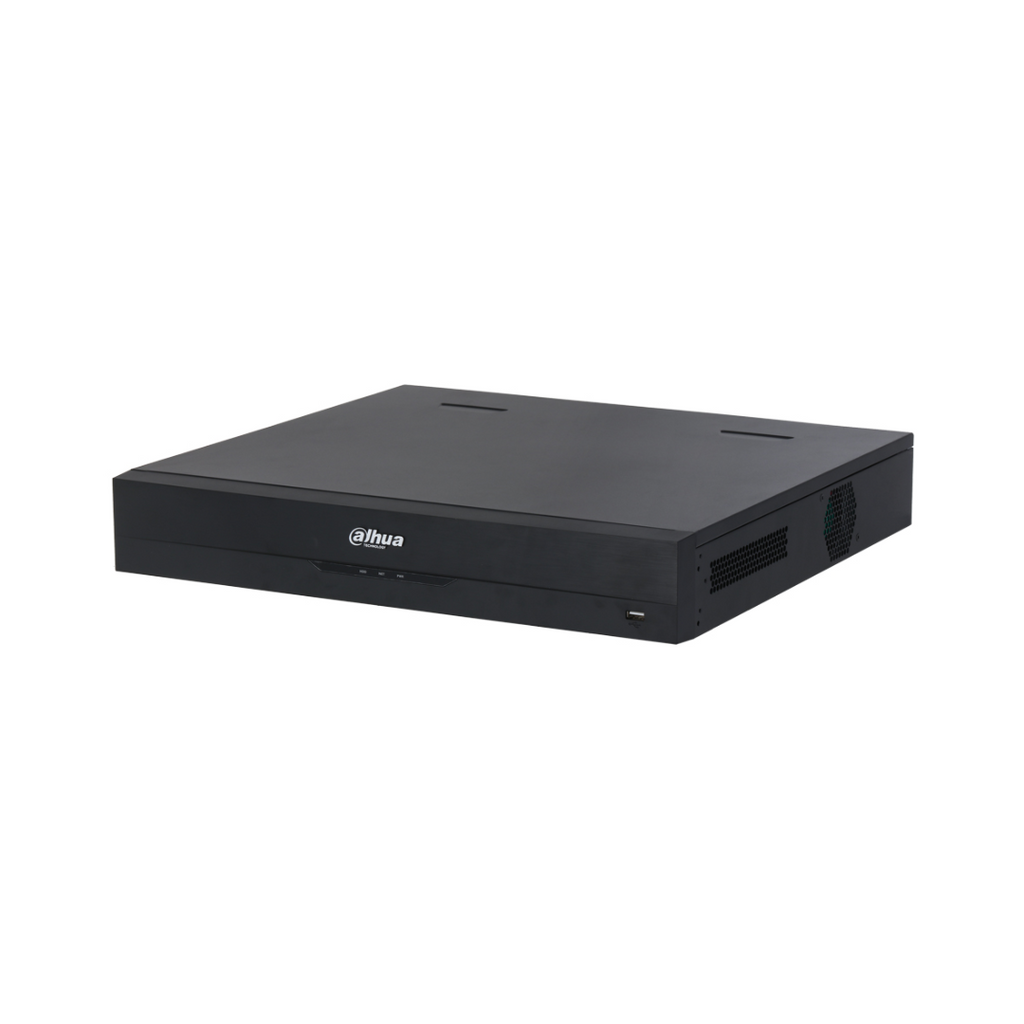

Dahua XVR5432L-I3 recorder with 32 channels, penta-brid: it takes HDCVI, AHD, TVI and CVBS cameras over coax, and IP cameras of up to 8 MP as well. It is the recorder for extending an existing analogue installation without ripping out the cabling, and without changing equipment when IP cameras arrive.
It carries WizSense, Dahua deep-learning analytics: SMD Plus tells people and vehicles apart from everything else moving on all 32 channels, which cuts down a great deal of the alarms caused by a branch or a cat, and there is perimeter protection on 8 channels and face recognition on 2.

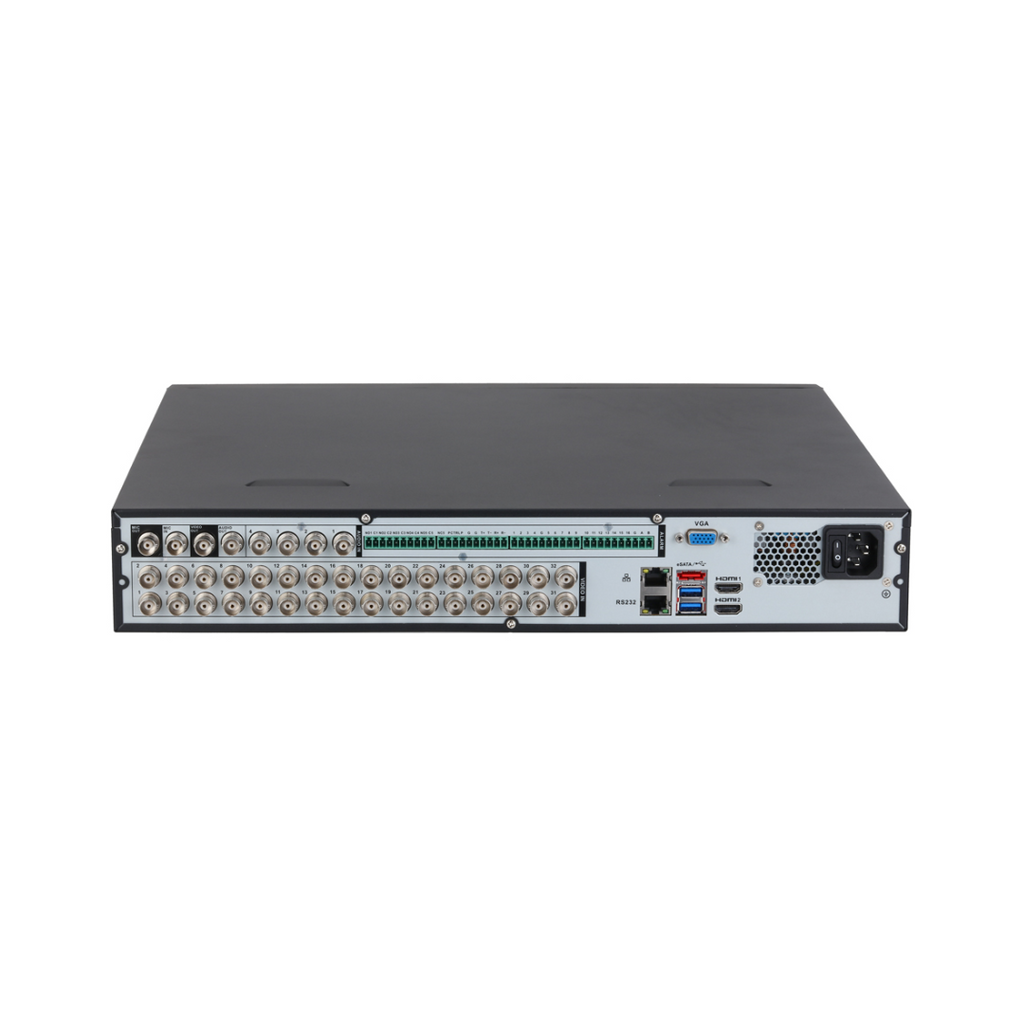

It takes four hard disks of up to 16 TB each, plus one eSATA. Output is dual HDMI plus VGA, and there are 16 alarm inputs and 6 outputs for wiring in sirens, sensors or relays. The form factor is 1.5U for rack.
Key features
- Penta-brid: HDCVI, AHD, TVI, CVBS and IP in the same recorder
- 32 analogue channels recording at 5M-N
- Up to 32 IP channels of 8 MP
- WizSense with SMD Plus on all 32 channels: tells people and vehicles apart
- Perimeter protection on 8 channels and face recognition on 2
- AI Coding, H.265+ and H.265 compression
- Four disk bays of up to 16 TB each, plus eSATA
- Dual HDMI output and VGA output
- 16 alarm inputs and 6 outputs
- 1.5U rack form factor
Specifications
| Brand |
Dahua |
| Reference |
XVR5432L-I3 |
| Analogue channels |
32 (HDCVI / AHD / TVI / CVBS) |
| IP channels |
Up to 32, of up to 8 MP |
| Incoming bandwidth |
128 Mbps |
| Recording |
5M-N · 4M-N · 1080p · 1080N · 720p |
| Video compression |
AI Coding · H.265+ · H.265 · H.264+ · H.264 |
| Audio compression |
G.711a · G.711u · PCM |
| Audio inputs |
4 × BNC plus audio over coax |
| Audio output |
1 × BNC |
| Two-way talk |
1 channel |
| Video outputs |
2 × HDMI · 1 × VGA · 1 × CVBS |
| Screen split |
1 / 4 / 8 / 9 / 16 / 25 / 36 |
| Hard disks |
4 SATA bays of up to 16 TB each |
| eSATA |
1 |
| Alarm inputs |
16 |
| Alarm outputs |
6 |
| USB |
3 (1 × USB 2.0 · 2 × USB 3.0) |
| Serial ports |
RS-232 · RS-485 |
| Network |
Gigabit RJ45 Ethernet |
| Analytics |
SMD Plus on 32 channels · perimeter on 8 · face on 2 |
| Operating system |
Embedded Linux |
| Power supply |
100-240 V AC |
| Form factor |
1.5U for rack |
| Dimensions |
440 × 420.2 × 76 mm |
