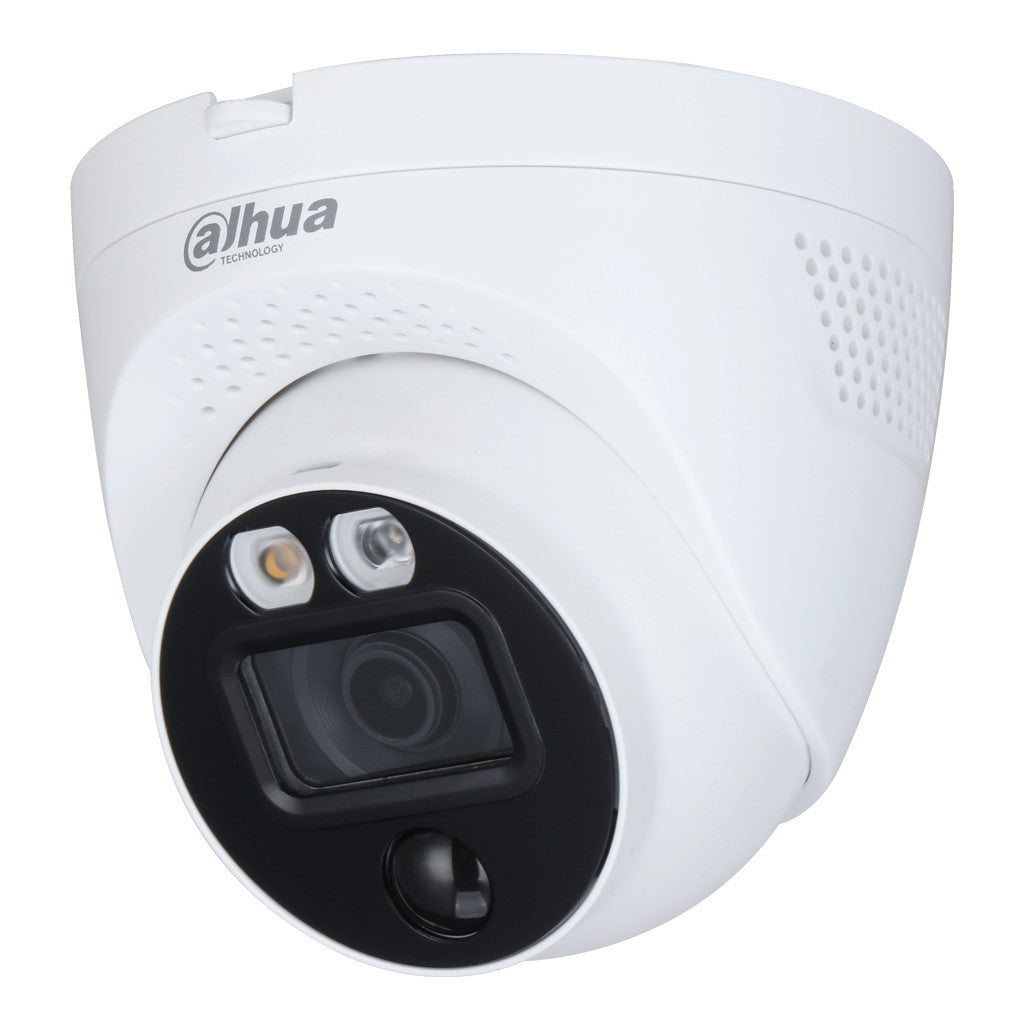

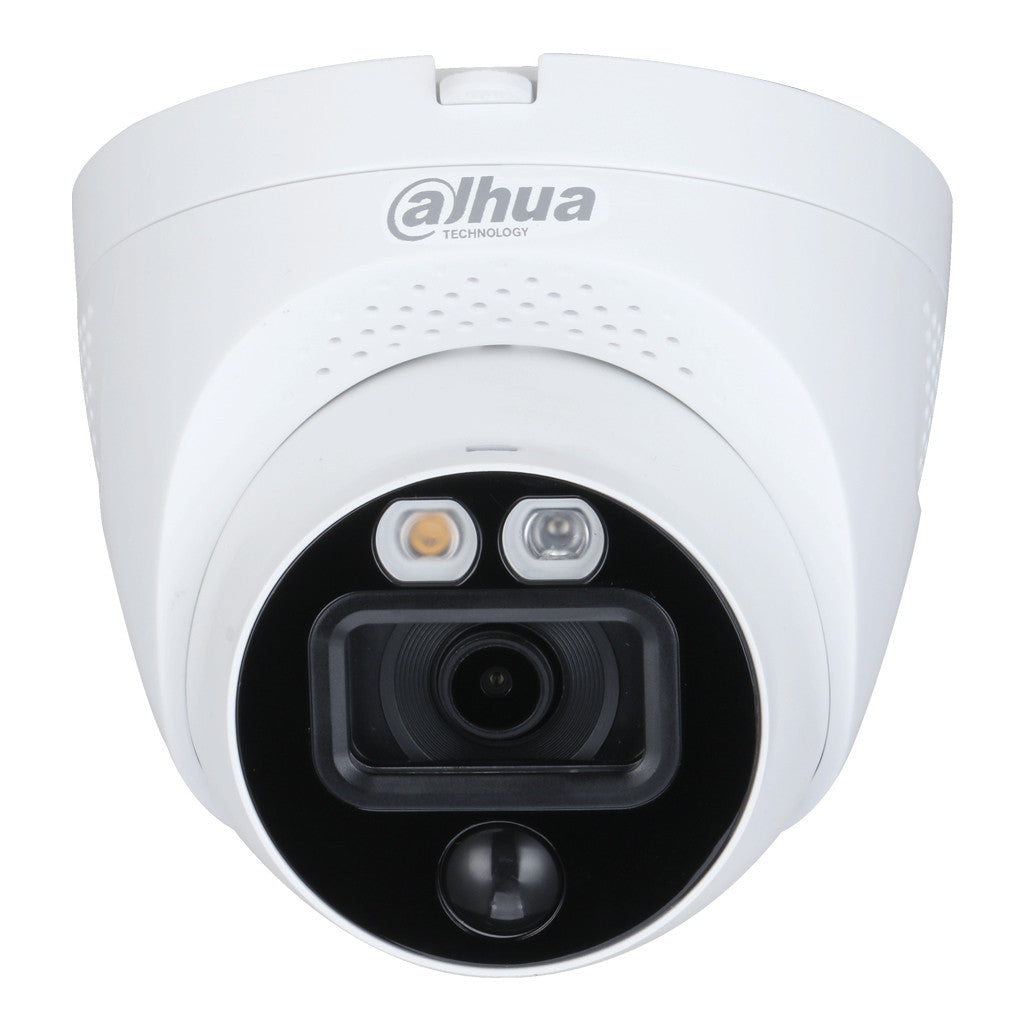

Dahua 5-megapixel HDCVI dome camera with active deterrence: when the PIR sensor detects a person, the camera switches on a white light and sounds a siren. Rather than just recording the incident, it interrupts it.
The PIR reaches 10 m across 110° and, being a passive infrared sensor, it barely produces false alarms from branches or shadows, the usual problem with video-based detection. At night, with no deterrence, the smart IR lights up to 30 m.
The fixed 2.8 mm F1.6 lens covers 113° horizontally. The housing is IP67 and takes −40 to 60 °C, so it goes outdoors. Mounting is Quick-to-install, and the BNC output works in CVI, AHD, TVI and CVBS, so it fits an existing recorder without changing the coaxial cabling.
Key features
- 5 MP resolution at 25 frames per second
- Active deterrence with white light and a 110 dB siren with three sounds
- PIR sensor with 10 m range and 110° of detection
- Smart IR of up to 30 m
- Fixed 2.8 mm lens with F1.6 and 113° horizontally
- Four outputs on a single BNC: CVI, AHD, TVI and CVBS
- IP67 housing, −40 to 60 °C, for outdoor use

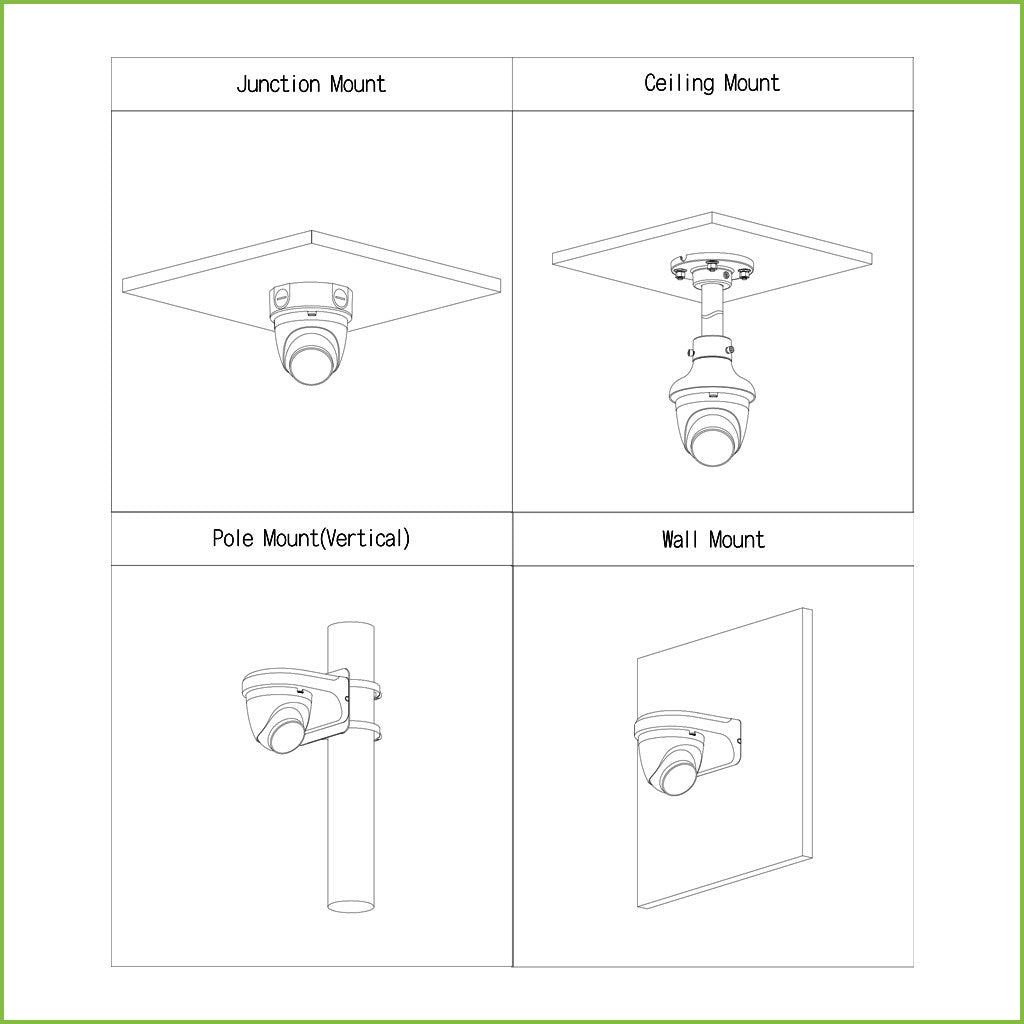

- Quick-to-install mounting and 12 V DC power
Specifications
| Brand |
Dahua |
| Reference |
HAC-ME1500EQ-LS-0280B |
| Sensor |
1/2.7" CMOS |
| Resolution |
5 MP (2880 × 1620) at 25 fps |
| Lens |
Fixed 2.8 mm, F1.6 |
| Field of view |
113° × 60° × 132° (H × V × D) |
| Minimum illumination |
0.005 lux (F1.6, IR on) |
| IR range |
30 m, smart IR |
| Deterrence |
White light and 110 dB siren |
| PIR |
10 m / 110° |
| WDR |
DWDR, with 2DNR |
| Video outputs |
CVI · AHD · TVI · CVBS |
| Protection rating |
IP67 |
| Temperature |
−40 to 60 °C |
| Power |
12 V DC, max. 4.9 W |

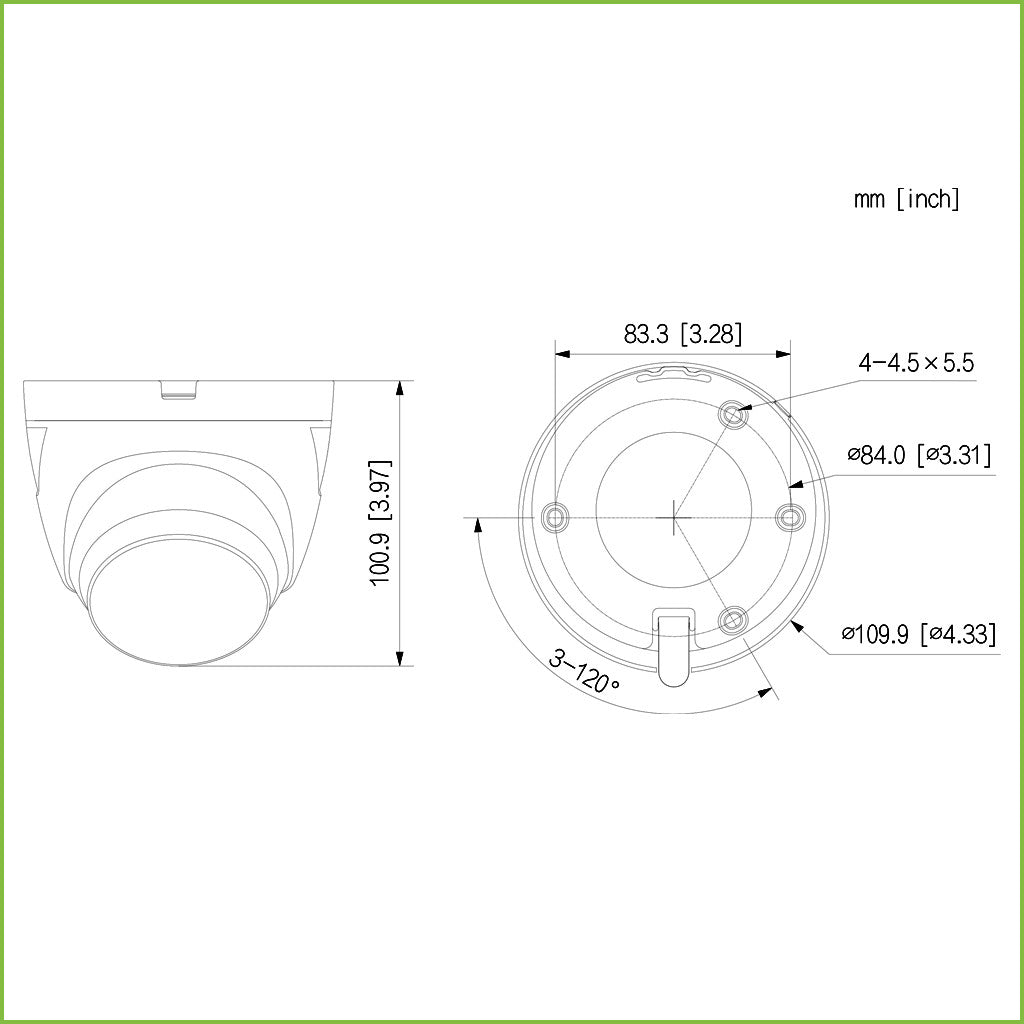

| Dimensions |
Ø 110 × 101 mm |
| Weight |
300 g |
