Gigabit PoE+ Splitter IEEE 802.3at with Adjustable Output of 5V DC, 9V DC or 12V PoE CCTV Switch

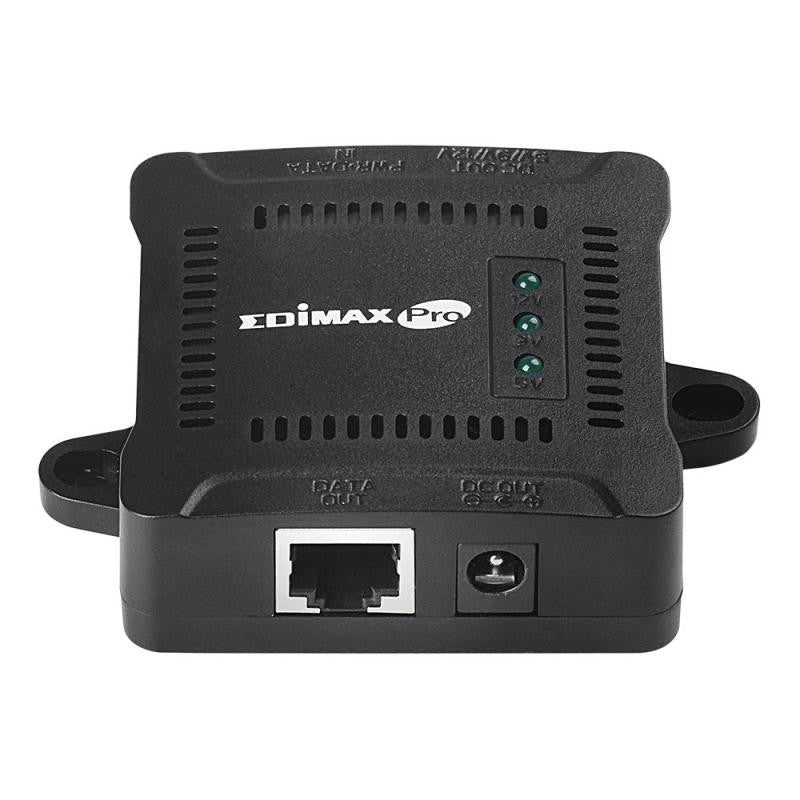

The GP-101ST Gigabit PoE (Powered over Ethernet) splitter provides data and power connectivity to non-Fast Ethernet PoE or Gigabit Ethernet devices, such as network cameras and wireless access points, using a single Ethernet cable – without the use of power outlets or electrical cords. Ideal for remote locations, the GP-101ST allows data to be sent between PSEs (Powered Equipment) and the GP-101ST at Gigabit speeds and offers 12V, 9V or 5V DC power output simultaneously up to 100 meters (328 feet). The GP-101ST is easy to install and requires no software or tools, saving costs and enabling highly reliable, flexible network planning.

Easy to install "end-to-end" PoE solution
The GP-101ST supports both 802.3at/af and proprietary PoE, ensuring compatibility with other 802.3at/af and proprietary PoE compliant injectors and switches. The GP-101ST is easy to install and requires no tools or software configuration. Simply plug the GP-101ST into any electrical device, such as a PoE injector or PoE switch, to deliver power to Ethernet-enabled devices. The GP-101ST offers small and medium-sized businesses a complete end-to-end PoE solution.

Deploying networks more economically
The GP-101ST is 802.3at/af compliant, ensuring compatibility with other 802.3af-compliant PoE injectors or PoE switches. With the convenience of PoE, the GP-101ST saves you the cost of installing an Ethernet device (such as a wireless access point or network camera) near a power outlet, or running electrical cables. For more flexible network deployment, the compact GP-101ST can be mounted on a ceiling or wall up to 100 meters (328 feet) away from a power source.

Flexible and reliable power supply
The GP-101ST includes PoE short circuit protection to protect network devices and supports 5V, 9V or 12V DC power thanks to the built-in switch that allows you to select the power output according to the requirements of your network device.

Characteristics

• Compatible with IEEE802.3at/af PoE and proprietary PoE devices such as PoE injectors
• Splits a PoE network connection into separate Gigabit power and data connections
• Allows non-PoE devices to be installed in remote locations when power is not available
• Adjustable switch to 5V/2A, 9V/2A or 12V/2A DC output powers.
• Protects network devices from PoE short circuits
• Carry power and data to the PoE splitter from up to 100 meters (328 feet) away with a single Ethernet cable
• Reduce equipment and installation costs
• Easy plug-and-play desktop or wall-mount installation

Specs

• Ports
  • 1 RJ-45 10/100/1000Base-T PoE input port
  • 1 RJ-45 port 10/100/1000Base-T output port
  • 1 DC port output connector port
• 5V/9V/12V, Power and AC LED indicators
• Power input IEEE 802.3af, IEEE 802.3at
• Power output
  • Adjustable slide switch for 5V/2A, 9V/2A or 12V/2A DC output power
  • Y-cable with DC pin (ODxIDxL): 5.5 x 2.1 x 9.5 mm and 3.5 x 1.35 x 11 mm
• Pin assignment 1/2(+), 3/6(-) end leg (Mode A) or 4/5(+), 7/8(-) middle leg (Mode B)
• Dimensions (L x W x H) 63 × 64 × 23 mm
• Weight 65g

• Temperature
  • Operation: 0 ~ 40 ?
  • Storage: -40 ~ 70 ?
• Humidity (non-condensing)
  • Working: 10~90%
  • Storage: 5~90%

• IEEE 802.3 10BaseT Ethernet
• IEEE 802.3u 100BaseTX Fast Ethernet
• IEEE 802.3ab 1000BaseT Gigabit Ethernet
• IEEE 802.3af Power Over Ethernet (PoE)
• IEEE 802.3at Power Over Ethernet Plus (PoE+)

Box contents

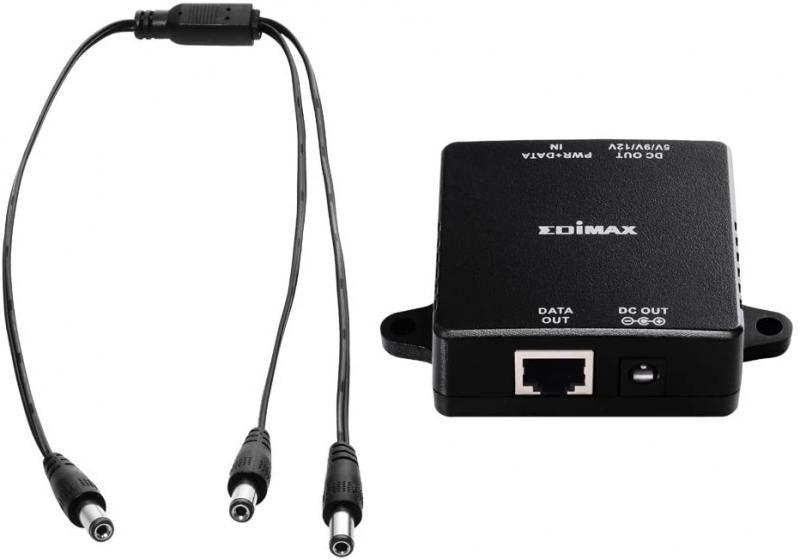

• GP-101ST PoE+ Splitter
• A Y DC cable
• Quick Installation Guide
