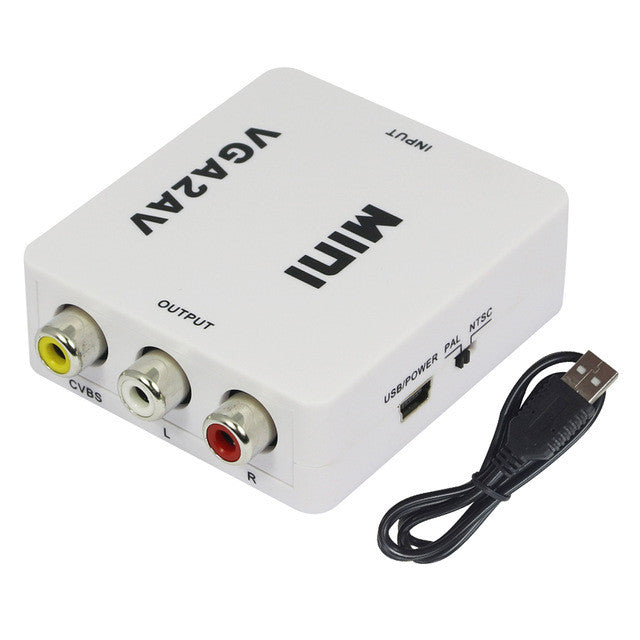

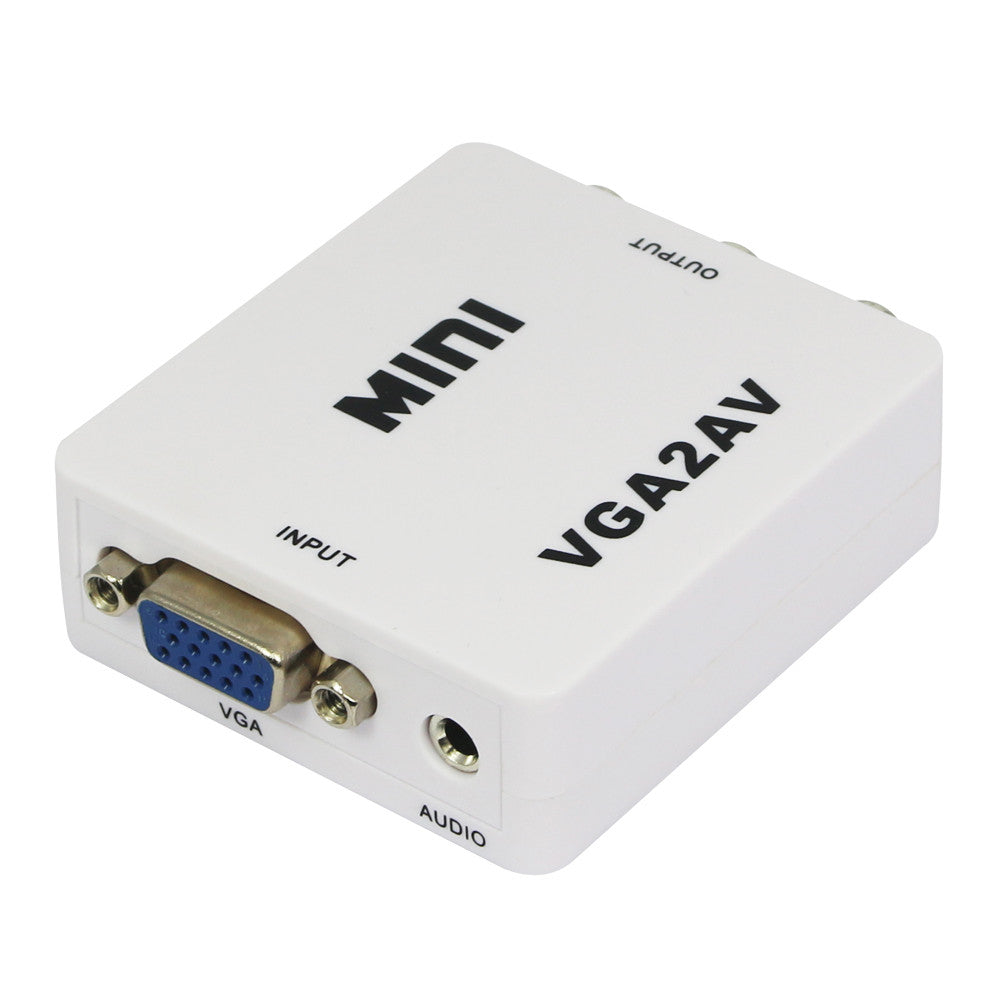

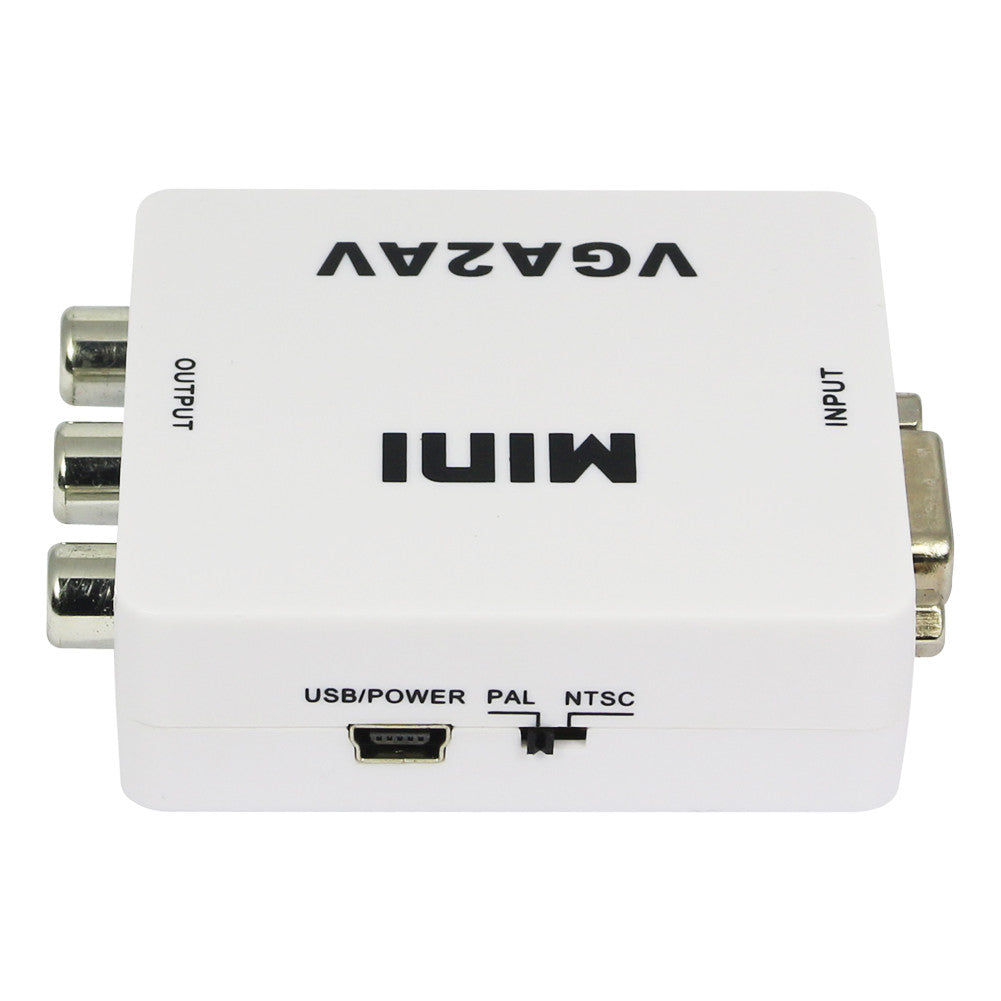

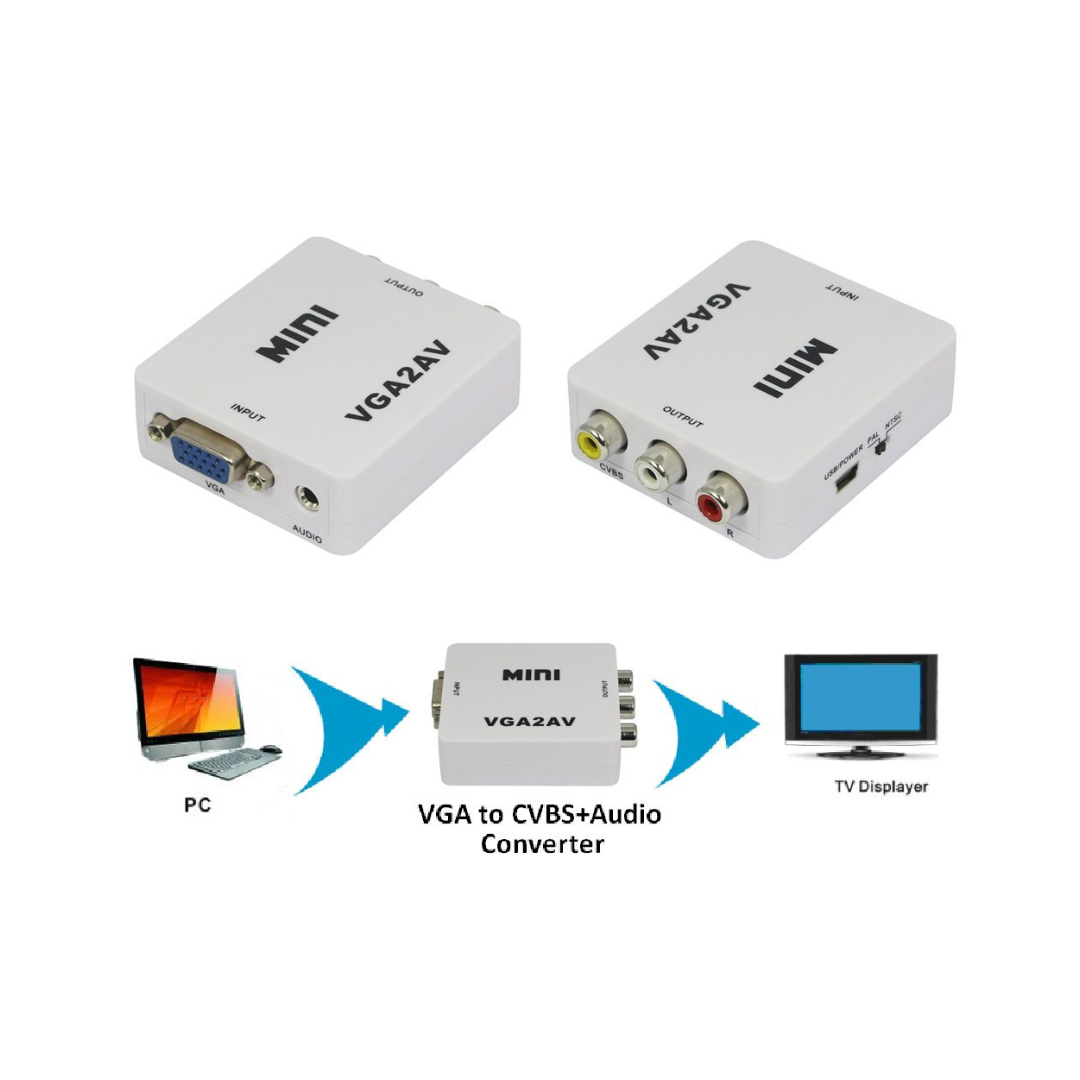

This converter detects and converts VGA input images to RCA NTSC or PAL, Supports high resolution PC input up to SXGA(@60Hz). 640x480 60fps; 800x600 60fps, 75fps; 1024x768 60fps, 75fps 1280x720 60fps; 1280x768 60fps, 75fps; 1280x1024 60fps, 75fps; 1360x768 60fps; 1400x1050 60fps; 1440x900 60fps; 1680x1050 60fps; 1600x1200 60fps; 1920x1080 60 fps;
Requires a 5v 1@ power supply not included.
Specs
- Frequency Bandwidth: 165 MHz
- Input Port: VGA + 3.5mm Jack (Audio)
- Output Port: AV (3 RCA)
- Power Supply: USB cable to Jack 5.1 (outside) x 2.1 (inside)
- Power Consumption: 2.5 W
- Does not include 5V 1@ PSU
- Dimensions (mm): 66 (Length) x 55 (Width) x 20 (Height)
- Weight: 40g
