Hdmi, VGA AV, USB MHL to Coaxial Audio converter

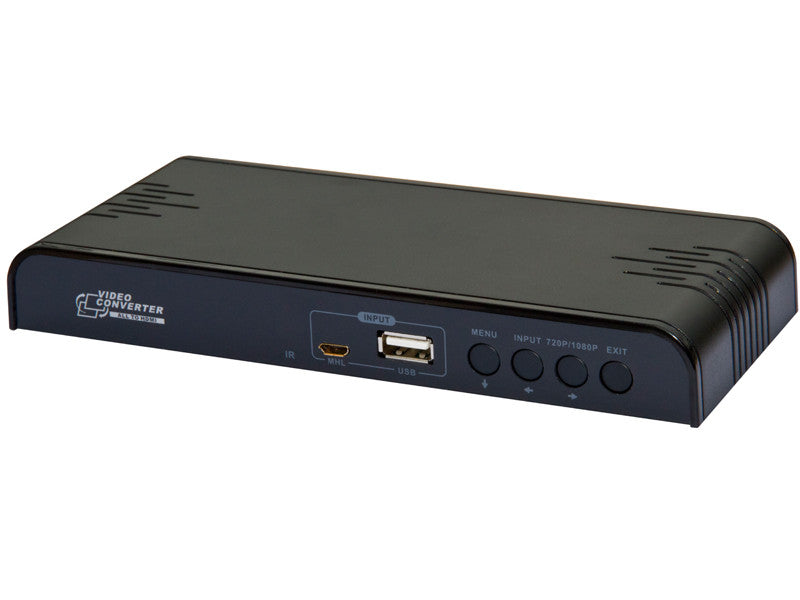

HDMI, VGA, AV, USB, MHL to HDMI and Coaxial Audio Converter

Specs

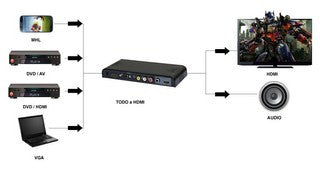

• Inputs: 1 x Composite Video AV, 1 x Stereo Audio, 1x HDMI, 1x VGA, 1x USB, 1x MHL
• Output: 1 x HDMI, 1 x Coaxial
• Power supply: 5V/1A

HDMI Input Supports

Supported HDMI resolutions:

• 4080i@60Hz, 480p@60Hz
• 576i@50Hz, 576p@50Hz
• 720p@50/60Hz
• 1080i@50Hz/60Hz, 1080p@50Hz/60Hz
• 1080p@60Hz 12bit deep color

HDMI Graphics Card Resolutions

• 640x480@60Hz , 800x600@60Hz
• 1024x768@60Hz, 1152x864@60Hz
• 1280x600@60Hz, 1280x720@60Hz
• 1280x768@60Hz, 1280x800@60Hz
• 1280x960@60Hz, 1280x1024@60Hz
• 1360x768@60Hz, 1366x768@60Hz
• 1400x1050@60Hz, 1440x900@60Hz
• 1600x900@60Hz, 1680x1050@60Hz
• 1920x1080@60Hz

VGA input

Supported input resolutions

• 640x480@60Hz/72Hz/75Hz
• 800x600@60Hz/72Hz/75Hz
• 1024x768@60Hz/72Hz/75Hz
• 1280x768@60Hz, 1280x960@60Hz
• 1280x1024@60Hz, 1360x768@60Hz
• 1400x1050@60Hz, 1440x1050@60Hz
• 1440x900@60Hz, 1920x1080@60Hz

AV input

Supports NTSC/PAL and detects them automatically HDMI Output

• 720p@50Hz
• 720p@60Hz
• 1080p@50Hz
• 1080p@60Hz

• Coaxial Audio Output: PCM/Auto/Off
• Dimensions: 185x84x24.6mm
