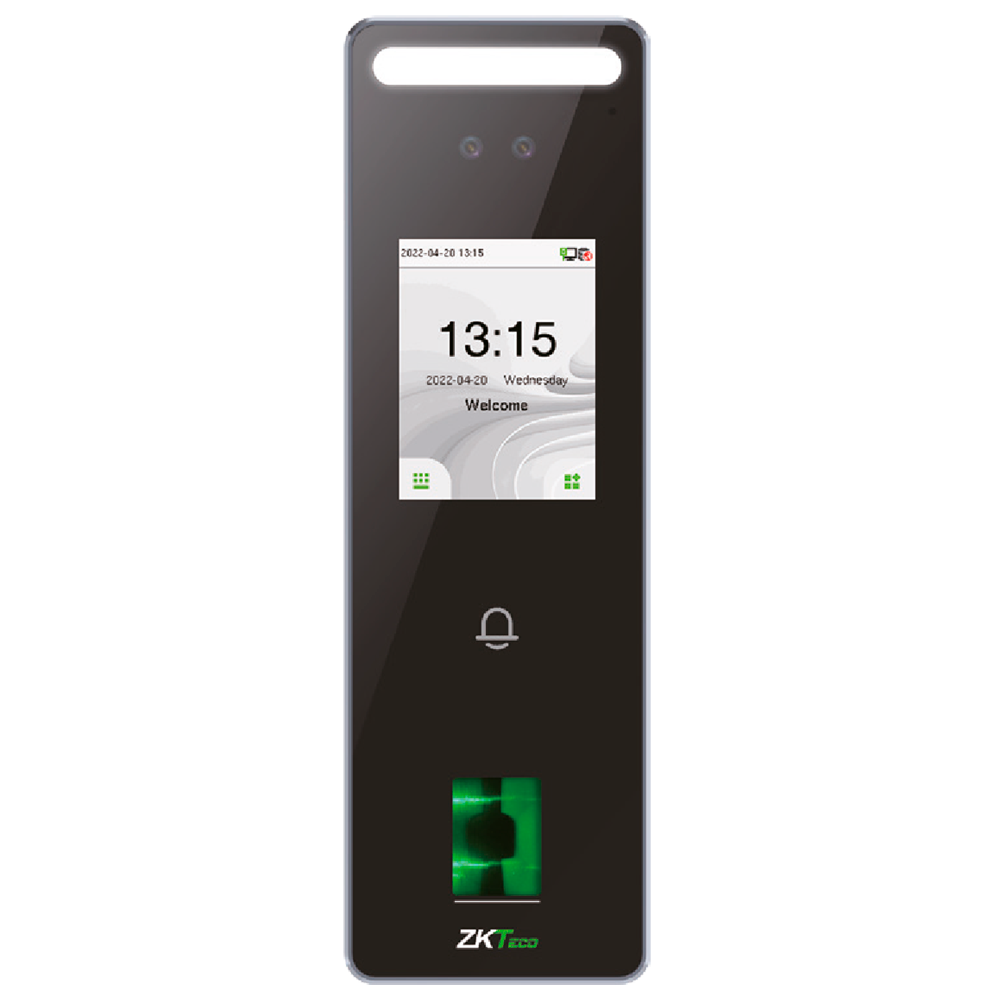

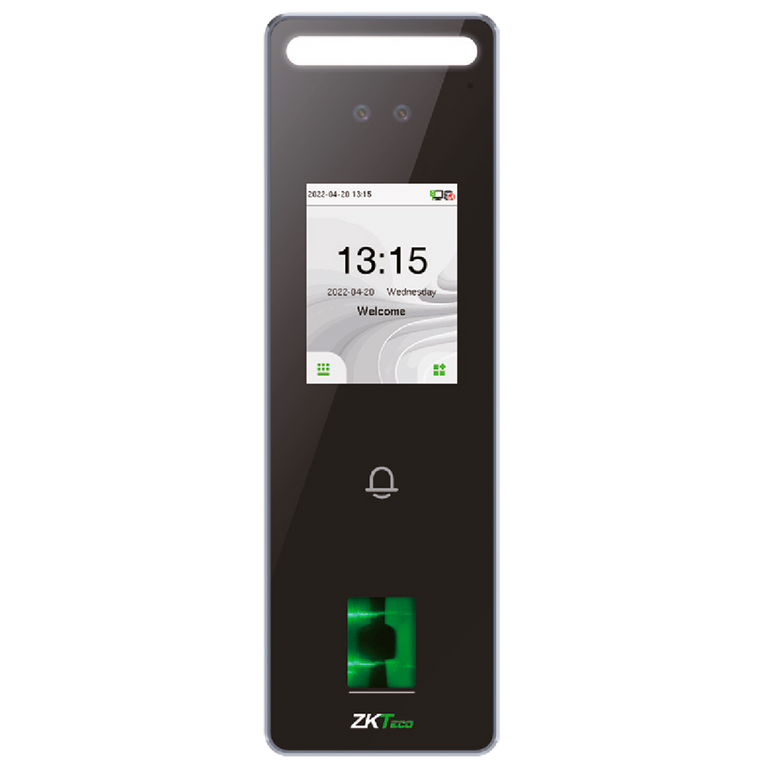

Access control and time attendance terminal with touchless face recognition, fingerprint, proximity card and PIN. It identifies a person in under a second at 0.5 to 2 m, detects fake photos and videos, and has a built-in door controller, so it drives the lock without extra equipment. Rated IP65, it can be installed outdoors.
Key features
- Touchless face recognition at 0.5 to 2 m, in under 1 s
- Fingerprint in under 0.3 s, EM 125 kHz card and PIN, in any combination
- Up to 500 faces, 3,000 fingerprints, 3,000 cards and 200,000 records
- Anti-spoofing against photos and videos
- Built-in controller: lock, door sensor, exit button, alarm and doorbell
- TCP/IP, WiFi, RS485 and Wiegand input and output
- Outdoor-ready with IP65; mounts on a standard single-gang box
Specifications
| Brand |
ZKTeco |
| Model |
SpeedFace-V3L (VL-SPEEDFACE-V3L-FP-1-W) |
| Display |
2.4" touchscreen, 240 × 320 |
| Camera |
1 MP binocular with adjustable LED fill light |
| Processor and memory |
1.2 GHz dual core, 256 MB RAM, 512 MB storage |
| Capacity |
500 faces, 3,000 fingerprints and 3,000 cards (expandable to 1,500, 5,000 and 10,000) |
| Records |
200,000 |
| Identification modes |
Face, fingerprint, card, PIN and combinations |
| Verification speed |
Face < 1 s · fingerprint < 0.3 s |
| Face recognition distance |
0.5 to 2 m |
| Proximity card |
RFID EM 125 kHz |
| Communication |
TCP/IP, WiFi, RS485, Wiegand input and output |
| Built-in controller |
Lock, door sensor, exit button, auxiliary input, alarm and doorbell |
| Functions |
Anti-passback, access levels, groups, time zones and holidays, tamper alarm |
| Software |
ZKBio CVAccess, ZSmart app and ZKBio Zlink cloud |
| Power supply |
12 V DC / 3 A |
| Protection rating |
IP65 |
| Operating temperature |
-5 to +45 °C |
| Humidity |
10 to 90 % non-condensing |
| Dimensions |
185 × 58.5 × 20 mm |
| Weight |
300 g |
| Certifications |
CE, FCC |
